ชุดไมค์บันทึกเสียง AUSTRIAN AUDIO OC818 Studio Set คอนเดนเซอร์แบบ Large-diaphragm ที่มีรูปแบบหลายขั้ว ความไวสูงเสียงรบกวนในตัวต่ำ จากแบรนด์ AUSTRIAN AUDIO

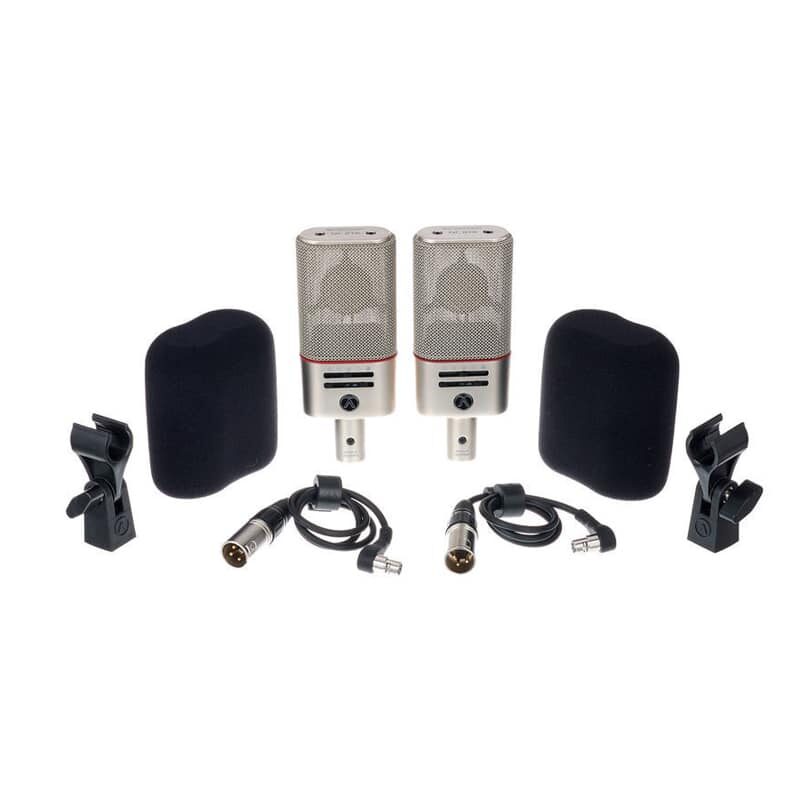

AUSTRIAN AUDIO OC818 Live Set
Large-diaphragm Condenser Microphone with Multiple Polar Patterns
The new viennese original
Mic System
OCR8
Bluetooth
Dongle
Remote Control Module
(optional)

- Optional remote control of OC818 via smart device
- Bluetooth connectivity via phantom power
- PolarPilot-App available for iOS or Android
- Control polar patterns, pads and high pass-filters

- Our free PolarPilot app (Android and iOS) allows real-time wireless control over your analogue patterns, high-pass, and pad in realtime via Bluetooth
- Save, recall, and share favourite settings
- Discover and create 255 discrete polar patterns
- One setting may be stored in OC818 for use without the PolarPilot app
- The OC818 is always pure analogue: only the analogue bias voltages are being governed remotely
- Switching also is always analogue
- No digital in either the audio or bias paths. It’s everything you want, with none of what you don’t
- 60 second OC818 clipping monitor/logger
- Wireless control from the comfort of your chair

- Design the polar pattern of your dreams
- Craft different polar pattern responses across 1-5 crossover bands
- Store, recall, and share presets
- Powerful terminator AI for eliminating or rescuing selected frequencies and instruments
- EQ control for imprinting the tonality of free-field or diffuse-field idealised responses
- Solo/mute each band
- Full automation
- Phase linear
- Optimised for use with the OC818 in Dual Output mode, however works with any dual output source
- Ideal for busy sessions: tune instrument pickup during the mix stage
- Formats: VST3, AAX, AU (OSX 64 Bit / Windows 32 & 64 Bit)
- Mac requirements: OSX 10.7 or later
- Windows requirements: Windows 7 or later

- Create an ambisonic B-format signal with two OC818 microphones

The heart of the OC818
CKR12 Ceramic Capsule
Making Passion Heard
Polar Patterns & Frequency Charts










Key Features
- Handmade CKR12 ceramic capsule
Made to the same critical dimensions as the classic CK12 capsules
- Multiple polar patterns
Cardioid, omnidirectional & custom programmable
- Microprocessor control of polarisation voltages
Allows remote controlled polar pattern settings
- Two different analogue high-pass filters with three settings
40 Hz, 80 Hz, 160 Hz
- Two different types of analogue pads
-10 dB, -20 dB
- Dual outputs
for recording each diaphragm separately
Technical Specifications
- Main Connector:
XLR 3 pin
- Equivalent noise level:
9 dB SPL (A)
- or remote:
Mini XLR 5 pin Connector for back membrane
- Max SPL:
148 dB SPL (158 dB SPL)
- Dimensions:
157 x 63 x 35 mm
- Switchable pad:
-10 dB, -20 dB
- Weight:
360g
- Analog Low Cut filter:
40 Hz (2nd order), 80 Hz (2nd order), 160 Hz (1st order down to 80Hz, 2nd order below)
