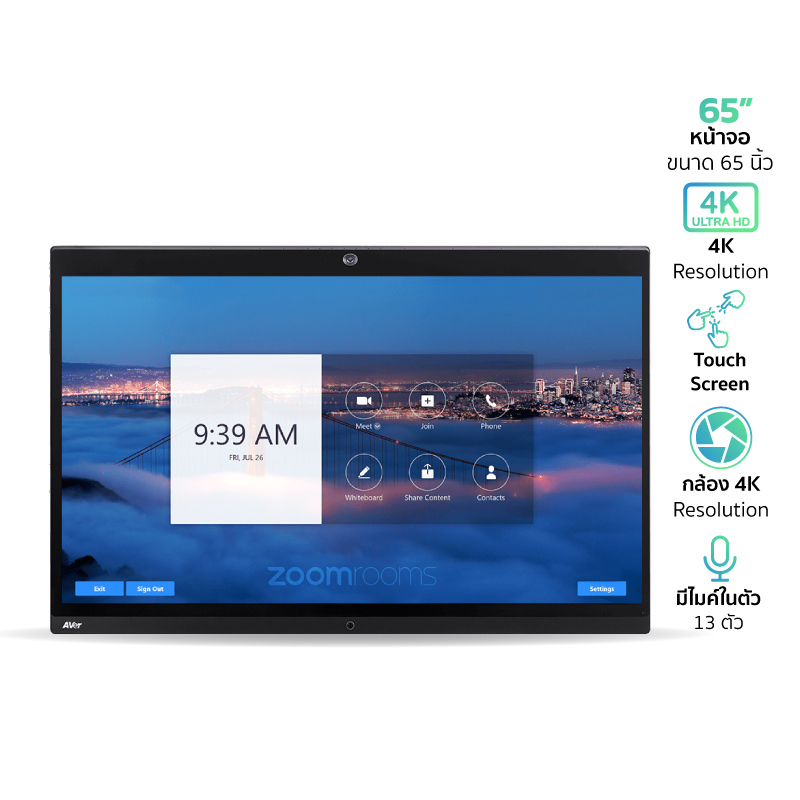

All-in-One Touch Panel AVER EP65 จอทัชสกรีน 4K 65 นิ้ว Windows 10 IoT Intel i7-7700, 4K Camera พร้อม microphone array และ ลำโพง ในตัว จากแบรนด์ AVER

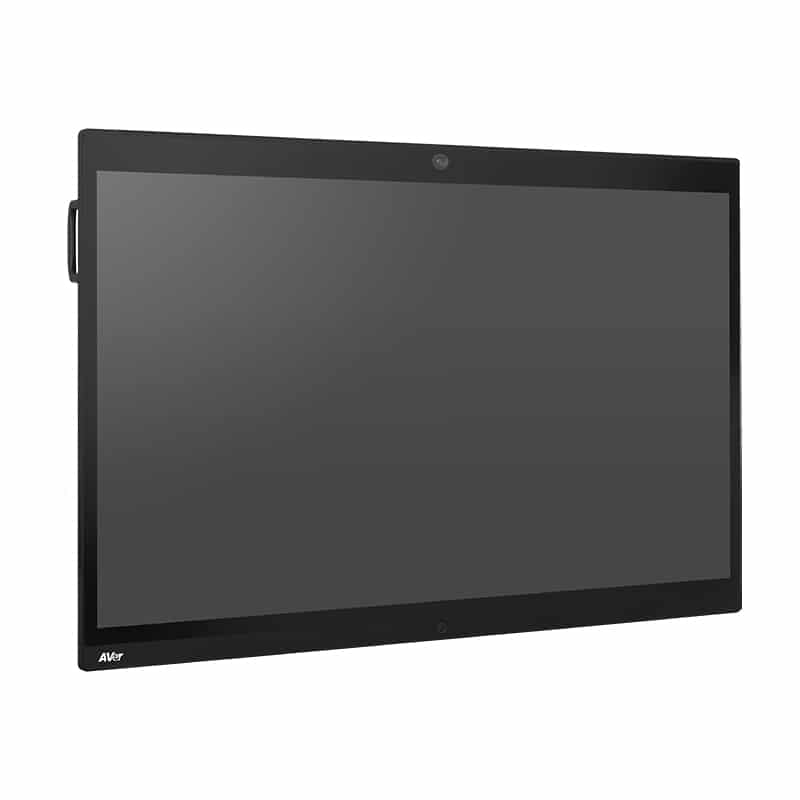

AVER EP65
All-in-One Touch Panel with Zoom Rooms
All-in-One Touch Panel with Zoom Rooms
Take advantage of the advanced business productivity that comes with the AVer EP65! This all-in-one display for enterprises is fully loaded with a 4K P-CAP touch panel, a Windows 10 IoT Intel i7-7700 Processor, a 4K camera, and Zoom Rooms integration. Share ideas face-to-face without worrying about distance.
Seamless Multi-Integration

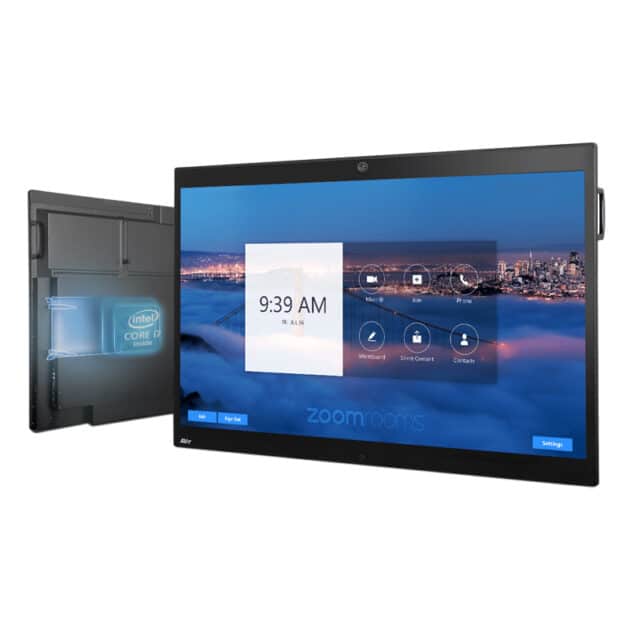

Efficient management and minimal maintenance improve your conferencing experience. The AVer EP65 is equipped with a removable PC modulethat features a Windows 10 IoT Intel i7-7700 Processor and is seamlessly integrated with Zoom Rooms software.

Super Easy Installation

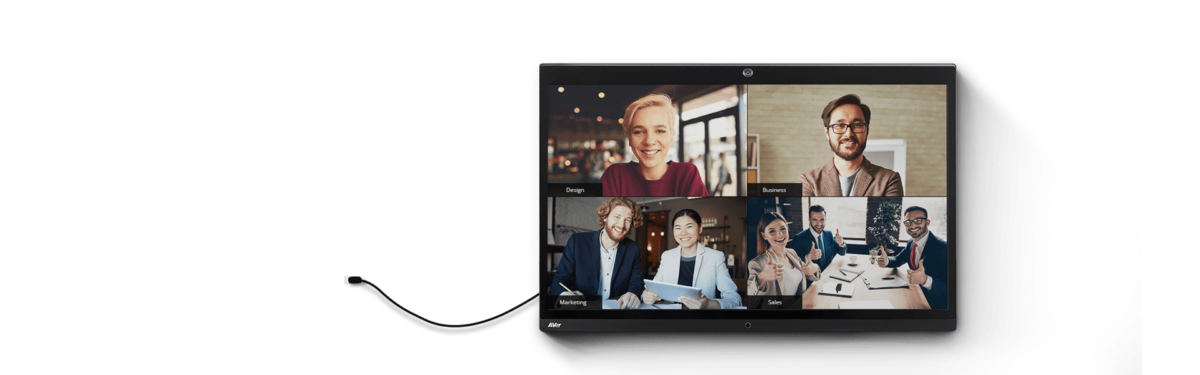

How easy is it to install the AVer EP65? Just plug in a single power cable, and you’ll be ready to work in one second. The EP65 can replace complicated cross-platform setups and save time for meeting preparation.

Close Collaboration
Develop an agile workplace and keep everyone on the same page. Brainstorm, interact, take notes, annotate on a shared screen, or enable split-screen multitasking with the AVer EP65’s 4K P-CAP touch panel with 20 touch points.
-
65″Size
-
4KP-CAP Touch Panel
-
20Touch points

Multifunctional to meet enterprise-grade requirements
Cloud Recording

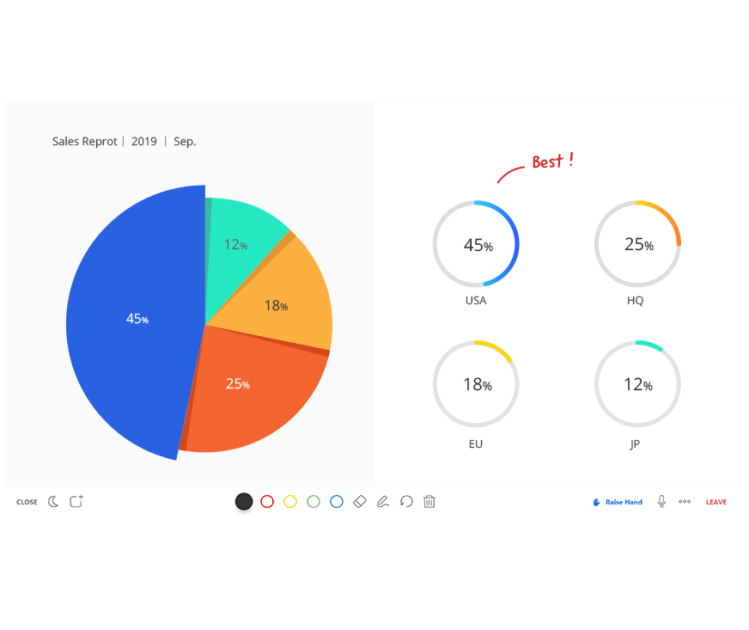

Whiteboard Sharing

Digital signage

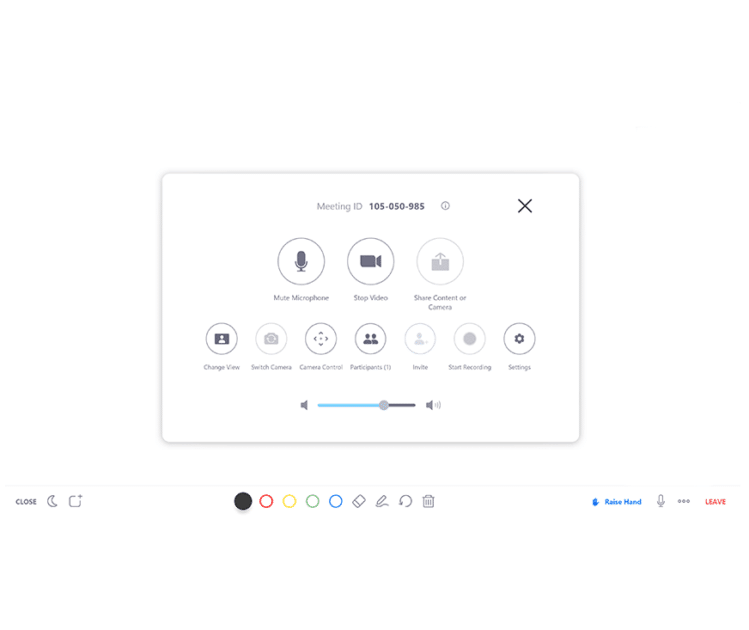

Lifelike Video Conferencing

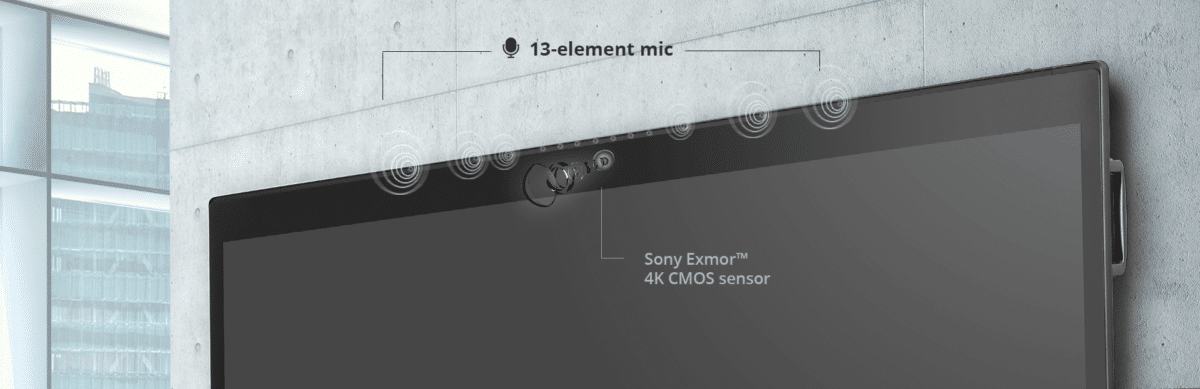

Experience lifelike meetings with partners, no matter how far apart you are. The AVer EP65 is embedded with a Sony Exmor™ 4K CMOS sensor and a 13-element mic array to provide super-sharp video and crystal-clear audio.

Versatile Compatibility
No boundary between traditional video conferencing systems and EIFPs via H.323/SIP connector powered by Zoom Rooms

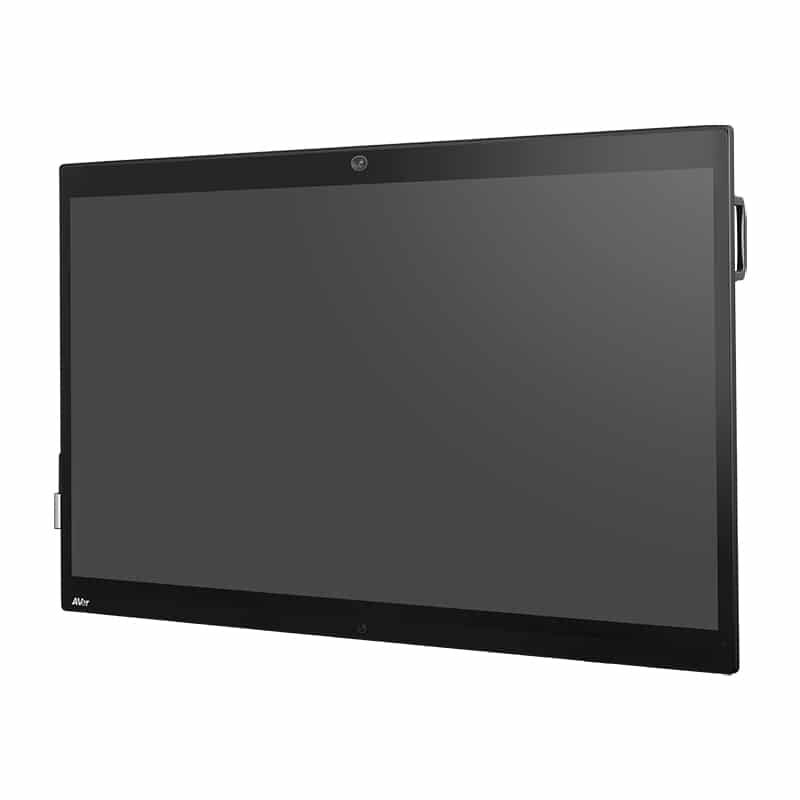

Display Panel
- Screen size: 65 in
- Resolution: 4K Ultra HD 3840 × 2160
- Display ratio: Landscape 16:9
- Brightness: 350 cd/m2
- Contrast ratio: 1200:1
- Response time: ≦9 ms
- Frame rate: 60 Hz
- Viewing angle: 178º
- Lifetime: Up to 30,000 hrs
- Sensing type: Projected capacitive
- Touchpoints: 10 points for writing, 20 points for touch, 10 points for Zoom Rooms Whiteboard
- Touch-screen writing tool: Finger or active capacitive pen
- Communication interface: Full-speed USB
- Touch interface: USB 2.0 type B
- Touch pen: Active pen
- Glass coating: Anti-Fingerprint and Anti-glare
- Surface hardness: Toughened glass (level 7 MoHS)

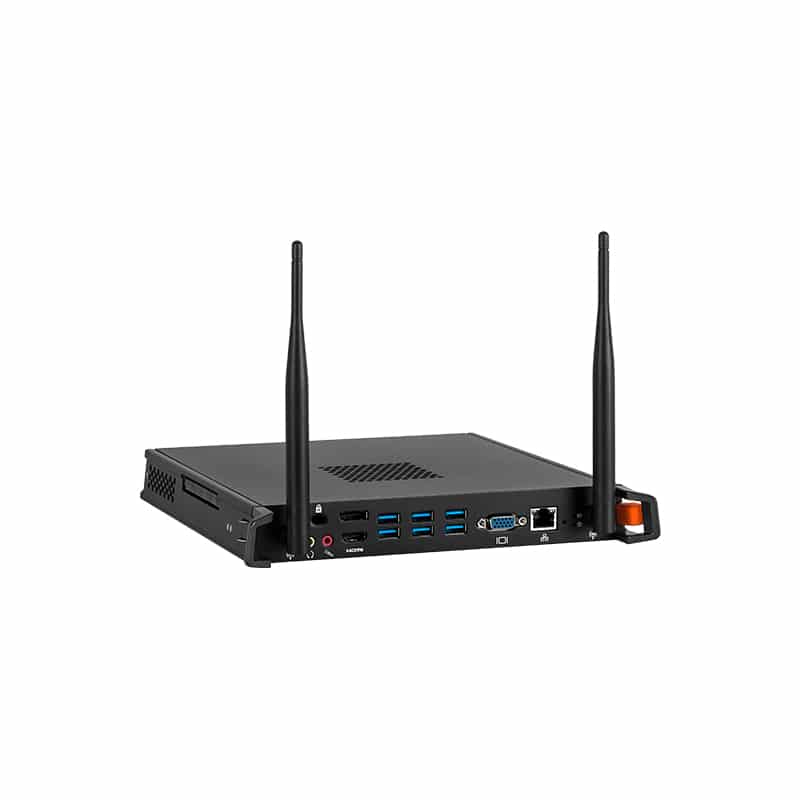

PC Module
- Type: Pluggable
- Model: OPS-Z1
- CPU: Intel® Core™ i7-7700 3.6GHz 65 W
- RAM: DDR4 16 GB
- Hard drive: 128 GB SSD
- Graphics: Intel® HD 630
- Soundcard: Integrated high-definition audio stereo
- Networking: 10/100/1000 Mbps
- Wi-Fi: Intel® 802.11 ac 2.4 & 5 Ghz (2 antennas included)
- Bluetooth®: 4.0
- Operation system: Windows® 10 IoT LTSB

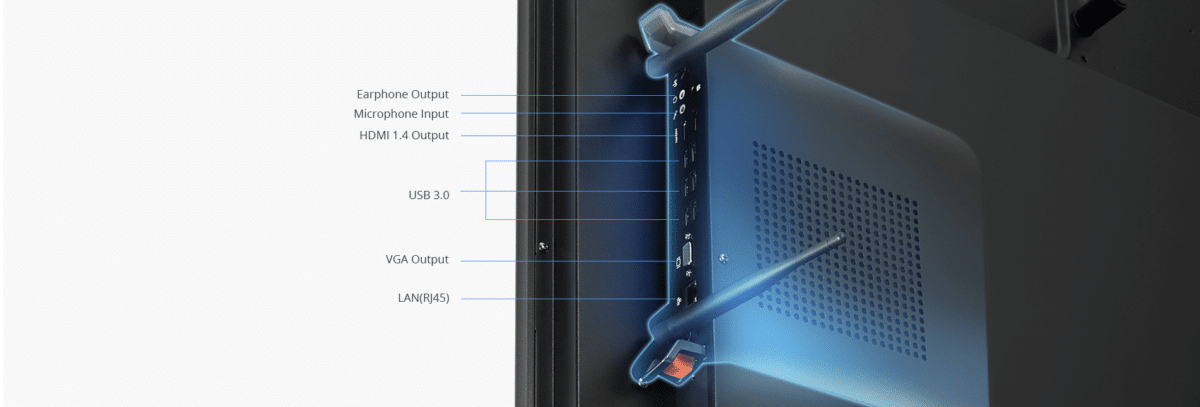

- Connectivity: USB 3.0 x6, RJ45 x1, mic in x1, earphone out x1, VGA out x1a, DisplayPort out x1b, HDMI 1.4 out x1c, Kensington Security Slot
- Dimensions: 246 x 265 x 35 mm
- Net weight: 1.92 kg
- Gross weight: 2.46 kg

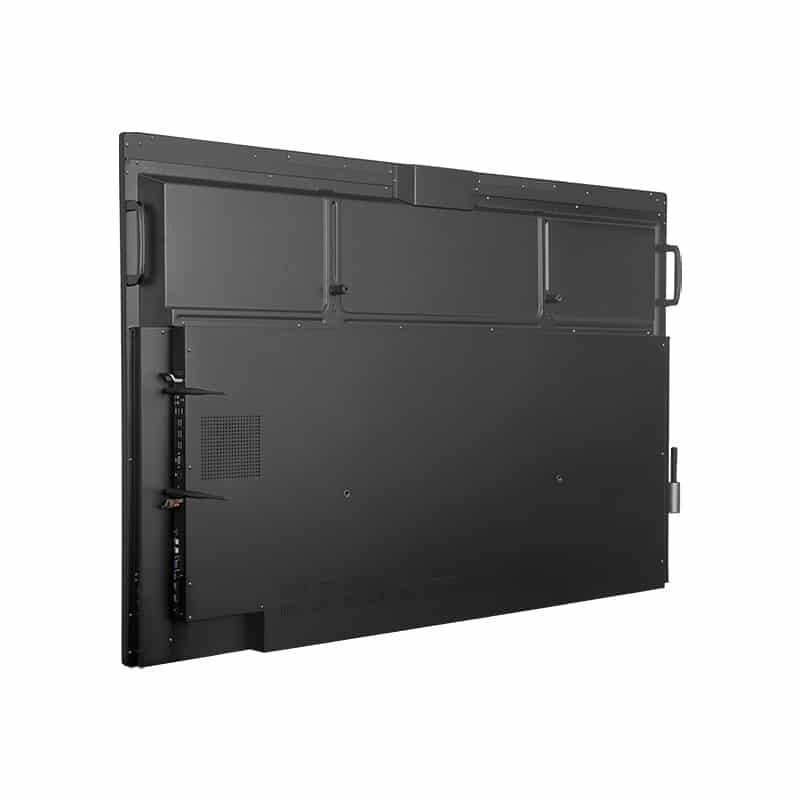

Physical Specs & Dimensions
- Dimensions: 1491 × 958 × 88 mm
- Net weight: 43 kg (PC module not included)
- Gross weight: 59.46 kg
- Wall-mount screw: M8 × 25 mm
- VESA: 600 × 400 mm (4 x M8)
- Handles: 2
- Touch-pen holder: 1

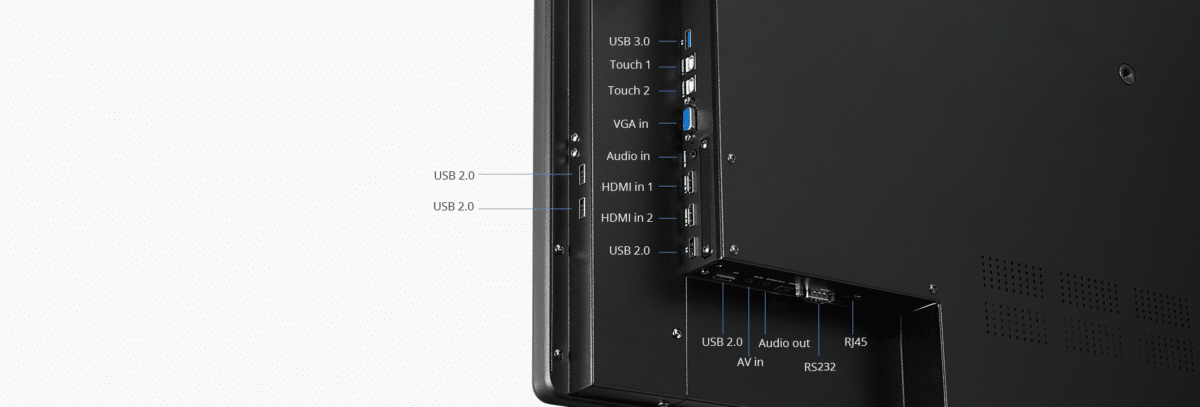

Connectivity
- HDMI 2.0 in x 2
- touch USB-B x 2
- VGA in x 1
- audio in x 1
- audio out x 1
- S/PDIF x1
- AV in x1
- USB 2.0 x 4 (service only)
- USB 3.0 (service only)
- RS-232 x 1
- RJ45 x 1
- PC module slot x 1
Camera
- Sensor: Sony Exmor™ 4K CMOS sensor
- Frame rate: 4K Ultra HD at 25 fps, up to Full HD 1080p60
- Field of view: 94° diagonal, 85° horizontal, 55° vertical
- Lens: Fixed
- Lens focal length: 3.37 mm ±5%
- Lens F#: 2.8
- S/N ratio: >50 dB
- Minimum illumination: 1.4 l x (50 IRE, F 2.8, shutter 1/30)
- 2D noise reduction: Yes
- Camera angle: -20° tilt embedded camera
Microphone
- Microphone array: 13-element microphone array
- Sensitivity: -26 dBFS
- SNR: 65 dB
- Sensitivity tolerance: ±1 dB
Speaker
- Type: Built in
- Power output: 12 W × 2
Power
- Voltage: 100 ~ 240 V, 50/60 Hz
- Standby power: ≤0.5 W
- Power consumption: 200 W
Operation Environment
- Operation temperature: 0°C ~ 40°C
- Operation humidity: 10% ~ 90%
- Storage temperature: -20°C ~ 60°C
- Storage humidity: 10% ~ 90%
Accessories
- Standard: Power cord x 1, touch pen x 1 (AA battery not included), touch-pen holder x 1, HDMI 2.0 cable x 1, touch cable x 1, quick-start guide x 1
Certifications
- FCC: Yes
- CE, CB, BSMI: Yes
