กล้อง Video Conference AVER EVC170 สำหรับห้องประชุมแบบ FULL HD 1080P ซูมสูงสุด 18 เท่า พร้อม Speakerphone และ built-in meeting server จากแบรนด์ AVER
AVER EVC170
Full HD Endpoint with a Built-In Meeting Server
Full HD Endpoint with a Built-In Meeting Server
The EVC170 delivers the best price–performance ratio in video conferencing. Its built-in meeting server offers optimal unified video communication for medium-to-large meeting rooms.
Focus Your Meeting with AVer SmartFrame
The EVC170 comes with AVer SmartFrame, which maximizes the viewable field with a one-click solution that quickly and effortlessly puts everyone into frame. No more complex settings or time-wasting controls.
Superior Detail from 18X Total Zoom
The EVC170 features superior 18X total zoom, bringing a new level of clarity to video conferencing. Maximize your team’s collaboration with the EVC170’s simple, easy, and efficient video communication capability.

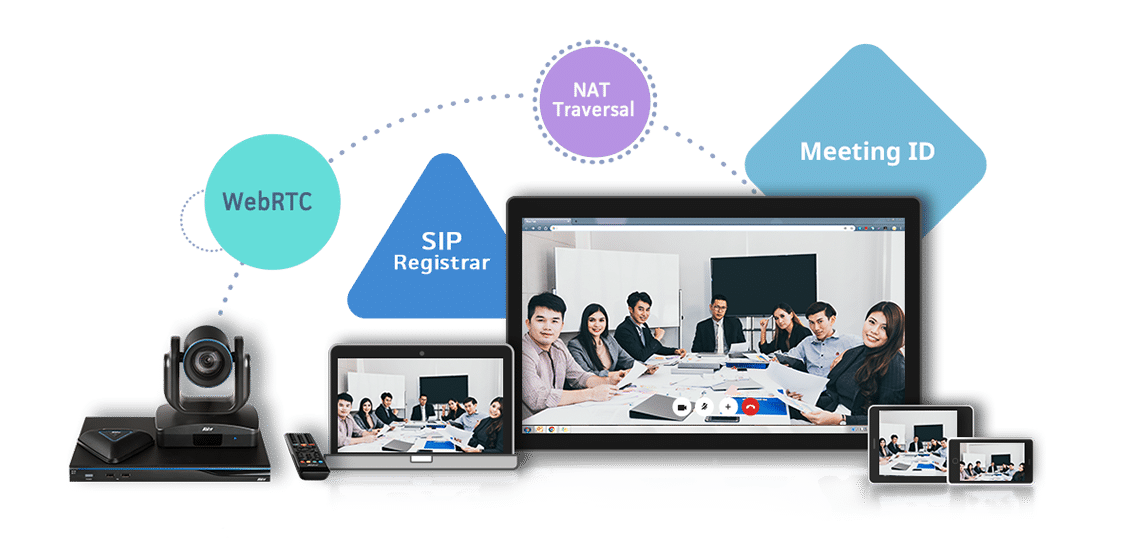

Advancing Video Communication with a Built-In Meeting Server
Equipped with a built-in server, the EVC170 supports NAT Traversal, SIP Registrar, and Meeting ID for full compatibility with SIP, H.323, and WebRTC, providing users diverse and easy-to-use collaboration possibilities.
Perfect for Medium-to-Large Meeting Rooms

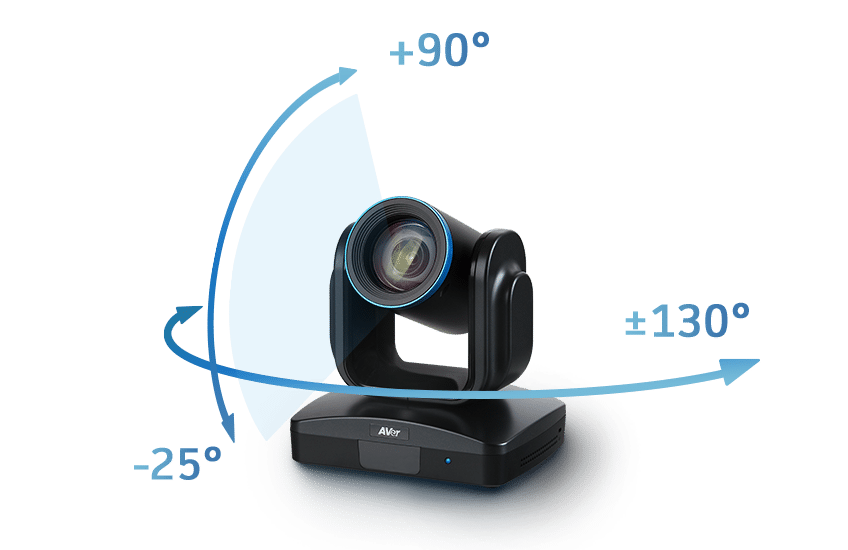

An 82° field of view allows for 7-12 people or more in the meeting room, and the PTZ camera provides flexible motorized ±130° pan and +90°/-25° tilt movement. The EVC170 also supports upside-down mode to solve space limitation problems.

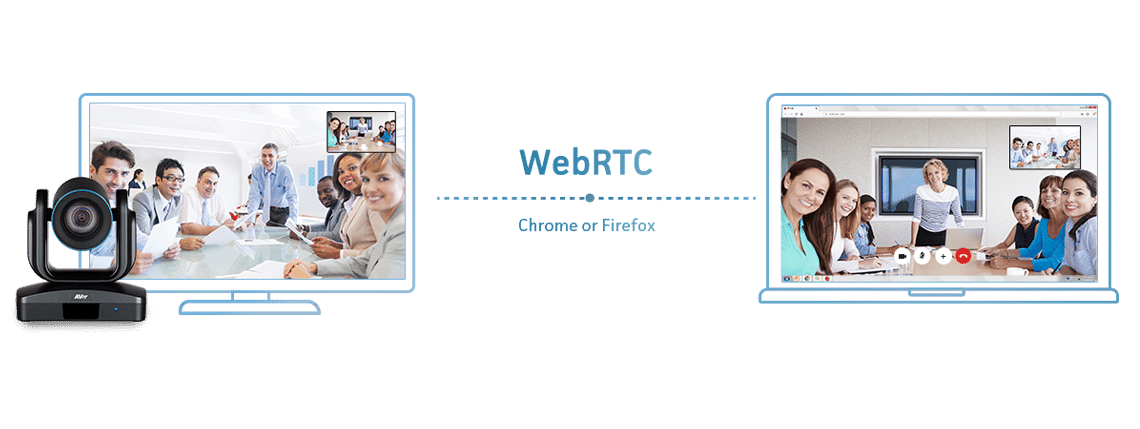

Web Real-Time Communication (WebRTC)
The EVC170 supports instant real-time communication over web browsers (Chrome or Firefox) with WebRTC integration. Use WebRTC to share slides or set up live customer support without an expensive third-party service (license upgrade required).

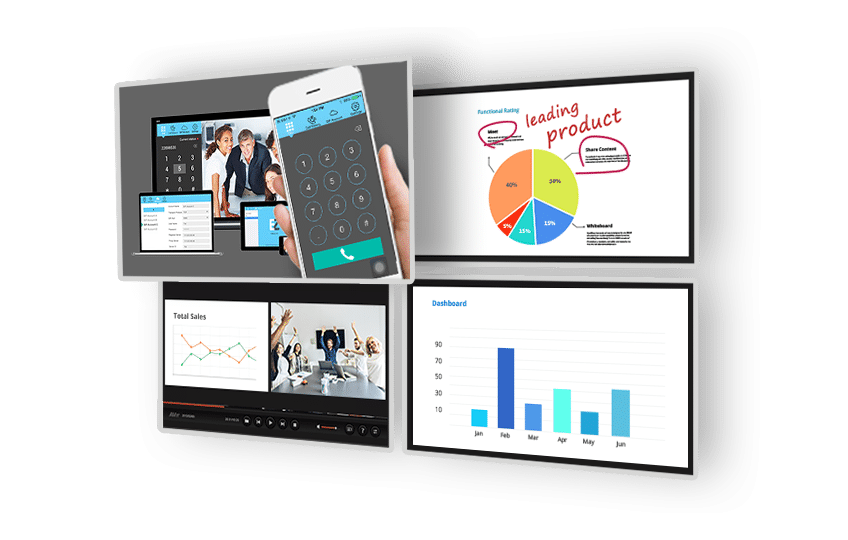

Free Software Support
AVer’s free software allows users to experience unlimited communication. Software options include EZMeetup, EZDraw, VCLink, VCPlayer, ScreenShare, and VCUtility.

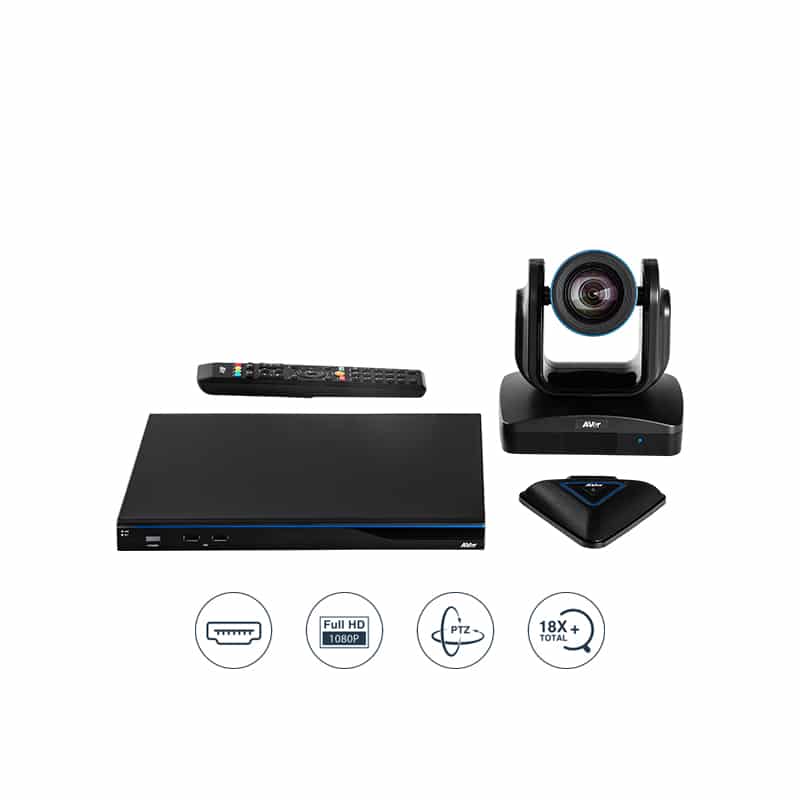

Package contents
- Main system unit (codec)
- eCam PTZ IV camera
- EVC microphone array
- IR remote control with batteries
- Power supply
- Cables
- Warranty card
- Quick guide
Communications
- H.323, SIP standards, SIP TLS
- WebRTC (License Required)
- Call-Quality bandwidth 64Kbps ~ 8Mbps
- RJ45 network LAN (10/100/1000)
- Manual max. bandwidth settings

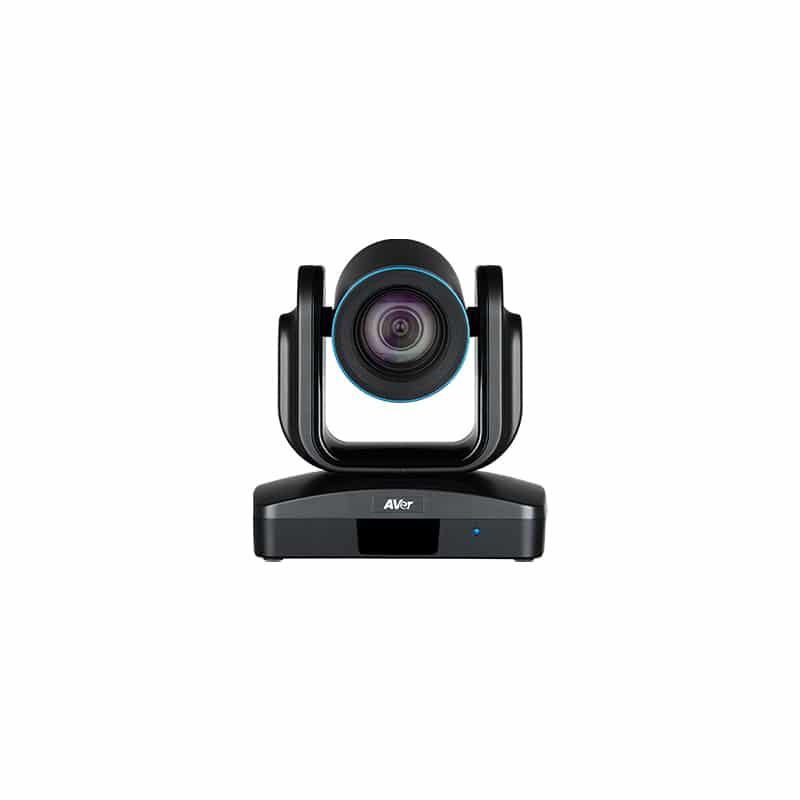

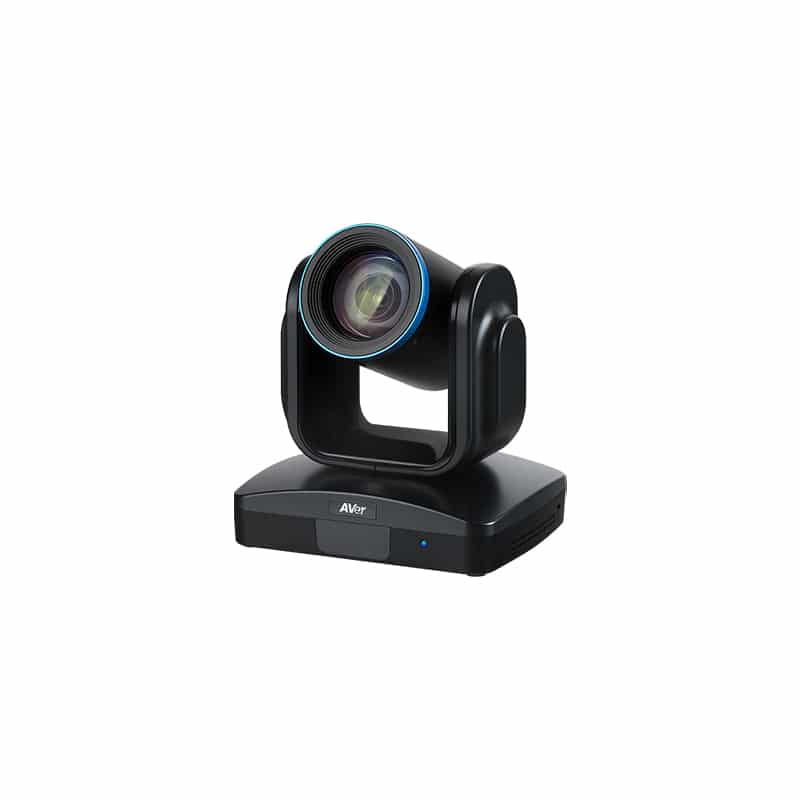

Camera
- eCam PTZ IV camera
- 2-megapixel CMOS sensor
- 18X total zoom (12X optical + 1.5X digital)
- ±130° pan; +90°/-25° tilt
- 72° FOV (H); 43° FOV (V); 82° FOV (diagonal)
People video resolutions
- HD 1080p (1920 x 1080), up to 60fps
- HD 720p (1280 x 720)
- 480p (848 x 480)
- 4CIF (704 x 576)
- CIF (352 x 288)
- SIF (352 x 240)
- All resolutions at 30fps
Content video resolutions
HDMI-supported resolutions
- 1080p (1920 x 1080)
- 720p (1280 x 720)
- D1 (720 x 480)
- SXGA (1280 x 1024)
- XGA (1024 x 768)
- SVGA (800 x 600)
- VGA (640 x 480)
Output resolutions:
- Up to HD1080p (1920 x 1080) up to 60fps
Video standards
- H.264, H.264 HP, H.264 SVC, H.263+, H.263
- H.239 dual-video streams
- BFCP content sharing
Video features
- 3D denoise
Video inputs
- Main camera eCam PTZ IV
- HDMI/VGA for presentation
Video outputs
- HDMI x 2
- VGA
Audio standards
- G.711, G.722, G.722.1, G.728, G.722.1C, AAC-LD, G729
Audio features
- Automatic gain control (AGC)
- Advanced noise reduction (NR)
- Acoustic echo cancellation (AEC)
Audio inputs
- EVC microphone daisy chain up to 4
- HDMI
- Line-in (3.5 mm)
Audio outputs
- HDMI x 2
- Line-out (3.5 mm)
Other supported standards
- H.224, H.225, H.245, H.281, H.323 Annex Q, H.460
- RTP, RTCP, H.350, SRTP, H.235, HTTP, HTTPs, Telnet, DHCP, DNS
User interface
- Single/dual-monitor layout styles
- User-friendly OSD
(23 supported languages: English, Traditional Chinese, Simplified Chinese, Czech, Danish, Dutch, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Brazil, Romanian, Russian, Spanish, Swedish, Thai, Turkish, Vietnamese) - Display/edit site name
Network
- 10/100/1000Mbps
- NAT/firewall traversal (H.460)
- High Efficiency Lost Packet Recovery (HELPeR™)
- API support via Telnet
- Packet Loss Recovery (PLR)
- Wake-on-LAN (WOL) support
- IPv4 and IPv6 support
- Network test
- Quality of service (QoS)
- VLAN (802.1Q / 802.1P)
- EAP 802.1x
Security
- AES (Advanced Encryption Standard) function (128-bit) and H.235
- Password protection for system settings
- Password protection for remote system management
Web management tool
- Remote management
- Live monitoring
- Firmware update
- Phonebook download/upload/edit
- Restore system settings
- Export call history
- HTTP and HTTPs
Value-added features
- Meeting recording
- In-meeting and offline recording
- Save directly to USB flash drive
- Supports screen re-layout during playback
- Playback and file conversion via VCPlayer software (.MOV and .MP4 format)
- EZMeetup / EZMeetup Plus software/App
- 30-day for free trial
- Connect with H.264 and H.264 HP video codecs
- Receive resolution up to full HD 1080p at 30fps
- Transmit resolution up to full HD 1080p at 30fps
- Support content sharing, capturing and recording
- EZDraw App
- Import .JPG, .PNG, .GIF and .BMP files
- Export .PNG files
- Connect up to 10 devices
- ScreenShare software (Wirelessly share content)
- VCLink software (control and sharing in smartphone)
- Dual-monitor support output (video and content sharing)
- Speed dialing via hot keys (10 sets)
- Camera presets (100 positions)
- Firmware updates via USB flash drive
- Screensaver and auto power-off mode
- Network Time Protocol (NTP)
- SnapShot
- Supports SIP voice calls
- iSCSI storage device settings
- Built-in meeting server
- Supports AVer Register Server (ARS)
- Far-end Camera Control
- Meeting ID method
Physical characteristics
- Package dimensions: 376 x 300 x 243 mm
- Package weight: 6.99kg (15.41lbs)

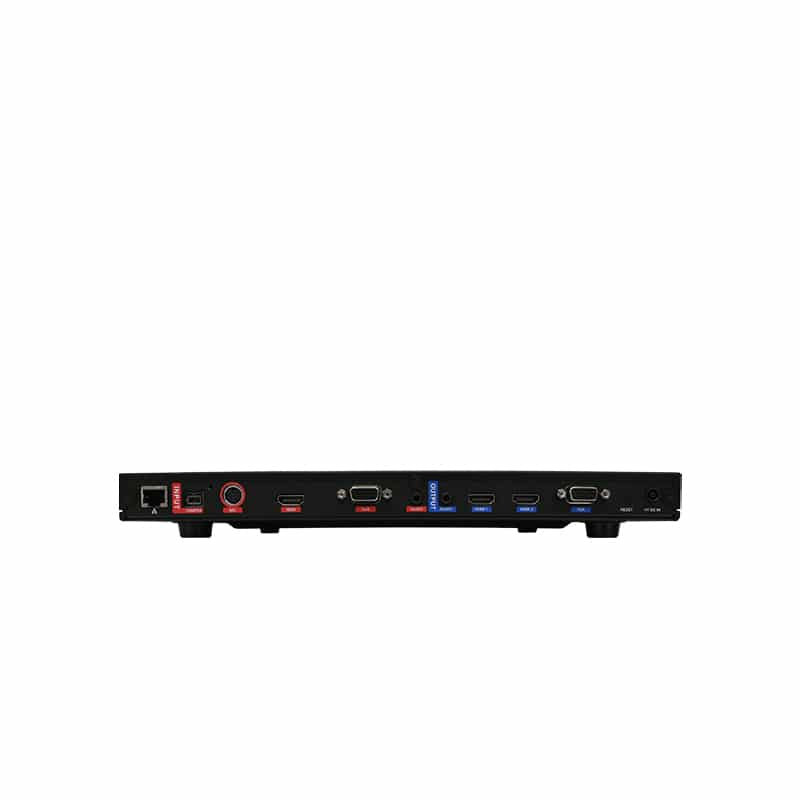

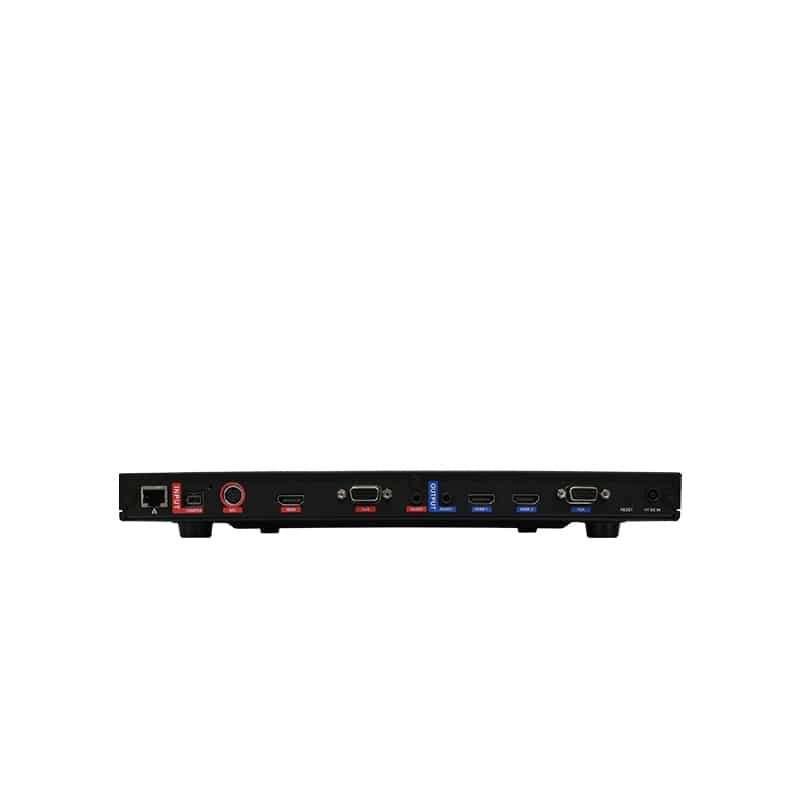

- Main system (codec): 320 x 262.7 x 37.2 mm
- eCam PTZ IV: 180 x 144 x 184 mm
- EVC microphone array: 131.9 x 118.6 x 25.5 mm
Optional accessories
- Additional microphone
- Camera mount
- USB-to-RS232 converter
Software options
- WebRTC License
- Upgrade up to 4 sites license (Exclusive in India)
