กล้อง Video Conference AVER SVC500 สำหรับห้องประชุม FULL HD 1080P ซูมสูงสุด 18 เท่า ที่เก็บข้อมูลภายใน 32 GB รองรับ dual-camera/presentation และ License Upgrade up to 16 Sites จากแบรนด์ AVER
AVER SVC500
Elevate your video conferencing capabilities to the next level
Full HD Endpoint Video Conferencing System
As the next generation of AVer’s video conferencing system, the SVC100 was endowed with a futuristic design. The most standout feature is the stand with a curved design which supports a powerful 18X total zoom lens. Moreover, H.323, SIP, WebRTC and On-Premise Skype for Business support provide endless communication possibilities. The dual-camera/dual-presentation elevates AVer’s video conferencing system to the next level; providing users with unparalleled video conferencing experience.

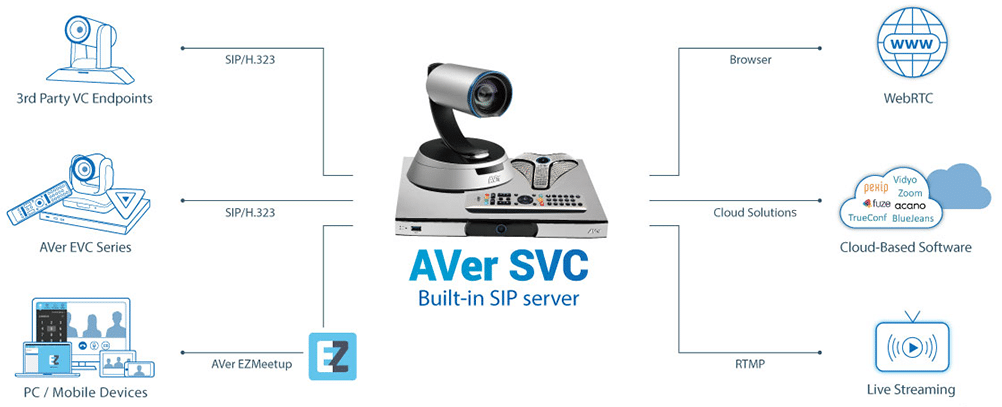

Advancing the Future of Unified Video Communication
Integration of WebRTC, SIP, H.323 and On-Premise Skype for Business
The SVC100 now comes equipped with AVer Omni-Protocol Support for WebRTC, SIP, H.323 and On-Premise Skype for Business, providing users with more diverse and easy to use collaborative communication possibilities. In addition to Omni-Protocol Support, the SVC is capable of receiving, sharing, and streaming content across all of its connection protocols.
- **The SVC and EVC series’ Skype for Business integration will be removed in March 2022 because the authorization contract will expire at the end of February 2022. Products sold before March 2022 will not be affected by this limitation.

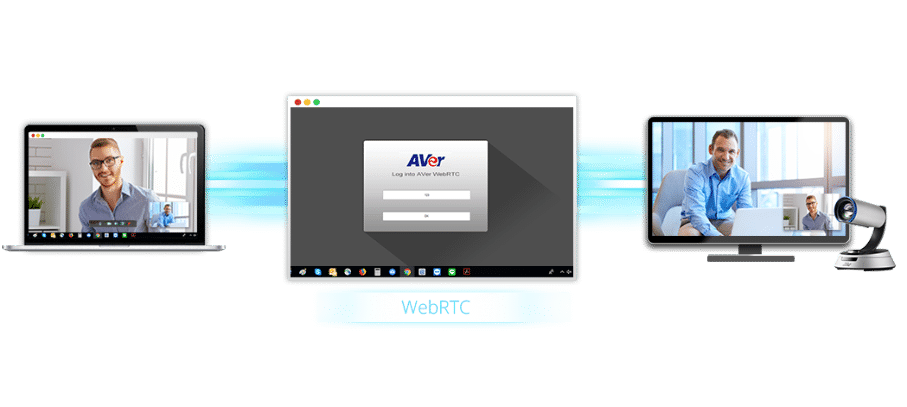

Web Real-Time Communication (WebRTC)
The SVC system supports real-time communications over web browsers (Chrome or Firefox) with WebRTC integration. Connect to WebRTC’s browser-based video conferencing platform and start live conversations instantly. Easily share slide from SVC or set up live customer support without needing expensive third-party related services with WebRTC. (License upgrade required)

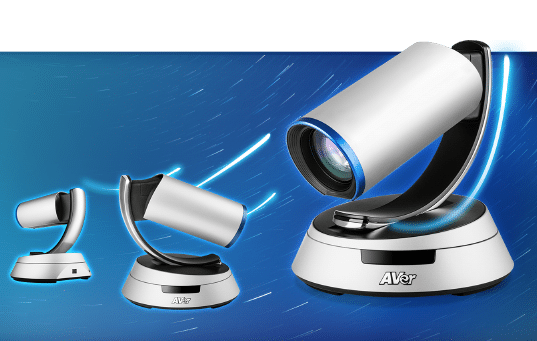

Brand New Future ID Design
The SVC100 was endowed with a futuristic design the stylish “orbit” theme can be seen on the camera, codec, microphone, and even the user interface. The SVC100 conveys our product concept perfectly it is the best choice for next-gen work space.

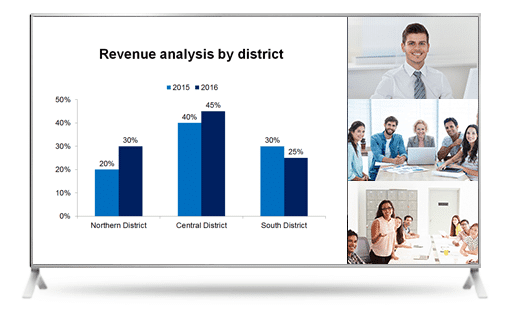

Supports Dual-Camera / Dual-Presentation
More options are available on the SVC100. Now, you can choose to show the 1st camera, the 2nd camera, or both. The SVC100 can also accept input from multiple sources. With two input sources available on the codec, users can choose to use HDMI, DVI/VGA, or both at the same time. The SVC100 is capable of providing an unparalleled video conferencing experience!
RTMP for Live Video Streaming
Live streaming functionality is ready in SVC100. You could live stream video conferencing, presentation, speech, lecture, etc. with an easy setup. Furthermore, SVC100 thinks one step ahead the vital recording function is also just a click away.

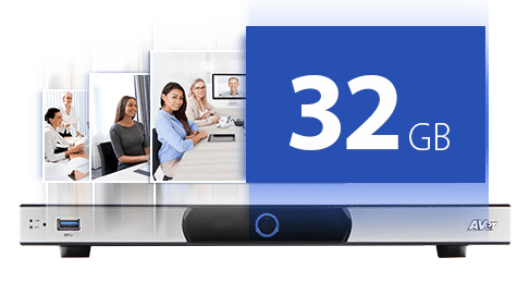

Built-in 32G Recording Storage Capacity
No more fumbling around for a USB drive when you need to record a meeting the SVC100 is equipped with 32 GB of internal storage. In addition, iSCSI functionality is also available for cloud upload. You will never have to miss another event!
Supports License Upgrade up to 16 Sites
Users can take advantage of our license upgrade program to expand up to 16 sites. The system can be expanded easily to meet your company’s growing communication needs.

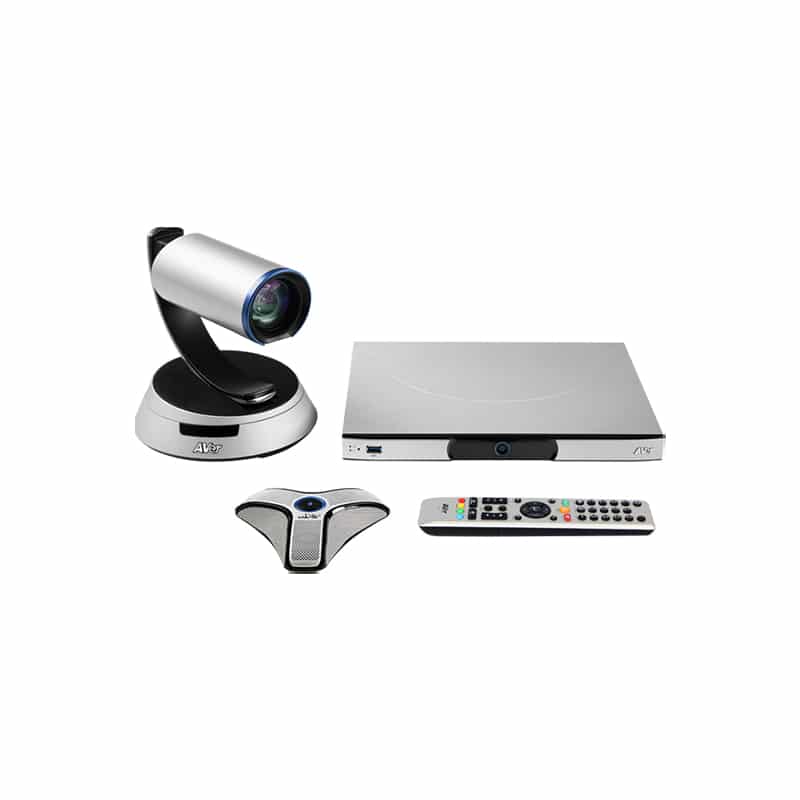

Package contents
- Main system unit (codec)
- eCam PTZ III camera

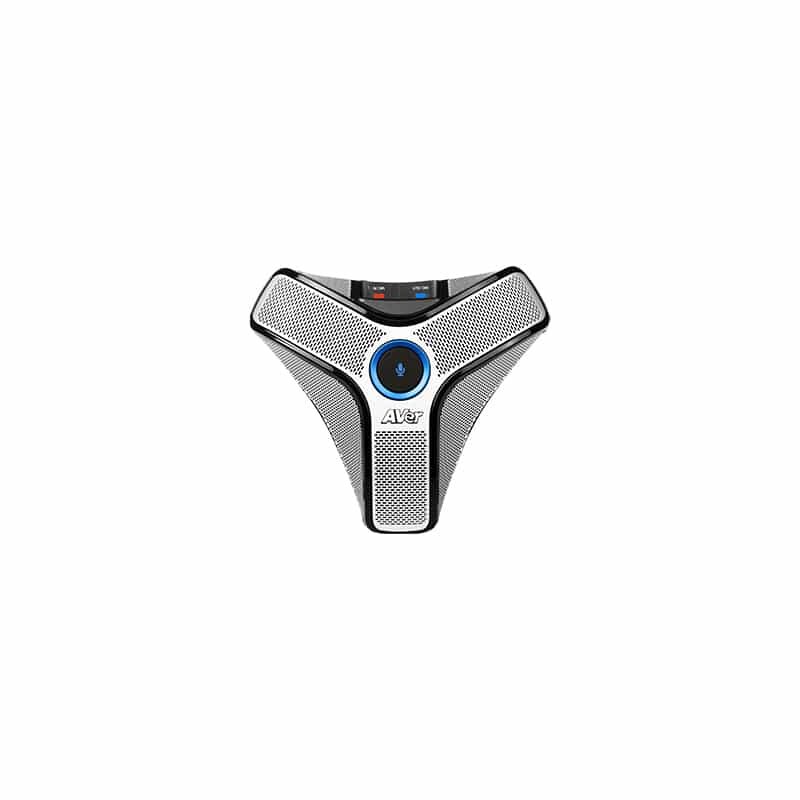

- SVC microphone array

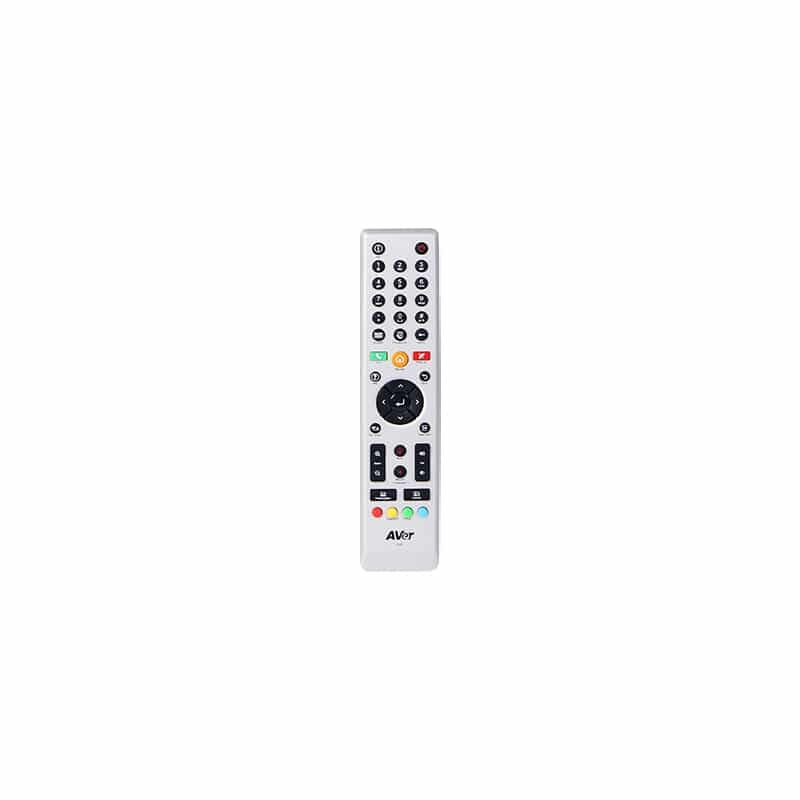

- IR remote control with batteries
- Power supply (12V/6.25A)
- VGA cable (1.8M)
- Power cord (1.8M)
- Camera cable (3M)
- Microphone cable (5M)
- Network cable (3M)
- HDMI cable X 2 (3M)
- Warranty card
- Quick guide
Communications
- H.323, SIP standards, SIP TLS
- WebRTC (License Required)
- Mixed protocols between H.323, SIP, WebRTC
- Call Quality bandwidth 64Kbps ~ 8Mbps
- RJ45 network LAN (10/100/1000)
- Manual bandwidth settings
- Manual Max. bandwidth settings
- Up to 60 Mbps (On 16-Way Multipoint Call)

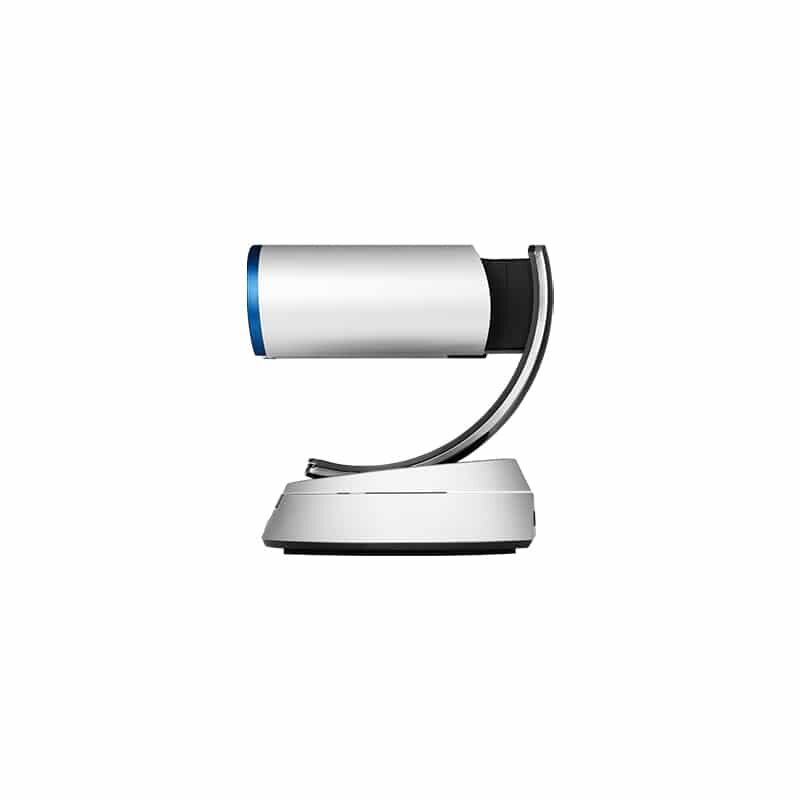

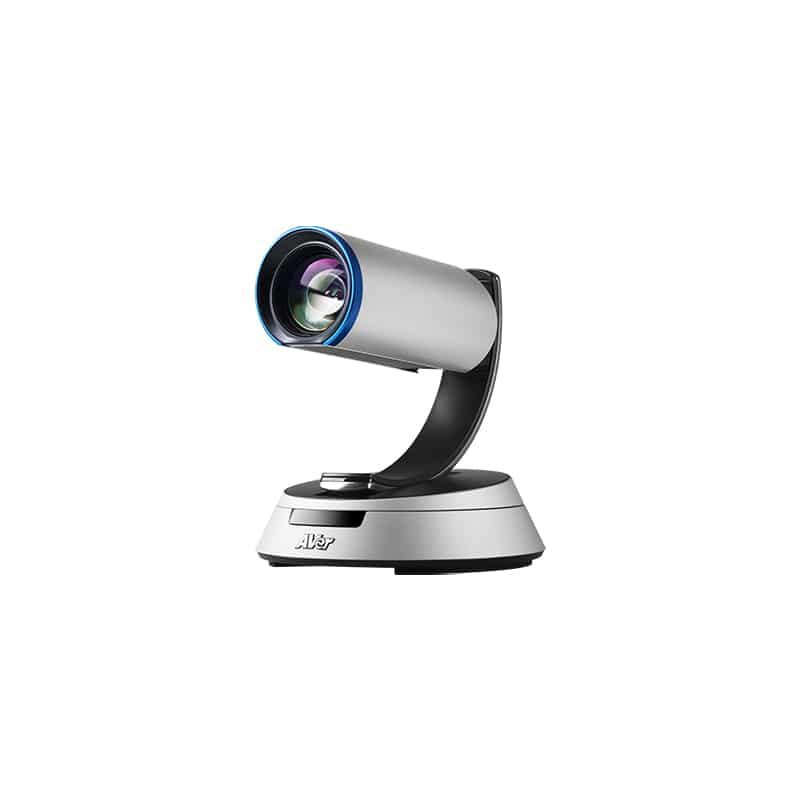

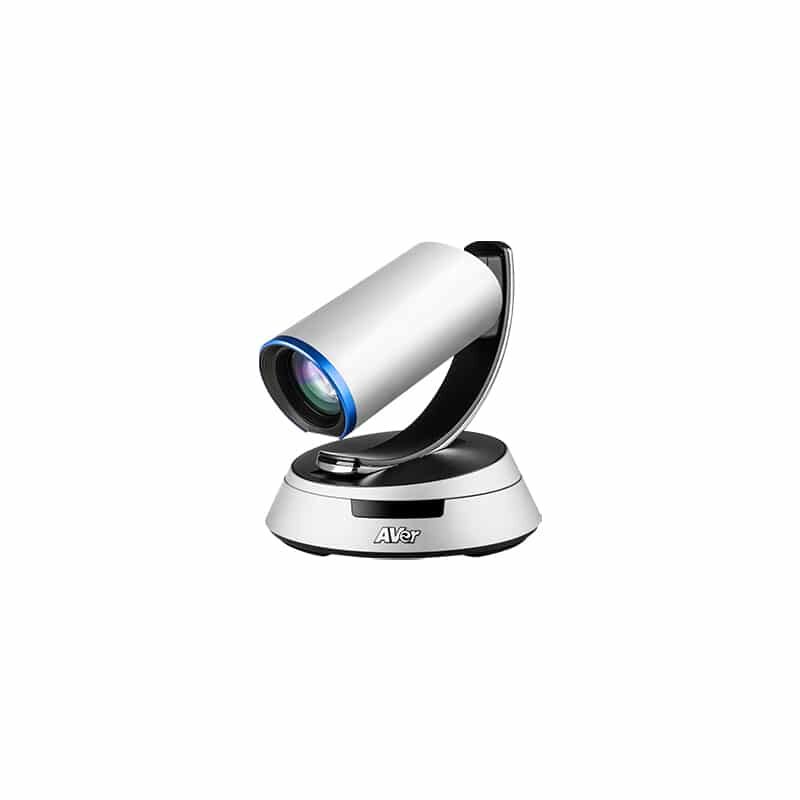

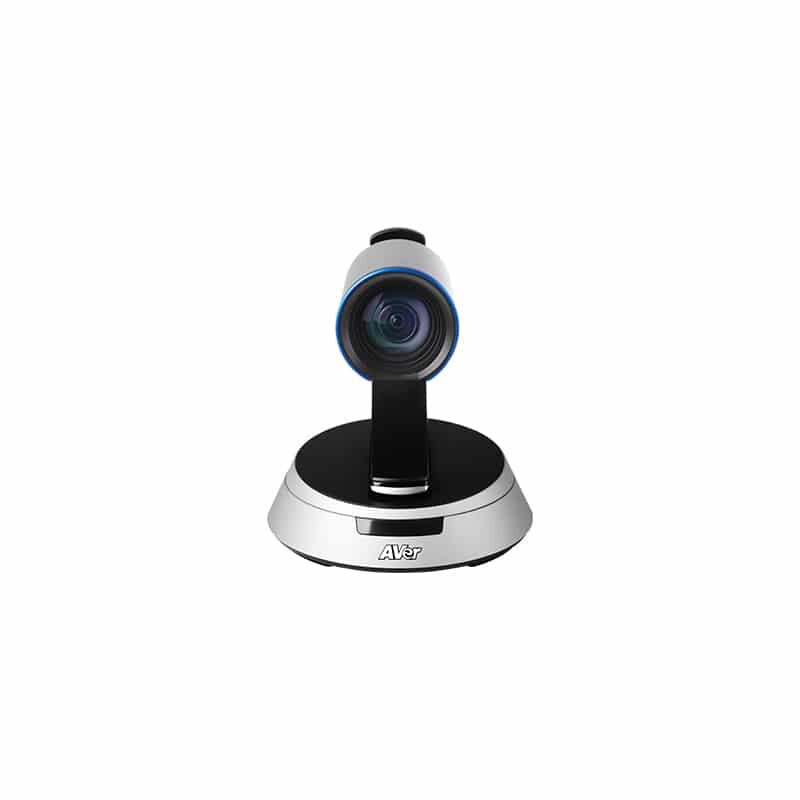

Camera

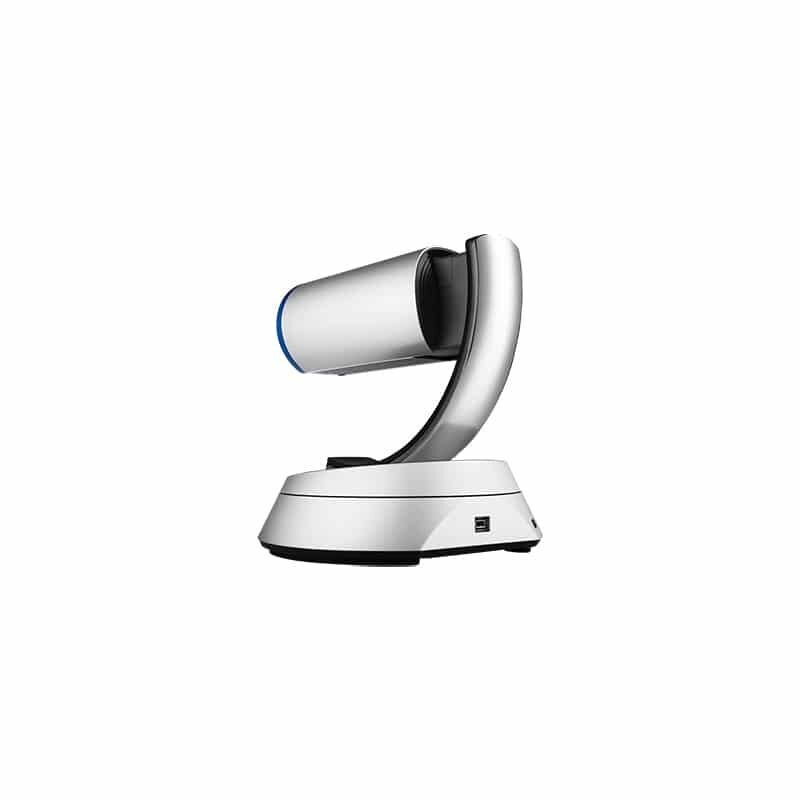

- eCam PTZ III camera
- 2-megapixel CMOS sensor
- 18X total zoom
- ±110° pan; +25°/-25° tilt
- 72° FOV (H); 43° FOV (V); 82° FOV (diagonal)
People video resolutions
- HD1080p (1920 x 1080), up to 60fps
- HD720p (1280 x 720)
- 480p (848 x 480)
- 4CIF (704 x 576)
- CIF (352 x 288)
- SIF (352 x 240)
- All resolutions at 30fps
Content video resolutions
- HDMI supported resolutions:
- 1080p (1920 x 1080)
- 720p (1280 x 720)
- D1 (720 x 480)
- SXGA (1280 x 1024)
- XGA (1024 x 768)
- SVGA (800 x 600)
- VGA (640 x 480)
- DVI (digital) supported resolutions:
- 1080p (1920 x 1080)
- 720p (1280 x 720)
- D1 (720 x 480)
- SXGA (1280 x 1024)
- XGA (1024 x 768)
- SVGA (800 x 600)
- VGA (640 x 480)
- Output resolutions:
- Up to HD1080p (1920 x 1080) at 60 fps
Video standards
- H.264, H.264 HP, H.264 SVC, H.263+, H.263, H.261
- H.239 dual video streams
- BFCP content sharing
- RTMP for live video streaming
- Forward Error Correction (FEC)
- Anti 30% video packet loss with FEC
Video features
- 3D denoise
Video inputs
- Main camera eCam PTZ III
- HDMI for 2nd camera
- DVI-I/VGA for presentation
- HDMI for presentation
Video outputs
- HDMI x 2
Audio standards
- G.711, G.722, G.722.1, G.728, G.722.1C, G.729, AAC-LD
Audio features
- Automatic gain control (AGC)
- Advanced noise reduction
- Acoustic echo cancellation (AEC)
Audio inputs
- Microphone pickup range of 6m, daisy chain up to 4
- HDMI
- Line-in (3.5 mm)
Audio outputs
- HDMI
- Line-out (3.5 mm)
Other supported standards
- H.224, H.225, H.245, H.281, H.323 Annex Q, H.460
- RTP, RTCP, H.350,SRTP, H.235, SNMP, NTP
User interface
- Single/dual monitor layout styles
- User-friendly OSD (23 supported languages: English, Traditional Chinese, Simplified Chinese, Czech, Danish, Dutch, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese-Brazil, Romanian, Russian, Spanish, Swedish, Thai, Turkish, Vietnamese)
- Display/edit site name
Network
- 10/100/1000Mbps
- NAT/firewall traversal (H.460)
- High Efficiency Lost Packet Recovery (HELPeR™)
- API support via Telnet
- Wake-on-LAN (WOL) support
- IPv4 and IPv6 support
- Network test
- Quality of service (QoS)
- VLAN (802.1Q / 802.1P)
- EAP 802.1x
Security
- AES (Advanced Encryption Standard) function (128-bit)
- Password protection for system settings
- Password protection for remote system management
Web management tool
- Remote management
- Live monitoring
- Firmware update
- Phonebook download/upload/edit
- Restore system settings
- Export call history
Value-added features
- Meeting recording
- In meeting and offline recording
- Save directly to USB flash drive
- Supports screen re-layout during playback
- Playback and file conversion via VCPlayer software (.mov and .mp4 format)
- EZMeetup software/App
- 30-day for free trial
- Connect with H.264 video codec
- Receive resolution up to full HD 1080p at 30fps
- Transmit resolution up to full HD 1080p at 30fps
- Support content sharing, capture and recording
- EZDraw App
- Import .JPG, .PNG, .GIF and .BMP files
- Export .PNG files
- A maximum of 10 devices can be connected
- ScreenShare software (Wirelessly share content)
- VCLink software (Control and Sharing in smartphone)
- VCAssist software (Intelligent Meeting Assistant)
- Dual monitor support and SnapShot
- Speed dialing via hot keys (10 sets)
- Camera presets (100 positions)
- Firmware update via USB flash drive
- Screensaver and auto power off mode
- 2nd camera control from SVC AVer Remote (Via RS-232 with visca/pelco-d/pelco-p)
- Group calling
- Supports SIP voice calls
- ScreenShare software (Wirelessly share content)
- VCLink software (Control and Sharing in smartphone)
- Dual camera and dual content image by Side-by-Side or PIP (4 Video Transmission simultaneously includes Primary camera + 2nd camera + 2 Different contents)
- iSCSI storage device settings
- Built-in SIP server(Up to 100 Registrations, 50 Pair calling)
- Support AVer Register Server (ARS)
- Meeting ID method and High-Res mode
Power supply
- AC 100V ~240V, 50/60Hz
- Consumption: EIAJ 12V, 6.25A
Environmental data
- Operation temperature: 0 ~40°C
- Operation humidity: 20% ~80%
- Storage temperature: -20 ~60°C
- Storage humidity: 20% ~80%
Physical characteristics
- Package dimensions: 422 x 336 x 374mm
- Package weight: 8.88kg
- Main system (codec): 320 x 267.4 x 37.3mm
- eCam PTZ III: 205 x 205 x 195mm
- SVC microphone array: 144.8 x 128.45 x 27.8mm
Optional accessories
- Additional microphone
- Camera mount
- USB-to-RS232 converter
Software options
- 2,4,6,8,10 multipoint license for up to maximum 16 sites
- WebRTC License
