AVER VB342 PLUS ลำโพงซาวด์บาร์ สำหรับวีดิโอคอนเฟอร์เรนซ์ 4K VB342+ Video Soundbar จากแบรนด์ AVER

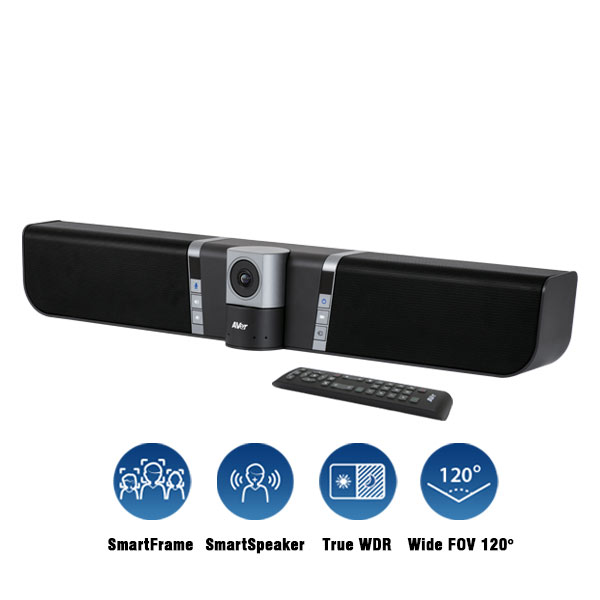

AVER VB342+ VIDEO SOUNDBAR Smartly Captures Wherever You Are
All in one USB 4K UHD Huddle Room Camera and Audio
The new VB342+ makes group video calls easier and more efficient, delivering exceptional audio and video quality for enterprises. It is also equipped with cutting-edge features like SmartFrame, SmartSpeaker, True WDR, and FOV 120° to upgrade your conferencing experience.
![AVER VB342+](https://sounddd.s3.ap-southeast-1.amazonaws.com/wp-content/uploads/2019/09/19094732/1.png)
SmartFrame
![AVER VB342+](https://sounddd.s3.ap-southeast-1.amazonaws.com/wp-content/uploads/2019/09/19094732/2-1.png)
SmartSpeaker
![AVER VB342+](https://sounddd.s3.ap-southeast-1.amazonaws.com/wp-content/uploads/2019/09/19094731/3.png)
True WDR
![AVER VB342+](https://sounddd.s3.ap-southeast-1.amazonaws.com/wp-content/uploads/2019/09/19094731/4.png)
Wide FOV 120°
AVer SmartFrame Captures Everyone
Embedded with AVer SmartFrame, the VB342+ automatically frames all meeting participants, adjusting the camera zoom, pan, and focus to fit everyone on-screen in seconds without overreacting to unimportant movement. Have an efficient meeting with AVer SmartFrame.
![AVER VB342+](https://sounddd.s3.ap-southeast-1.amazonaws.com/wp-content/uploads/2019/09/19094730/5.jpg)
![AVER VB342+](https://sounddd.s3.ap-southeast-1.amazonaws.com/wp-content/uploads/2019/09/19094729/6.jpg)
SmartSpeaker Instantly Identifies Speakers
Highly sensitive SmartSpeaker Tracking pinpoints speakers wherever they are in the room, cutting through noise to zoom in on the human voice. Also, SmartSpeaker’s 6-meter diameter pickup range saves wasted time moving speakers closer to the microphone.
![AVER VB342+](https://sounddd.s3.ap-southeast-1.amazonaws.com/wp-content/uploads/2019/09/19094728/7.jpg)
Constant Clarity with True WDR
Wide Dynamic Range (WDR) controls the exposure and processes the light values of pixels in high-contrast backlight environments to provide clear images. Hold your meeting anywhere and in any lighting with the VB342+.
![](https://sounddd.s3.ap-southeast-1.amazonaws.com/wp-content/uploads/2019/09/19094727/8.jpg)

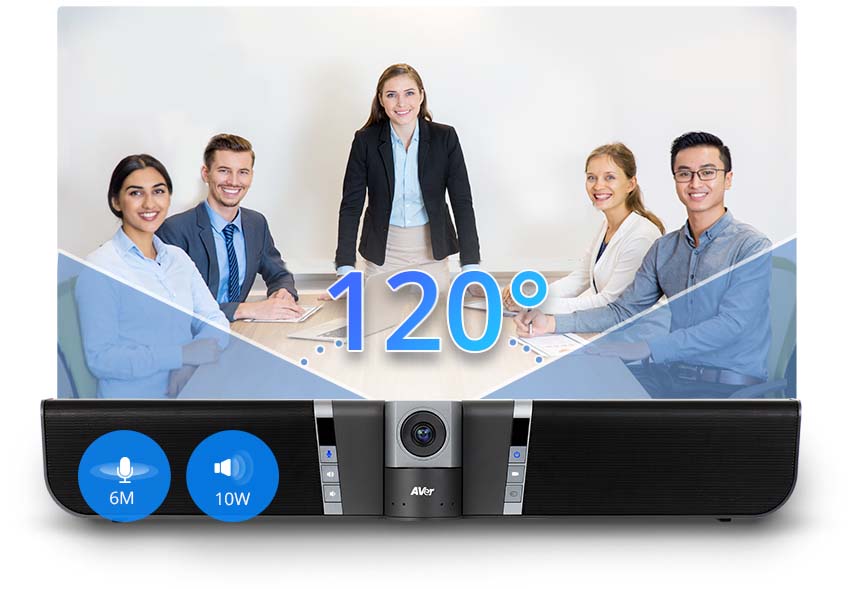

Fit Everyone in the Room
The VB342+ captures the room with a 120° FOV multi-glass lens that features a motorized 180° pan and 105° tilt view for a wider perspective than ever. No more concern about where your seat is located.
![AVER VB342+](https://sounddd.s3.ap-southeast-1.amazonaws.com/wp-content/uploads/2019/09/19094726/9.jpg)
Analytics for Efficient Meeting Rooms
The VB342+ provides an analytics API so enterprises and third-party software providers can obtain people-counting data for better understanding of meeting-space usage.
Camera
- Sony Exmore sensor: Ultra crystal-clear image support up to 4K
- Frame rate: 4K 30fps; 1080p, 720p, 960 x 540, 848 x 480, 800 x 448, 640 x 480, 640 x 360, 424 x 240, 320 x 240, 320 x 180 at 60, 30, 15fps
- SmartFrame & SmartSpeaker: Automatic FOV adjustment to fit all participants and focus on the speaker
- 120° wide field of view
- True WDR up to 120 db: Superb back light compensation technology for optimizing light balance in high-contrast conditions
- Digital zoom rate up to 4X leveraging 4K sensor
- 3D denoise technology maintains clear and natural imaging in low light conditions
- Mirror, AE, white balance: Auto, manual override via PTZApp
- Minimum focus distance: 80 cm
- Analytics API: Enterprises and third-party software providers can obtain people-counting data for better understanding of meeting-space usage
Motorized Pan and Tilt Movement
- Pan: Total horizontal viewing area 180°
- Tilt: Total vertical viewing area 105°
- 10 camera presets (through remote control)
- Fast and quiet pan & tilt movement
Audio
- Microphones: 2 unidirectional microphones supporting 6 m pickup
- 5Wx2 stereo full range speakers with professional bass port tuned for communication
- Volume up to 96 dB SPL at 1/2 meter
- Echo cancellation
- Noise suppression
- 3.5 mm Line-in (aux) cable connects BYOD smartphones or PCs as speakerphones
HDMI
- DisplayLink: Built-in USB 3.1 (Gen 1) to HDMI adapter
- 1080p HDMI output to TV
Connectivity
- 12V/5A power adaptor
- Mini DIN6 for RS232 connection
- USB type C connector
- HDMI out connection (DisplayLink)
- Phone in (3.5 mm audio jack)
- Mic input
- Wireless connection with mobile devices
Video Format
- YUV, YUY2, M-JPEG
USB
- 3.1 Gen 1, backward compatible USB 2.0
- UVC (USB Video Class) 1.1
Control
- IR remote control
- VISCA/pelco P/pelco D via RS232
- UVC/UVA plug-and-play
- PTZApp
Security and Mount
- Camera wall-mount bracket included
System Requirements
- Windows 7/8/8.1/10
- MacOS X 10.7 or higher
- Google Chromebook version 29.0.1547.70
- Android 5 or higher
Hardware Specs
- 2.4 GHz Intel® Core™2 Duo processor
- 2 GB RAM or more
- USB 3.1 Gen1 port (supports 4K); USB 2.0 port (supports up to 1080p)
Power Supply
- AC 100V~240V, 50/60 Hz
- Consumption: 12V, 5A
Free Applications for Meeting Collaboration
(Free app support on Windows® and Mac computers)
EZManager: Camera Central Management Software
- Remotely group FW/SW upgrades, control the camera, and manage settings
PTZApp
- Compatible with Skype plugin for answering and hanging up via remote control
- Upgrade firmware automatically or manually
- Control the camera
- Set parameters and adjust the camera image
- Diagnose operating status
- View live video
EZLive
- Real-time streaming / annotating / image capturing / video recording
Environmental Data
- Operation temperature: 0°C~40°C
- Operation humidity: 20%~80%
- Storage temperature: -20°C~60°C
- Storage humidity: 20%~80%
Dimensions
- Package dimensions: 739 x 193 x 229 mm
- Package weight: 4.16 kg/9.3 lbs
- Camera: 650 x 100 x 109.5 mm/2.133 kg
- Remote control: 200 x 50 x 21 mm/0.09 kg
Package Contents
- VB342+ unit
- Power cable 10 ft (3 m)
- USB 3.1 type-C to type-A Cable 6 ft (1.8 m)
- USB 3.1 type-A to type-C adapter
- Quick-start guide
- Wall-mount bracket and screws
- Warranty card
- Remote control
- Battery
Optional Accessories
- Mini DIN6 to RS232 adapter
- TV mount and mounting screws
- 33 ft (10 m) expansion microphone
- 66 ft (20 m) expansion microphone
- 33 ft (10 m) USB 3.1 extension cable
- 66 ft (20 m) USB 3.1 extension cable
- 16 ft (5 m) USB 2.0 cable
Compatible Applications
- Zoom, Microsoft® Teams, Skype for Business, Skype, Google Hangouts, Intel® Unite™, RingCentral, BlueJeans, V-Cube, LiveOn, CyberLink U Meeting®, TrueConf, Adobe Connect, Cisco WebEx®, Fuze, GoToMeeting™, Microsoft® Lync™, Vidyo, vMix, WebRTC, Wirecast, XSplit

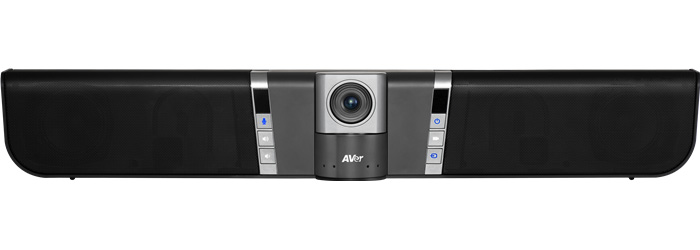

![AVER VB342+](https://sounddd.s3.ap-southeast-1.amazonaws.com/wp-content/uploads/2019/09/19094725/front.jpg)

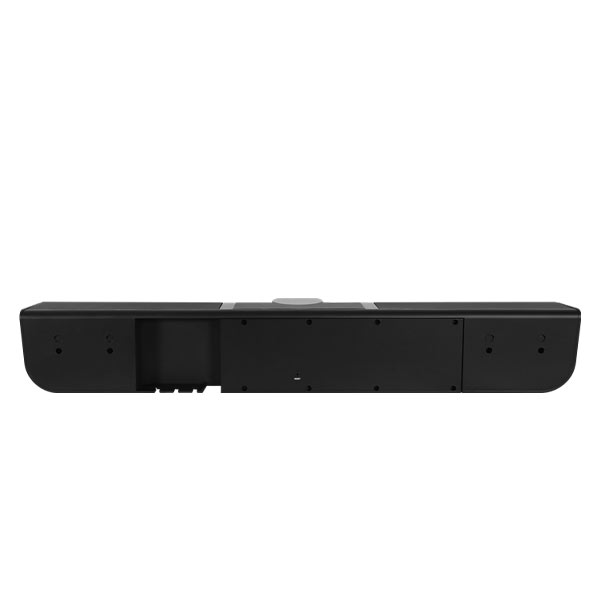

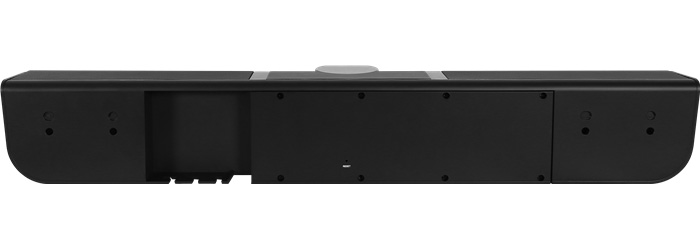

![AVER VB342 PLUS](https://sounddd.s3.ap-southeast-1.amazonaws.com/wp-content/uploads/2019/09/19094723/back.jpg)
![AVER VB342 PLUS](https://sounddd.s3.ap-southeast-1.amazonaws.com/wp-content/uploads/2019/09/19094721/back-hole.png)
- DC 12V
- USB port (to PC)
- RS232
- Phone In
- Mic
- HDMI Out
- Reset
