สเปค

Camera

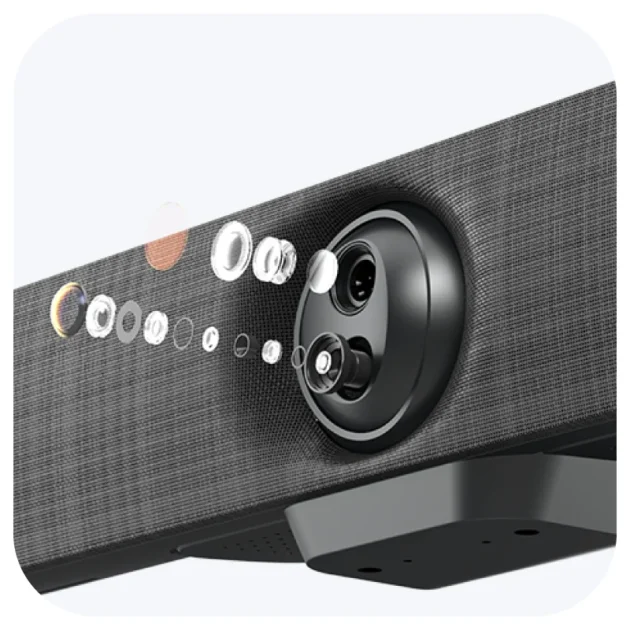

• 4K dual-lens technology delivers a wide 113° field of view (FOV) with 18X zoom
• 4K 3X varifocal lens : FOV (D/H/V) 92°/81°/50°
• 4K fixed lens : FOV (D/H/V) 113°/105°/71°
• Sony 4K sensor : ultra-crystal-clear image in any lighting
• Frame rate : (16:9) 1280 x 720 at 60, 30, 15fps; 4K, 3264 x 1836, 2560 x 1440, 1920 x 1080, 1600 x 900, 960 x 540, 848 x 480, 800 x 448, 640 x 360 at 30, 15fps; (4:3) 1280 x 960, 800 x 600, 640 x 480 at 30, 15fps
• Adjustable audio fence : Freedom to define wide/ medium/ narrow view fence
• SmartFrame & SmartSpeaker : Automatic tracking and FOV adjustment to fit all participants and focus on the speaker
• Presentation mode : Voice-triggered tracking on both defined areas and speakers
• Smart gallery function enhances visibility
• Gesture control for intuitive camera control
• WDR, white balance and more image settings via PTZApp 2
• Minimum focus distance : 100 cm
• People counting API : Enterprises and third-party software providers can obtain people-counting and meeting-interval data tor better understand meeting space usage

Motorized Pan and Tilt Movement

• Pan : Total horizontal viewing area 165°
• Tilt : Total vertical viewing area 101°
• 10 camera presets

Audio

• 14-element beamforming microphone array
• 10 meters pickup range
• Volume up to 96 dB SPL at 1/2 m
• Echo cancellation
• AI noise suppression

HDMI

• One cable solution: Built-in USB 1 (Gen 1) to HDMI adapter
• 4K HDMI output to TV

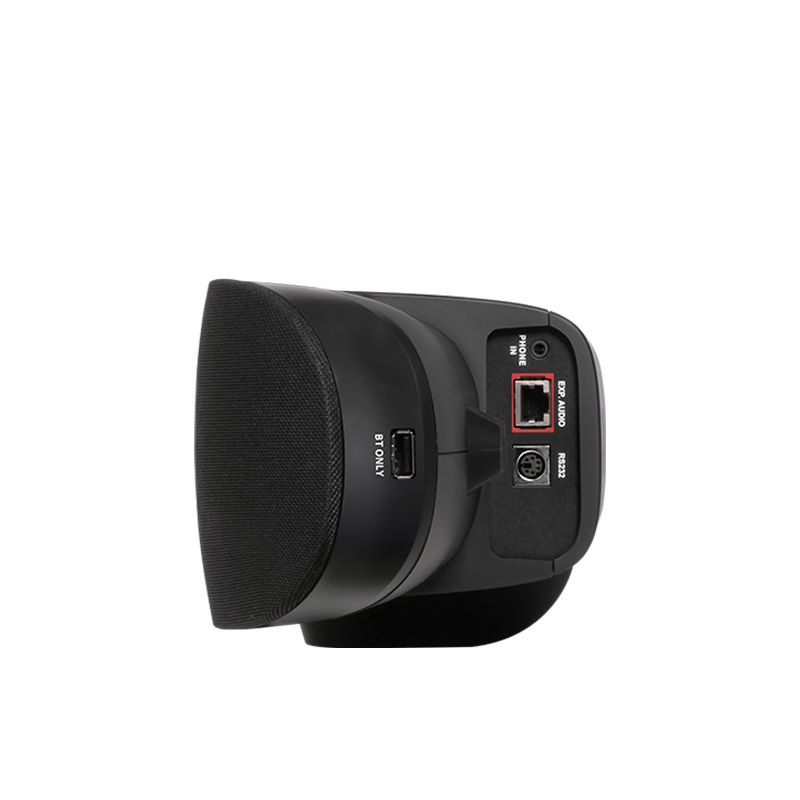

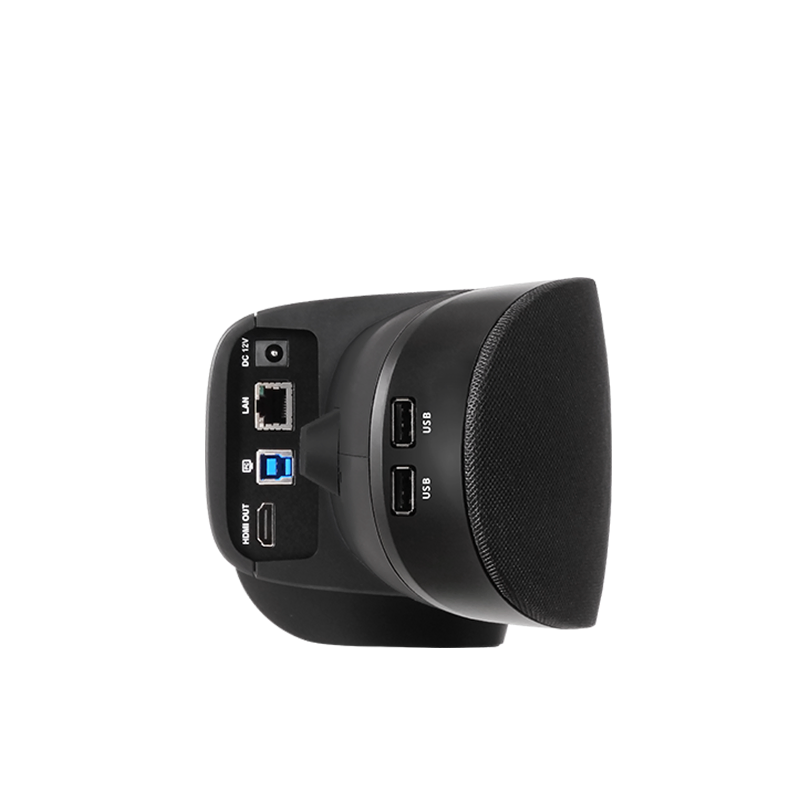

Connectivity

• 12V/5A power adapter
• Mini DIN 6 for RS-232 connection
• USB 1 type B port, backward compatible with USB 2.0
• HDMI out connection (USB to HDMI adapter)
• Phone-in (5 mm audio Jack)/speaker-out for HA system
• RJ45 ports x2: one for Ethernet, one for audio expansion speakerphone / microphone
• USB 0 type A x3: Wireless connection, USB to support IFP USB touch back, and expansion port

Video Format

• YUV, YUY2, M-JPEG
• Network video compression formats: H.264
• Network protocols: RTSP, RTMP

USB

• 1 Gen 1, backward compatible with USB 2.0
• UVC 1 (USB Video), UAC 1.0 (USB Audio)

Control

• IR remote control
• WebUI: IP access via Chrome browser (Chrome x or later; Internet Explorer not supported)
• VISCA/pelco P/pelco D via RS-232/VISCA over IP
• UVC/UAC plug-and-play
• PTZApp 2

Mount and Security

• Wall-mount bracket (included)
• TV VESA mount kit (optional)
• Kensington security lock

System Requirements

• Software
  – Windows® 7/10/11
  – Mac OS X 14 or later
  – Chromebox 3 version 94.0.4606.114 or later
• Hardware
  – 2 GHz Intel® Core™ i5-4460 processor
  – 4 GB RAM or more
  – USB 3.1 port, backward compatible with USB 2.0

Power Supply

• AC 100V–240V, 50/60 Hz
• Consumption : 12V/5A

Free Applications for Meeting Collaboration (Free Apps support on Windows® and Mac® computers)

• EZManager 2 : Camera Central Management Software
  – Remotely group FW/SW upgrades, control the camera, and manage settings
• PTZApp 2 : Camera Setting Software
  – View live video, people counting number, meeting interval information
  – Enable Skype for Business far-end control
  – Upgrade firmware automatically or manually
  – Control the camera
  – Set parameters and adjust the camera image
  – Diagnose operating status
• EZLive : Broadcasting Software
  – Enjoy multi-camera real-time streaming, annotating, image capturing, and video recording

Environmental Data

• Operation temperature: 0 ~ 40°C
• Operation humidity: 20% ~ 80%
• Storage temperature: -20 ~ 60°C
• Storage humidity: 20% ~ 80%

Package Contents

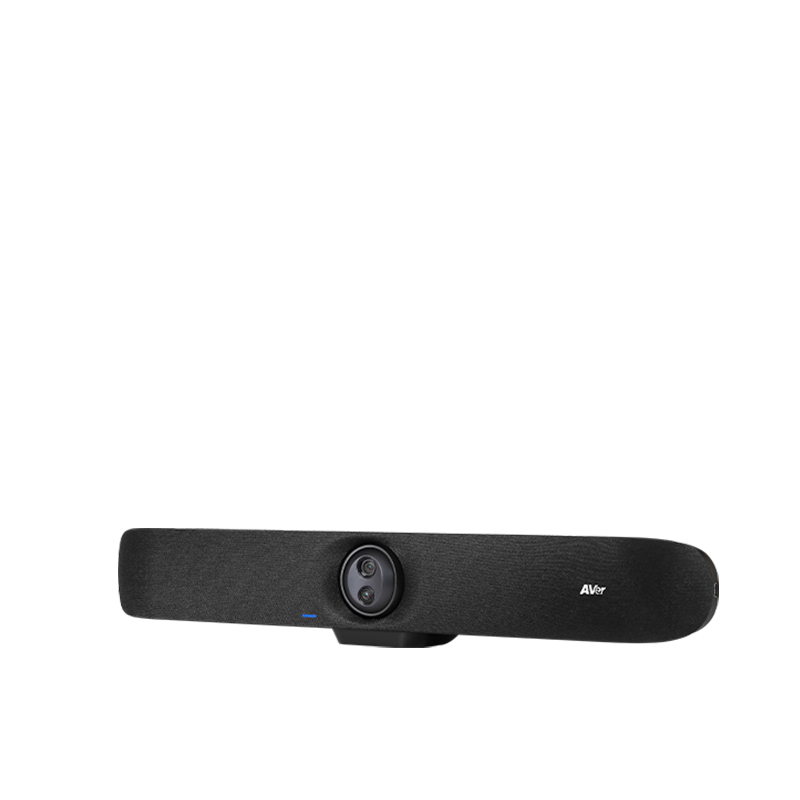

• VB350 unit
• Power adapter & cable
• USB 1 type B to type A cable (3 m)
• USB 1 type A to type C adapter
• QR code card
• Wall-mount bracket
• Tripod Screws
• Remote control
• Wall-mount drill paper

Optional Accessories

• Mini DIN 6 to RS-232 adapter
• TV VESA mount
• 10 m/20 m expansion microphone
• 10 m/20 m expansion speakerphone
• 10 m/20 m/30 m USB 1 extender cable
• 5 m USB 0 type B to type A cable
• Wireless dongle (for connecting with mobile phone)
• Audio-out converter (TRS female to TRRS male)

Dimensions

• Package dimensions : 872 mm (L) x 197 mm (W) x 260 mm (H)
• Package weight : 4 kg
• Camera : 791 mm (L) x 128 mm (W) x 126 mm (H)/3 kg
• Remote control : 150 mm (L) x 42 mm (W) x 19 mm (H)/50 g

Warranty*

• Camera: 3 years
• Accessories: 1 year

Compatible Applications

• Zoom, Microsoft® Teams, Skype for Business, Skype, Google Meet™, Intel®Unite™, RingCentral, BlueJeans, V-Cube, LiveOn, CyberLink U Meeting®, TrueConf, Adobe® Connect, Cisco WebEx®, Fuze, GoToMeeting™, Microsoft® Lync™, Vidyo, vMix, WebRTC, Wirecast, XSplit, V Cube
