BEHRINGER FLOW 8 มิกเซอร์ ดิจิตอล 8 ชาแนล พร้อม Bluetooth Audio, App Control และ USB/Audio Interface

฿13,000 (รวม VAT 7% แล้ว)

  • เช็ค Stock และราคาสินค้า กับเจ้าหน้าที่ก่อนสั่งซื้อทุกครั้ง
  • รับสินค้าภายใน 3 - 7 วัน (ขึ้นอยู่กับที่อยู่จัดส่งของลูกค้า)
  • สงวนสิทธิ์การเปลี่ยนแปลงข้อมูล ราคา ไม่แจ้งให้ทราบล่วงหน้า
  • สงวนสิทธิ์การรับผิดชอบเนื่องจากการพิมพ์ผิดพลาดต่างๆ
แชร์หน้านี้ :
  • เช็ค Stock และราคาสินค้า กับเจ้าหน้าที่ก่อนสั่งซื้อทุกครั้ง
  • รับสินค้าภายใน 3 - 7 วัน (ขึ้นอยู่กับที่อยู่จัดส่งของลูกค้า)
  • สงวนสิทธิ์การเปลี่ยนแปลงข้อมูล ราคา ไม่แจ้งให้ทราบล่วงหน้า
  • สงวนสิทธิ์การรับผิดชอบเนื่องจากการพิมพ์ผิดพลาดต่างๆ
แชร์หน้านี้ :

มิกเซอร์ ดิจิตอล 8 ชาแนล BEHRINGER FLOW 8 พร้อม Bluetooth Audio, App Control 60 mm Channel Faders, 2 FX Processors และ USB/Audio Interface จากแบรนด์ BEHRINGER

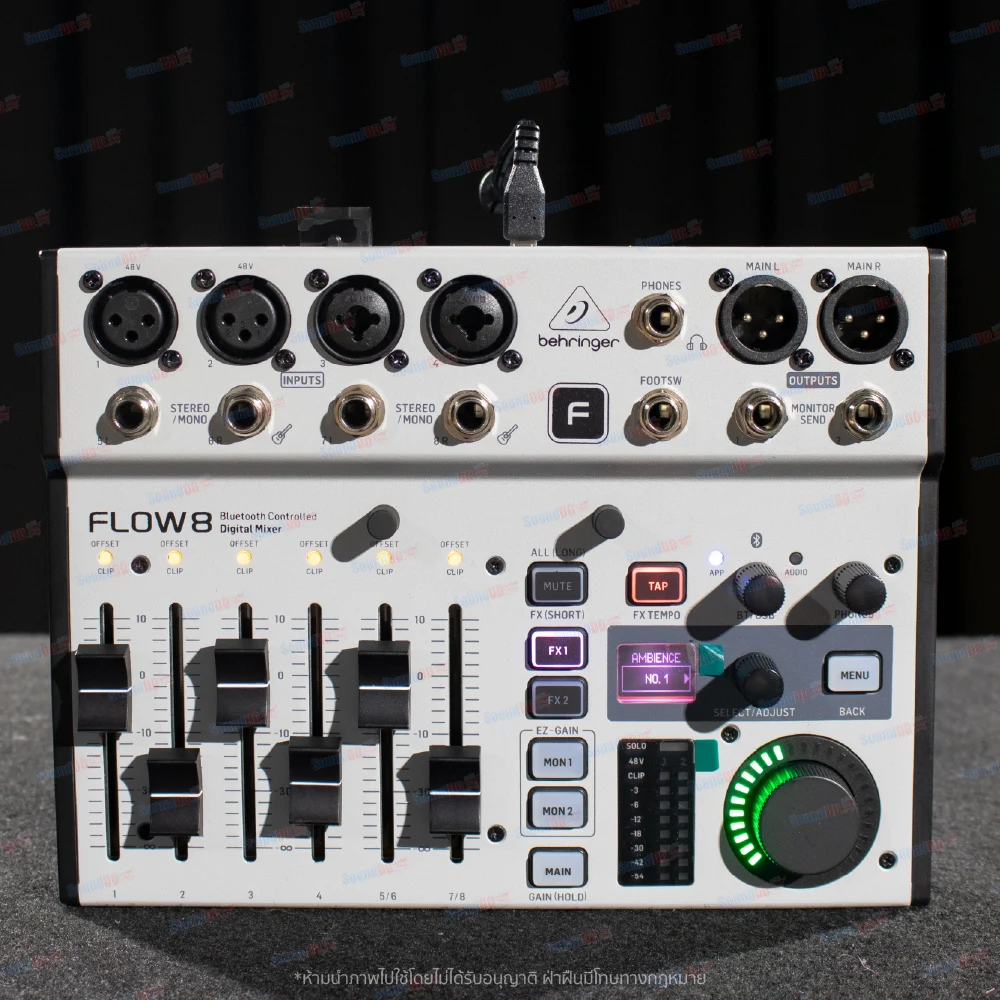

BEHRINGER FLOW 8
8-Input Digital Mixer

Digital Mixing with Ease

Digital mixers offer studio quality processing, highest fidelity, total recall of all settings and even remote operation. Those are hugely attractive features, but they all come at a cost – with bigger physical size, more complex operation requiring at least some degree of audio technical education.
The millions of analog small format mixers that Behringer has built over the years clearly tell us that there are many users who need a mixer that is compact, affordable, dependable and easy to operate.

Typical applications very often just need to balance the level of a handful of sources. So, why making things more complicated than they need to be? It is time for something genuinely new providing modern features and workflows to everyone in a simple and light form – it is time for FLOW 8 digital mixing.

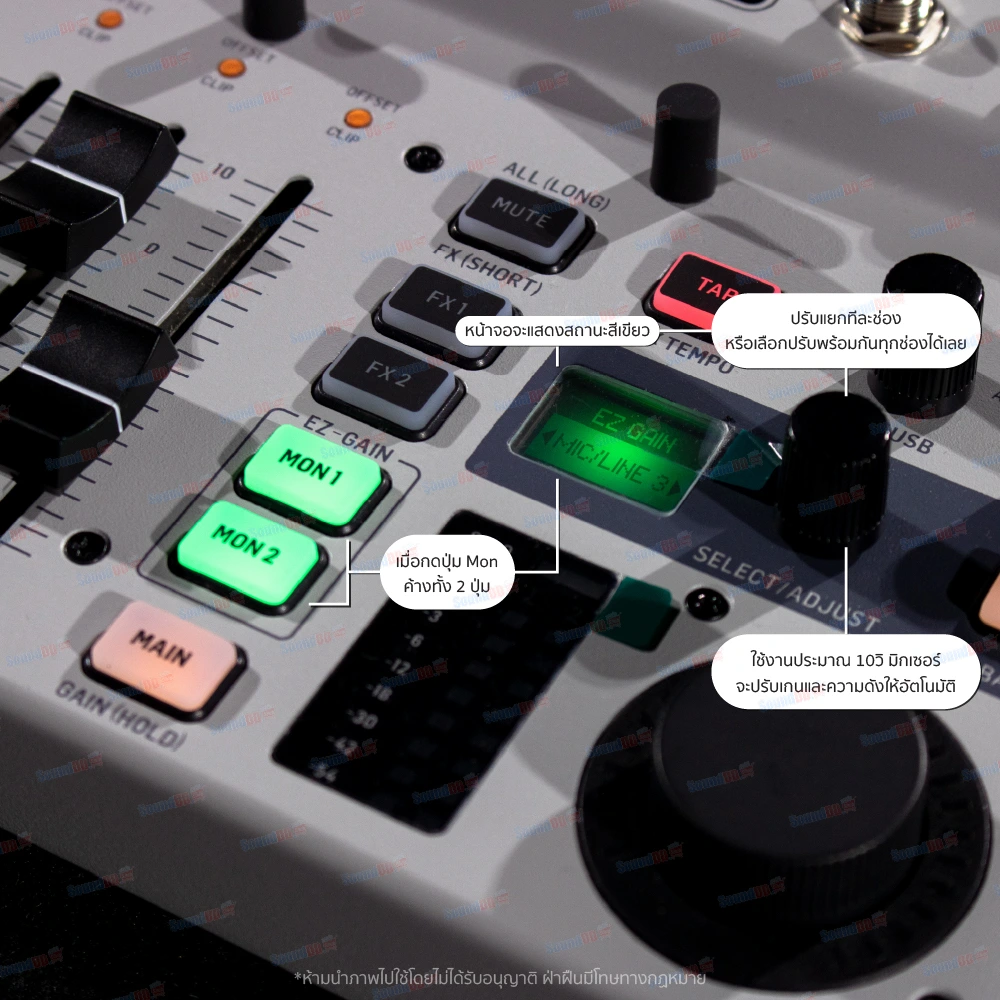

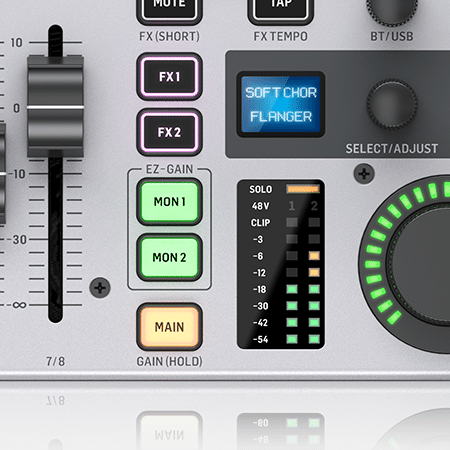

EZ-Gain Assisted Gain Staging

Have you ever heard someone say, “you need to pay attention to your gain staging”? Do you know what the “gain structure” is about? When you are interested in clean and healthy signals, with low noise and low harmonic distortion, then adjusting the right amount of preamp gain is paramount. It is defining the amount of amplification a signal gets when entering the mixer. Since source signals can be anything from a strong hit on the snare drum, to the subtle hum of bees, there is not one gain fitting all possible purposes.

Gain staging is always a compromise and finding the right one requires either experience and technical knowledge, or the new FLOW 8 EZ-GAIN feature. The function can monitor signals on one or all channels at the same time, until you think the loudest sounds have been put to it. EZ GAIN will then automatically adjust the channel gain to the optimum headroom.

Oh, by the way, EZ GAIN will automatically engage the 48 V phantom power on mic inputs 1/2 when no signal is coming in, just in case you forgot to do that. It will switch it off again if no signal is coming in still.

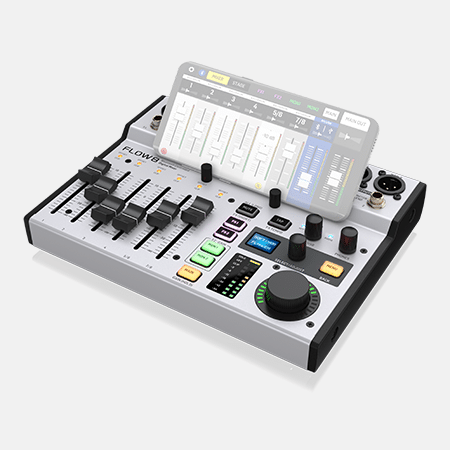

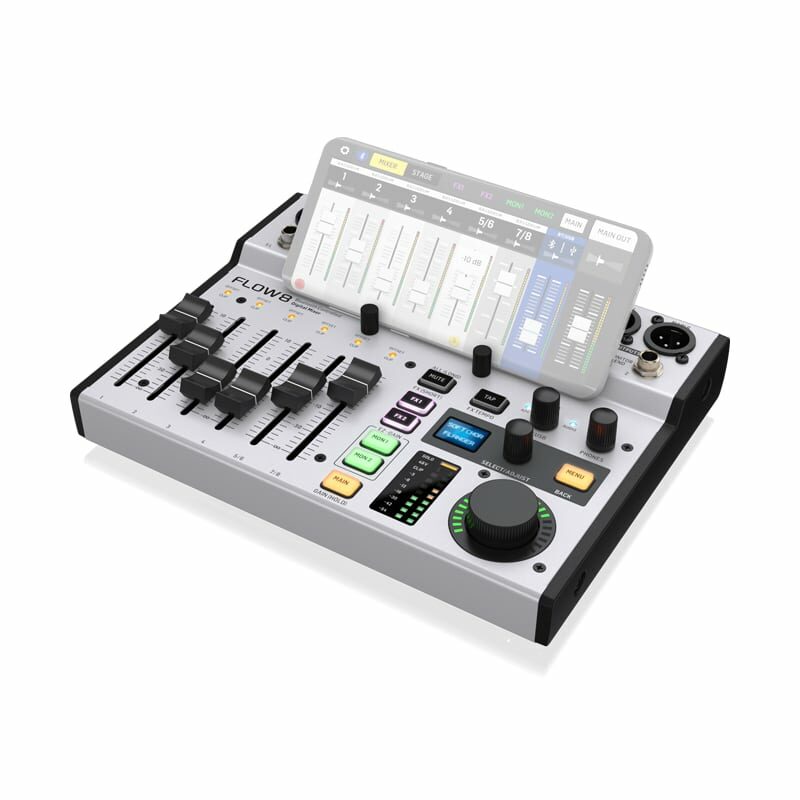

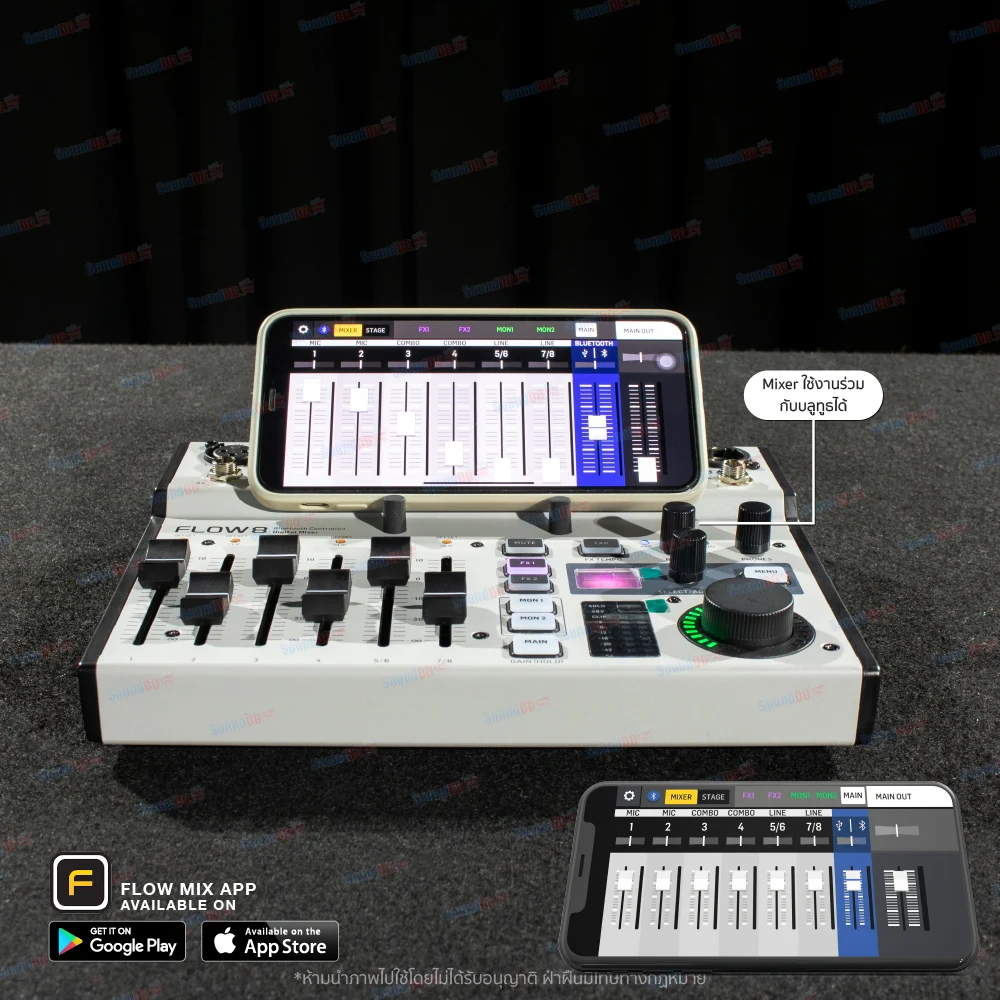

Full App Remote Control

Let’s face it, small mixers are more often placed where cables end, rather than in a position where it would be most useful for controlling the mix. You may have to stretch out for controlling levels or walk away from the mixer to judge if your adjustment has the desired effect. No longer!
FLOW 8 mixers offer full remote control from basically any Android or iOS device, giving you the freedom to go exactly where the sound is ideal for making any sort of adjustment. Tweak the 9-band EQ for the main PA speakers, set the compressor on the bass guitar or adjust the mix for the talents on stage…

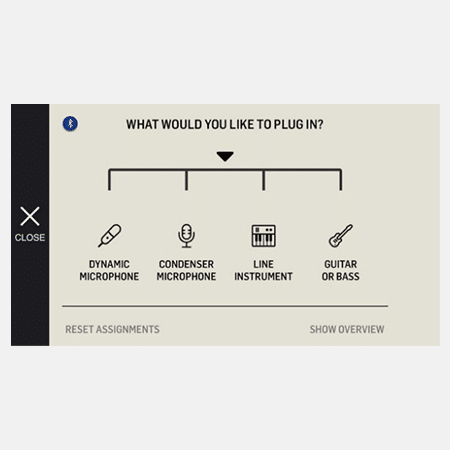

Assisted Setup for Beginners

You are new to the world of audio and not sure which signal to put on different inputs? You don’t know how to use the EQ or compressor for dedicated signals? No problem, the FLOW 8 app provides you with a unique setup wizard that takes you step by step to make your music shine. After selecting the type of input the assistant will offer you presets and tell you where to plug the cables in. Thanks to this innovative feature you can add your instruments and microphones even though you are no expert yet.

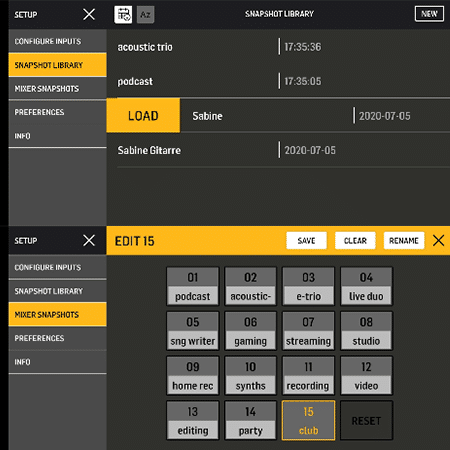

Total Recall of All Settings

You are recording a podcast one day and some vocals the other? You are mixing multiple artists on the same gig? Or generally speaking – FLOW 8 is your permanent companion for various audio applications and you want perfectly tweaked preset available on your fingertips within seconds. Then the integrated snapshot library and the possibility to store unlimited snapshots per FLOW 8 app gives you instant, unlimited power. STORE, EDIT and LOAD mixer settings via the hardware or app instantaneously. You can even trigger snapshot loading with a connected footswitch to bring your performance to life. While the hardware provides 15 internal storage-slots for presets, the app can store an unlimited number of snapshots sorted by name, date and time.

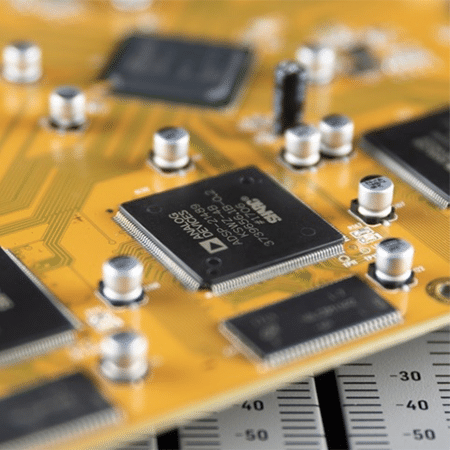

Outstanding Audio Quality (on the Go)

With two Midas microphone preamps and internal 32 VFP-Processing FLOW 8 joins the X32, X-Air and WING series of digital mixing consoles. Even though the form factor and number of I/O is specifically tailored to smaller setups, each individual channel offers crystal clear audio and keeps up with its ancestors’ sound quality. All channels offer 4-band EQ, compression, as well as 2 FX and 2 monitor sends. All the monitor and main buses feature 9-band EQ and a limiter for preventing unexpected volume peaks on your speakers.

Looking for that Big Sound?

There is reverb and then there is REVERB. FLOW 8 features two independent studio-grade effects engines, each with 16 presets for refining your instruments and vocals with breathtaking effects sounds and depth.
12 Reverb programs span from a very short yet lively Ambience to very long and smooth Temple or Stadium simulations. All of them come in two flavors and their decay time can be adjusted continuously. In addition to that you will get various delay and modulation effects for all styles and applications.

Built-in Bluetooth Streaming

Since compact loudspeakers are dominating the consumer market, bluetooth has established itself as a standard for audio-connections in the consumer world. Mini-jack sockets are being replaced more and more and many smartphones and tablets require special adapters to output analogue audio signals. Therefore, FLOW 8 offers an integrated Bluetooth receiver, that enables you to comfortably play music in between performances without annoying adapters and the need of being close to the mixing console all the time.

The BT audio connection for playing audio back can be connected independently from the FLOW 8 remote application. While using BT Audio for playback on one mobile device, BT LE can be used separately on another device for the control application, if you wish.

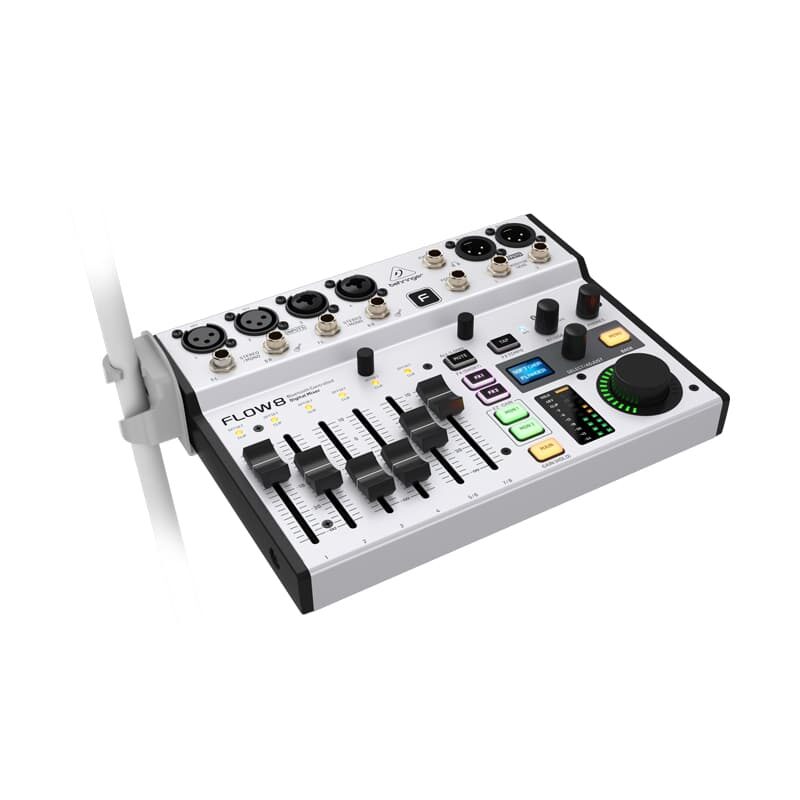

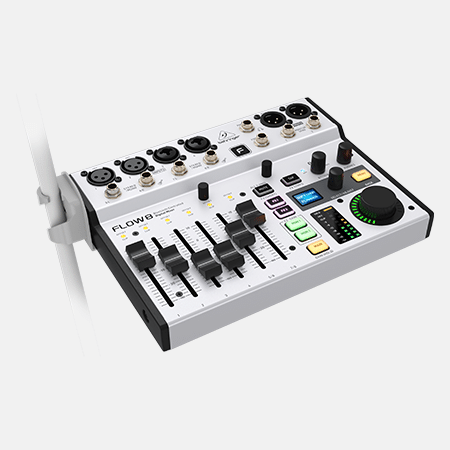

FLOW 8 CLAMP Option – Simple and Solid

The optional FLOW 8 CLAMP is based on the original TC Helicon Perform Series side cap design, using a special material that combines extreme longevity and a dependable, firm connection with the mic stand. It consists of a metal bracket that is screwed to the mixer and the proprietary plastic part that clips on to the mic-stand without any screws. You can choose to mount the clamp to the bracket in 3 angles (0°, 15°, 30°) depending on your preferred mixer orientation.

The FLOW 8 CLAMP is designed to bring your FLOW 8 mixer within reach during your performance. On stage for a small club gig or in a recording setup, the best place will often be right at your microphone stand. It avoids unnecessary cable clutter and keeps the control surface of your FLOW 8 mixer permanently accessible. The clamp is designed for standard 5/8” microphone stands diameter (not exceeding 16.5 mm).

USB Multi-Channel Interface

The internal USB interface offers 10 recording tracks and 2 additional playback channels. All input signals can be individually recorded and post-processed. This makes FLOW 8 the ideal partner for DAW home recording with zero-latency monitoring, streaming and podcasting. No additional USB audio interface required. All Input signals and the Main stereo mix can be sent to audio applications on a Mac-, Windows- or Linux-System for recording, editing or streaming.

Whether you’re a singer, songwriter, small ensemble, teacher or presenter, gamer, podcaster or video blogger, producing at home or playing live in bars, café houses or in the streets, when practicing or performing… FLOW 8 will ensure impeccable audio quality and help you create amazing sound with ease.

Best of all – FLOW 8 Digital Mixers are available in our partner stores around the globe as of today!

คุณสมบัติ

Product Features

  • Ultra-low noise, high headroom digital mixer with wireless remote control
  • FLOW App for Bluetooth remote control from iOS/Android mobile phones or tablets

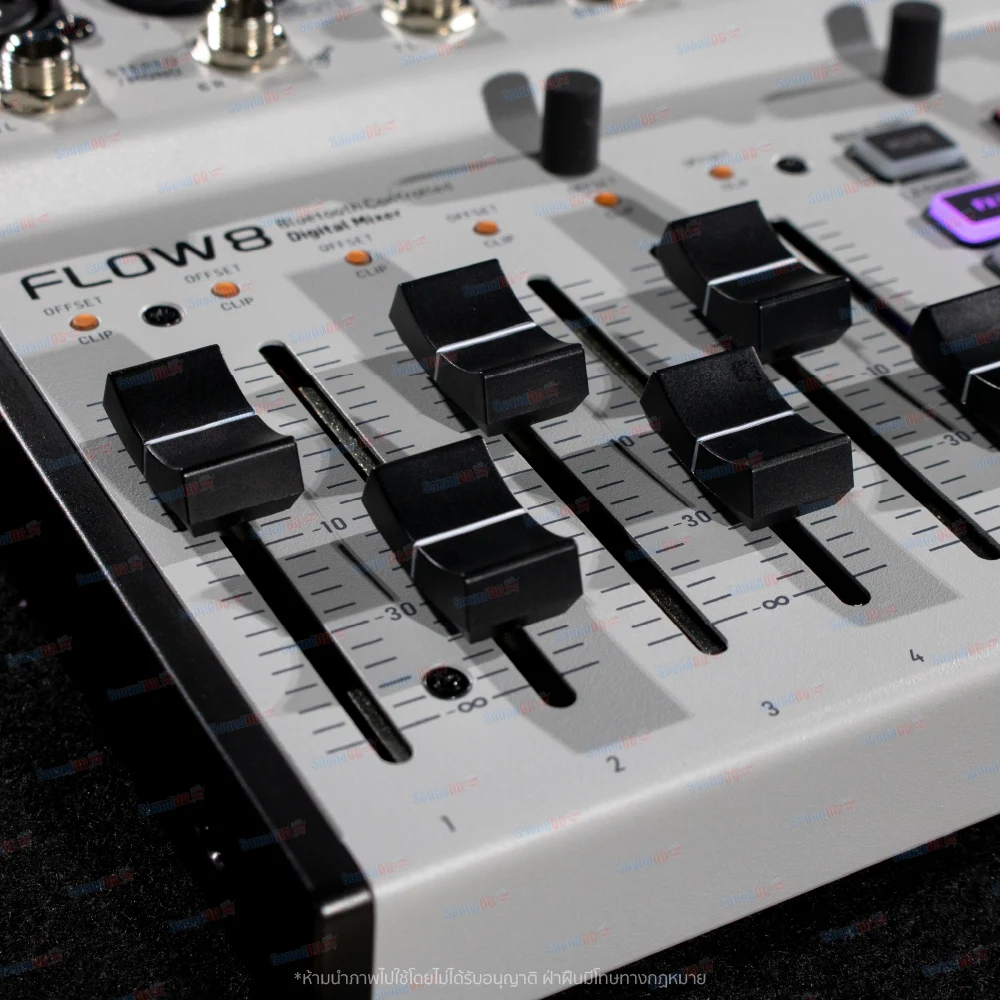

  • 60 mm channel faders and master rotary control with LED collar
  • EZ-Gain function analyzes the signals in your application and automatically sets the gain for optimum headroom
  • Two Midas microphone preamps with 48 V phantom power and programmable gain
  • Two additional mic/line inputs on combo XLR/TRS jacks
  • Two pairs of balanced stereo line inputs, each featuring a Hi-Z jack for direct connection of guitar/bass
  • All channels with 4-band EQ and compressor, 2 FX and 2 monitor sends, while monitor and main buses feature 9-band EQ and limiter
  • Two independent studio-grade effects engines, each with 16 presets including reverbs, delay and modulation effects
  • Built-in 10 x 2 channel USB computer audio Interface, with 48 kHz / 24-Bit resolution
  • Bluetooth audio streaming for adding click or backing tracks to your performance, or for playing music during a break
  • Balanced main outputs on gold-plated XLR and balanced monitor outputs on 1/4″ TRS
  • FLOW App with assisted set-up, unlimited mixer snapshots and intuitive, customizable Stage-View

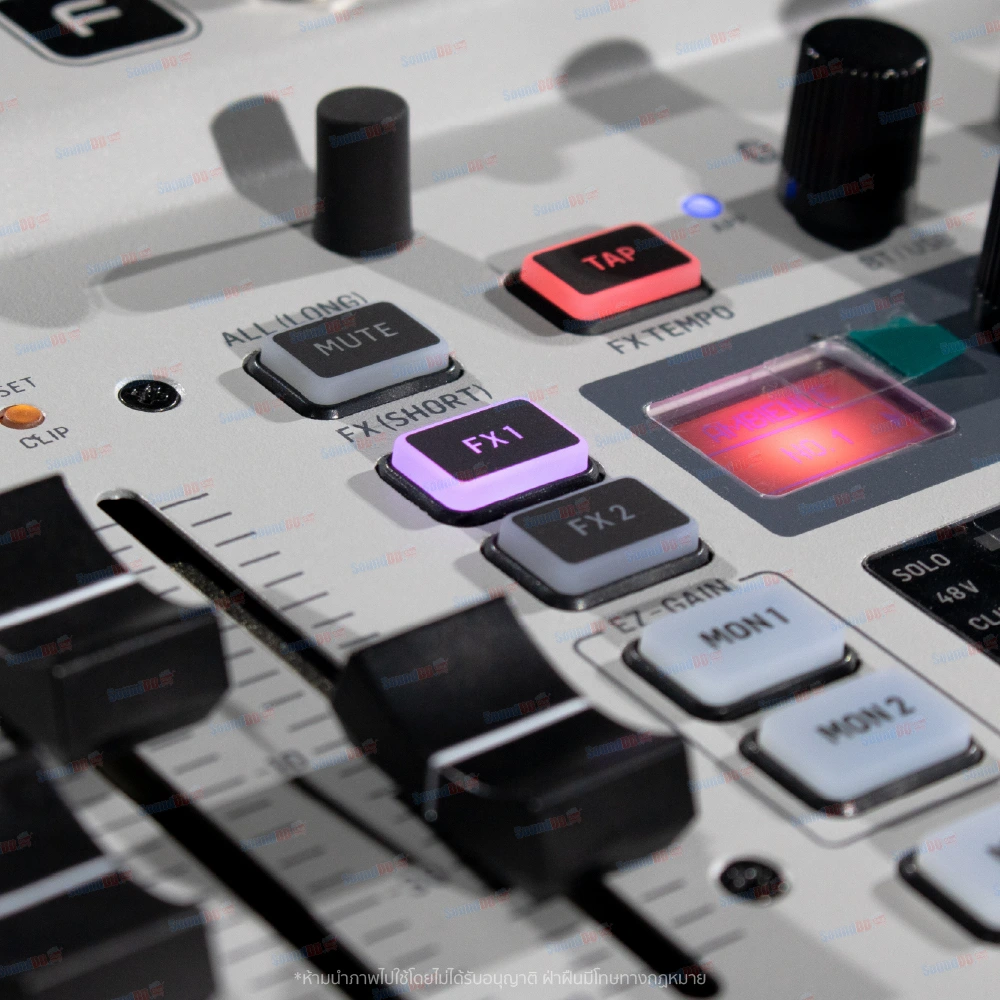

  • FX adjustment control, FX mute and tap tempo buttons
  • Footswitch input for controlling FX mute/tap tempo or preset up/down functions
  • Optional mic stand adapter allows placing the mixer within reach of your performance (FLOW CLIP or P16-MB not included)
  • USB powered via AC adapter (included) or power bank (not included)
น้ำหนัก 1.4 กก.
ขนาด 229 × 172 × 48 มิลลิเมตร
ยี่ห้อ

สเปค

Mic Inputs

Mic inputs 1 / 2
Type 2 x XLR jacks, balanced
Mic E.I.N. (20 Hz to 20 kHz) -129 dBu, A-weighted
Distortion (THD+N) < 0.004%, A-weighted
Max. input level +20 dBu
Impedance 10 kΩ balanced, 5 kΩ unbalanced
Mic inputs 3 / 4
Type 2 x XLR / 1/4″ TRS combo jacks, balanced
Mic E.I.N. (20 Hz to 20 kHz) -117 dBu, A-weighted
Distortion (THD+N) < 0.01%, A-weighted
Max. input level XLR: +6 dBu

TRS: +26 dBu

Impedance XLR: 2 kΩ balanced, 1 kΩ unbalanced

TRS: 20 kΩ balanced, 10 kΩ unbalanced

Gain range -20 dB to +60 dB
Phantom power +48 V, switchable (inputs 1 / 2 only)

Line Inputs

Type 2 x 1/4″ TRS jacks, balanced (channels 5L / 7L)
Impedance 20 kΩ balanced, 10 kΩ unbalanced
Gain range -20 dB to +60 dB
Distortion (THD+N) 0.005%, A-weighted, 0 dB gain, 0 dBu out
Max. input level +22 dBu

Guitar (Hi-Z) Inputs

Type 2 x 1/4″ TRS jacks, balanced (channels 6R / 8R)
Impedance 2 MΩ balanced, 1 MΩ unbalanced
Distortion (THD+N) 0.005%, A-weighted, 0 dB gain, 0 dBu out
Max. input level +19 dBu

Channel EQ

Low ±15 dB @ 20 Hz, shelving
Low mid ±15 dB @ 300 Hz
High mid ±15 dB @ 1.5 kHz
High ±15 dB @ 20 kHz, shelving

Monitor Outputs

Type 2 x 1/4″ TRS jacks, balanced
Impedance 75 Ω, balanced
Max. output level +14 dBu

Main Outputs

Type 2 x XLR jacks, balanced
Impedance 150 Ω, balanced
Max. output level +14 dBu

Phones Output

Type 1 x 1/4″ TRS jack, stereo
Max. output level +18 dBm / 40 Ω

Footswitch Input

Type 1 x 1/4″ TRS jack (tip / ring normally open)
Function configurable FX mute / Tap tempo or Snapshot load next / previous

Input / Output and Processing

Frequency range 10 Hz to 22 kHz (+0/-1 dB)
Dynamic range, analog in to analog out Typ. 108 dB
I/O latency 0.6 ms
Signal processing 32-bit VFP (Vector Floating Point)
A/D – D/A conversion 24-bit / 48 kHz
Dynamic range 114 dB
Number of input processing channels 10 input channels, 4 fx return channels

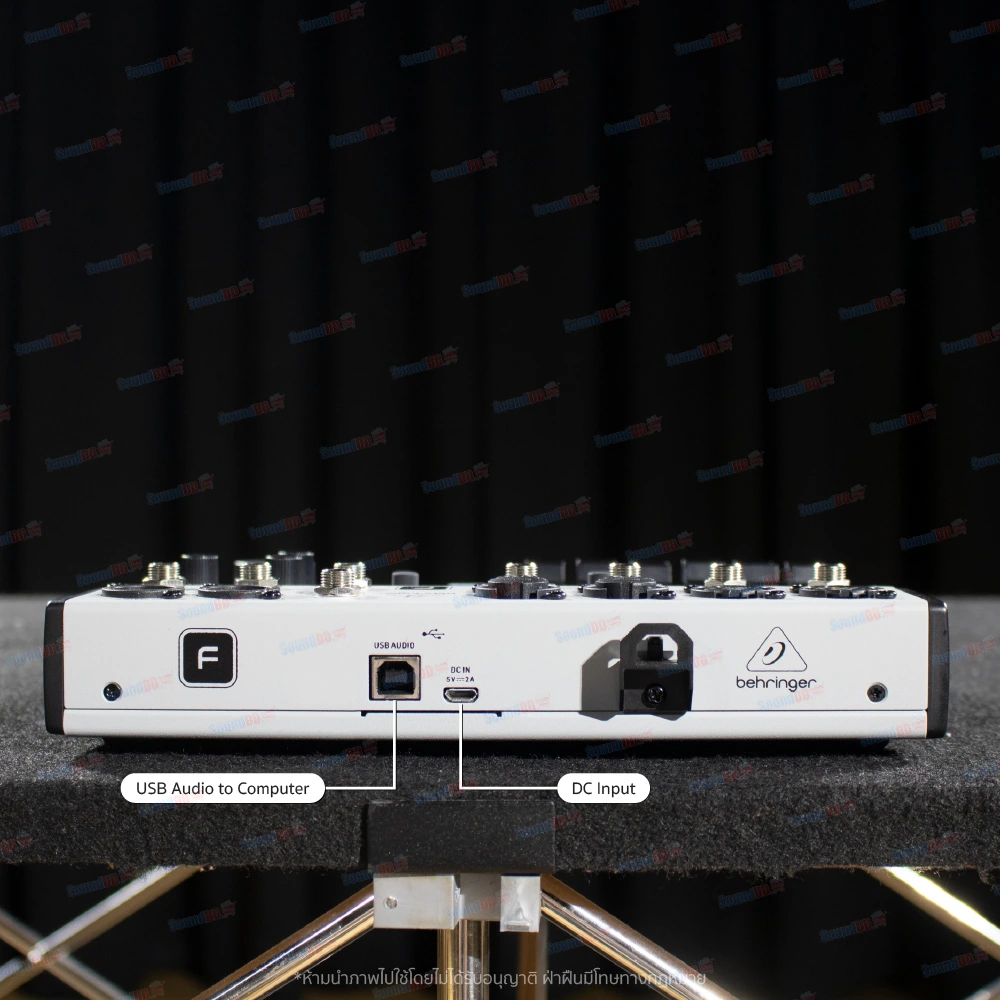

USB Audio Interface

Interface type USB 2.0
Connector Type B
Bit depth 24-bit / 48 kHz
Channels 10 out / 2 in

Bluetooth

Frequency range 2402 MHz ~ 2480 MHz
Channel number 79
Version Bluetooth spec 4.0 compliant
Compatibility Supports A2DP 1.2 profile
Max. communication range 12 m (without interference)
Max. output power 8 dBm

Power Supply / Voltage

Connector Micro-USB
Power supply 5 VDC 2A
Power consumption Max. 10 W (typ. 5 W)

Dimensions / Weight

Dimensions (H x W x D) 48 x 229 x 172 mm (1.9 x 9.0 x 6.8″)
Weight 1.4 kg (3.1 lbs)

ดาวน์โหลด

สเปค
รหัสสินค้า: BEHRINGER FLOW 8 หมวดหมู่: , ป้ายกำกับ:
฿4,700 (รวม VAT 7% แล้ว)
-20%
NEW
New
-17%
NEW
-6%
NEW
-5%
NEW

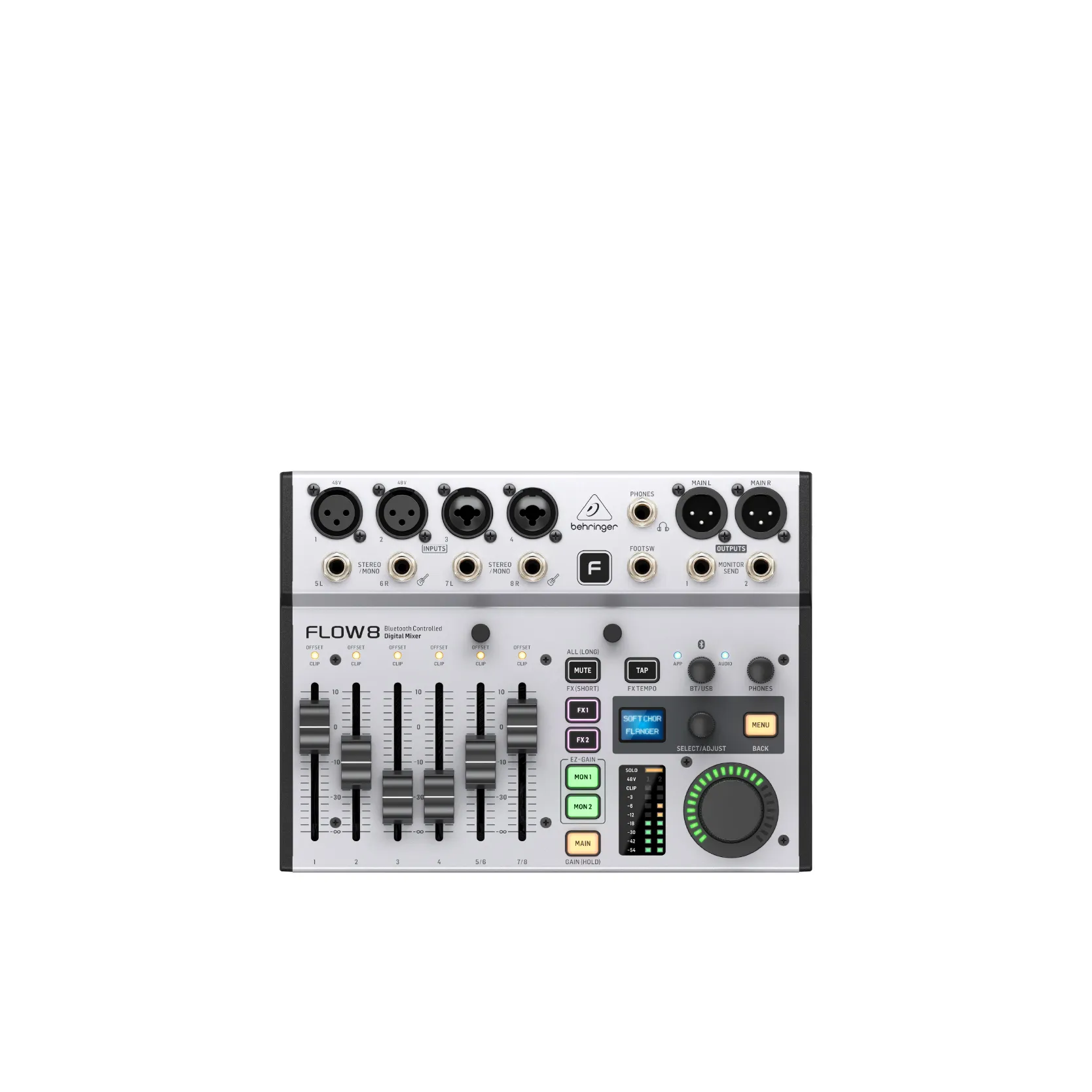

BEHRINGER FLOW 8p
