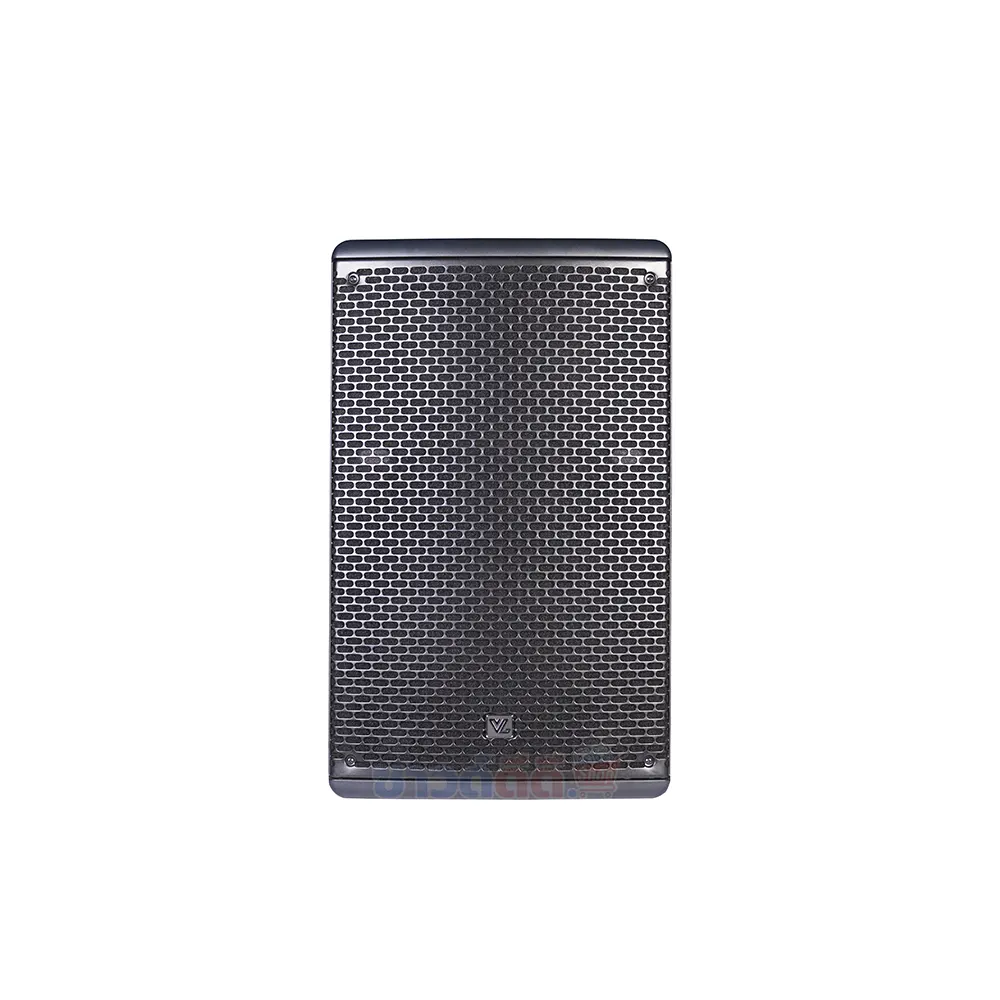

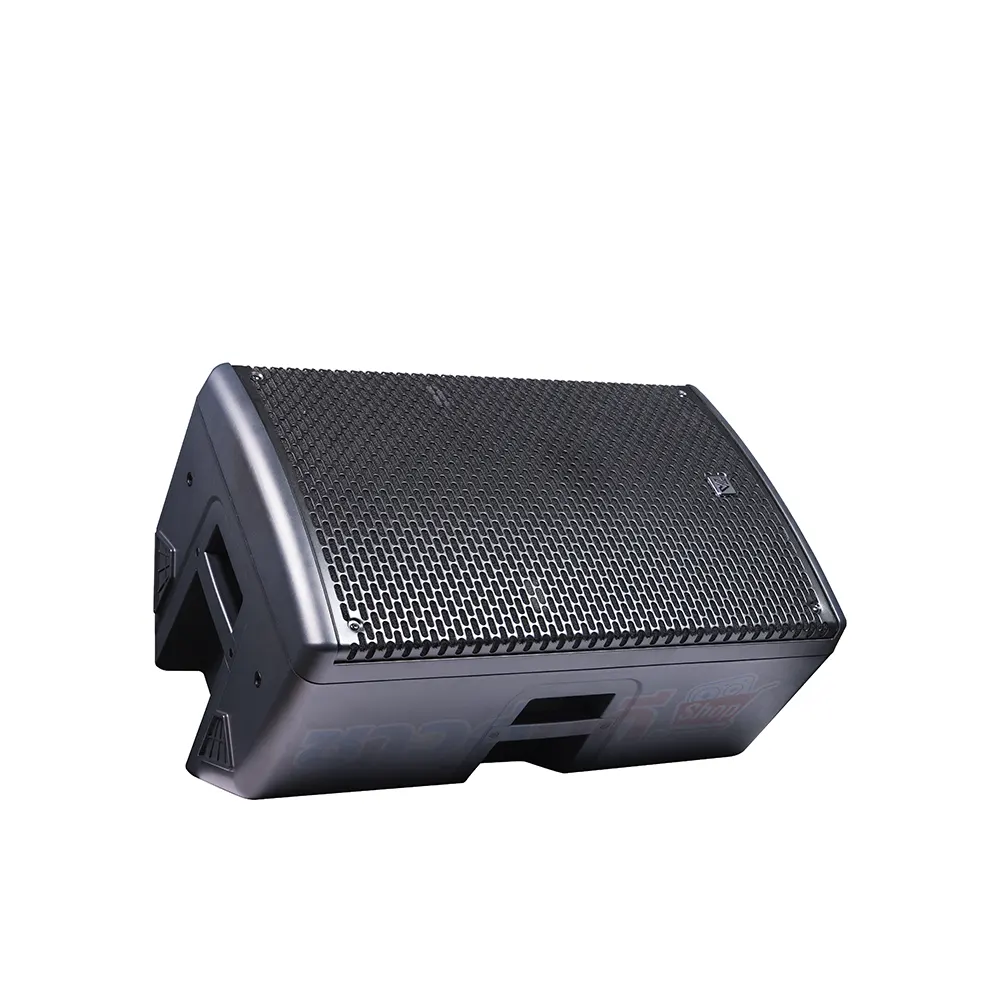

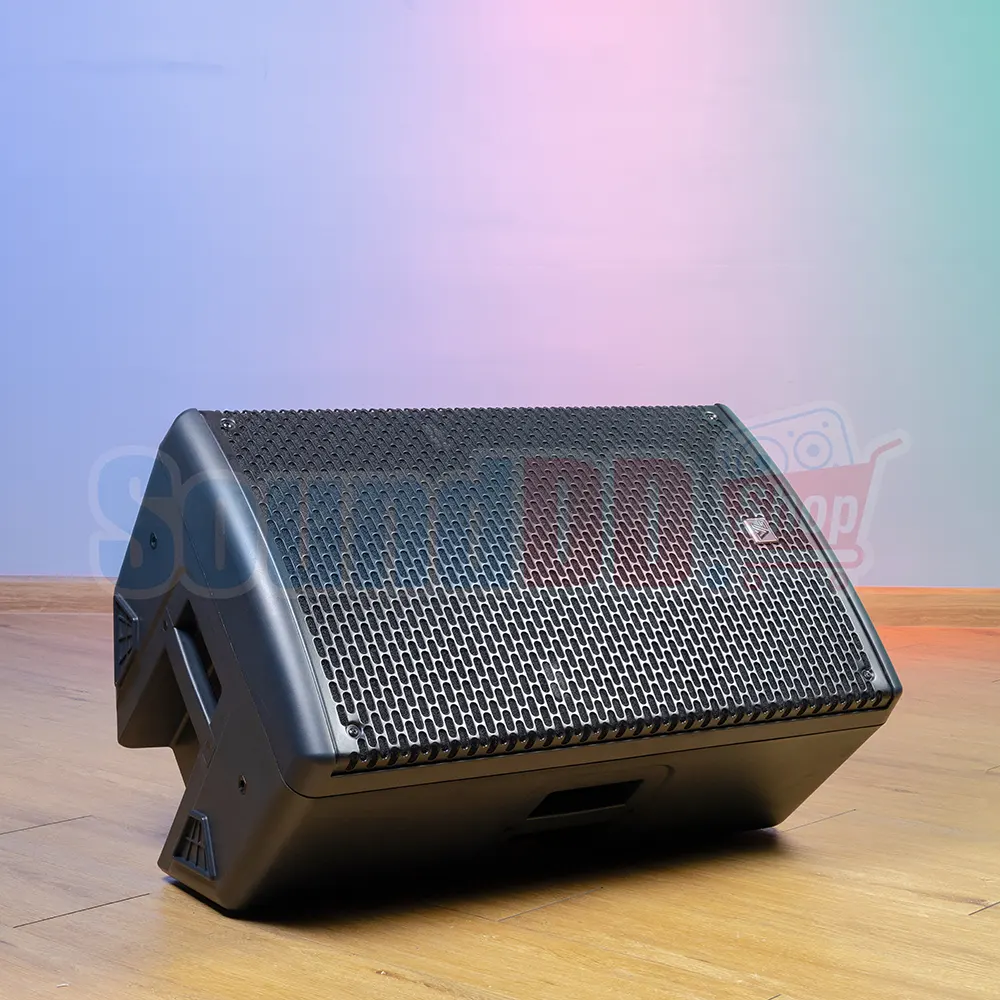

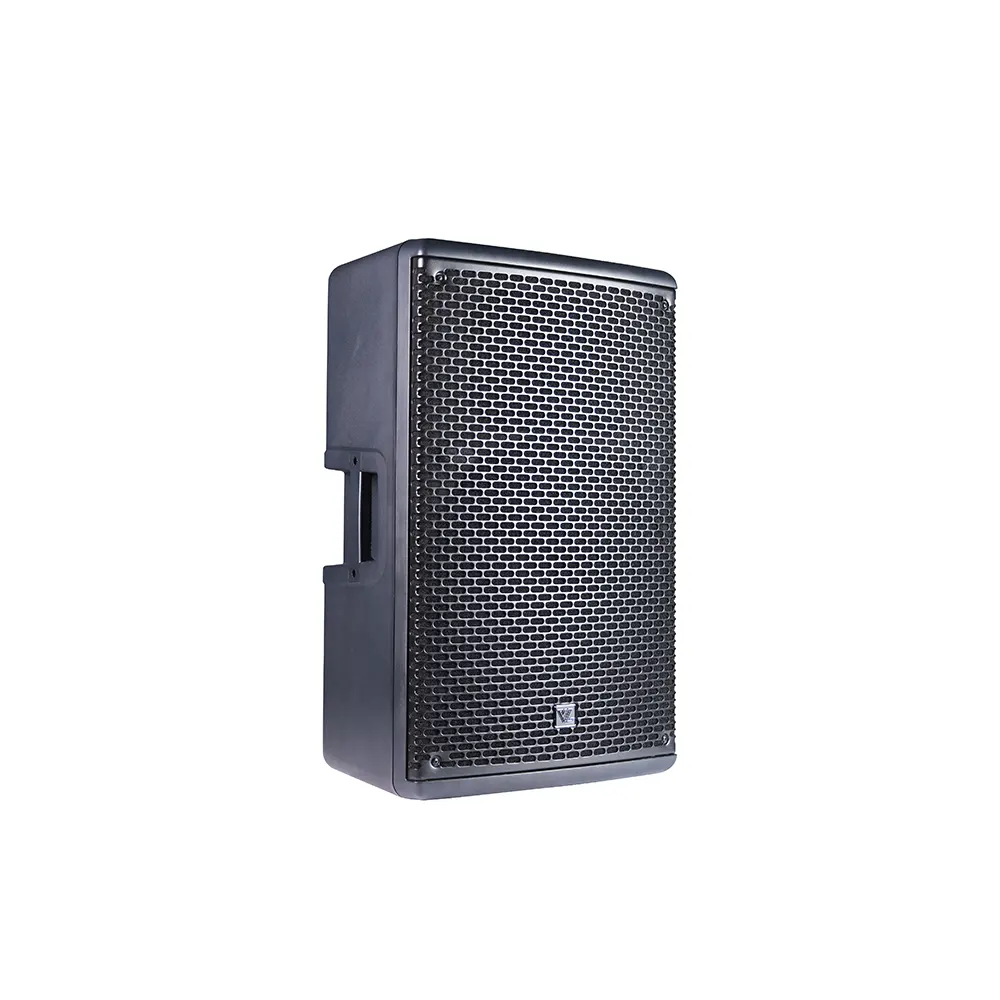

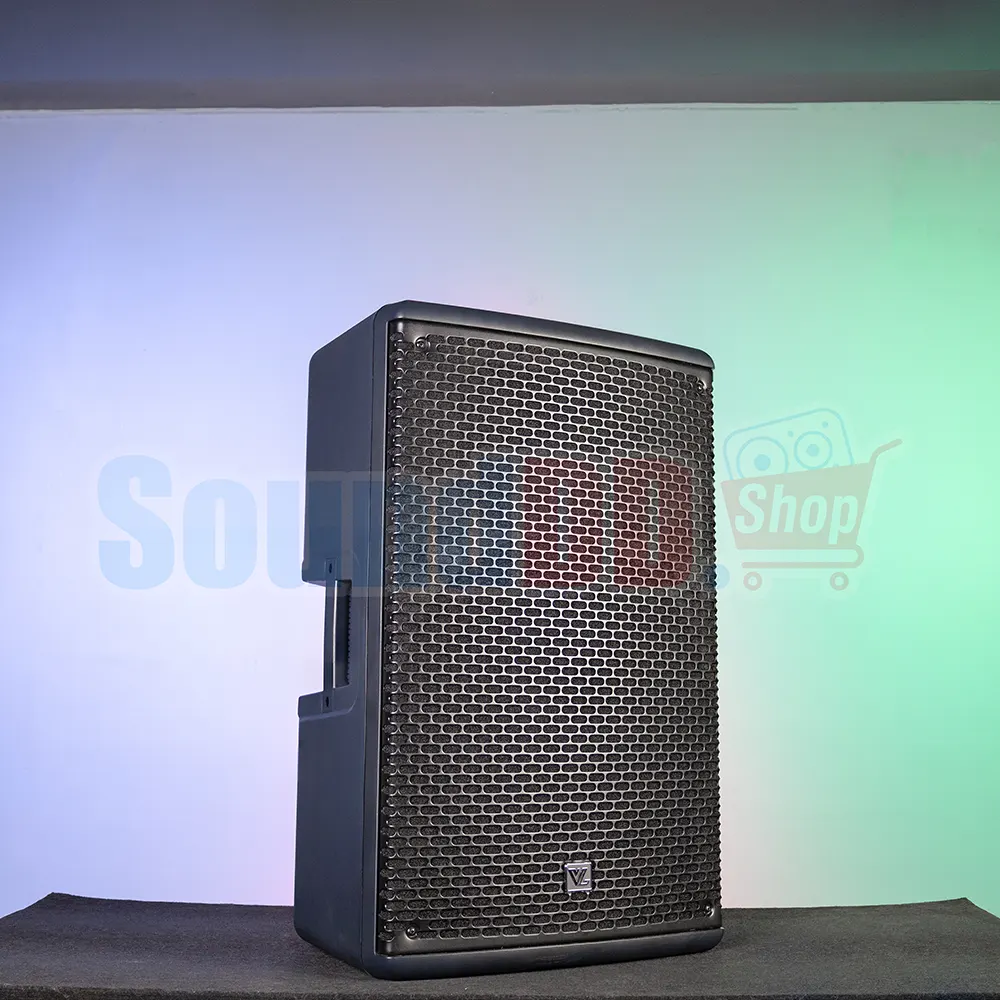

ตู้ลำโพง 15 นิ้ว VIVA-715D เป็นแบบ 2 ทาง กำลังขับสูงสุดรวม 1,400 วัตต์ มีแอมป์ในตัว 2 ชาแนล มี DSP Processing และตั้งได้ถึง 6 Preset มาพร้อมเทคโนโลยี FiR LINEAR PHASE อีกด้วย นับว่าเป็นตู้ลำโพงรุ่นใหม่ล่าสุด จากยี่ห้อ VL-AUDIO ที่น่าจับตามองมากในปี 2020
VIVA-715D
ACTIVE TWO-WAY SPEAKER
VIVA715D มีความเป็นเอกลักษณ์ไม่เหมือนใคร ด้วย compression driver และ voice coil กำลังสูงให้เสียงที่ชัดเจนและเสียงที่ครอบคลุม วูฟเฟอร์ขนาด 15 นิ้ว transducers ผลิตขึ้นโดยใช้เทคโนโลยีการประกอบที่ทันสมัยที่สุด แอมพลิฟายเออร์ 2 ชาแนลให้กำลัง 1,400 วัตต์ และถูกควบคุมโดย DSP ที่ดูแล crossover, equalization, phase control, soft limiting และ transducers protection
คุณสมบัติ
- 136 dB Max SPL
- Two Channel Amplifier of 1400 WATT
- Innovative DSP Processing
- 1″ Compression Driver, 1.50” v.c.
- 15″ Woofer, 3” v.c.
- 90°x60°, wide dispersion constant directivity horn
- 6 Preset
- FiR LINEAR PHASE Technology
สเปค
VL-AUDIO VIVA 715D TECHNICAL SPECIFICATIONS
- Acoustical specifications Frequency Response: 45 Hz – 20000 Hz
- Max SPL @ 1m: 136 dB
- Horizontal coverage angle: 90°
- Vertical coverage angle: 60°
Transducers
- Compression Driver: 1.0”, 1.50” v.c
- Woofer: 15”, 3” v.c

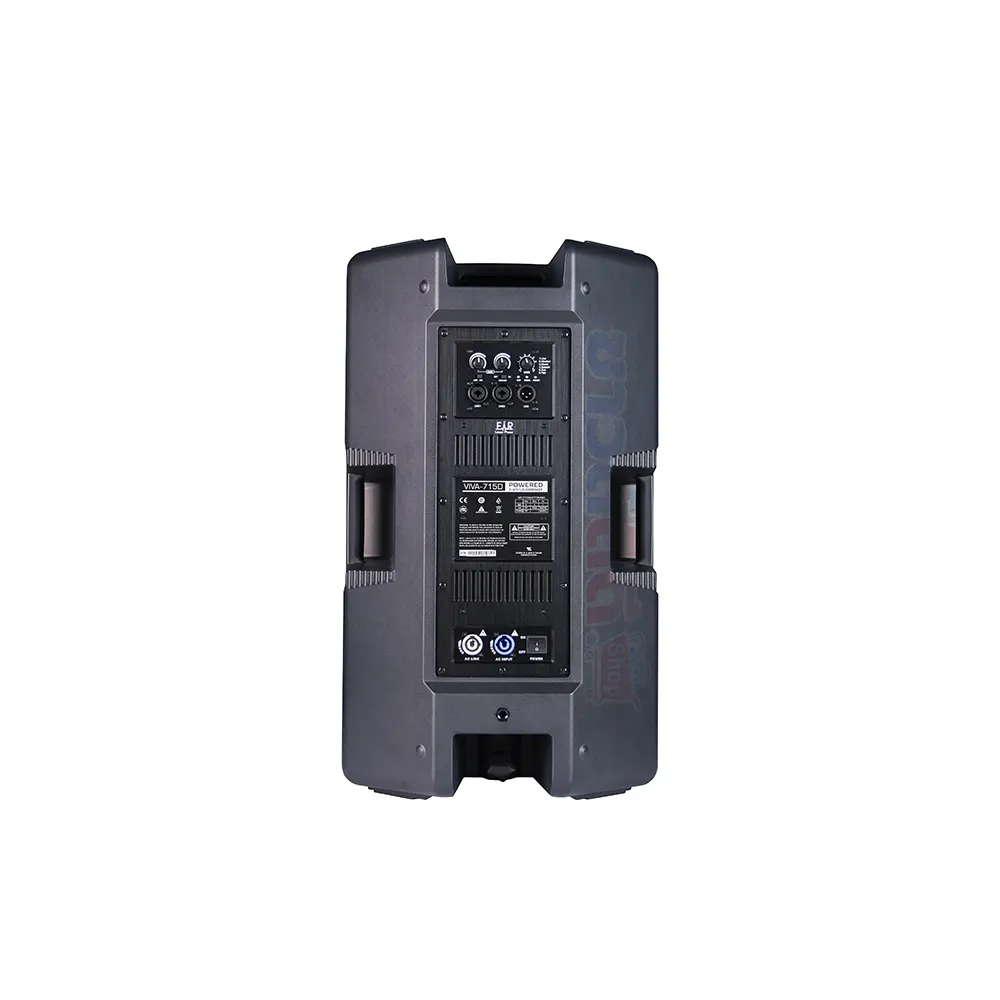

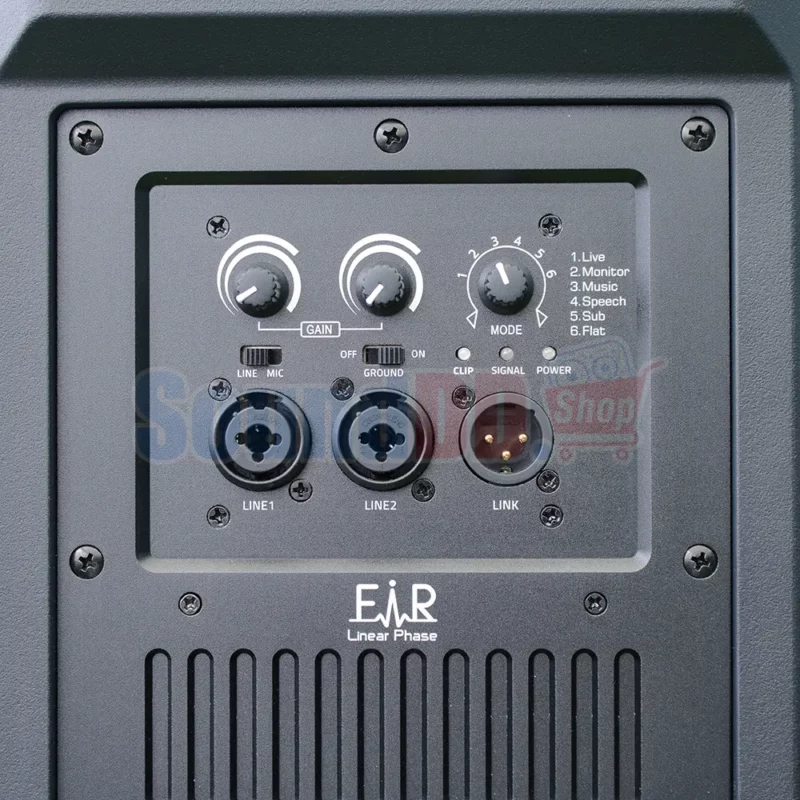

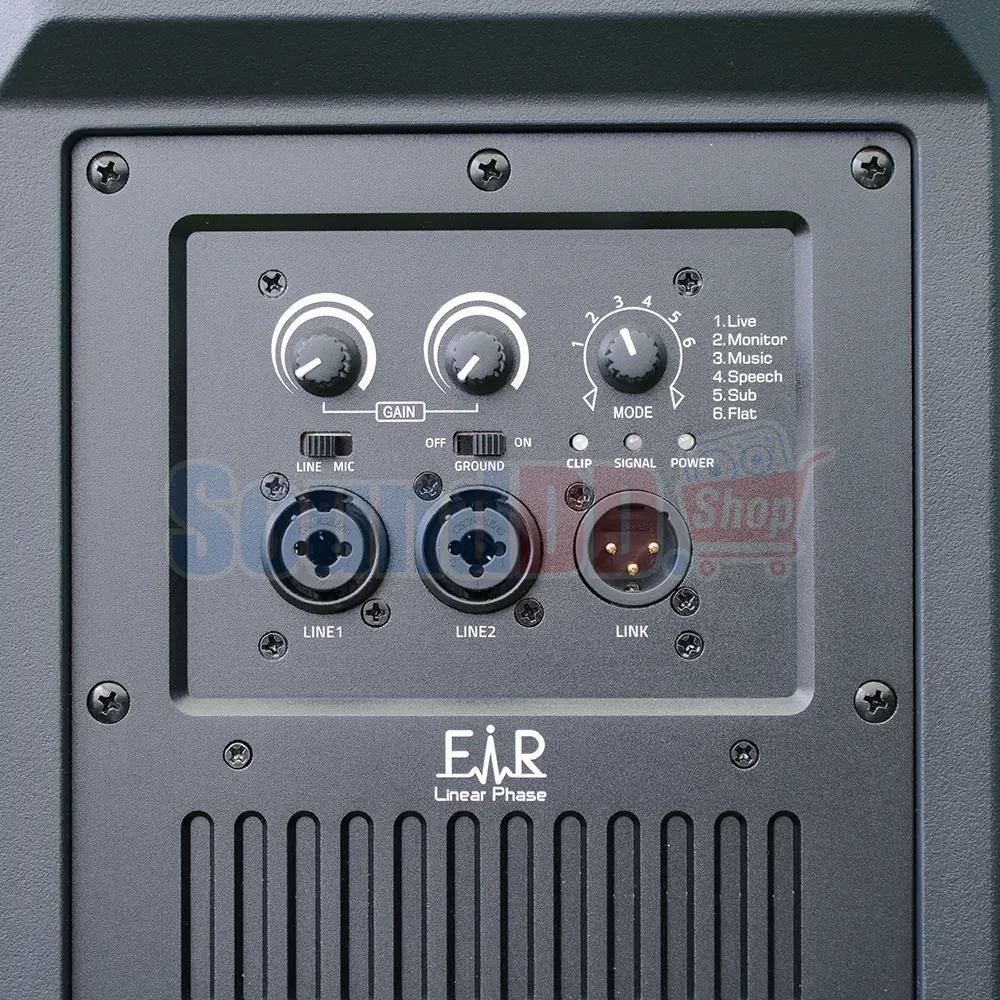

Input/Output section
- Input signal: Balance/Unbalance
- Input connectors: XLR, Jack
- Output connectors: XLR
- Input sensitivity: -2 dBu/+4 dBu
Processor section
- Mic. Input Sensitivity: -32 dBu
- Crossover Frequencies: 1800 Hz
- Protections: Thermal, RMS
- Limiter: Soft Limiter
- Controls: Volume, Boost, Mic/Line

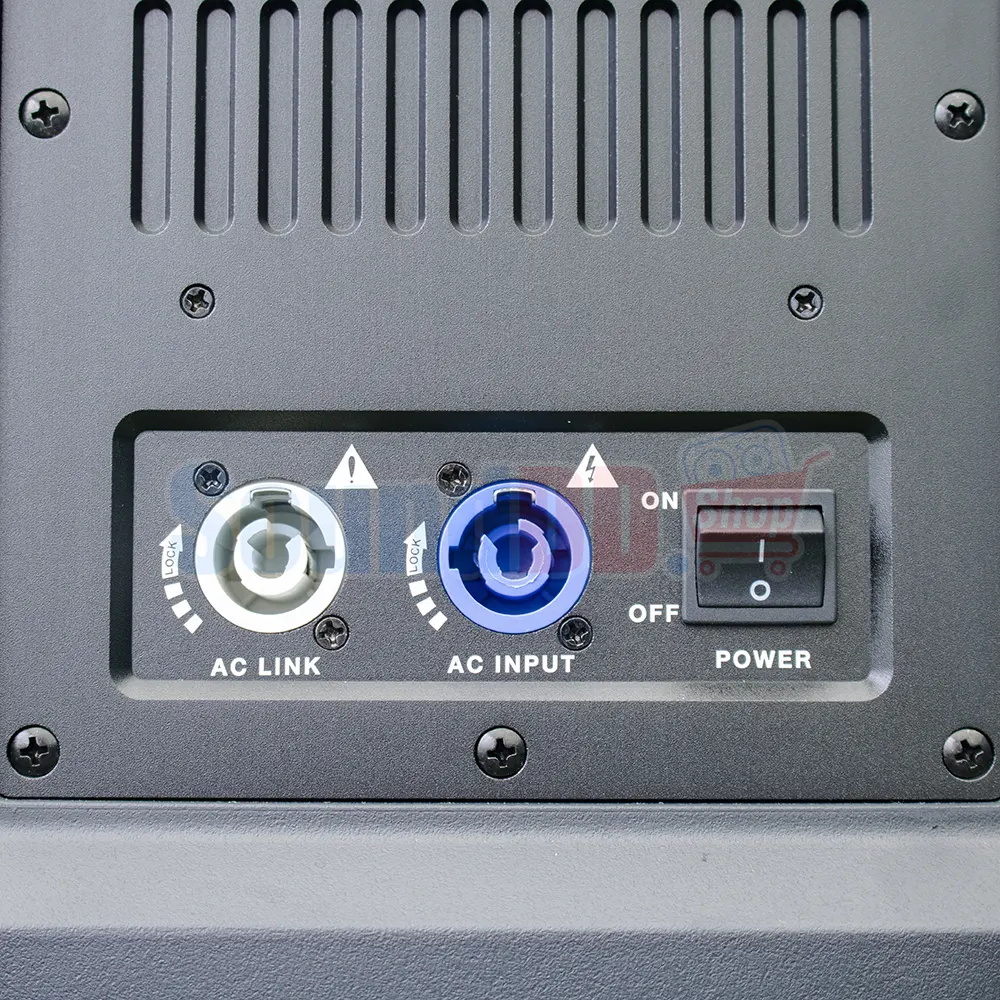

Power section
- Total Power: 1400 W Peak, 700 W RMS
- High frequencies: 200 W Peak, 100 W RMS
- Low frequencies: 1200 W Peak, 600 W RMS
- Cooling: Convection

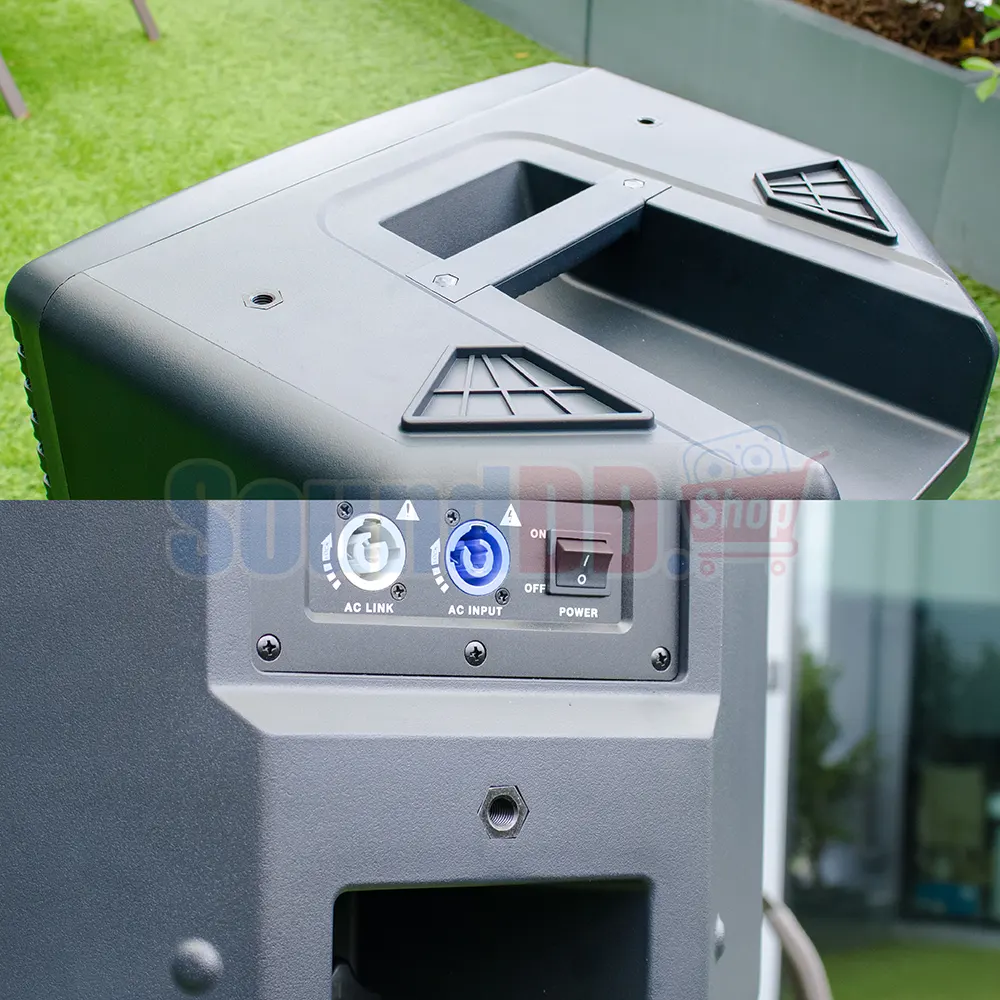

- Connections: VDE
Standard compliance
Physical specifications
- Cabinet/Case Material: PP Composite
- Hardware: 2 x M10

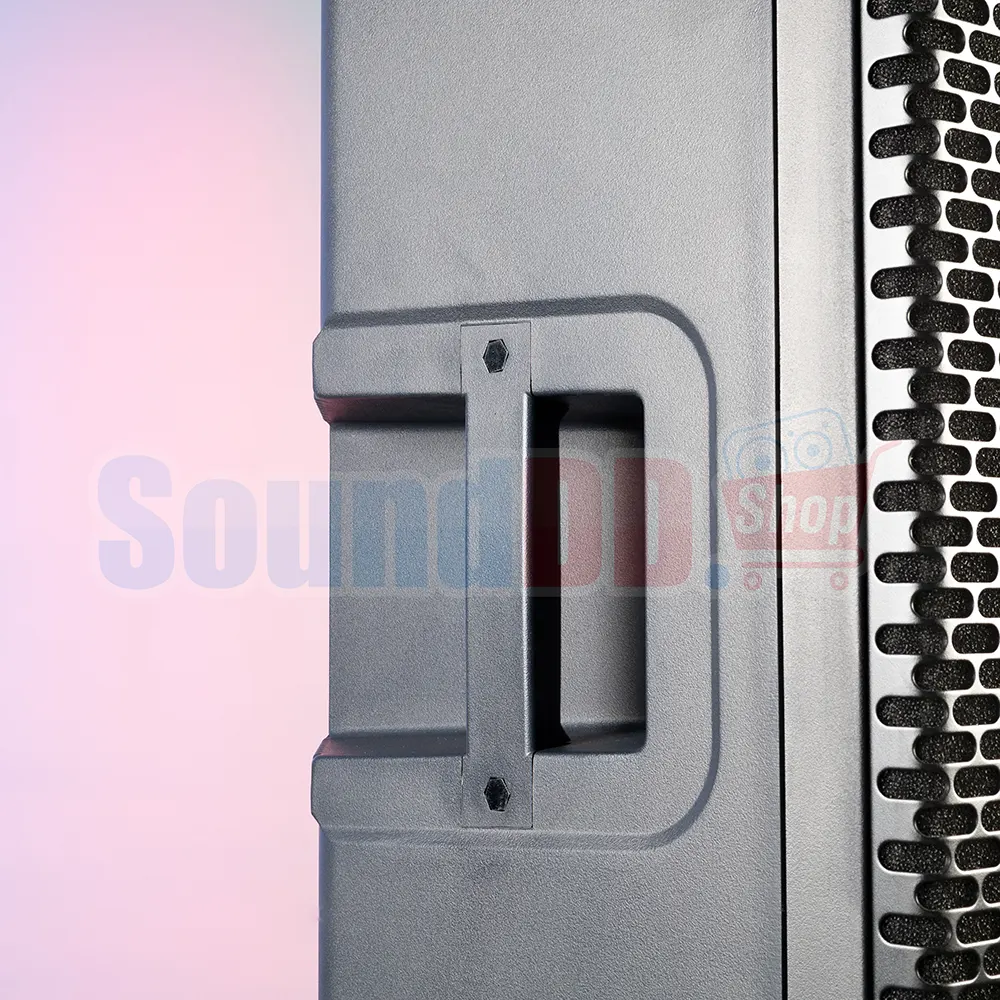

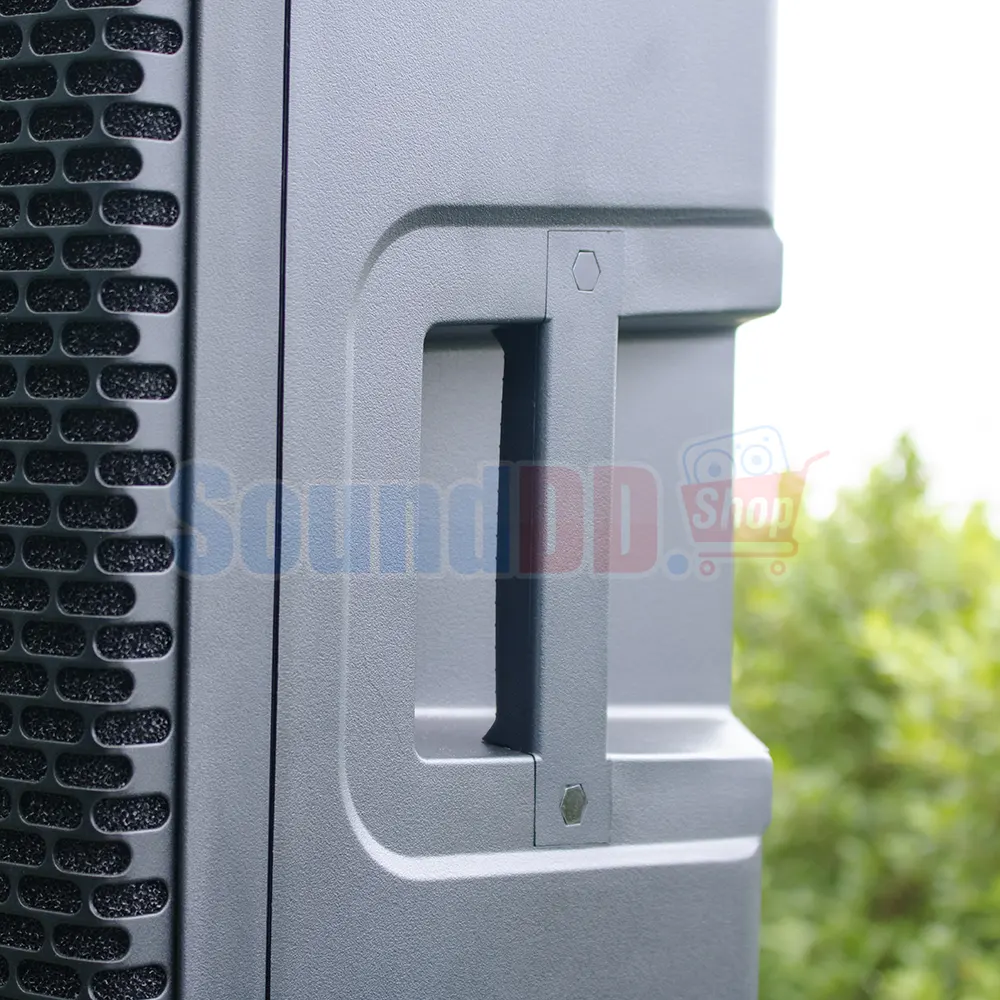

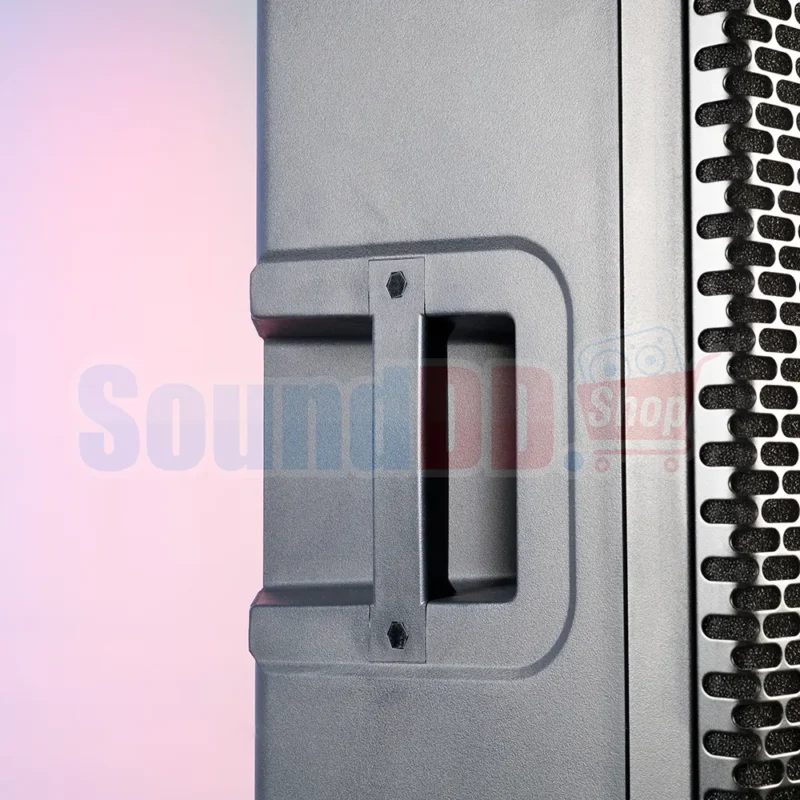

- Handles: 1 Top, 2 Side

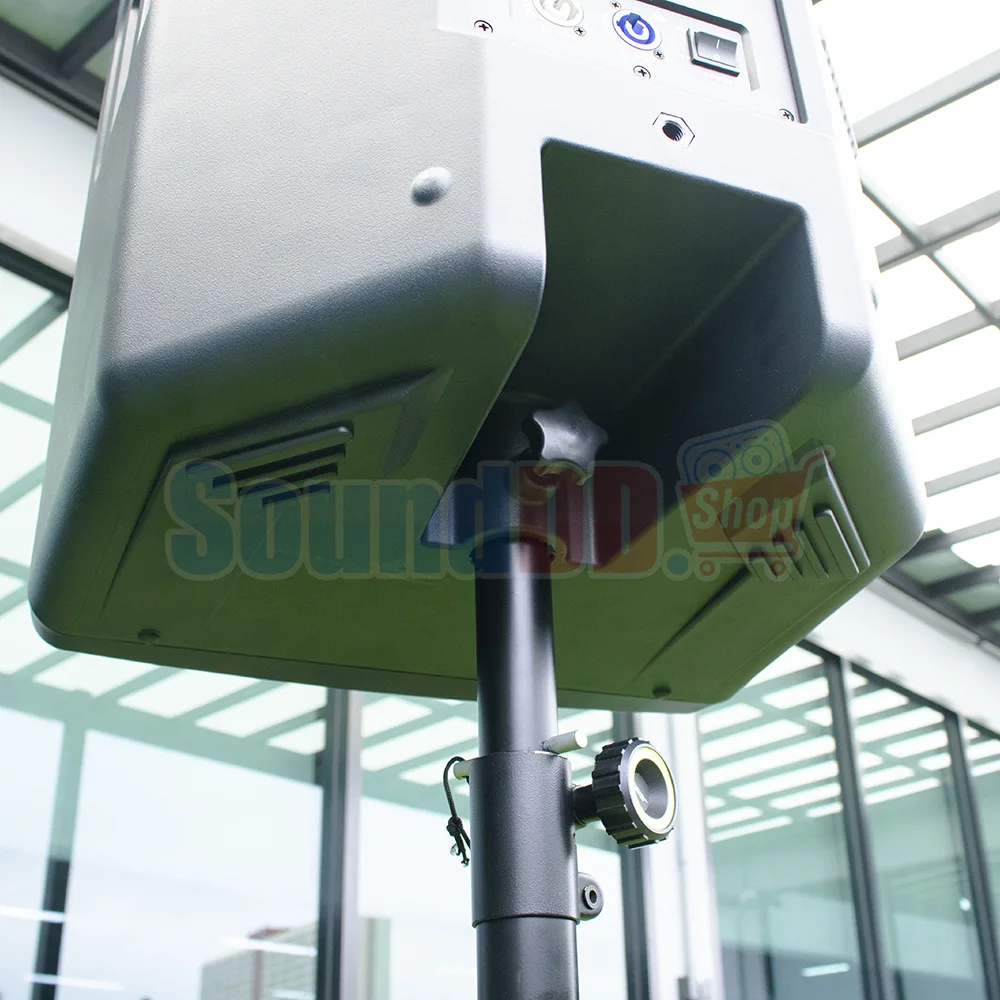

- Pole mount/Cap: Yes

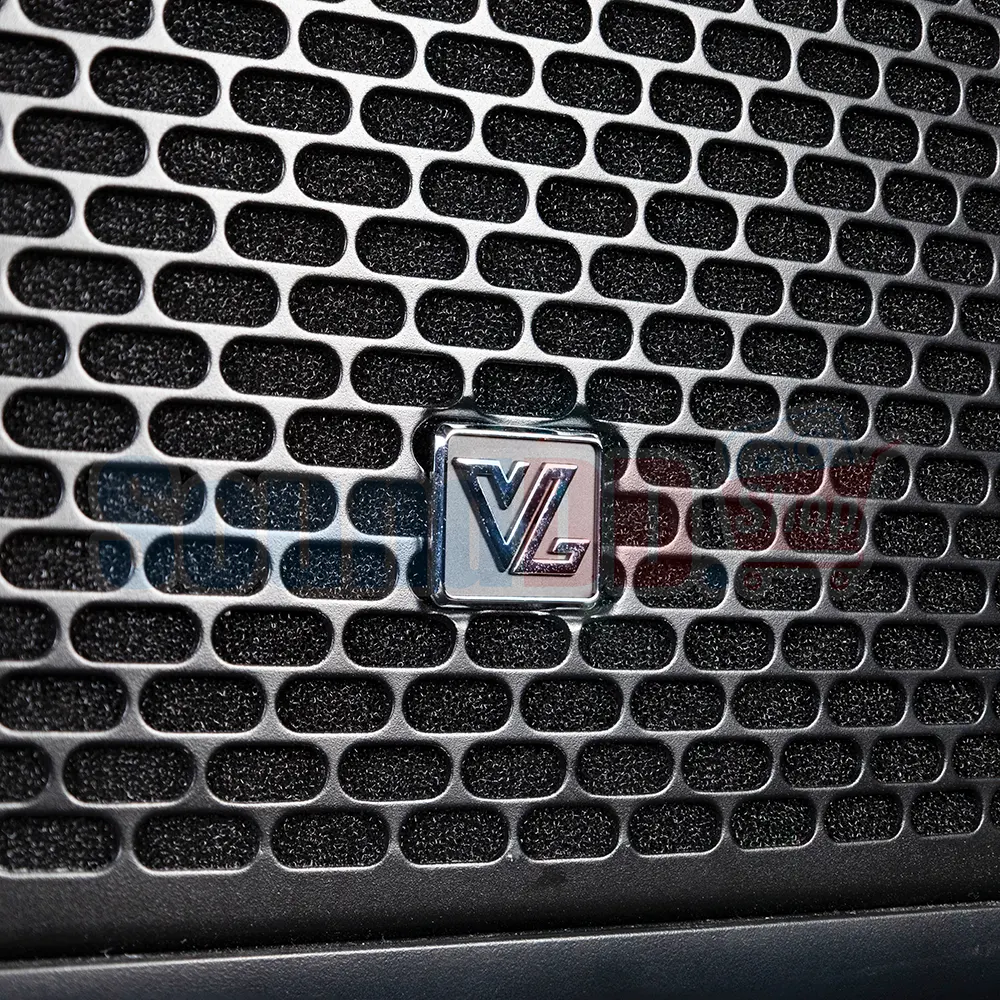

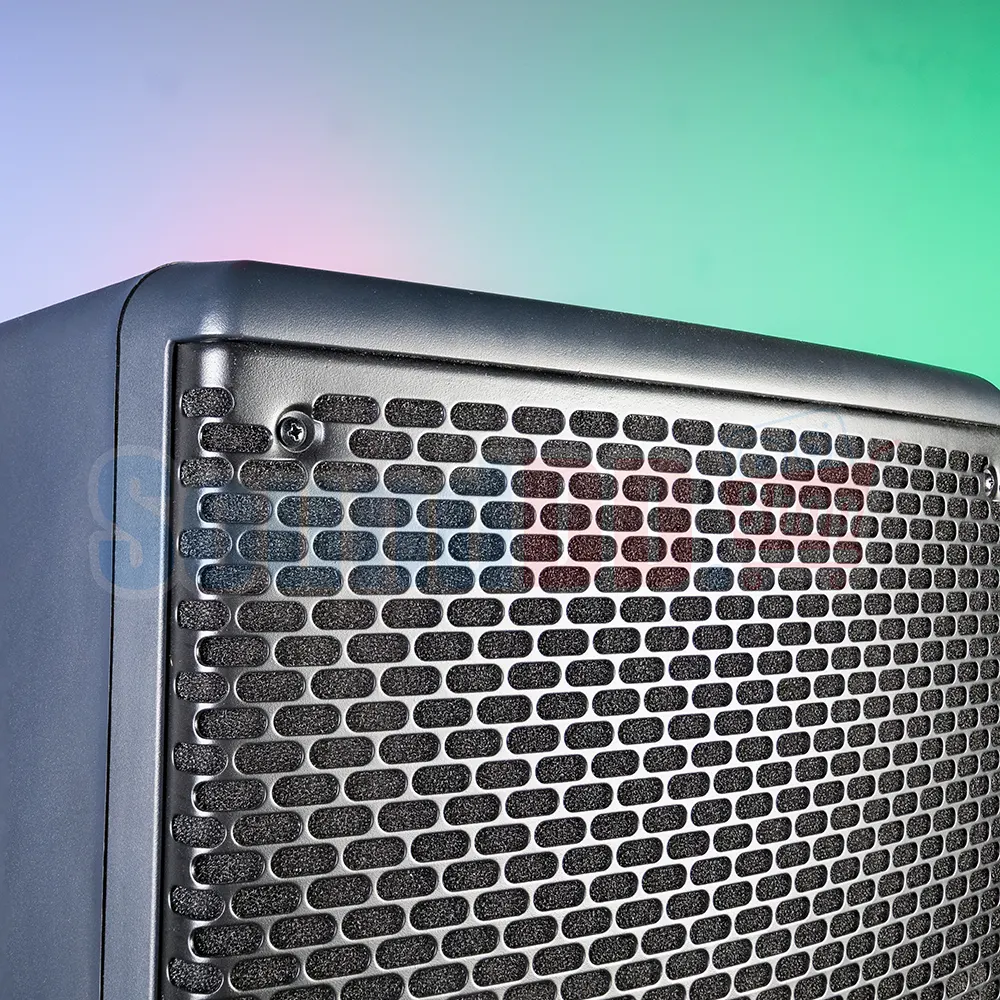

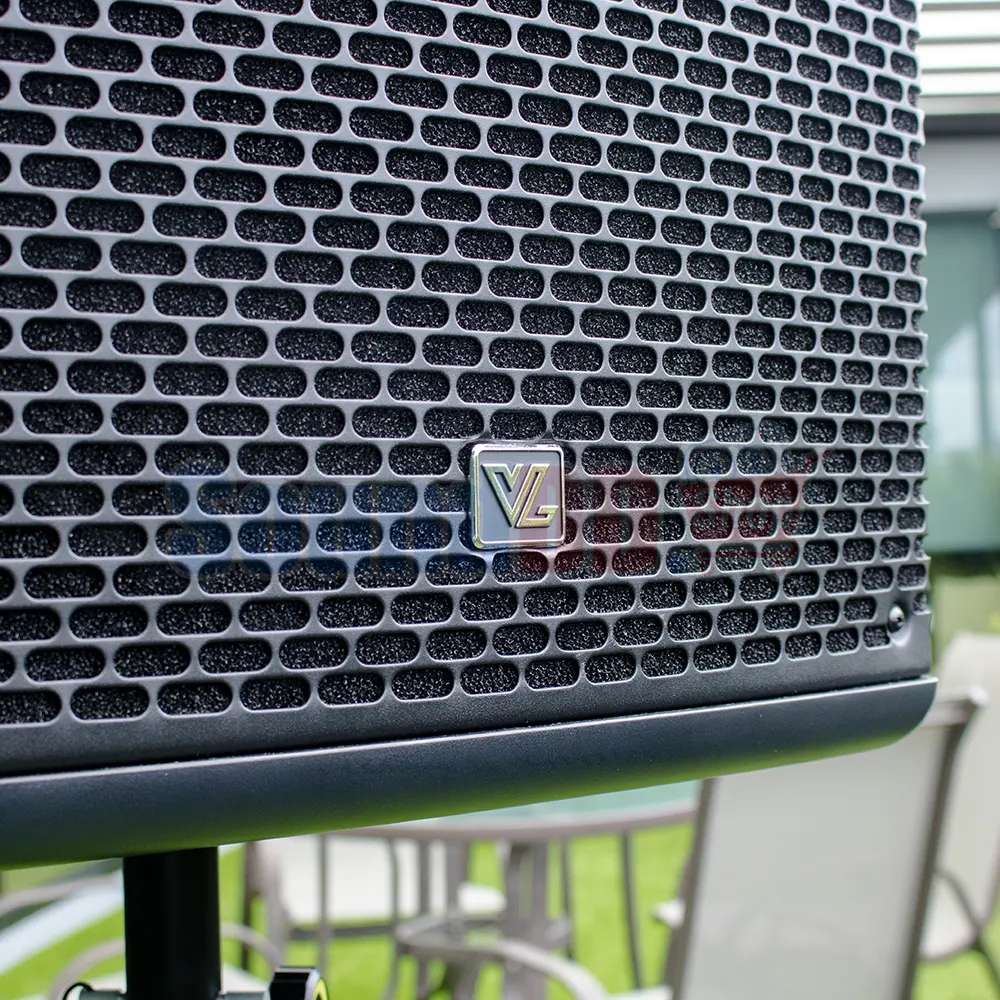

- Grille: Steel
- Color: Black
Size
- Height: 687 mm / 27.1 inches
- Width: 420 mm / 16.5 inches
- Depth: 390 mm / 15.3 inches
- Weight: 20 kg / 44.09 lbs
