• Digital Acoustic Feedback Suppression

• Discussion control without operator

• Controls up to 150 contribution devices

• Built-in monitor loudspeaker

Digital acoustic feedback suppression (CCS‑CUD

• The digital acoustic feedback suppression facility automatically eliminates acoustic feedback (also known as ‘howling’ or ‘Larsen effect’). This gives better speech intelligibility by allowing the speaker volume to be turned up as loud as required without any risk of feedback.

Discussion control without operator

• The CU can be setup to operate standalone without the need for an operator. The following 5 modes can be chosen using a rotary control on the unit’s top panel:
  • Open mode – allows selection of one to four microphones (excluded chairmen microphones) which can be simultaneously active
  • Open mode with auto-switch-off – allows selection of one to four microphones (excluded chairmen microphones) which can be simultaneously active. If the delegate does not speak for 30 seconds, microphones are automatically switched off
  • Override mode – delegates can override each other simply by activating their microphones. Only one microphone can be active at any one time. (Note: In override mode, delegates cannot override chairmen)
  • Chairman only mode – only chairmen can speak. Delegate microphones cannot be activated, even when a chairman is not speaking
  • Test mode –checks if system connections are correct. All microphone light rings and contribution unit LEDs light up to indicate that units are properly connected

Supplies power for up to 50 contribution units

• The CU has two trunk outputs for the loop-through connection of contribution units. It is possible to connect 25 contribution units to each trunk output, with a maximum system cable length of 100 m (109.3 yards).

Provides control for up to 150 contribution units

• Up to 3 CUs can be used together in a discussion system to power and control a maximum of 150 contribution units. In this configuration a single CU acts as a master controller for the entire system.

Built-in monitor loudspeaker

• The built-in monitor loudspeaker and headphone socket allow the conference to be monitored.

Interfaces the system with external equipment

• The following equipment can be interfaced to the CCS Ultro Discussion System through the CU:
  • External wired or wireless microphone – for guest speakers or audience participation. (Note: The external microphone is muted when the priority button on a chairman unit is pressed, and when the system is operating in ‘chairman only’ mode)
  • External PA system – for transmitting the proceedings to an audience in the same room or an adjacent room
  • Tape recorder – for external recording and playing back meetings and discussions
  • Audio equipment – for providing background music
  • Telephone coupler – to allow a remote delegate to participate via telephone
  • External audio processing – an insertion connector is provided

Controls and Indicators

• Top
  • Mains on/off switch
  • Loudspeaker volume control, for setting output level of loudspeakers of contribution units. This control also determines the maximum level for the headphone outputs of the contribution units and the CU.
  • Microphone mode rotary switch, for setting the number of simultaneously active microphones, and selecting one of the four operation modes (plus test mode)
  • Power on LED
• Back
  • On/off switch for digital acoustic feedback suppression facility (CCS‑CUD)
  • Microphone input gain adjustment
  • External recorder input gain adjustment
  • Insertion connector bypass switch

Interconnections

• Top
  • 1 x 3.5 mm (0.14 inch) stereo headphone socket

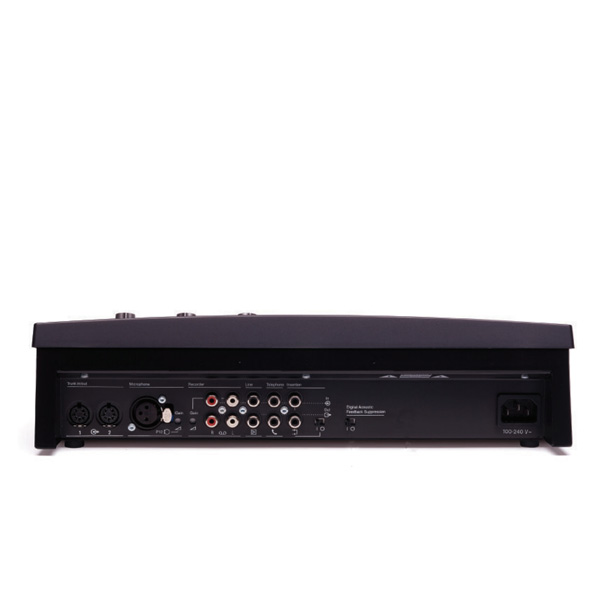

• Back
  • 1 x AC input
  • 2 x 7-pole circular female connectors, trunk in/out loop through interconnection
  • 1 x 3-pole female XLR connector, microphone input (can be used as line input by included 50dB attenuator)
  • 1 x Cinch connector pair, line input/output
  • 1 x Cinch connector pair, telephone input/output
  • 1 x Cinch connector pair, insertion input/output
  • 2 x Cinch connector pairs (R/L channel), external recorder input/output

BOSCH CCS‑CUD

Mains voltage	100 to 240 VAC ± 10 %
Current consumption	maximum 0.9 A (100 VAC) to 0.3 A (240 VAC)
DC supply to contribution units	24 V ± 1 V (current limited)
Loudspeaker volume control	mute (50 dB att.) + 10 steps of 1.9 dB
Limiter threshold level to unit	10 dB above nominal level loudspeaker / headphone
Gain reduction due to number of open microphones (NOM)	÷ NOM ± 1 dB
Total harmonics
Nominal input (85 dB SPL)	< 0.5
Max. input (110 dB SPL)	< 0.5
Dimensions including feet(H x W x D)	84 x 361 x 143 mm(3.4 x 14.2 x 5.6 in)
Height of feet	5.5 mm (0.22 in)
Mounting	tabletop (portable or fixed)19-inch rackflush mounting
Weight	1.5 kg (3.3 lb)
Material (top)	polymer
Material (base)	painted metal
Color (top)	charcoal (PH10736)
Color (base)	black (PH80007)
