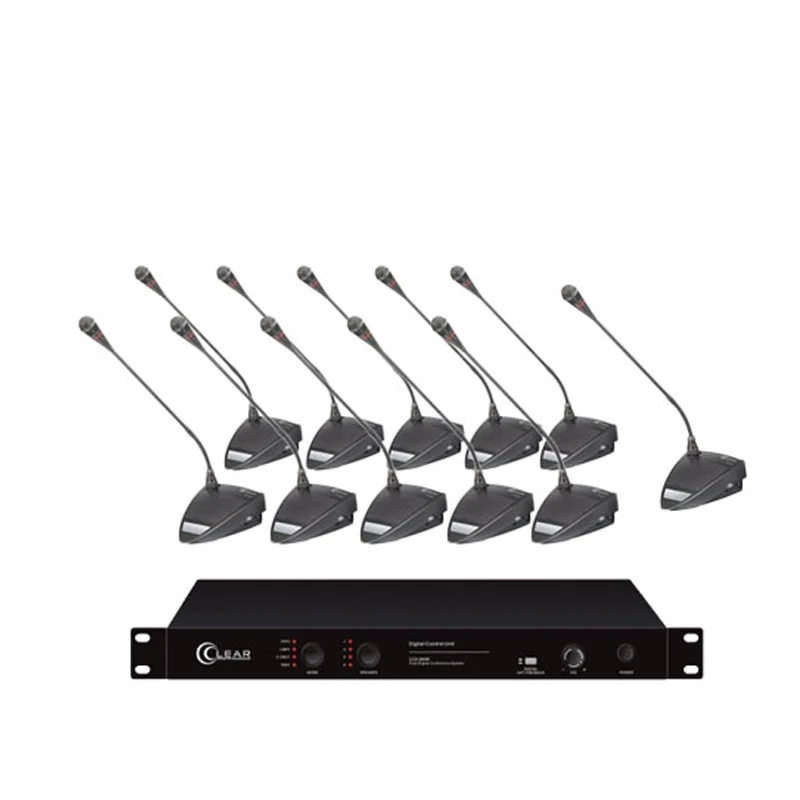

ชุดไมโครโฟนห้องประชุมระบบดิจิตอล CLEARSOUND CCS-580-PRO SET ชุดประชุมสำหรับผู้เข้าร่วมประชุม รวม 11 ท่าน (ไมค์ประธาน 1 ท่าน ไมค์ผู้ร่วมประชุม 10 ท่าน) CLEARSOUND CCS 580 PRO SET ชุดไมโครโฟนห้องประชุม จากแบรนด์ชั้นนำ ผู้เชียวชาญเรื่องระบบเสียง CLEARSOUND
CLEARSOUND CCS-580-PRO SET
ชุดไมค์ประชุมดิจิตอลสำหรับผู้ร่วมประชุม ของซีรีย์ CLEARSOUND CCS-580-PRO SET ใช้งานร่วมกับ CCS-580M และ CCS-580C ไมค์ประชุมประธานมีปุ่มกด Priority Key สำหรับปิดการทำงานไมโครโฟนผู้ร่วมประชุม สำหรับอนุมัติเปิดไมโครโฟนผู้ร่วมประชุม กรณีมีการร้องขอเปิดใช้งานจากผู้เข้าร่วมประชุม
ในซีรีย์ CCS-580-PRO SET ประกอบด้วย เครื่องควบคุมไมโครโฟนประชุม (CCS-580M )ที่มาพร้อม Anti Feedback ในตัว ,ไมโครโฟนประชุมสำหรับ ประธาน (CCS-580C) และ ไมโครโฟนประชุมสำหรับผู้ร่วมประชุม (CCS-580D ) โดยในซีรีย์นี้มีรูปแบบการใช้งานที่ง่าย
Controller Unit with Anti Feedback เครื่องควบคุมชุดไมค์ประชุมระบบดิจิตอล (Digital Conference System ชุดห้องประชุมระบบดิจิตอล )
ซีรีย์ CCS-580 รองรับการพูดประชุมได้มากมายสำหรับ :
- ห้องประชุมขององค์กร
- ห้องประชุมของหน่วยงานราชการ
- ห้องประชุมสภาเทศบาลเมือง
- สถาบันการศึกษา
- ศาลและมูลนิธิและองค์กรอื่นๆ
ประกอบด้วย
CLEARSOUND CCS-580C
ไมค์ประชุมดิจิตอล สำหรับประธาน 1 ชุด
CLEARSOUND CCS-580D
ไมค์ประชุมดิจิตอล สำหรับผู้ร่วมประชุม 10 ชุด
CLEARSOUND CCS-580M
เครื่องควบคุม ชุดไมค์ประชุมดิจิตอล 1 เครื่อง

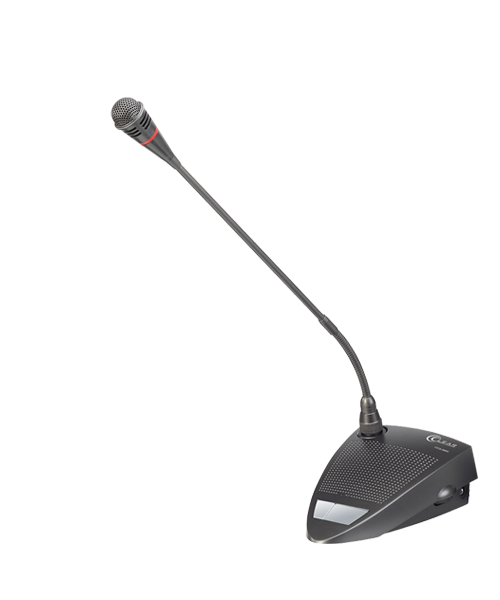

CLEARSOUND CCS-580C ชุดไมค์ประชุมดิจิตอลสำหรับประธานของซีรีย์ CCS-580 ใช้งานร่วมกับ CCS-580M และ CCS-580D ไมค์ประชุมประธานมีปุ่มกด Priority Key สำหรับปิดการทำงานไมโครโฟนผู้ร่วมประชุม สำหรับอนุมัติเปิดไมโครโฟนผู้ร่วมประชุม กรณีมีการร้องขอเปิดใช้งานจากผู้เข้าร่วมประชุมCLEARSOUND CCS-580C Digital Chairman Discussion Unit จากแบรนด์ชั้นนำ CLEARSOUND
CLEARSOUND CCS-580C Digital Chairman Discussion Unit ไมค์ประชุมสำหรับประธาน ระบบดิจิตอล
CCS-580 Series supports multiple meeting for :
- Corporate meeting Rooms.
- Government meeting room & City Council Meeting.
- Education institutions.
- Courtrooms.
- Non-profit oragnizations.
- Digital audio for good sound quality.
- Built-in hi-fi loudspeaker and pluggable microphone.
- Removeable gooseneck microphone with light ring indicator on microphone stem, light up red when microphone turn on.
-
High sensitivity microphone.
- Good ability for resistance to Mobile interference.
- Chairman priority key ; could shut all the delegate unit.
- The chairman unit can be placed in any position in loop.
-
The chairman unit quantity is unrestricted in the loop.
- The chairman unit is unrestricted by the limiting function.
- Speaking button and indicator lamp that can show and control the state of speech.
- Two groups of 3.5mm stereo sound output socket; can be used as speech sound input and earphone connection.
- Rotary volume control for adjusting built-in loudspeaker or headphone volume (when headphone connect).
-
Daisy-Chain connection.
- Connecting cable 2.3m, 8P core line, convenient installation can increase efficiency.
- The power for units is supplied by the master controller.
- Reduce sound impact and wind shield.
- Metal microphone shell bottom.
Power Supply DC |
9V by Control unit |
Power Consumption | 80mA |
Interface Type | 8P-DIN |
Earphone Output | 3.5mm stereo jack |
Installation | Desktop |
Input Impedance | 1 K Ω |
Connection Mode |
Daisy-Chain |
Crosstalk Attenuation | >60 dB |
Speaker Power | 2W |
Microphone Type | Condenser |
Polar pattern | Ultra Cardioid |
Frequency response | 50Hz-17kHz |
Signal-to-Noise Ratio | 68dB(A-Wieght) |
Sensitivity | -43 dBV/Pa |
Length of Microphone | 500mm |
Color |
Iron gray |
Dimensions | W163xH60xD125 mm |
Weight | 800g |

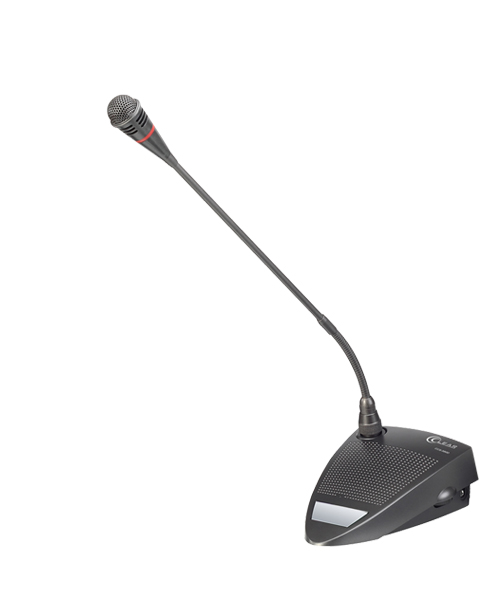

ชุดไมค์ประชุมดิจิตอลสำหรับผู้ร่วมประชุม CLEARSOUND CCS-580D ของซีรีย์ CCS-580 ใช้งานร่วมกับ CCS-580M และ CCS-580C ไมค์ประชุมประธานมีปุ่มกด Priority Key สำหรับปิดการทำงานไมโครโฟนผู้ร่วมประชุม สำหรับอนุมัติเปิดไมโครโฟนผู้ร่วมประชุม กรณีมีการร้องขอเปิดใช้งานจากผู้เข้าร่วมประชุม CLEARSOUND CCS-580D Digital Delegate Discussion Unit จากแบรนด์ชั้นนำ CLEARSOUND
CLEARSOUND CCS-580D Digital Delegate Discussion Unit ไมค์ประชุมสำหรับผู้ร่วม ระบบดิจิตอล
CCS-580 Series supports multiple meeting for :
- Corporate meeting Rooms.
- Government meeting room & City Council Meeting.
- Education institutions.
- Courtrooms.
- Non-profit oragnizations.
- Digital audio for good sound quality.
- Built-in hi-fi loudspeaker and pluggable microphone.
- Removeable gooseneck microphone with light ring indicator on microphone stem, light up red when microphone turn on.
- High sensitivity microphone.
- Good ability for resistance to Mobile interference.
- Speaking button and indicator lamp that can show and control the state of speech.
- Two groups of 3.5mm stereo sound output socket; can be used as speech sound input and earphone connection.
- Rotary volume control for adjusting built-in loudspeaker or headphone volume (when headphone connect).
- Daisy-Chain connection.
- Connecting cable 2.3m, 8P core line, convenient installation can increase efficiency.
- The power for units is supplied by the master controller.
- Reduce sound impact and wind shield.
- Metal microphone shell bottom.
Power Supply DC | 9V by Control unit |
Power Consumption | 80mA |
Interface Type | 8P-DIN |
Earphone Output | 3.5mm stereo jack |
Installation | Desktop |
Input Impedance | 1 K Ω |
Connection Mode | Daisy-Chain |
Crosstalk Attenuation | >60 dB |
Speaker Power | 2W |
Microphone Type | Condenser |
Polar pattern | Ultra Cardioid |
Frequency response | 50Hz-17kHz |
Signal-to-Noise Ratio | 68dB(A-Wieght) |
Sensitivity | -43 dBV/Pa |
Length of Microphone | 500mm |
Color | Iron gray |
Dimensions | W163xH60xD125 mm |
Weight | 800g |

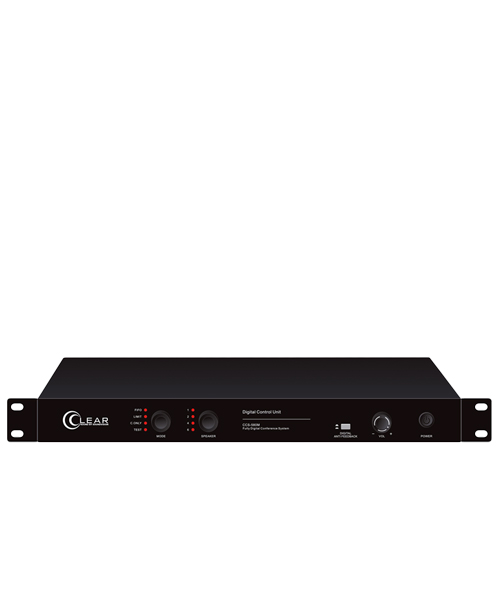

เครื่องควบคุมชุดไมค์ประชุม CLEARSOUND CCS-580M พร้อม Anti Feedback ในตัว มีการควบคุมการพูดประชุมทั้งหมด 4 โหมดสนทนา ให้คุณภาพเสียงชัดใส สามารถรองรับการใช้งานชุดไมโครโฟนประชุมได้ถึง 60 ตัว และสามารถเชื่อมต่อได้สูงสุดถึง 255 ตัว CLEARSOUND CCS-580M Controller Unit with Anti Feedback จากแบรนด์ชั้นนำ CLEARSOUND
CLEARSOUND CCS-580M Controller Unit with Anti Feedback เครื่องควบคุมชุดไมค์ประชุมระบบดิจิตอล
CCS-580 Series supports multiple meeting for :
- Corporate meeting Rooms.
- Government meeting room & City Council Meeting.
- Education institutions.
- Courtrooms.
- Non-profit oragnizations.
- Digital conference system.
- Easy to control meeting mode and the number of speakers by the knobs on the panel.
- The LED indicator ligth display working mode and allowed speaking number.
- The microphone can open at same time : 1, 2, 4, and 6.
- The CCS-580M can support 60 microphone units. And can able to support extend power connect microphone up to 255 units.
- Easy Increase volume or Decrease volume by knob Volume on the panel.
- Digital anti feedback function on/off switch on the panel.
- Equipped with audio parallel output and a 6.3 jack output, conference recording outputs and background music inputs interface.
- Four operational microphone modes:
1. FIFO mode: After reaching limit number (1,2,4,6) when open new delegate microphone the first microphones will close automatic.
2. LIMIT mode: Limit microphones (1,2,4,6) can open on the same time.
3. CHAIRMAN ONLY mode: Only chairman can speech.
4. TEST mode: Light-ring all delegate microphone in system will turn on for check all delegate microphone status is ready to used.
Power Supply | AC 100-240V |
Max Power Consumption | 120W |
Frequency response | 30Hz-18kHz |
Input impedance | LINE:50K? DIN:50K Ω |
Output impedance | RECORD :200Ω LINE :200Ω
BALANCE: 300Ω UNBALANCE: 400Ω |
Signal to Noise Ratio | > 100dB @ 1KHz |
Total Harmonic Distortion Ratio | < 1 % @ 1kHz |
Opreation temperature | -20°C ~ 70°C |
Storage temperature | -30°C ~ 80°C |
Color | Black |
Dimensions | 420x44x220 mm |
Weight | 3.5 Kg |
Set | 19 inches racks |
