CLEARSOUND Meeting&Seminar Systems ชุดไมค์ประชุมไร้สาย พร้อมเครื่องปรับแต่งสัญญาณเสียง และตู้ลำโพงติดผนัง Meeting&Seminar Systems ชุดไมค์ประชุมไร้สาย จากแบรนด์ CLEARSOUND
CLEARSOUND Meeting&Seminar Systems
ประกอบด้วย
CLEARSOUND CSW-540
ชุดไมค์ประชุมสำหรับ 4 ท่าน 2 ชุด
BEHRINGER RX1202FX
อนาล็อค มิกเซอร์ 1 เครื่อง
SOUNDVISION D-2250
เครื่องขยายเสียงระบบดิจิตอล 1 เครื่อง
DBX PA2
เครื่องปรับแต่งสัญญาณเสียง 1 เครื่อง
SOUNDVISION SE-08
เครื่องจ่ายไฟ 1 เครื่อง
SOUNDVISION SVS-82W
ตู้ลำโพงติดผนัง 1 คู่
CLEARSOUND CSW-540 UHF Wireless Conference Microphones systems
CLEARSOUND CSW-540 ชุดไมค์ประชุมสำหรับ 4 ท่าน แบบไร้สาย ย่าน UHF CSW-540 ชุดไมค์ประชุม จากแบรนด์ CLEARSOUND
CSW-540 Series UHF Wireless Conference Microphones system 4 Channels. the technology for good sound quality flexibility performance frequency response and accurate sound reproduction for a wide variety of applications, such as Meeting Rooms, Public relations, Education institutions, to provide users with an exceptional performance features contemporary design element to enhanced convenience and consistent sound.
- 4 Channels Adjustable frequency.
- IR automatic 20 frequency points.
- Microphone can be used in every channel.
- 2 controllers can used simultaneously.
- LCD screens show working status on the receiver and emitter.
- There are 2 balanced output and 1 mixed unbalanced output, 2 rubber antennas.
- AA 1.5V*3 battery power supply, support 8 hours.
- Light ring on the microphone head will display working status.
- Working distance: 50 meters.
- It’s suitable for various kinds of conference and performance occasion
CSW-540 |
|
|
Channel number |
4 |
|
Oscillation Mode |
PLL synthesized |
|
Modulation Mode |
FM |
|
Frequency Range |
UHF 803.2 ~ 805.8MHz |
|
Frequency Stability |
±0.001% |
|
Max. Deviation Range |
±50KHz |
|
S/N Ratio |
>90dB |
|
T.H.D |
<0.5%@1KHz |
|
Sensitivity |
1.2/UV@S/N=12dB |
|
Power Supply |
DC 12~17V |
|
Gooseneck mic length |
430mm |
|
Audio Output |
Independent: 0-400mV Mixed: 0-300mV |
CSW-540D Transmitter |
|
|
Frequency Range |
UHF 803.2 ~ 805.8MHz |
|
Frequency response |
40Hz-16KHz |
|
Frequency stability |
±0.001% |
|
Sensitivity |
-43±3dB@1KHz |
|
Max. deviation Range |
±30KHz |
|
Dynamic range |
≥100dB |
|
Type |
Condenser |
|
Polar pattern |
Super Cardioid |
|
S/N Ratio |
>90dB |
|
F/N Ratio |
>80dB |
|
Transmitter power |
12mW |
|
Power consumption |
150mA |
|
Power supply |
DC 4.5V (1.5V AA*3) |

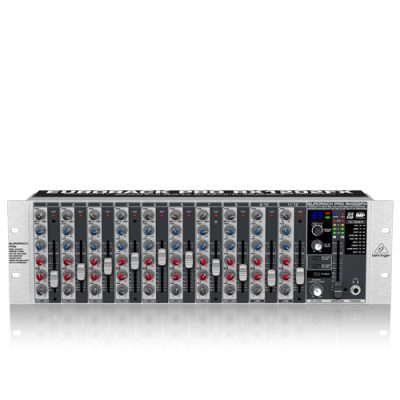

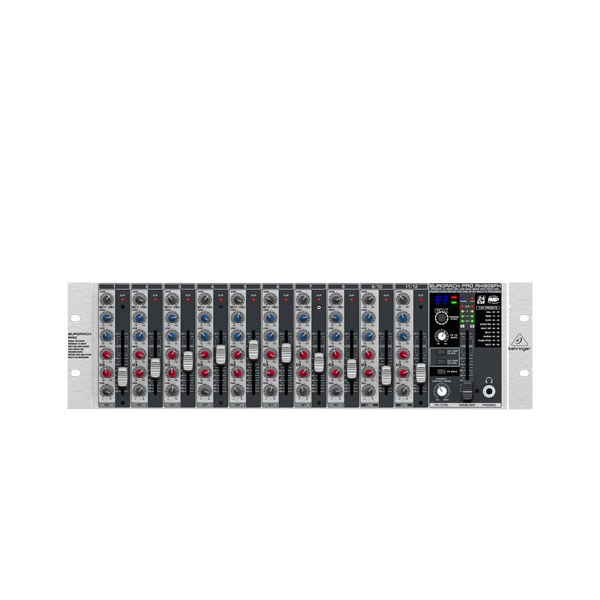

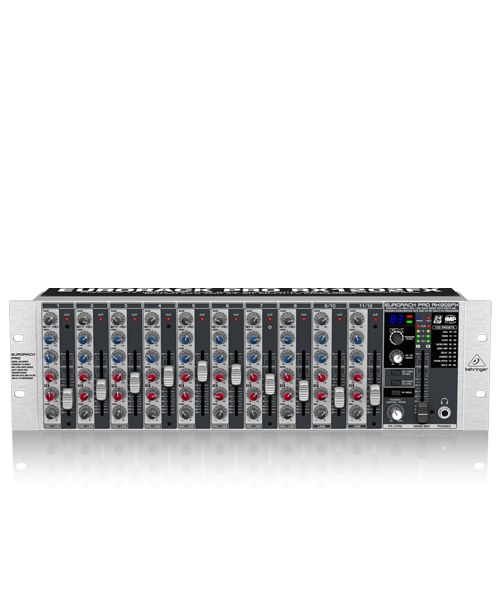

BEHRINGER EURORACK PRO RX1202FX Premium 12-Input Mic/Line Rack Mixer with XENYX Mic Preamplifiers, British EQ’s and Multi-FX Processor
BEHRINGER EURORACK PRO RX1202FX อนาล็อค มิกเซอร์ ยึดแรกส์ 12 อินพุตไมค์ BEHRINGER EURORACK PRO RX1202FX Rackmount จากแบรนด์ BEHRINGER
- Premium ultra-low noise, high headroom analog 3U rack mount mixer
- 8 state-of-the-art XENYX Mic Preamps comparable to stand-alone boutique preamps
- Neo-classic “British” 2-band EQs for warm and musical sound
- Studio-grade FX processor with 100 awesome presets including reverb, chorus, flanger, delay, pitch shifter and various multi-effects
- Switchable +48 V phantom power for condenser microphones
- 4 additional balanced high-headroom line inputs
- CD/Tape inputs assignable to Main mix or Control Room/Phones outputs
- 2 Aux sends per channel: 1 pre fader for monitoring applications, 1 post fader for internal FX or as external send
- Separate Control Room, Phones and stereo CD/tape outputs
- Balanced Main mix outputs with gold-plated XLR connectors
- Long-wearing 60-mm logarithmic-taper faders and sealed rotary controls
- “Planet Earth” switching power supply for maximum flexibility (100
– 240 V~), noise-free audio, superior transient response plus low power consumption for energy saving - 3-Year Warranty Program*
- Designed and engineered in Germany
EURORACK PRO RX1202FX
The rack-mountable, 12-Input RX1202FX mixer enables you to effortlessly achieve premium-quality sound, thanks to 8 onboard studio-grade XENYX Mic Preamps, 2 stereo Line Inputs and ultra-musical “British” channel EQs. Add to this our 24-Bit Multi-FX processor with 100 awesome presets including studio-class reverbs, delays, pitch shifter and various multi-effects – and the RX1202FX becomes an incredibly-versatile mixer for your live performances.
Ideally suited for musicians, houses of worship and a wide variety of business applications, the incredible RX1202FX is also perfect for sub-mixing keyboards, drums or multiple vocal mics – and is an absolute “must-have” for monitoring your multitrack recording projects!
Sonically Superior Mic Preamps
Our legendary, high headroom XENYX mic preamps have been praised by audio engineers all over the world. These state-of-the-art mic pres represent a major step in the evolution of audio technology – and they can easily hold their own, even when compared to the most expensive stand-alone mic preamps.
XENYX preamps off er a staggering 130 dB of dynamic range, with a bandwidth that extends from below 10 Hz to well above 200 kHz. Armed with these outstanding mic preamps, the RX1202FX provides such transparent, crystal-clear performance you just might think someone upgraded your mics while you weren’t looking.
Sublimely Musical British EQ
The British consoles of the 1960s and ‘70s changed the sound of rock and roll – without them the British Invasion might not have happened. Those legendary mixing desks soon became the envy of engineers and producers all over the world.
The channel EQ on our RX1202FX mixer is based on that very same circuitry, allowing you to imbue signals with incredible warmth and detailed musical character. Even when applied generously, these equalizers exhibit sweet forgiveness and superb audio quality.
Effective FX
Every RX1202FX mixer features our 24-Bit Multi-FX processor, with 100 awesome presets including reverb, chorus, flanger, delay, pitch shifter and various multi-effects. Complete with highly-accurate Signal and Clip LEDs, these effects are instantly available at your fingertips via the Program selector control.
Taking Control
Smooth 60 mm faders and intuitive rotary dials make it quick and simple to create a great mix. The Main Mix fader adjusts the volume of the Main Output signal, while the dual 4-segment LED ladder display gives a visual confirmation of the signal level. The Phones jack features a dedicated Phones/Control Room dial for adjusting the volume.
Push CD/Tape To Mix to add backing tracks from an mp3 or CD player, or the CD/Tape To Ctrl to isolate a click or scratch track in the headphones during recording.
Panel Discussion
On the RX1202FX’s rear panel, the Left and Right Main Out XLR connections can be used to feed the mix to a recording device or PA system. For live performances, keep pre-recorded music cued up for between-set breaks by connecting a CD or mp3 player via the stereo 2-Track In jacks. If the band wants a recording of their performance, you can send the signal to a recording device via the 2-Track Out jacks.
Use the Mon Aux Send to send the monitor bus signal to your floor monitors in a live performance, or to a headphone amp in a recording session. When it’s time for playback of the recorded material, just send the signal to your studio monitors via the Ctrl Out jack.
Amazing Performance and Value
No matter what your audio mixing needs, the RX1202FX provides the performance and features that can take your talent to the next level, at a price sure to amaze you. Professional sound quality, our legendary XENYX mic preamps, British EQs, 24-Bit Multi-FX Processor and USB connectivity make EURORACK PRO RX1202FX ideal for both your live gigs and recording. Try one out at your authorized BEHRINGER dealer – or place your order online today!
Type |
Analog |
Channels |
10 |
Inputs – Mic Preamps |
8 x XLR |
Inputs – Line |
12 x TRS |
Inputs – Other |
2 x RCA |
Outputs – Main |
2 x XLR, 2 x TRS |
Outputs – Direct |
No Direct Outputs |
Outputs – Other |
2 x RCA |
Headphones |
1 x 1/4″ |
Send/Return I/O |
1 x TRS Send, 2 x TRS Return |
Phantom Power |
8 |
EQ Bands |
2-band EQ |
Aux Sends |
1 x Pre, 1 x Post |
Busses/Groups |
No Busses/Groups |
Faders |
10 x 60mm |
Channel Inserts |
Yes |
Effects |
Yes |
Talkback |
No |
Computer Connectivity |
No Computer Connectivity |
Rackmountable |
Yes, 3U |
Height |
5.2″ |
Depth |
19″ |
Width |
5.9″ |
Weight |
6.4 lbs. |

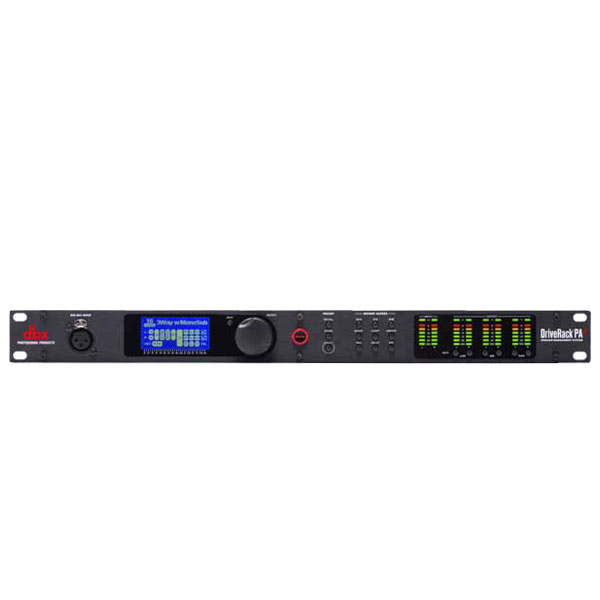

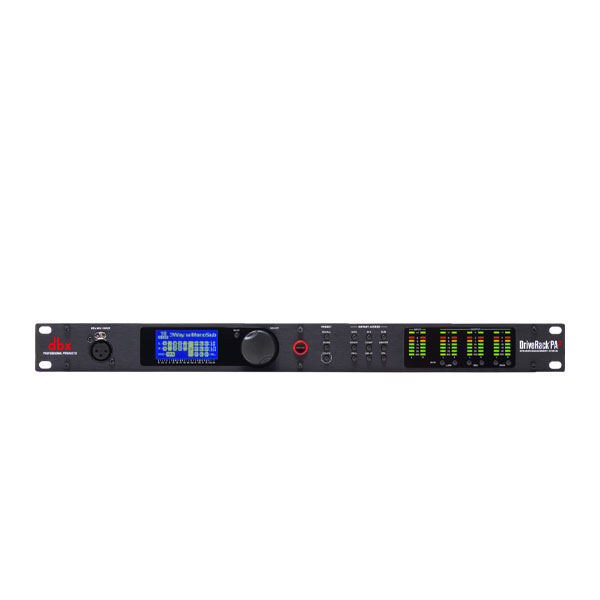

DBX DriveRack PA2 Complete Loudspeaker Management System
DBX DriveRack PA2 เครื่องปรับแต่งสัญญาณเสียง ระบบดิจิตอล ครอสโอเวอร์,อีควอไลเซอร์,ลิมิตเตอร์,คอมเพรสเซอร์,ดีเลย์เสียง DBX DriveRack PA2 DSP โปรเซสเซอร์ จากแบรนด์ DBX
DBX DriveRack PA2 Complete Loudspeaker Management System ทุกฟังก์ชั่นจะไม่พลาดการควบคุมอีกต่อไปด้วย Application ผ่าน WiFi กับ Mobile Device ของคุณ DriverRack PA2 มีพร้อมทุกอุปกรณ์โปรเซสเซอร์ที่คุณกำลังมองหาระหว่างมิกเซอร์ และแอมปลิไฟเออร์ เพื่อจัดการระบบ PA ของคุณให้เป็นไปอย่างมีประสิทธิภาพ และได้มาซึ่งคุณภาพของเสียงที่ดีเยี่ยมกับเทคโนโลยี Auto EQ และ AFS (Advanced Feedback-Suppression) ที่สามารถวิเคราะห์สภาพอะคูสติค พร้อมแก้ไขปัญหาเรื่องย่านความถี่โดยอัตโนมัติ ระบบสั่งงานผ่านอุปกรณ์ WiFi Router บน Application ที่รองรับได้ทุกค่าย Android, iOS, Mac และ Windows ง่ายต่อการควบคุม เพียงแค่ปลายนิ้วสัมผัส
- ขนาด 2 In / 6 Out
- Sample Rate ที่ 48kHz
- Output Mute แต่ละ Channel
- 100 ms Input Delay / 10 ms Output Delay
All you need to get the most from your PA. Now with complete control from your mobile device.
The DriveRack® PA2 provides all the processing you need between your mixer and amplifiers to optimize and protect your loudspeakers. With the latest advancements in dbx’s proprietary AutoEQ™ and AFS™ algorithms, a new input delay module for delaying the FOH system to the backline, Ethernet control via an Android®, iOS®, Mac®, or Windows® device, and updated Wizards, the DriveRack PA2 continues the DriveRack legacy of great-sounding, powerful, and affordable loudspeaker management processors, for a whole new generation.
AutoEQ™
New, improved AutoEQ algorithm ensures an extremely accurate, fast, and non-intrusive automatic EQ experience.
With the RTA Mic “listening” to your room, the new, updated DriveRack PA2 AutoEQ algorithm sets speaker levels and room EQ automatically in a matter of seconds. This means room adjustments can now be made very quickly, without subjecting the audience to annoying, lengthy broadcasts of pink noise.
Enhanced AFS™ Feedback Elimination
Enhanced AFS™ algorithm for faster, more precise feedback elimination, without adversely affecting your system’s tone.
Nothing turns audiences away like annoying and potentially painful audio feedback. Fortunately, dbx engineers have revisited their already-stellar Advanced Feedback Suppression algorithm and made it work even better. The DriveRack PA2 listens for and anticipates feedback and adjusts speaker output automatically before it even has a chance, while never altering your sound.
Updated Wizard Setup Functions
Updated Wizards make initial set up easy, while ensuring speaker tunings and other settings are up-to-date.
Wizard functions on the DriveRack PA2 guide you through easy, step-by-step processes to help you get the most from your loudspeaker system. Helps you easily configure level balancing, AutoEQ, Advanced Feedback Suppression, and provides access to built-in and constantly updating speaker tunings from most major speaker manufacturers.
Available Input Processing
- dbx Compression
- AFS™ (Advanced Feedback Suppression)
- Graphic EQ
- 8-Band Parametric EQ (adjusted when using the AutoEQ)
- Subharmonic Synthesis
Available Output Processing
- Crossover (supports full range, 2-way, and 3-way systems)
- 8-Band Parametric EQs (used for speaker tunings)
- dbx Limiting
- Driver Alignment Delays
- All New Setup Wizard
- Streamlined AutoEQ™
- All New AFS™ (Advanced Feedback Suppression)
- Mobile Control (Android®, iOS®, Mac®, Windows®)
- dbx Compression
- Graphic EQ
- 8-Band Parametric EQ (adjusted when using the AutoEQ) Input
- Subharmonic Synthesis
- Crossover (supports full range, 2-way, and 3-way systems)
- 8-Band Parametric EQs (used for speaker tunings) Output
- dbx Limiting
- Driver Alignment Delays
| Input | (2) line inputs. (1) RTA Mic input |
| Input Connectors | (2) Female XLR line inputs. (1) Female XLR RTA Mic input |
| Input Type | Electronically balanced/RF filtered |
| Input Impedance | >50 kohm |
| A/D Converter | dbx Type IV™ Conversion System |
| CMRR | > 45dB |
| Mic Preamp Phantom Power | +15VDC (RTA) |
| Mic Preamp Equivalent Input Noise (EIN) | < -117dB, 22Hz-22kHz, 150 ohm (RTA) |
| Output | (6) Line Outputs |
| Output Connectors | Male XLR |
| Output Type | Electronically balanced, RF filtered |
| Output Impedance | 120 Ω |
| Max Output | +20dBu |
| A/D Dynamic Range | 112 dB A-weighted, 110 dB unweighted |
| Type IV Dynamic Range | 123 dB with transient material, A-weighted, 22kHz BW; 121 dB with transient material, unweighted, 22kHz BW; 115 dB typical with program material, A-weighted, 22kHz BW |
| Alignment Delay | 10ms per channel (60ms total) |
| Sample Rate | 48kHz |
| Dynamic Range | >110 dB A-weighted, >107dB unweighted |
| THD+Noise | 0.003% typical at +4dBu, 1kHz, 0dB input gain |
| Frequency Response | 20Hz – 20kHz, +/- 0.5dB |
| Interchannel Crosstalk | < -110 dB, -120dB typical (input-to-output: < -100 dB) |
| Operating Voltage | 100-120VAC 50/60 Hz – EU: 220-240 VAC 50/60 Hz |
| Power Consumption | 22 W |
| Unit Weight | 5.25 lbs. (2.4 kg) |
| Shipping Weight | 6.75 lbs. (3.1 kg) |
| Dimensions | 1.75” (H) x 5.75” (D) x 19” (W), 4.4cm (H) x 14.6cm (D) x 48.26cm (W) |
| D/A Dynamic Range | 112 dB A-weighted, 110dB unweighted |

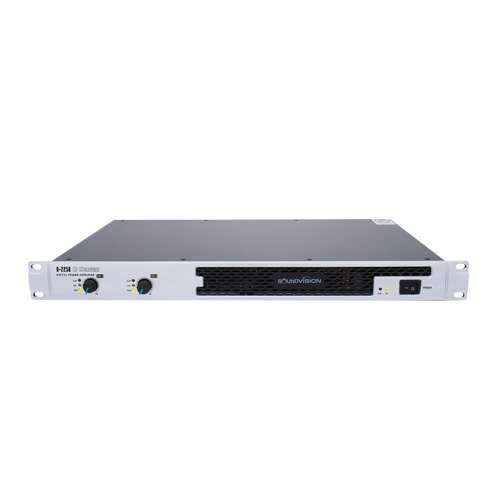

SOUNDVISION D-2250 2-Channels Digital Power Amplifier class D 2×250 watts at 8 ohm
SOUNDVISION D-2250 เครื่องขยายเสียงระบบดิจิตอล 2 ชาเเนล คลาส D 2×250 วัตต์ ที่ 8 โอมห์ SOUNDVISION D 2250 แอมป์ขยายเสียงจากแบรนด์ SOUNDVISION
1. Multifunction and 1U design
Traditional amplifier use heavy toroidal transformers and cooling tubes, inconvenient to transport and carry. D-2250 use high quality digital amplifier switching power supply, with the U.S. IR digital amplifier module, Rated output power (2x250W @ 8 ohm) , just 4 kg, 1U design, lightweight , which is easy for installation orperformance using.
2. Advanced high-quality switching power supply module
Digital switching power amplifier for selection is critical , our engineers through repeated trials , the power sector is currently selected.This module anti-interference ability, high stability of output voltage, over power protection has short circuit protection, high conversion efficiency, making the digital amplifier power and stability are quite good.
3. American IR digital with japan qualified capacitance
After continuous exploration and research by our engineers use the imports main component (the U.S. IR digital power tube amplification scheme and Japan’s advanced technology bulk capacitance) so the digital amplifier power will be stronger, fast transient response signal, thereby gaining a very good sound quality.
4. Efficient and safe, green energy saving
Class AB or Class H of traditional amp, utilization is only 30% -50%, but digital amplifier switching power efficiency up to 90%, the quiescent current consumption to zero, even if work for 8 hours, the temperature is not exceeding 50 degrees,absolutely safe, reliable and environmental protection.
| Stereo Mode (2 Channels output ) | Continuous average output power per channel |
| 8Ω/FTC20HZ~20KHZ/0.1%THD 4Ω/FTC20HZ~20KHZ/0.1%THD 2Ω/FTC20HZ~20KHZ/0.1%THD |
250W 450W 650W |
| S/N ( 20HZ~20KHZ) 8Ω | >95dB |
| Distortion(@8Ω 1KHZ) | <0.15% |
| Sensitivity of input | 1.0V |
| Frequency response | 20HZ~20KHZ+/-0.5dB |
| Circuit design | CLASS D |
| Damping coefficient | >600@8Ω |
| Cooling mode | 2 fans, airflow from the back to the front |
| Connector(each channel) | Input: XLR output: lock pin type jack |
| Control panel | Front panel:AC power switch,single channel 1/2 gain adjust.Back panel: Stereo / Bridge mode selection |
| Indicator light | Power:Green LED ,Signal:Yellow LED ,CLIP:Red LED ,Protect:Red LED |
| Protect function | Short circuit, over heat, automatic limit,long-term output, DC / AC protection |
| Size(Wide x deep x high) | 483mmx343mmx45mm |
| Weight | 4KG |
| AC input | 220V |
SOUNDVISION SVS-82W 8 inch two-way surface-mount speaker
SOUNDVISION SVS-82W ตู้ลำโพงติดผนัง ขนาด 8 นิ้ว 2 ทาง ลายโวลท์ 70/100V SVS-82W surface-mount speaker จากแบรนด์ SOUNDVISION
The SVS-82W is a new Passive two-way surface-mount speaker ideal for indoor and outdoor applications requiring high-quality sound. Model SVS-82W designed for a wide range of commercial audio applications including retail shops, hotels, shopping malls, restaurants, conference – rooms, bars and health clubs. Model SVS-82W are available in black, Transformer Taps 70V: 40W, 20W, 10W, 5W | 100V: 80W,40W, 20W, 10W available for constant voltage systems.
- Passive Two-Way Full-range Loudspeaker.
- Elegant design.
- High-quality sound.
- Indoor and outdoor applications.
- All-weather versatility IP54. (*SVS-82WP)
- High sensitivity.
- Transformer Taps 70V, 100V
- 8-inch LF transducer 65Watts rms
- 1-inch HF transducer 25Watts rms
- Power Handling 180W.
- Frequency Response 55Hz ～ 20kHz
- coverage H 90 ° x V 60 °
| All-weather versatility | IP54 (*SVS-82WP) |
| Color | Black |
| Input Connections | Euro block |
| Speaker Type | Full-range, Mid-High, Two-Way |
| Transformer Taps | 70V : 40W, 20W, 10W, 5W | 100V : 80W, 40W, 20W, 10W 8Ω Bypass |
| Frequency Response | 55Hz ～ 20kHz |
| Sensitivity 1W/1m | 94 dB |
| Max. SPL/1m (calc) | 120 dB |
| Coverage (Nominal -6 dB) H | ± 90° |
| Coverage (Nominal -6 dB) V | ± 60° |
| System Power Handling | 180W Max. / 90W continuous |
| LF Transducer | 8-inch Waterproof Paper Cone (Glass fiber cone technology) |
| HF Transducer | 1-inch (Silk dome) |
| Nominal Impedance (Passive) | 8Ω |
| Indoor / Outdoor | Yes |
| Material | Engineering-plastics (ABS) |
| Dimensions (H x W x D mm) | 240 x 335 x 390mm (without bracket) |
| Weight | 11 Kg/ pair, 5.5 Kg / Single |
Bracket
Nut-screw
SOUNDVISION SE-08 Power Sequence 8 Channel
SOUNDVISION SE-08 เครื่องจ่ายไฟ แบบเรียงลำดับ Sound Engineering, TV broadcasting system, computer network system ช่วยอำนวยความสะดวกในเรื่องพลังงาน สำหรับการจ่ายไฟแบบเป็นระบบ SE-08 สามารถควบคุมการจ่ายไฟแบบเรียงลำดับได้ จากการใช้อุปกรณ์เดียว ซึ่งการจัดการแบบภาพรวมนี้ สามารถควบคุมอุปกรณ์อิเล็กทรอนิกส์ทั้งหมดที่ใช้งานได้ เพื่อหลีกเลี่ยงความผิดพลาดจากผู้ควบคุม ดังนั้นการควบคุมความเสถียรของระบบจ่ายไฟ สามารถทำได้โดยง่ายมาก Power Sequence จากแบรนด์ SOUNDVISION
เครื่องจ่ายไฟสำหรับ 8 ช่อง แรงดันไฟฟ้า 110V-240V เพื่อตอบสนองการใช้ระบบไฟฟ้าขนาดใหญ่ การจัดการจ่ายไฟเป็นระบบครบวงจรเพื่อให้เราสามารถควบคุมอุปกรณ์ไฟฟ้าได้อย่างมีประสิทธิภาพ มีความเสถียรภาพเชื่อถือได้ เพื่อหลีกเลี่ยงความผิดพลาดจากผู้ควบคุมในการใช้งาน ซ็อกเก็ตอเนกประสงค์เหมาะสำหรับปลั๊กทุกประเภทที่จะใช้งานและสะดวกในการเคลื่อนย้าย
SOUNDVISION SE-08 is suitable for sound engineering, TV broadcasting system, computer network system and power facilities in order to power distribution system. Power sequence controller can according to the front stage to stage one by one order boot device, unified management so that we can effectively control all kinds of electrical equipment, to avoid human error operation, so as to ensure the power system stability and operation is simple
- เครื่องจ่ายไฟแบบเรียงลำดับ 8 ชาแนบ
- จ่ายพลังไฟได้สูง เพื่อรองรับระบบขนาดใหญ่
- มีความเสถียร และไว้ใจได้
- รองรับปลั๊กทุกรูปแบบ
- Power Sequence 8 Channel
- 110V-240V voltage universal
- Using 30A quality relay, single channel maximum output 30A
- High power line, to meet the use of large power system
- Chip control, dual panel chip circuit design, stable and reliable
- Universal socket, suitable for all types of plugs to use
| Model | SE-08 |
| Input power |
AC 110V-240V 50Hz-60Hz |
| Control capacity | the maximum output current 30A |
| Control roads | 8 road controlled output |
| Timing interval | each interval 1 second |
| Dimensions | 480 x 185 x48 mm |
| Weight | 4.0kg |
