ชุดเครื่องเสียงห้องประชุม เทรนนิ่ง สัมนา สำหรับ 4 ท่าน CLEARSOUND Training and seminars Solution – S ฟรี สายลำโพง 10 เมตร จากยี่ห้อ CLEARSOUND
CLEARSOUND Training and seminars Solution – S
ประกอบด้วย
CLEARSOUND CSW-540
ชุดไมค์ประชุมสำหรับ 4 ท่าน แบบไร้สาย ย่าน UHF 1 ชุด
SOUNDVISION SVS-62W
ตู้ลำโพงติดผนัง ขนาด 6.5 นิ้ว 2 ทาง 2 ใบ
SOUNDVISION SA-60BT
มิกเซอร์แอมป์ 60 วัตต์ 1 เครื่อง
แถมฟรี
สายลำโพง ความยาว 10 เมตร 2 เส้น

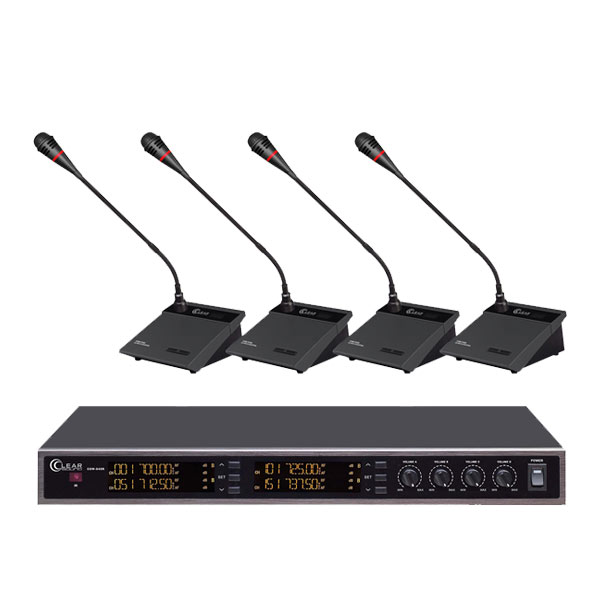

ชุดไมค์ประชุม CLEARSOUND CSW-540 สำหรับ 4 ท่าน แบบไร้สาย ย่าน UHF CSW-540 ชุดไมค์ประชุม จากแบรนด์ CLEARSOUND
CLEARSOUND CSW-540 UHF Wireless Conference Microphones systems
CSW-540 Series UHF Wireless Conference Microphones system 4 Channels. the technology for good sound quality flexibility performance frequency response and accurate sound reproduction for a wide variety of applications, such as Meeting Rooms, Public relations, Education institutions, to provide users with an exceptional performance features contemporary design element to enhanced convenience and consistent sound.
- 4 Channels Adjustable frequency.
- IR automatic 20 frequency points.
- Microphone can be used in every channel.
- 2 controllers can used simultaneously.
- LCD screens show working status on the receiver and emitter.
- There are 2 balanced output and 1 mixed unbalanced output, 2 rubber antennas.
- AA 1.5V*3 battery power supply, support 8 hours.
- Light ring on the microphone head will display working status.
- Working distance: 50 meters.
- It’s suitable for various kinds of conference and performance occasion
CSW-540 |
|
|
Channel number |
4 |
|
Oscillation Mode |
PLL synthesized |
|
Modulation Mode |
FM |
|
Frequency Range |
UHF 803.2 ~ 805.8MHz |
|
Frequency Stability |
±0.001% |
|
Max. Deviation Range |
±50KHz |
|
S/N Ratio |
>90dB |
|
T.H.D |
<0.5%@1KHz |
|
Sensitivity |
1.2/UV@S/N=12dB |
|
Power Supply |
DC 12~17V |
|
Gooseneck mic length |
430mm |
|
Audio Output |
Independent: 0-400mV Mixed: 0-300mV |
CSW-540D Transmitter |
|
|
Frequency Range |
UHF 803.2 ~ 805.8MHz |
|
Frequency response |
40Hz-16KHz |
|
Frequency stability |
±0.001% |
|
Sensitivity |
-43±3dB@1KHz |
|
Max. deviation Range |
±30KHz |
|
Dynamic range |
≥100dB |
|
Type |
Condenser |
|
Polar pattern |
Super Cardioid |
|
S/N Ratio |
>90dB |
|
F/N Ratio |
>80dB |
|
Transmitter power |
12mW |
|
Power consumption |
150mA |
|
Power supply |
DC 4.5V (1.5V AA*3) |
ตู้ลำโพงติดผนัง SOUNDVISION SVS-62W ขนาด 6.5 นิ้ว 2 ทาง 160 วัตต์ ลายโวลท์ 70/100V SVS-62W surface-mount speaker จากแบรนด์ SOUNDVISION
SOUNDVISION SVS-62W 6.5 inch two-way surface-mount speaker
The SVS-62W is a new Passive two-way surface-mount speaker ideal for indoor and outdoor applications requiring high-quality sound. Model SVS-62W designed for a wide range of commercial audio applications including retail shops, hotels, shopping malls, restaurants, conference – rooms, bars and health clubs. Model SVS-62W are available in black, Transformer Taps 70V: 40W, 20W, 10W, 5W | 100V: 80W,40W, 20W, 10W available for constant voltage systems.
- Passive Two-Way Full-range Loudspeaker.
- Elegant design.
- High-quality sound.
- Indoor and outdoor applications.
- All-weather versatility IP54*
- High sensitivity.
- Transformer Taps 70V, 100V
- 6.5-inch LF transducer 60Watts rms
- 1-inch HF transducer 20Watts rms
- Power Handling 160Watts
- Frequency Response 50Hz ～ 20kHz
- coverage H 90° x V 60°
| All-weather versatility | IP54 * |
| Color | Black |
| Input Connections | Euro block |
| Speaker Type | Full-range, Mid-High, Two-Way |
| Transformer Taps | 70V : 40W, 20W, 10W, 5W | 100V : 80W, 40W, 20W, 10W 8Ω Bypass |
| Frequency Response | 65Hz ～ 20kHz (-3dB) |
| 50Hz ～ 20kHz (-10dB) | |
| Sensitivity 1 W/1 m | 93 dB |
| Max. SPL/1m (calc) | 118 dB |
| Coverage (Nominal -6 dB) H | 90° (±45°) |
| Coverage (Nominal -6 dB) V | 60° (±30°) |
| System Power Handling | 160W Max. / 80W continuous |
| LF Transducer | 6.5-inch Waterproof Paper Cone (Glass fiber cone technology) |
| HF Transducer | 1-inch (Silk dome) |
| Nominal Impedance (Passive) | 8Ω |
| Indoor / Outdoor | Yes |
| Material | Engineering-plastics (ABS) |
| Dimensions (H x W x D mm) | 196 x 300 x 330mm (without bracket) |
| Weight | 10 Kg/ pair, 5 Kg / Single |
Bracket
Nut-screw
มิกเซอร์แอมป์ SOUNDVISION SA-60BT 60 วัตต์ มีฟังก์ชั่น USB ,BLUETOOTH เป็น Portable Mixing Amplifier จากแบรนด์ SOUNDVISION
SOUNDVISION SA-60BT Mixing Amplifier 60Watts
SA-60BT Mixing Amplifier 60Watts
-
Built-in Bluetooth receiver and USB player.
-
70V – 100V, 4Ω – 8Ω output loads.
-
SMT circuit boards with highly stable performance.
-
Powerful amplifier tubes.
-
Three microphone sockets support unbalanced 6.35mm jack.
-
Mic 1 has priority over the inputs with 0~30dB dB attenuation.
-
High-definition display for the working status of playing programme.
-
Individual volume controller for inputs, and master volume controller for all.
-
BASS and TREBLE tone controllers.
-
Complete protection is provided for output short circuit, overload, high temperature, peak current limiters.
| Model | SA-60BT |
| Rated Power | 60W |
| Power Consumption | 120W |
| Frequency Response | 4Ω – 8Ω : 20Hz ～ 20kHz (±3dB) |
| 70V – 100V : 50Hz ～ 15kHz (±3dB) | |
| Speaker Output Mode | Low impedance : 4Ω – 8Ω |
| Voltage line : 70V – 100V | |
| Audio Input | MIC, AUX, USB, BLUETOOTH 4.2 |
| T.H.D | <1% at 1kHz, 1/3 rated power |
| S/N | ≥75dB |
| Tone Control | BASS : 100Hz (±10dB), TREBLE : 10kHz (±10dB) |
| Protection | Short circuit, Overload, High temperature |
| AC Fuse | T1A |
| Power Supply | AC 220V ～ 240V : 50Hz/60Hz |
| Power Cord | (3 x 0.75mm²) x 1.5M |
| Dimensions (H x W x D) | 100 x 290 x 260mm |
| Weight | 5.5 kgs |
