เครื่อง DBX CT-3 เครื่องวัดสายสัญญาณ อุปกรณ์ทดสอบสายสัญญาณที่ ความคุ้มค่า ช่วยให้คุณสามารถตรวจสอบสายสัญญาณในรูปแบบต่างๆ DBX CT-3 Advanced Cable Tester จากแบรนด์ DBX

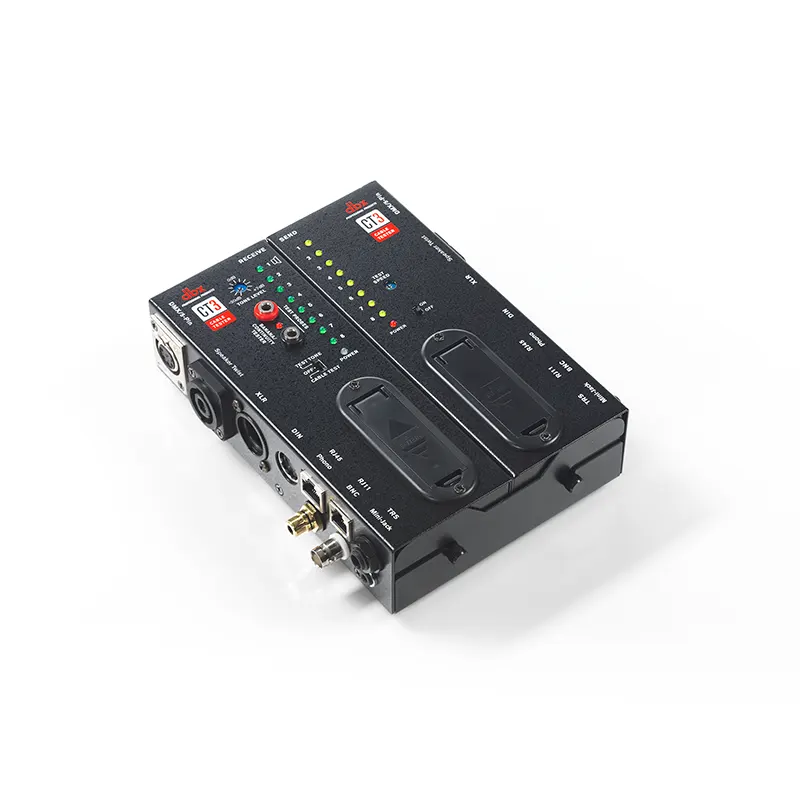

DBX CT-3 Advanced Cable Tester
DBX CT-3 คื่ออุปกรณ์ทดสอบสายสัญญาณที่ ความคุ้มค่า ช่วยให้คุณสามารถตรวจสอบสายสัญญาณในรูปแบบต่างๆ ได้อย่างสะดวก สามารถรองรับ CONNECTOR ได้หลายรูปแบบ เช่น RJ45 , RJ11 , MIDI , SPEAKERTWIST , XLR , RCAPHONO BNC , DIN , TRS , TS , DMX , และ BANANA โดยสามารถแยกการทดสอบได้เป็น 2 ส่วน คือตัวส่ง และตัวรับ เพื่อความสะดวกสำหรับตรวจสอบสายที่ถูกติดตั้งไปแล้วอย่างถาวรได้อย่างแม่นยำ
The dbx CT3 is an advanced cable testing unit allowing you to evaluate a large variety of cables with ease. The CT3 offers many common connectors such as RJ45, RJ11, MIDI, Speaker Twist, XLR, RCA Phono, BNC, DIN, TRS, TS, DMX, & Banana. It can be split into 2 parts, a SENDER and RECEIVER so preinstalled and long cables can be tested.
Recommended for: Studio, Tour, Portable.
คุณสมบัติ
- Tests up to 8-pin cables
- 2 piece chassis for testing installed cables
- Test Tone Generator
- Allows connection between different format connectors with ease
- ‘Banana’ connector continuity tester with beeper and LED indicator
- Super-rugged construction for durability and longer life
- (2) DMX (5-pin) connectors for testing of 5 pin->to pin connections
- (2) BNC connectors for testing of 2 pin->to pin connections
- (2) RCA Phono connectors for testing of 2 pin->to pin connections
- (2) XLR connectors (1 x Male, 1 x Female) for testing of 3 pin->to pin connections
- (2) MIDI (5-pin DIN) connectors for testing of 5 pin->to pin connections
- (2) Speaker Twist connectors for testing of 4 pin->to pin connections
- (2) Banana connectors for testing of 1 pin->to pin connections
- (2) 1/4” (6.3mm) TRS/TS connectors for testing of 3 pin->to pin connections
- (2) RJ45 connectors for testing of 8P8C modular connections
- (2) 1/8” (3.5mm) TRS/TS connectors for testing of 3 pin->to pin connections
