AV RECEIVER WITH WIRELESS BLUETOOTH DENON AVR-X520BT 5.1 ชาแนล 130 วัตต์ สตรีมมิ่งเพลง Full 4K Ultra HD/60Hz Video Pass-Through จากยี่ห้อ DENON
DENON AVR-X520BT POWERFUL 5.2 AV RECEIVER WITH WIRELESS BLUETOOTH® STREAMING AND HDCP 2.2-CAPABLE, 4K ULTRA HD/60HZ VIDEO PASS-THROUGH
Overview
The perfect combination of high performance and high value, the Denon AVR-X520BT delivers superb sonic fidelity along with a host of advanced features that includes compatibility with the latest HDMI specification, along with the latest HDCP 2.2 specification that’s required for 4K Ultra HD copy-protected content. The video section features 5 HDMI inputs, 3 of which feature 4K Ultra HD/60 Hz full frame rate and 4:4:4 Pure Color sub-sampling pass-through for the ultimate home theater experience. Our exclusive Denon Setup Assistant quickly and easily guides you through the setup process, which includes automated speaker configuration and optimization using the supplied measuring microphone. Featuring Bluetooth wireless audio streaming, the AVR-X520BT is also equipped with a convenient USB port on the front panel for streaming your favourite tracks and charging your portable device, and the Denon 500 Series Remote App lets you control the unit via your Bluetooth device.
Built-in Wireless Bluetooth Streaming
The AVR-X520BT features Bluetooth streaming, supporting Bluetooth-equipped devices that support the A2DP (Advanced Audio Distribution Profile). Simply select the AVR-X520BT from your device’s Bluetooth menu to turn on the receiver and start playing your music. The AVR-X520BT can remember up to 8 paired Bluetooth devices, so family and friends can listen to their favourite tracks.
4K Ultra HD/60 Hz Video Pass-through; HDCP 2.2
Equipped with 5 HDMI inputs, the AVR-X520BT features support for 4K Ultra HD full frame rate 60 Hz pass-through on 3 inputs along with 4:4:4 Pure Color sub-sampling pass-through, along with 3D compatibility on all HDMI inputs. It’s also equipped with HDCP 2.2 signal handling, a requirement for 4K Ultra HD copy-protected content.
Easy To Setup, Easy To Use
With our exclusive Setup Assistant along with the Quick Start Guide, you can connect and configure your home theater system quickly and easily. The AVR-X520BT comes with a setup measuring microphone that adjusts critical system parameters for your speaker system and listening space.
Unique Bluetooth App
Download the 500 Series Denon Remote app and control your AVR-X520BT from your Bluetooth device. Functions include On/Off, Volume Up/Down, Mute and Source Selection. The app is available now in an Android version, and will soon be offered in an iOS version.
Discrete Power Output Stage
All 5 power amplifier stages feature true Class AB amplification, and are configured with discrete high current power transistors that can easily drive lower impedance 6 ohm speakers, and each channel is rated at a maximum of 130 watts of power.
USB Connectivity
In addition to numerous analogue and digital A/V connectors, the AVR-X520BT features a convenient USB port on the front panel that’s compatible with portable USB devices, and can play back a wide range of audio file types including MP3, WMA, FLAC and MPEG-4/AAC tracks.

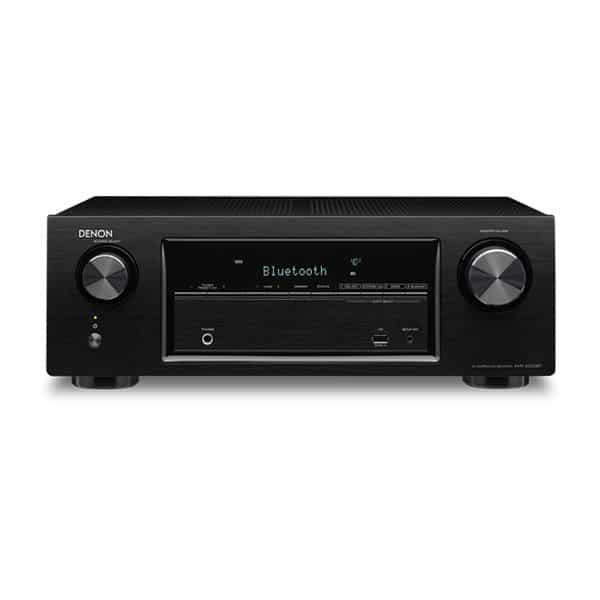

Easy To Use Quick
Select Functions
Featuring a clean front panel design, the AVR-X520BT comes equipped with 4 Quick Select function buttons that let you choose from your most popular input sources, and the ergonomically designed remote also includes Quick Select buttons. With Quick Select, the AVR-X520BT remembers your preferred sources as well as your preferred audio settings for each source so you can enjoy precisely tailored sound with each one. The buttons can also be selected through the Bluetooth App.
• 5.2 channel AV Receiver with 130W per channel
• 4K/60Hz full-rate pass-through (3 designated HDMI inputs)
• 5 HDMI inputs with full HDCP 2.2 support on 3 HDMI inputs
• Built-in Bluetooth
• Auto setup by microphone and room EQ
• Front panel USB input
• Denon Bluetooth Remote App (Denon 500 Series Remote,
available for Android and mid 2015 for iOS too)
Number of power amps :
- 5 (Front L/R, Center, Surround L/R)
Power output :
- 130 watts per channel (6 ohms, 1 kHz, THD 1%, 1ch driven)
- 90 watts per channel (6 ohms, 1 kHz, THD 0.7%, 2ch driven)
- 70 watts per channel (8 ohms, 20 Hz – 20 kHz, THD 0.08%, 2ch driven)
Speaker impedance :
- 6 – 16 ohms
Preamplifier section
Input sensitivity/impedance :
- 200 mV / 47 kohms
Frequency response :
- 10 Hz – 100 kHz — +1, –3 dB (DIRECT mode) S/N Ratio 98 dB (IHF-A weighted, DIRECT mode)
FM section
Tuning frequency range :
- 87.5 – 107.9 MHz
AM section
Tuning frequency range :
- 522 kHz – 1611 kHz
General
- Power Supply AC 230V, 50Hz
- Power Consumption 330 W (Standby 0.3 W)
- Power Consumption No-Sound 30 W (ECO on), 45 W (ECO off)
- Dimensions (W x H x D) 434 × 151 × 319mm
- Weight 7.5kg

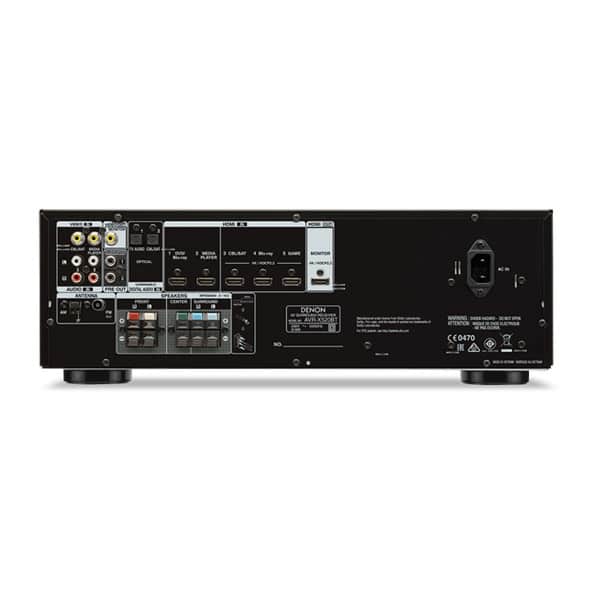

Ports
IN :
- HDMI x 5
- Composite (video) x 2
- Analogue Audio x 2
- Digital Optical x 2
- USB (front) x 1
OUT HDMI :
- Monitor x 1
- Composite Monitor x 1
- Audio Preout (SW) 0.2 ch
- Phones x 1
OTHER :
- FM Tuner Antenna x 1
- AM Tuner Antenna x 1
- Setup microphone x 1
