DENON BTW-H1 HOME THEATER

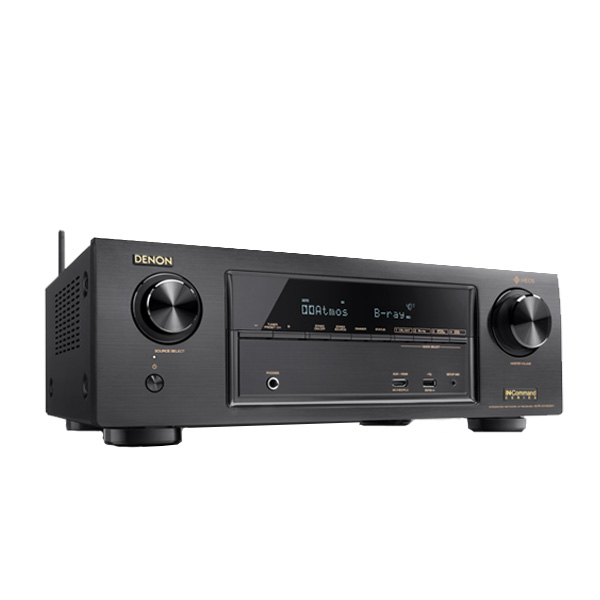

DENON BTW-H1 ชุดโฮมเธียเตอร์ AVR-X1400H พร้อมชุดลำโพง JBL CINEMA 610 DENON BTW-H1 จากแบรนด์ DENON
Surround yourself in cinema-grade sound from literally any direction.
SOUND IN THE RIGHT PLACE.
Feel every dimension in Dolby Atmos. Dolby Atmos transports you into the story with moving audio that flows all around you with breathtaking realism. Enjoy a 5.1 surround sound speaker system and 2 additional overhead speakers or 2 Dolby Atmos elevation speakers for the ultimate home theater experience – including Dolby Surround upmixer for legacy content.
BE CLOSER TO THE ACTION.
DTS:X™ immersive audio places sound where it would occur naturally in space, creating a lifelike, multi-dimensional audio experience in the home. The improved immersion and heightened realism draw you into the world of your favorite movies. The included spatial remapping engine, DTS Neural:X™, gives your movie, game and music collections a new lease on life! DTS:X brings the theater home.
GEARED UP FOR 4K ULTRA HD
Enjoy ultra-high-definition pictures, even from analogue and digital SD sources.
FUTUREPROOF IN EVERY WAY.
All six HDMI inputs feature HDCP 2.2 compatibility and the latest HDMI specifications, including 4K Ultra HD 60Hz video, 4:4:4 Pure Color sub-sampling, High Dynamic Range (HDR) and 21:9 video, 3D, and BT.2020 pass-through support.
NEXT GENERATION VIDEO FORMATS.
The AVR-X1400H supports High Dynamic Range (HDR) video format. It is even ready for Dolby Vision and HLG (Hybrid Log Gamma; via future firmware update). Dolby Vision transforms the viewing experiences with astonishing brightness, contrast, and colour.
SET-UP AND CONNECT WITH EASE
Get your AVR-X6400H up and running in no time, perfectly tailored to your needs.
MEASURE YOUR SOUND TO YOUR ROOM.
The AVR-X1400H features the Audyssey MultEQ XT room acoustic measurement system. With the supplied microphone, it exactly analyses each speaker’s output to optimize each channel. With the additional Audyssey MultEQ Editor App (available for purchase), very advanced users can go even further “under the hood” if desired.
UNWIRE YOUR SOUND.
The AVR-X1400H is equipped with an advanced dual antenna system for robust and error-free streaming, featuring Bluetooth and Wi-Fi connectivity as well as Apple’s AirPlay 2.
Stream audio from your favorite music services like Apple Music and Spotify or watch videos from services like Youtube and Netflix from any iPhone, iPad, Mac or Apple TV and hear the audio perfectly synced to your speakers Airplay 2 sources.
Airplay 2 also supports multi-room audio – wirelessly stream content to multiple AirPlay 2 compatible devices simultaneously with improved audio buffering to ensure smooth audio playback. AirPlay 2 provides control and grouping of compatible audio devices within the Apple Music or Home app. Use Airplay 2 in-app or with your voice via Siri.
EVERYTHING UNDER CONTROL.
With the “Denon 2016 AVR Remote” app you can control the receiver’s operation and even control your Denon Blu-ray player. With the HEOS app you easily command your multi-room streaming.
CHOOSE YOUR FAVORITE SOURCES.
Store your preferred set-up and sound mode for every source, so that you can access them quickly at the push of a button on the front panel and the remote control.
ADVANCED SOUND PROCESSING
Experience extraordinary sound quality from both music and movies.
POWERFUL DSP AUDIO PROCESSING.
The AVR’s DSP (Digital Sound Processor) chip features tremendous processing power with 4 300-MHz DSP cores that can process over 1 billion computations per second.
ENJOY SUPERB AUDIO FIDELITY.
The AVR-X1400H features high resolution audio decoding with multiple lossless file types including ALAC, FLAC and WAV at up to 24-bit/196-kHz along with compatibility for 2.8/5.6-MHz DSD files (DSD is the audio coding format of SACD).
FLEXIBILE ZONE PLAYBACK.
With the AVR-X1400H it’s possible to enjoy 5.1-channel surround in one room, while another ‘zone’ plays another source—such as CD or streaming audio.
ACCURATE BASS ANYWHERE.
A single subwoofer can give an uneven bass response, with audible peaks and dips. The AVR-X1400H provides for two subwoofers to even out the low frequencies, for more accurate bass anywhere.
GET THE AMAZING
Enjoy your favorite music anywhere – and everywhere – around your home. Share music stored on your home network, Internet radio or streaming services with HEOS wireless speakers, or even other HEOS-capable receivers, throughout the house. Control it all with the free HEOS app. Enjoy music from TuneIn, Internet Radio and a wide range of streaming services including Pandora®, Spotify®, Amazon Prime Music, iHeartRadio, SiriusXM, Soundcloud®, Tidal, Napster or Deezer.
HEOS + ALEXA — SPEAK YOUR COMMANDS
Use your voice to stream your favorite music services to this HEOS-enabled device. Ask Alexa to play music from Pandora, Amazon Music and much more. Switch between inputs (Blu-ray, DVD, Media Player, etc.), turn volume up or down, pause, mute and play the next song — all with your voice.
To start streaming with Alexa voice commands, open the Alexa app and select “Skills.” Add HEOS Home Entertainment to enable. Then, go to Smart Home in the Alexa app menu and choose Devices and Discover or say “Alexa, discover my devices.”
With HEOS Home Entertainment and Alexa, you can stream to this product and any other HEOS-enabled device.
SELECT THE PERFECT HEOS FOR YOUR SETUP.
The AVR-X1400H’s built-in HEOS technology allows you to stream your favourite music wirelessly around your home to any other HEOS speaker.
Power output 145 watts per channel
(6 ohms, 1 kHz, THD 1%, 1ch driven)
120 watts per channel
(6 ohms, 1 kHz, THD 0.7%, 2ch driven)
80 watts per channel (8 ohms,
20 Hz – 20 kHz, THD 0.08%, 2ch driven)
Speaker impedance 4 – 16 ohms
Input sensitivity/ impedance 200 mV / 47 kohms
FM Tuning frequency range 87.5 – 108 MHz
AM Tuning frequency range 522 kHz – 1611 kHz

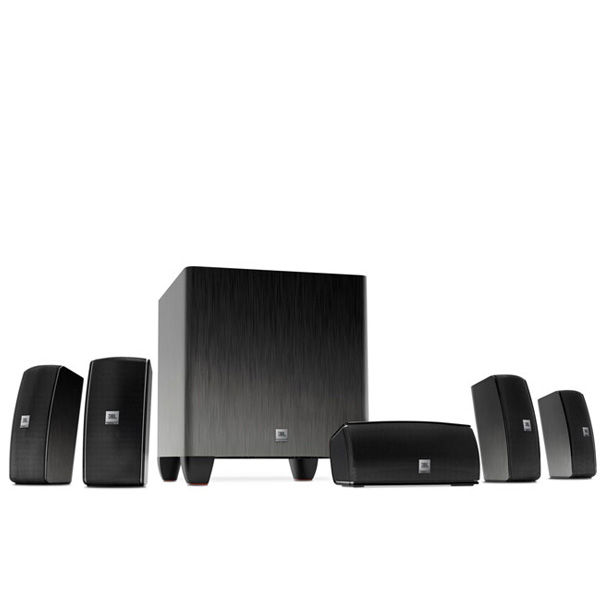

JBL Cinema 610 Advanced 5.1 speaker system
Turn your flat panel TV into a full home theater with the JBL Cinema 610. Easily connects to any audio/video receiver, the JBL Cinema 610 delivers a box office experience that can’t be matched anywhere else. Sink into pure JBL bliss with an 8” bass reflex 60W powered subwoofer with 5 identical voice-matched satellite speakers and a dedicated center speaker to ensure you receive flawless sound reproduction and perfect dialogue reproduction from all your music and movie sources. With customized wall-mount options and an easy plug-and-play format, you’re headed to the movies in no time.
- Easy-to-install system
- Voice matched satellites for detailed listening
- Dedicated center channel for vocal clarity
- 8” (200mm) powered subwoofer for deep rich bass
- Wall brackets (built-in) and loudspeaker cable included
- Finish Black
- Satellite Maximum Recommended 100W
- Amplifier Power
- Speaker Midrange Transducerdual 3″(75mm) cones
- Speaker High-Frequency Transducer1/2″ (13mm) dome
- Satellite Nominal Impedance 4 ohms
- Subwoofer Maximum Recommended 60W
- Amplifier Power
- System Frequency Response 38Hz – 20kHz
- Subwoofer_Enclosure Type Bass Reflex
- Subwoofer Low-Frequncy Transducer 8″ (200mm) cone
Satellite Speaker Specifications
- Satellite High-Frequency Transducer 1/2″ (13mm) dome
- Satellite Midrange Transducer 3″(75mm) cones
- Satellite Type Sealed
