ชุดโฮมเธียเตอร์ DENON STAGE-ULTRA HD 1 AVR-X 1600H พร้อมชุดลำโพง JBL STAGE สนใจสอบถามรายละเอียดตัวสินค้าเพิ่มเติมได้ที่แอดไลน์ไอดี @sounddd.shop จากแบรนด์ DENON
DENON STAGE-ULTRA HD 1 HOME THEATER
ประกอบด้วย
DENON AVR-X1600H
4K Ultra HD AV Receiver 7.2 ชาแนล 1 เครื่อง

JBL Stage A170
ลำโพงโฮมเธียเตอร์ คู่หน้า 1 คู่

JBL Stage A120
ลำโพงวางหิ้ง 1 คู่

JBL Stage A135C
ลำโพงเซ็นเตอร์ 1 ตัว
JBL Stage A100P
ซับวูฟเฟอร์ 1 ตัว
ประกอบด้วย
4K Ultra HD AV Receiver 7.2 ชาแนล AVR-X1600H พร้อม 3D Audio and HEOS Built-in ควบคุมผ่าน Amazon Alexa, Google Assistant และ Apple Siri จากแบรนด์ DENON

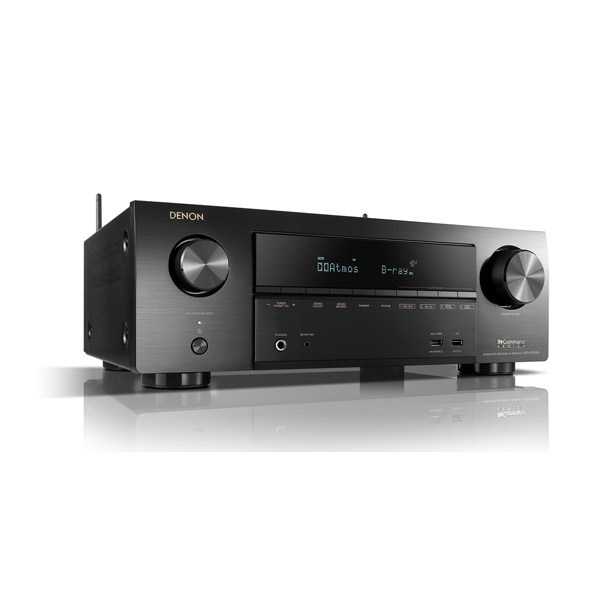

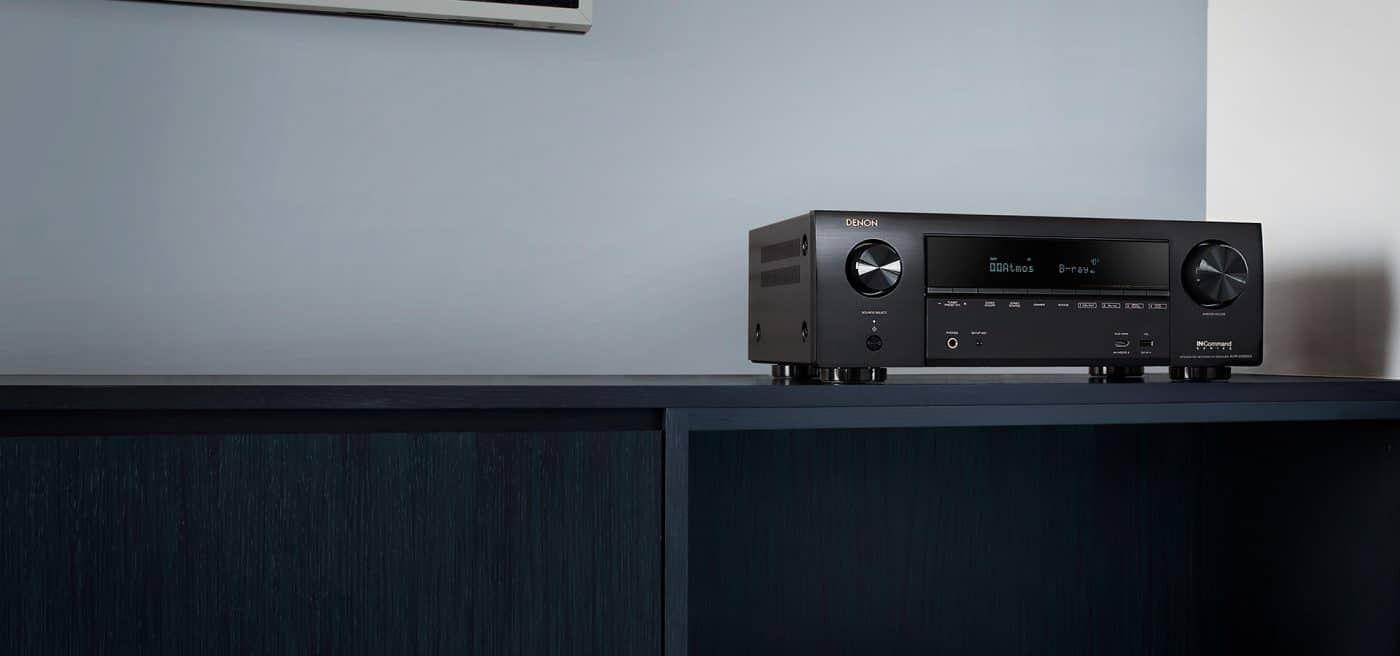

DENON AVR-X1600H 4K 7.2ch 4K Ultra HD AV Receiver with 3D Audio and HEOS Built-in®
Overview
Upgrade your home theater with the Denon AVR-X1600H. With 80W per channel (8 ohms, 20Hz-20kHz, .08%, 2 ch driven), this performance-tuned Denon AV receiver provides a truly immersive 3D audio experience. Supports Dolby Atmos®, Dolby Atmos Height Virtualization Technology, DTS:X™ and DTS Virtual:X. Watch your TV or projector video content with the best possible picture thanks to the latest 4K video technologies like Dolby Vision™, HDR10 and HLG.
With eARC support pass-through, 6 HDMI inputs and 1 output with full HDCP 2.3 support on all ports, enjoy seamless compatibility with the latest HD and Ultra HD TVs, Blu-ray players and game consoles. The front-panel USB offers convenient audio playback of MP3 and Hi-Res audio formats (WAV, FLAC, ALAC and DSD 2.8/5.6 MHz files). Stream popular music services like Spotify®, Pandora®, Tidal and more wirelessly via Bluetooth, Apple AirPlay 2 and Wi-Fi with HEOS Built-in. The Denon AVR-X1600H also works with Amazon Alexa, Google Assistant and Apple Siri for effortless voice control.
By visually guiding you through each step in the setup process, the award-winning Denon Setup Assistant ensures you get setup right the first time. Every home theater is different — that’s why Denon uses premium room calibration technology from Audyssey that automatically measures and optimizes your AV receiver to provide a truly immersive 3D audio experience custom-tailored to your unique listening environment.
- Bluetooth Headphone Transmission: Connect any pair of Bluetooth Headphones to the receiver and enjoy music or movie sound with pure freedom. With or without speakers turned on.
- 7.2 channel AV receiver with 80W power per channel: Seven powerful amplifiers tuned to provide the classic and dynamic Denon sound experience
- Supports Dolby Atmos®, Dolby Atmos Height Virtualization Technology, DTS:X and DTS Virtual:X: Enjoy an immersive, three-dimensional audio experience up to 7.2.4 with an additional 2ch amplifier
- 6 HDMI inputs with full HDCP 2.3 support, 1 HDMI output: Connect up to six media devices and output to one display (ex. TV or projector in the living room and another device in the multi-zone)
- 4K/60 Hz, Dolby Vision, HDR10, HLG, 4:4:4 color resolution and BT.2020: Provides the greatest video quality with exceptional brightness, contrast and color
- Award-winning Denon Setup Assistant and graphical user interface: Easy and intuitive out-of-box setup experience
- Amazon Alexa, Google Assistant and Apple Siri voice control: Use your voice to control the AVR-X1600H and wireless music services hands-free
- HEOS Built-in wireless multi-room music streaming technology: Listen from any room of your home for a connected, whole-home audio experience
- Smart TV connectivity: Control the Denon AVR-X1600H with your TV remote via HDMI CEC
- Enhanced Audio Return Channel (eARC): Supports the latest 3D audio formats such as Dolby Atmos and DTS:X from your TV audio signal via HDMI
- Game Mode: Supports Auto Low Latency Mode (ALLM) for lag-free gaming (requires supported 4K display and game console)
- Supports Spotify, Pandora, TuneIn, Deezer and more: Wirelessly stream and enjoy the most popular music services
- High-resolution DSD (2.8/5.6MHz), FLAC, ALAC and WAV support: High-resolution audio streaming for Hi-Fi enthusiasts
- Integrated Phono input: Supports vinyl records for Hi-Fi listening
- DSP chip with four 300MHz DSP cores: Powers the latest video, sound and processing needs
- All Zone TV audio: Play the audio from your TV to all zones
- Audyssey MultEQ XT calibration software: Delivers ultimate equalization for your unique listening environment
- “ihiji Invision”, “Domotz Pro” and “OvrC” remote system monitoring and management technology: Lets custom integrators monitor and troubleshoot remotely, drastically reducing downtime
- Includes three-year limited warranty (US Only)
Technical Information
Number of Power Amps
- 7
Power Output
- 145W per Channel
(6 ohms, 1 kHz, THD 1%, 1 ch) - 120W per Channel
(6 ohms, 1 kHz, 0.7%, 2 ch) - 80W per Channel
(8 ohms, 20 Hz – 20 kHz, 0.08%, 2 ch)
Speaker Impedance
- 4 – 16 Ω / ohms
Preamplifier Section
Input Sensitivity/Impedance
- 200 mV / 47kΩ/kohms
Frequency Response
- 10 Hz – 100 kHz — +1, –3 dB (Direct Mode)
S/N Ratio
- 98 dB (IHF–A Weighted, Direct Mode)
FM Section
Tuning Frequency Range
- 87.5 MHz – 108 MHz
AM Section
- Tuning Frequency Range 520 kHz – 1611 kHz
General
Power Supply
- AC 120 V, 60 Hz
Power Consumption
- 430W (Standby 0.1W, CEC Standby 0.5W)
Power Consumption No-Sound
- 29W (ECO Mode On)
39W (ECO Mode Off)
Dimensions (W x H x D)
- 17.1 x 6 x 13.3 in
Weight
- 19.0lbs
Ports
IN
- HDMI (Front 1) x 6
- Composite (Video) x 2
- Phono x 1
- Analog Audio x 2
- Digital Optical x 2
- USB (Front) x 1
OUT
- HDMI Monitor (eARC) x 1
- Component (Video) x 1
- Audio Pre-out (SW) 2 ch
- Zone 2 (Pre-out and Speaker Assignable) x 1
- Phones x 1
OTHER
- Ethernet x 1
- Microphone Port x 1
- FM/AM Tuner Antenna x 1

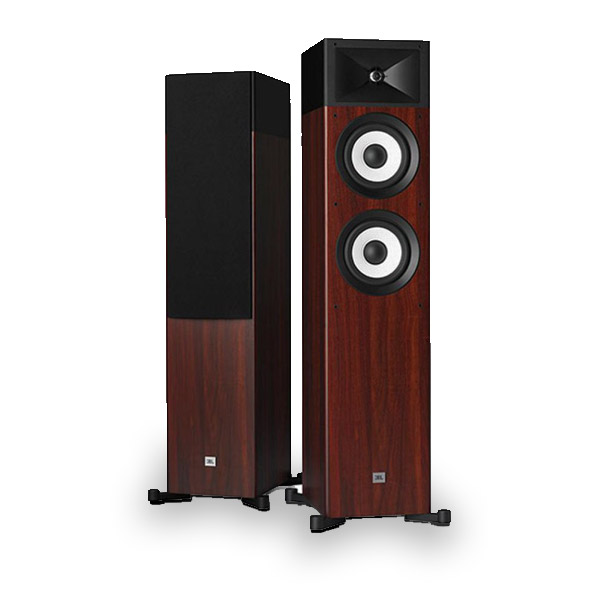

JBL Stage A170 Home Audio Loudspeaker Systems
JBL Stage A170 ตู้ลำโพง 2 ทาง ขนาด 2×5.25 นิ้ว 200 วัตต์ Stage A170 จากแบรนด์ JBL
The JBL Stage is an advanced, home-stereo/home-theater speaker system that offers you the thrill of a live-concert experience, all in your living room. Featuring 1” aluminum dome tweeters with high-definition waveguide sound design and 8” woofers that register deep, signature JBL bass, the JBL Stage captures every note of the audio spectrum from high to low – and combines them into pure listening pleasure. Available in pantone black or two-tone wood, JBL Stage is a stylish addition to any theater system. Whether it’s for movies or music, the sound of your home will never be the same.
-
2.5 way, dual 5.25″, 1″ aluminum tweeter floor standing loudspeakerYes
-
2 x 5.25″ (133mm) Polycellulose Low-Frequency WooferYes
-
New High Definition Imaging (HDI) WaveguideYes
-
1” (25mm) Aluminum Dome TweeterYes
-
Recommended Amplifier Power20 – 200W
-
Frequency Response44Hz – 40kHz
-
Sensitivity89dB @ 1M, 2.83V
-
Nominal Impedance6 Ohms
-
Crossover Frequencies1.8kHz, 2.8kHz
-
Enclosure TypeBass-Reflex via Rear-Firing Tuned Port
-
Dimensions (W x D x H)190 x 255 x 930mm
-
Weight31.61 lbs (14.34kg)

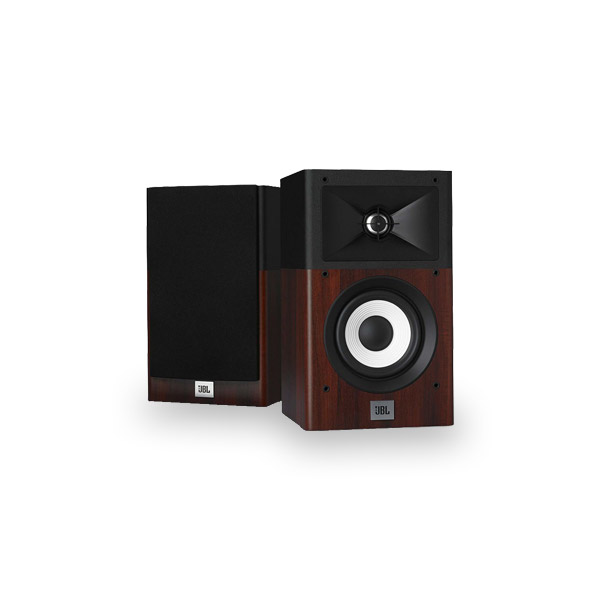

JBL Stage A120 Home Audio Loudspeaker Systems
JBL Stage A120 ตู้ลำโพง 2 ทาง ขนาด 4.5 นิ้ว 125 วัตต์ Stage A120 จากแบรนด์ JBL
The JBL Stage is an advanced, home-stereo/home-theater speaker system that offers you the thrill of a live-concert experience, all in your living room. Featuring 1” aluminum dome tweeters with high-definition waveguide sound design and 8” woofers that register deep, signature JBL bass, the JBL Stage captures every note of the audio spectrum from high to low – and combines them into pure listening pleasure. Available in pantone black or two-tone wood, JBL Stage is a stylish addition to any theater system. Whether it’s for movies or music, the sound of your home will never be the same.
-
2 way, 4.5″ woofer, 1″ aluminum tweeter bookshelf/surround loudspeakersYes
-
4.5″ (114mm) Polycellulose Low-Frequency WooferYes
-
New High Definition Imaging (HDI) WaveguideYes
-
1” (25mm) Aluminum Dome TweeterYes
-
Recommended Amplifier Power20 – 125W
-
Frequency Response60Hz – 40kHz
-
Sensitivity86dB @ 1M, 2.83V
-
Nominal Impedance6 Ohms
-
Crossover Frequencies3.2kHz
-
Enclosure TypeBass-Reflex via Rear-Firing Tuned Port
-
Dimensions (W x D x H)170 x 170 x 285mm
-
Weight (each)8.40 lbs (3.81kg)

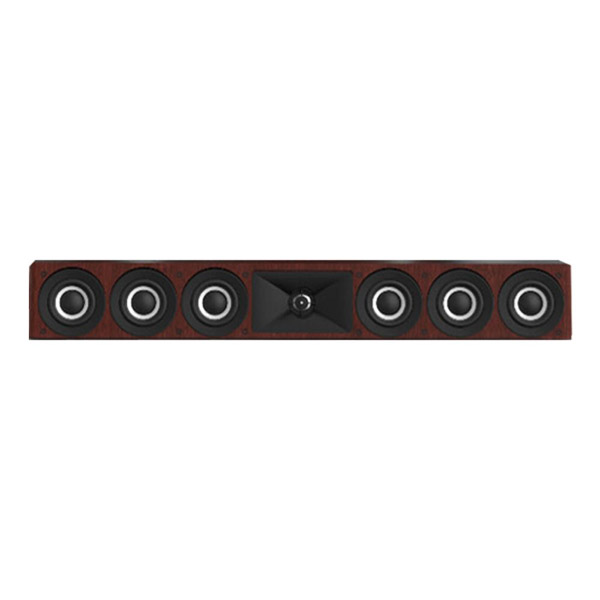

JBL Stage A135C Home Audio Loudspeaker Systems
JBL Stage A135C ตู้ลำโพงโฮมเธียเตอร์ 2 ทาง ขนาด 3 นิ้ว 6 ดอก 150 วัตต์ Stage A135C จากแบรนด์ JBL
The JBL Stage is an advanced, home-stereo/home-theater speaker system that offers you the thrill of a live-concert experience, all in your living room. Featuring 1” aluminum dome tweeters with high-definition waveguide sound design and 8” woofers that register deep, signature JBL bass, the JBL Stage captures every note of the audio spectrum from high to low – and combines them into pure listening pleasure. Available in pantone black or two-tone wood, JBL Stage is a stylish addition to any theater system. Whether it’s for movies or music, the sound of your home will never be the same.
2 way, 6 x 3″ woofer, 1″ aluminum tweeter center loudspeaker | Yes |
6 x 3″ (76mm) Polycellulose Low-Frequency Woofer | Yes |
New High Definition Imaging (HDI) Waveguide | Yes |
1” (25mm) Aluminum Dome Tweeter | Yes |
Recommended Amplifier Power | 20 – 150W |
Frequency Response | 75Hz – 40kHz |
Sensitivity | 90dB @ 1M, 2.83V |
Nominal Impedance | 6 Ohms |
Crossover Frequencies | 2.5kHz |
Enclosure Type | Bass-Reflex via Rear-Firing Tuned Port |
Dimensions (W x D x H) | 745 x 166 x 104mm |
Weight | 16.42 lbs (7.45kg) |

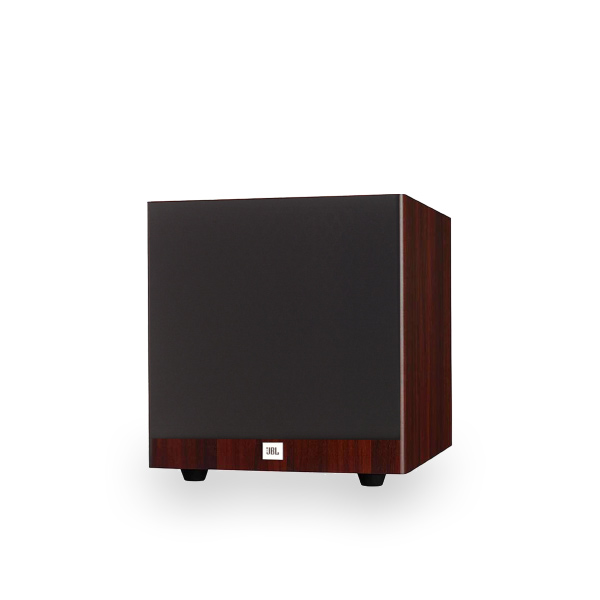

JBL Stage A100P Home Audio Loudspeaker Systems
JBL Stage A100P ตู้ลำโพงซับวูฟเฟอร์ ขนาด 10 นิ้ว 300 วัตต์ มีแอมป์ในตัว Stage A100P จากแบรนด์ JBL
The JBL Stage is an advanced, home-stereo/home-theater speaker system that offers you the thrill of a live-concert experience, all in your living room. Featuring 1” aluminum dome tweeters with high-definition waveguide sound design and 8” woofers that register deep, signature JBL bass, the JBL Stage captures every note of the audio spectrum from high to low – and combines them into pure listening pleasure. Available in pantone black or two-tone wood, JBL Stage is a stylish addition to any theater system. Whether it’s for movies or music, the sound of your home will never be the same.
- Two-tone unique design for wood
- Enjoy all your music and movies with rich, realistic audio.
- JBL engineering high-definition imaging waveguide design and 1” aluminum dome tweeters
- Ensures sound quality that’s rich, lively, and accurate to a fault.
- Long excursion powered subwoofer
- The long excursion powered subwoofer provides powerful, quality bass.
-
10″ 300 Watts powered subwooferYes
-
10″ (250mm) Polycellulose Low-Frequency WooferYes
-
Power150W RMS (300W Dynamic)
-
Frequency Response35Hz – 150Hz
-
Crossover Frequencies50Hz – 150Hz (variable) 24dB/octave
-
ControlsAuto Power, Crossover, Level, Phase
-
InputOne (1) Line-Level LFE Input
-
Enclosure TypeBass-Reflex via Rear-Firing Tuned Ports
-
Power Requirement120V, 60Hz (US) 220-230V, 50/60Hz (EU)
-
Power Consumption (Idle/Full/Power)<0.5W (standby) / 205W/1.6A (max – 230V) / 205W/3.15A (max – 120V)
-
Dimensions (W x D x H)335 x 380 x 340mm
-
Weight30.05 lbs (13.63kg)
