EV RE920TX ไมโครโฟน ไมค์สำหรับจ่อเครื่องดนตรี แบบคอนเดนเซอร์ มีทิศทางการรับเสียงแบบ Cardioid. ELECTRO-VOICE RE920TX Instrument Microphone จากแบรนด์ ELECTRO-VOICE
EV RE920TX
Unidirectional Condenser Instrument Microphone with TA4F Connector

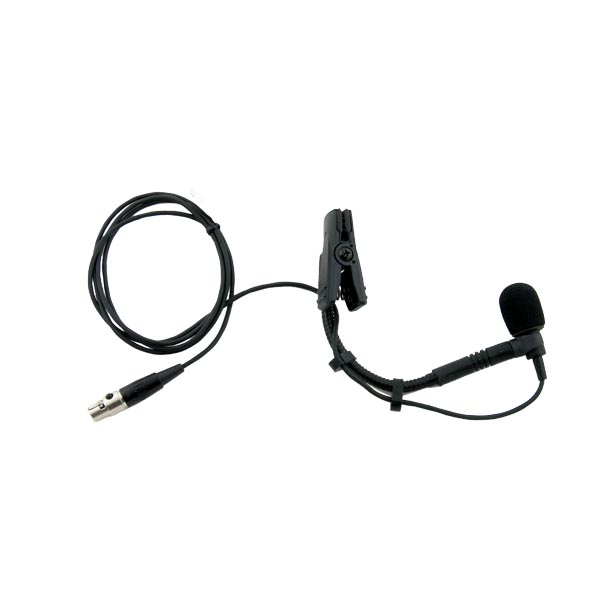

The RE920Tx is a cardioid condenser microphone designed for wireless use with musical instruments via its specially designed instrument-mount clip assembly. Although terminated in a TA4F connector for use with EV and Telex bodypack transmitters, it can be made hard-wired with the additional TXA XLR preamp.

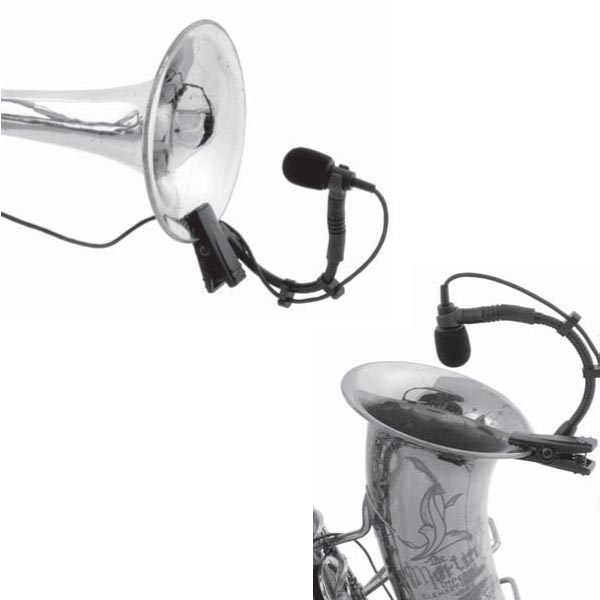

The RE920Tx is a cardioid condenser mic, designed specially for wireless use with musical instruments. It includes a specially designed instrument mount clip assembly, which securely holds the mic in place, while isolating it from mechanical vibration.
The mic is terminated in a TA4F connector wired for use with EV & Telex bodypack transmitters, and includes a twostage foam windscreen, and a gig bag.
- Wide, Smooth Frequency Response
- Cardioid Polar Pattern
- Handles High SPL Levels
- Flexible Gooseneck Allows Easy Mic Adjustment
- Generation Element: Self-Biased condenser, back electret 2-micron thick, gold sputtered diaphragm
- Frequency Response: 80-18 kHz (see chart)
- Polar Pattern (see chart):
- Cardioid (see chart)
- Sensitivity, Open Circuit
- Voltage, 1 kHz: 1.3mV/Pascal
- Clipping Level:: >148 dB SPL
- Equivalent Noise: 31 dB SPL
- Dynamic Range: >117 dB
- Output Impedance, 1 kHz: 1000 ohms
- Power Requirements: 5 VDC
- Current Consumption: < 500 uA
- Dimensions:
- Diameter (Mic) 0.412 in (10.5 mm)
- Length (Mic) 0.948 in (24.1 mm), less strain relief
- Length: (Mounted) 6.2 in (158 mm)
- Cable: 0.100 in (2.54 mm) diameter x 5 ft (1.5m) long
- Connector Wiring:
- Pin #1 – Ground, Shield
- Pin #2 – Audio, White
- Pin #3 – Bias Voltage, Red
- Pin #4 – N/C
- Accessories Furnished:
- Two stage windscreen
- Gig bag
- Color: Nonreflecting black
- Environmental Conditions:
- Relative Humidity 0-50%: -29° to 74°C (-20° to 165°F)
- Relative Humidity 0-95%: -29° to 57°C (-20° to 135°F)
- Net Weight:
- 1.9 oz (54 grams)
- Mic only: 0.81 oz (54 grams)
