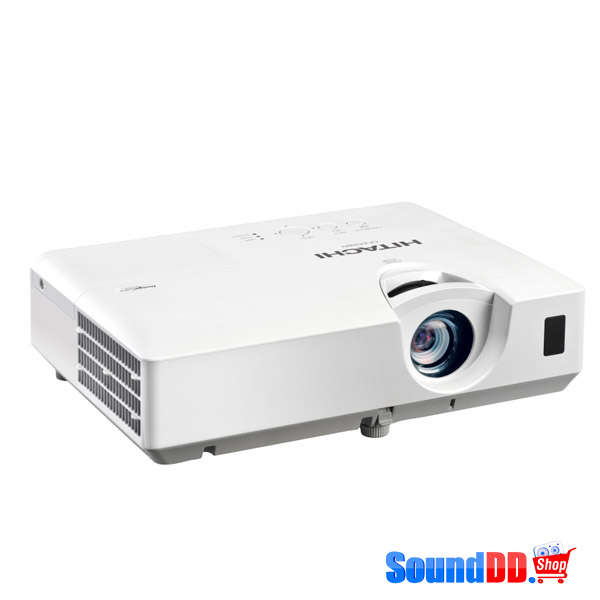

HITACHI CP-EX302N เครื่องฉายภาพ โปรเจคเตอร์พกพา ความสว่าง: 3,200 ANSI Lumens Contrast: 2,000:1

LCD Panel

• 0.63 inch 3LCD Panel

Resolution

• XGA (1024 x 768)

Brightness

• 3200 ANSI Lumens (Normal) / 2624 ANSI Lumens (Eco 1) / 2144 ANSI Lumens (Eco2)

Colour Light Output (Colour Brightness)

• 3200 ANSI Lumens (Normal), 2624 ANSI (ECO1), 2144 ANSI (ECO2)

Contrast Ratio

• 2000:1

Lamp Life (Hours)

• 5,000 hours (Normal) / 10,000 hours (Eco-2)

Lens

• Manual Zoom x1.2, Manual Focus

Focus Distance

• 0.9m ~ 9.1m (Wide), 1.0m ~ 10.9m (Tele)

Distance To Width Ratio

• 1.5 (Wide), 1.8 (Tele)

Display Size

• 30″~300″

Number Of Colours

• 16.7 million colours

Computer Compatibility

• IBM Compatible VGA, SVGA, XGA, WXGA/WXGA+/SXGA/SXGA+/WSXGA+/UXGA/WUXGA (compressed), MAC16″

Composite

• NTSC, PAL, SECAM, PAL-M, PAL-N, NTSC4.43

Component Video

• 525i(480i), 525p(480p), 625i(576i), 1125i([email protected]/60), 750p([email protected]/60), 1125p([email protected]/60)

HDMI

• 525i(480i), 525p(480p), 625i(576i), 1125i([email protected]/60), 750p([email protected]/60), 1125p([email protected]/60)

Plug & Play

• DDC2B (VESA) for Computer in1 DDC2B (VESA) for HDMI

Speakers

• 16w Mono

Digital Keystone Correction

• Vertical ±30 degrees

Picture Modes

• Normal, Cinema, Dynamic, Board (Black), Board (Green), Whiteboard, Daytime, Photo

Basic Features

• ASPECT selection for data Normal / 4:3 / 16:9 / 16:10, for HDMI Normal / 4:3 / 16:9 / 16:10 / 14:9, for Video 4:3 / 16:9 / 14:9, Audio pass through, Audio ports assign, Audio out (standby) and monitor out / selectable source with MENU, Auto eco mode, Auto power off, Auto signal search; direct power on; equalizing colour temperature adjustment, Equalizing digital gamma correction; frame lock (data signal with vertical frequency of 49 to 51 Hz, 59 to 61 Hz), Image blank by RS232C/Remote control, LED lamps (power, lamp, temp), Magnify 4 times (XGA) by RS232C / remote control, Mirror reverse image, Up-side down Image, MyButton by remote control, MyMemory, MySource, MyText, MyScreen, Overscan (video, component video signal), Picture freeze by RS-232C / remote control; serial number displayed on EASY MENU and on the side of projector. Source naming (in English), Stand-by audio

Network (LAN Only)

• AMX device discovery, Command control via the network, Confi guring and controlling the projector via a web browser, Controlling the projector via scheduling, Crestron RoomView®, Failure and warning alerts via e-mail, Network bridge, PJLinkTM

Security

• PIN security lock, MyScreen password lock, MyText password lock, Key lock (key pad, remote control)

OSD Languages

• 33

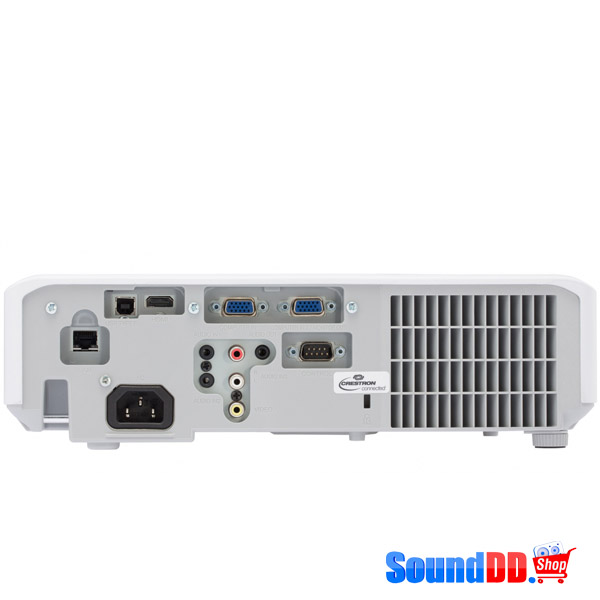

Digital Input

• HDMI x 1

Analog Input

• 15-pin Mini D-sub x 2, RCA jack x 1

Monitor Output

• 15 pin D-Sub shrink x 1

Audio Input

• 3.5 mm stereo mini jack x 2 RCA jack(L/R) x 1

Audio Output

• RCA jack(L, R) x1

Wireless LAN (Adapter Not Included) / Wired LAN

• no / RJ45

USB Type A

• No

USB Type B

• Used for remote control mouse

Power Supply

• AC 100 – 120 V / AC 220 – 240 V (50/60 Hz)

Power Consumption/Standby

• AC 220 – 240 V / 330 – 310 W / <0.5 W

Weight

• 3Kg

Dimensions (W X H X D)

• 320 x 85 x 245 mm

Noise Level

• 37 db (Normal), 32db (ECO-1), 29db (ECO-2)

Air Filter (Unwoven)

• 5,000 hours

Accessories Supplied

• Power cord – EU model: 1 x 1.8 m EU cord / US model: 1 x 1.8 m US cord, 1 x 2 m computer cable, 1 x IR remote control unit, 2 x AA batteries, User’s manual CD (operating guide, network function, 1 x safety instructions, 1 x User’s manual (concise)

Remote Control With Batteries

• HL03033

Replacement Lamp

• DT01481
