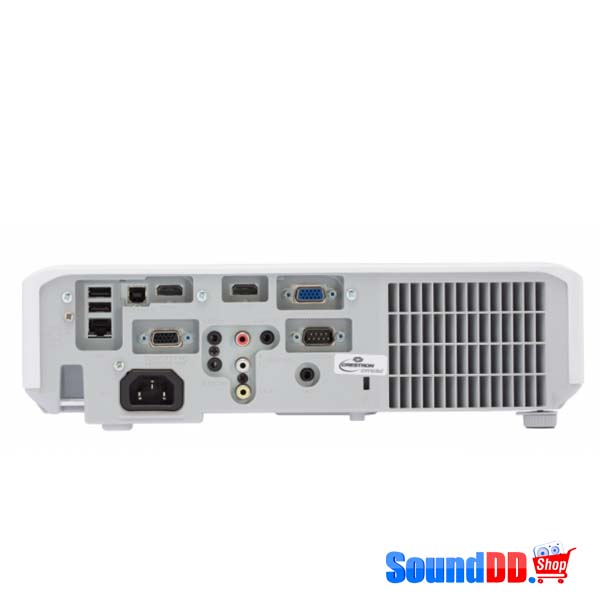

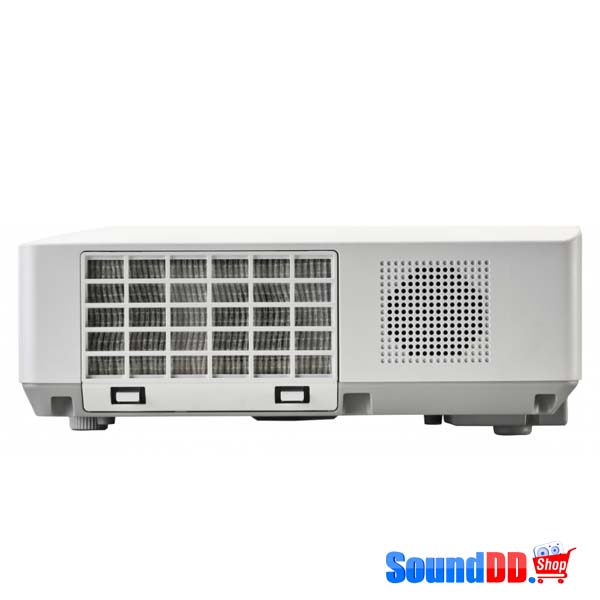

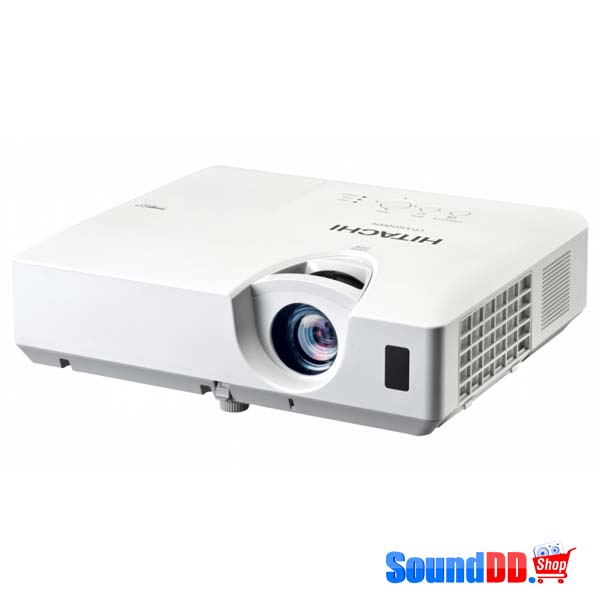

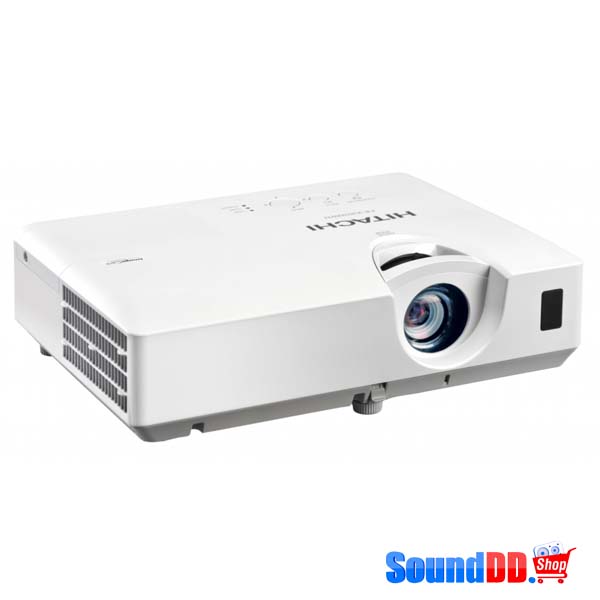

HITACHI CP-X4042WN Multi Purpose business and education Projector
HITACHI CP-X4042WN เครื่องฉายภาพ โปรเจคเตอร์ห้องเรียน/งานประชุม ความสว่าง: 4,200 ANSI Lumens Contrast: 10,000:1 HITACHI CP-X4042WN จากแบรนด์ HITACHI
LCD Panel
- 0.63 inch 3LCD Panel
Resolution
- XGA 1024 x 768 – 4:3 aspect ratio
Brightness
- 4200 ANSI Lumens (Normal) / 3444 ANSI Lumens (Eco1) / 2814 ANSI Lumens (Eco2)
Colour Light Output (Colour Brightness)
- 4200 ANSI Lumens (Normal), 2814 ANSI Lumens (ECO-2)
Contrast Ratio
- 10,000:1
Lamp Life (Hours)
- 5,000 hours (Normal), 10,000 hours (Eco-2)
Lens
- Manual Zoom x1.2, Manual Focus
Lamp Wattage
- 225W
Focus Distance
- 0.9m ~ 9.1m (Wide), 1.0m ~ 10.9m (Tele)
Distance To Width Ratio
- 1.15 (WIDE), 1.8 (TELE)
Diagonal Display Size
- 30 inches-300 inches, (60 inches at 1.8 m, wide)
Number Of Colours
- 16.7 million colours
Computer Compatibility
- IBM Compatible VGA, SVGA, XGA, WXGA, WXGA+, SXGA, WSXGA+, SXGA+, UXGA (compressed), MAC 16″
Composite
- NTSC, PAL, SECAM, PAL-M, PAL-N, NTSC4.43
Component Video
- 525i(480i), 525p(480p), 625(576i), 1125i(1080i@50/60), 750p(720p@50/60), 1125P(1080P@50/60)
HDMI
- 525i(480i), 525p(480p), 625i(576i), 1125i(1080i@50/60), 750p(720p@50/60), 1125p(1080p@50/60)
Plug & Play
- DDC2B (VESA) for Computer in1, DDC2B (VESA) for HDMI1, HDMI2/MHL
Digital Keystone Correction
- Horizontal & Vertical ± 30 degrees
Picture Adjustments
- (Normal, Cinema, Dynamic, Board (Black), Board (Green), Whiteboard,Equalizing Color temperature Adjustment, Equalizing Digital Gamma Correction, Daytime, Photo)
Basic Features
ASPECT selection Normal/4:3/16:9/16:10/14:9/Zoom/Native, Freeze, Audio pass through, Auto eco mode, Direct Power On, Magnify 4 times, PC-less Presentation, Mirror Reverse Image, Up-side Down Image, USB Display, Eco Mode, Auto Power Off, Auto signal search, Cloning
Advanced Features
- Perfect Fit (4 corners and 4 sides), Accentualizer, HDCR, Audio pass through Audio sound mixing (MIC input and another audio signal input), Audio ports assign, Audio out (standby) and Monitor out / selectable source with MENU, Resolution setting,Source naming (in English), Security Lock ,PIN Security Lock, MyScreen Password Lock, Transition Detector, My Text, Password Lock, Key Lock (Key pad, Remote Control), Stand-by Audio, Audio sound mixing
Network
- AMX Device Discovery, Command Control via the Network, Configuring and Controlling the Projector via a Web Browser, Controlling the Projector via Scheduling Crestron RoomView® (Not accessible through the wireless adapter), Displaying text data transferred via network, Extron XTP system, Failure and Warning Alerts via E-mail, My Image (still image transfer) Display, Network Bridge, Network Presentation (PC still picture transfer), Frame rate (practical) is under 12fps (640×480 movie) reference purpose only, PJLinkTM, Projector Management via SNMP
OSD Languages
- 33 Languages
Digital Input
- HDMI/MHL x1, HDMI x1 (Supporting HDCP decoding)
Analog Input
- 15 pin D-Sub shrink x1 (shared with analog component video input), Analog Computer 2 15 pin D-Sub shrink x1 (shared with analog component video input and MONITOR OUT), RCA jack x1
Monitor Output
- 15 pin D-Sub shrink x1 (shared with COMPUTER IN 2 and analog component video input)
Audio Input
- 3.5 mm stereo mini jack x2, RCA jack(L, R) x1
Audio Output
- 3.5 mm stereo mini jack x1
Control
- 1 x 9-pin D-sub for RS232 control
USB
- USB type A x2 Used for PC-less presentation or wireless network, Used for optional wireless pen tablet TB-1, USB type B x1 Used for Remote control mouse or PC screen display
Wireless LAN (Adapter Not Included) / Wired LAN
- USB type-A / RJ45
Power Supply
- AC100-120V / AC220-240V, 50 / 60Hz
Power Consumption/Standby
- AC 100 – 120 V / AC 220 – 240 V (50/60 Hz), Current consumption 3.4 A / 1.7 A, Less than 0.5 W (@ saving mode)
Weight
- 3.099 kg
Dimensions (W X H X D)
- 320 x 85 x 245 mm
Noise Level
- 37 db Normal, 29 db Eco
Air Filter (Unwoven)
- 5,000 hours is the default, Unwoven filter
Accessories Supplied
- Power cord EU model: Euro cord (1.8 m) x1 / US model: US cord (1.8m), Computer Cable (2 m) x1, IR Remote Control Unit x1, ‘AA’ Batteries x2, Lens cover x 1, Adapter Cover x1, Security Label x1, Application CD x1, User’s Manual CD (Operating Guide, Network Function, Safety Instructions, User’s Manual (Concise) x 1
Replacement Lamp
- DT01481
Filter
- UX38841
USB Wireless Adapter
- USB-WL-11N
