เครื่องควบคุมชุดไมค์ประชุมระบบดิจิตอล TS-0605M Conference Host จากแบรนด์ ITC

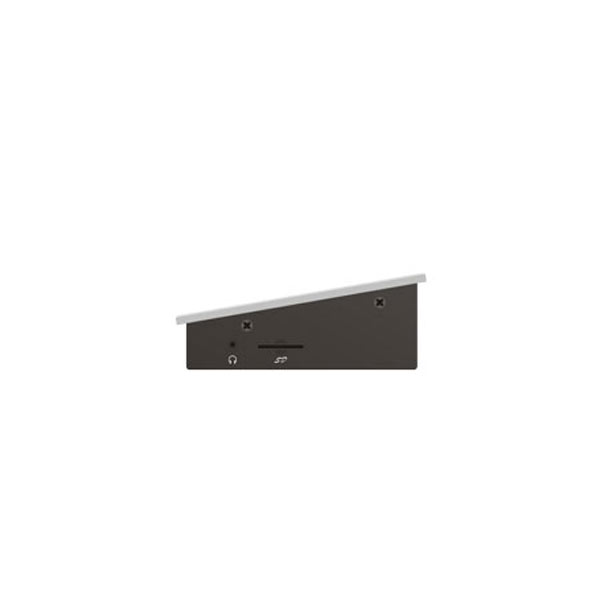

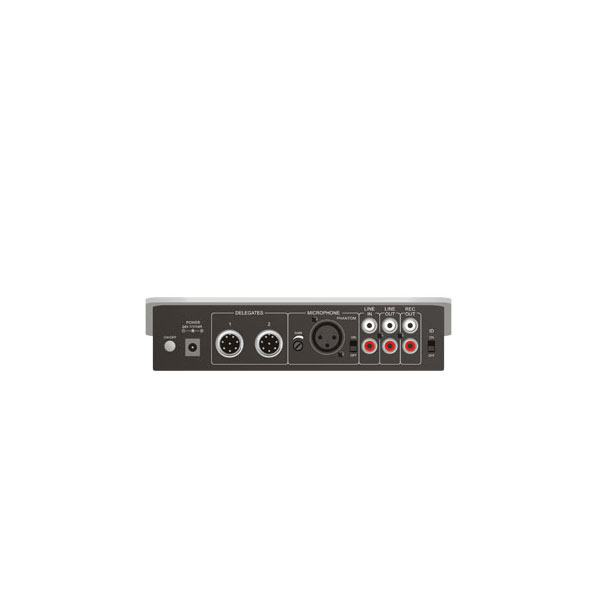

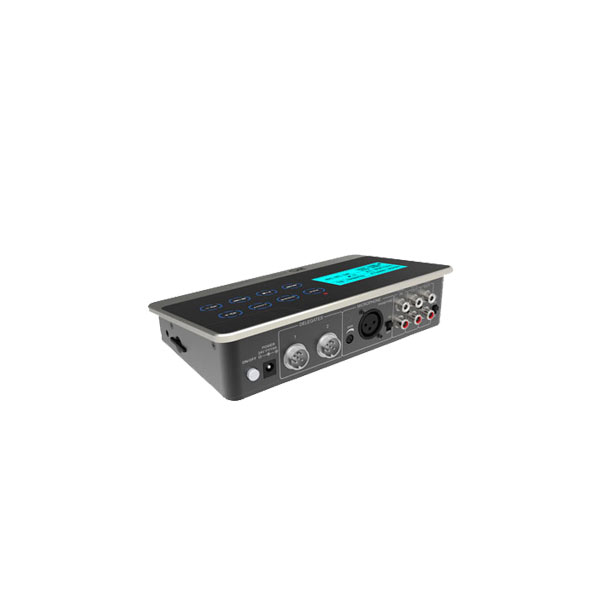

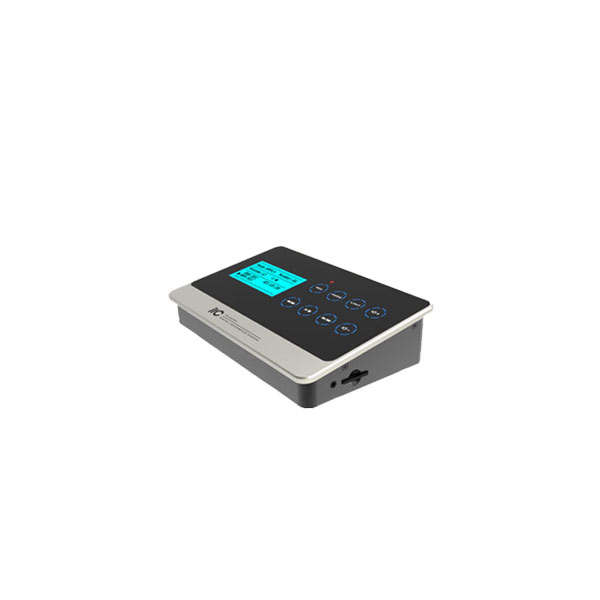

ITC TS-0605M Conference Host
คุณสมบัติ
- Using touch buttons; provide shortcuts for recording, play-back, switcher for modes or limit quantity and volume control；
- 4 kinds of conference modes: Fist-in-first-out/Normal/ Free/ Apply;
- With the limit function for the quantity of active microphones: Optional limit quantity is 1/2/4/6, and the chairman unit is unlimited;
- 1 host can be connected up to 30 conference microphones;
- Connection method of conference microphones is “Hand-in-hand”, which is easy to be installed and maintained;Using audio processing modules like digital EQ and noise reduction system makes sound loud and clear; 1 audio input and 1 audio output;
- With 1 channel acoustic output, which could be used to do sound reinforce by connecting to PA power amplifier;
- With 1 channel recording output, which could work with recording device;
- With the recording function and SD slot to do real-time recording of SD CARDS signed in can make convenience for real-time recording;
- Could be connected to external microphone ;gain control is provided;
- With the function of auto configuration for ID address to make installation more convenient ;
- Using external power supply at 24V;
- The enclosure of the controller is in material of metal which make the circuit connected to the ground wire better to ensure antistatic ability of 6000V;
- Desktop-style and user-friendly operation;
- Using 3.5mm headset jack to monitor the information of the conference in real-time.
สเปค
Model |
TS-0605M |
| Microphone Capacity | ≤30 |
| Frequency Response | 30~20KHz |
| S/N Ratio | >75dB(A) |
| Dynamic Range | >80dB |
| Crosstalk | >80dB |
| T.H.D. | <0.05% |
| Power Supply | DC 24V |
| Audio Input | LINE IN: 350mV (balanced) |
| Audio Output | LINE OUT 1:1V ( balanced) |
| Output Load | ＞1KΩ |
| Static Power Consumption | 10W |
| Output Power Consumption | 70W |
| Connector | 8-core air plug |
| Standards | IEC60914 |
| Working Temperature | -10℃ ~ +60℃ |
| Working Humidity | relative humidity 20%~80%, no condensing |
| Dimension (LxWxH) | 210 x 132 x 50mm |
| Weight | 1.65kg |
| Color | Black |
