JTS CS-1DU18 ชุดไมค์ประชุม สำหรับปผู้ร่วมประชุม ก้านยาว 18 นิ้ว JTS CS-1DU18 ไมค์ประชุม ยี่ห้อ JTS

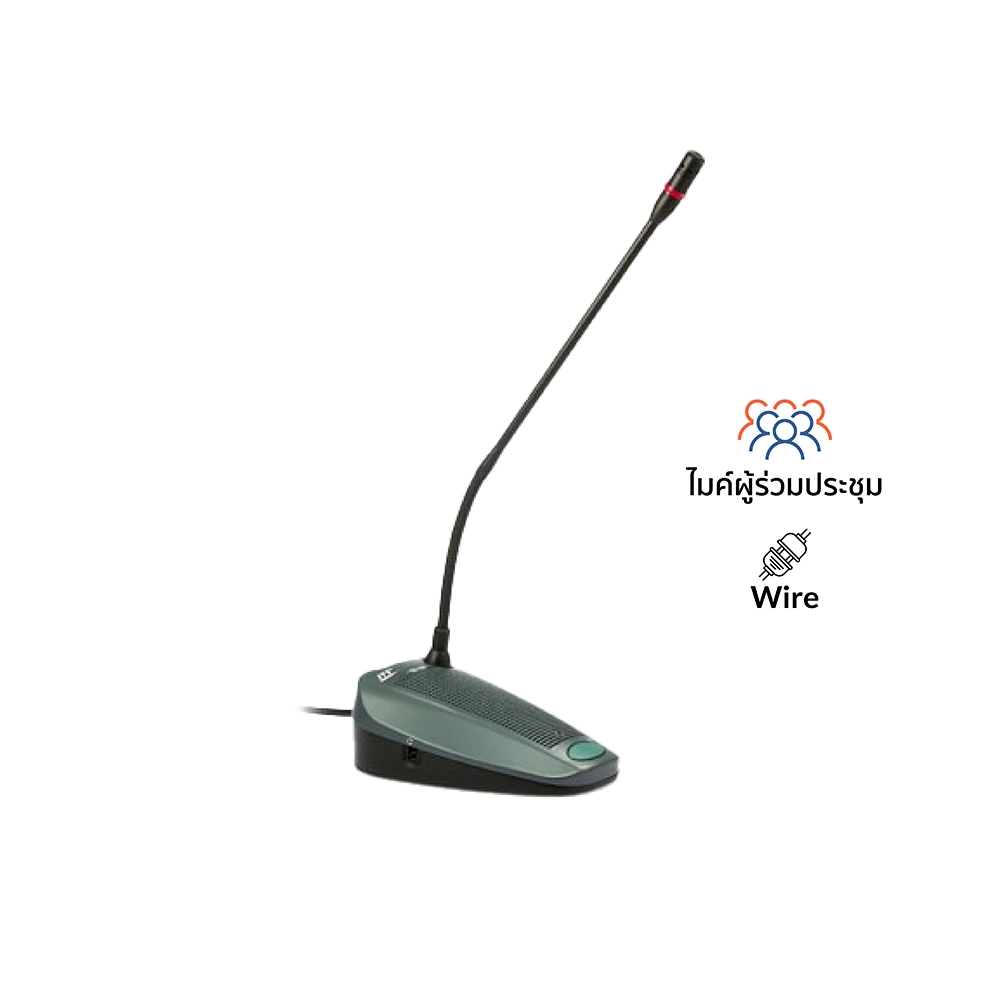

JTS CS-1DU18 Delegate Unit
The delegate unit enables the attendants to participate in a discussion by speaking through a microphone, controlled by a microphone ON/OFF push-button, and listening to discussion by the internal loudspeaker and external headphone.
SPECIFICATION
Headphone output |
|
| Output level | -8dBV / +2 dBV (nominal / maximum) |
| Output Impedance | 22Ω |
System limits Number of delegate/chairman units connected to one control unit |
|
| Maximum in total | 50 |
| Maximum per trunk output | 25 |
| Maximum trunk length using CS-1 | standard cabling: 100m |
| Dimensions (HxWxD) | 360*150*90 mm |
| Weight | 1745 grams |
Gooseneck Microphone |
|
| Type | Back Electret Condenser |
| Frequency Response | 50 ~ 18,000Hz |
| Polar Pattern | Cardioid |
| Max. SPL for 1% THD | 125dB |
| Gooseneck Length | 18” (450mm) |
| Dimensions (HxWxD) without mic | 170*115*65 mm |
| Length of mic | 450 mm |
| Weight | 1100 grams |
