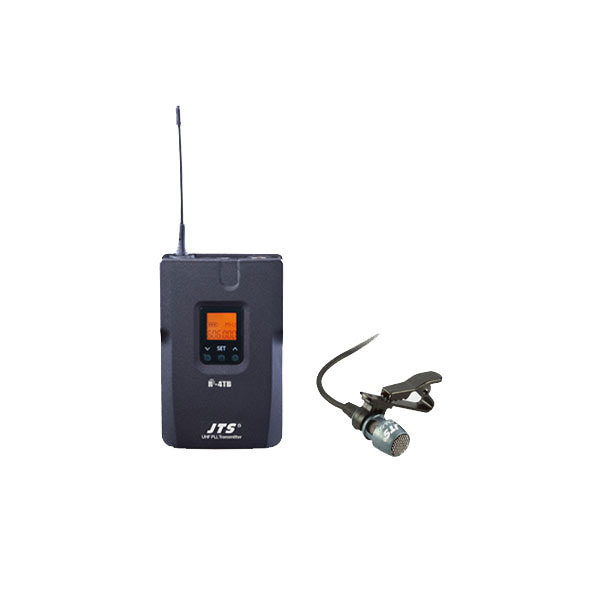

JTS R-4TB+CM-501 ชุดไมค์ลอย หนีบปกเสื้อ R-4TB+CM-501 ชุดไมค์ลอย จากแบรนด์ JTS
JTS R-4TB+CM-501
Professional Wide Band Body-Pack Transmitter with Lavalier Mic (ไม่มีเครื่องรับ)
คุณสมบัติ
R-4TB
- 2400 to 3000 selectable frequencies
- Preset 15 groups each of up to 63 compatible channels
- Phase-Locked Loop (PLL) synthesized tune
- Extended dynamic range and smooth frequency response.
- Adjustable transmission power between Low and High
- The panel Lock-On function prevents tampering and RF interruption
- Together with JTS various music instrument mics, headset mics and tie clip mics this bodypack is versatile for all applications.
NEWEST FEATURE
- It is designed with slot-in charging feature with two AA NiMH rechargeable batteries.
CM-501
- Uni-direction for high-quality voice pick-up.
- Wide dynamic range and frequency response for excellent sound reinforcement.
- Small size for minimum visibility.
- Together with clip for easy attaching to a tie, lapel, dress etc.
สเปค
R-4TB |
|
| Frequency Preparation | PLL Synthesized Control |
| Carrier Frequency Range | UHF 470~960 MHz |
| Bandwidth | 108MHz Wideband |
| RF Outputs | Low / High |
| Stability | < ±10KHz |
| Frequency Deviation | ± 48KHz (Peak) |
| Chassis | Plastic |
| LCD Display | Group, Channel, Frequency, Battery Status, User Name , GAIN Adjust |
| Controls | Power ON/OFF, AF Level, Frequency (Up/Down), Lock-on Mode, REMOSET ID Pairing, RF Output Adjust |
| Output Connector | 4P Mini XLR |
| Spurious Emissions | <-50 dBC |
| Audio Frequency Response | 50Hz ~ 18k Hz |
| Battery | UM3, AA x2 |
| Dimensions | 62.3mm (W) x97.5mm (H) x20mm (D) |
| Weight | 75g |
| Notes | Actual product specifications may vary depending on model and region. |
CM-501 |
|
| Connector | 4P Mini XLR |
| Frequency Response | 100~15,000 Hz |
| Polar Pattern | Cardioid |
| Sensitivity (at 1KHz) | -60±3 dB* (1mV)*0dB=1V/μbar |
| Impedance | 2.2kΩ |
| Max. SPL for 1% THD | 130dB |
| Dimension(mm) | Ø10.1mm(W)* 26.4mm(H) |
| Net Weight | 21.5g |
