JTS UF-20R เครื่องรับสัญญาณไมค์ลอย 2 ชาแนล (ไม่มีไมโครโฟน) UF-20R เครื่องรับสัญญาณ จากแบรนด์ JTS

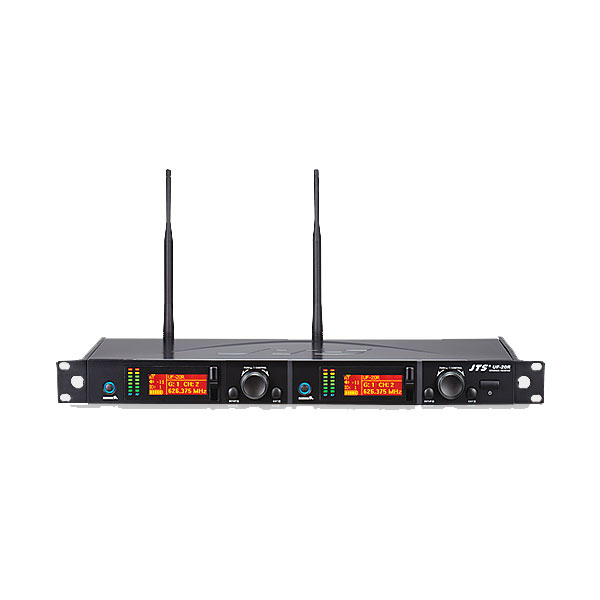

JTS UF-20R
Dual Channel Wireless Receiver
The wideband multifrequency system UF-20… from JTS
is the perfect solution for stage applications of high requirements due to an excellent flexibility and reliability.
The device impresses with a convenient setup function, REMOSET technology, 75 MHz bandwidth, 3,000 frequencies which can be selected as desired and additional professional features, e.g. active carrier analysis method.
The device impresses with a convenient setup function, REMOSET technology, 75 MHz bandwidth, 3,000 frequencies which can be selected as desired and additional professional features, e.g. active carrier analysis method.
คุณสมบัติ
- UHF True diversity technology renders 200-480 meters of operation distance
- Maximum 2400 to 3000 selectable frequencies across 60 to 75 MHz
- Preset 15 groups each of up to 63 compatible channels
- User programmable 6 groups each of 64 channels
- Free space scan function
- JTS Patented obstacle-free RF function synchronizes a transmitter by pushing a button
- JTS LCX circuit design technology minimizes Companding noise
NEWEST FEATURE:
- The is now not only sends the frequency data but also transmitter’s RF power,sensitivity, low cut, key lock and user’s name.
- RF “NO SIGNAL” alert function.
- AF “MUTE” alert function.
- Transmitter “LOW BATTERY” alert function.
- Built in equalizer
- Power / Antenna cascading output provided.
สเปค
| UF-20R |
| Frequency Preparation | PLL Synthesized Control |
| Frequency Setting | JTS patented obstacles-free RF REMOSET |
| Carrier Frequency Range | UHF 470~960 MHz |
| Channel | Dual |
| Bandwidth | 60~75MHz Wideband |
| S / N Ratio | > 108dB (A) |
| T.H.D | <0.5% @ 1KHz |
| Chassis | 1U standard metal chassis |
| Preset Channels / Group | * From group 1 ~ 15 up to 63 interference-free compatible channels. * 690 preset channels / group and 3000 selectable frequencies across 60 to 75 Hz Bandwidth. * User programmable from U1 ~ U6 each of 64 channels reserved. |
| Display | LCD |
| Display Contents | Group, Channel, Frequency, Antenna A / B, RF / AF Level Meter, Mute Display, Transmitter Battery Status, REMOSET ID Number, User Name, Squelch |
| Sensitivity | 6dBμV, at S / N> 80dB |
| Receiving Mode | True diversity |
| Audio Output Level | Maximum 6dBu |
| Receiving Mode | True diversity |
| AF Output Impedance | 600Ω |
| Frequency Response | 50Hz ~ 18kHz, with high-pass filter |
| Squelch | Pilot Tone & Noise Mute |
| Power Supply | 100 ~ 240V or 12V DC |
| Output Connector | 2 XLR Balanced Socket2 Ø6.3mm Unbalanced phone jack |
| Dimension (m / m) | 480mm (W) 45Mmm (H) 260mm (D) |
| Notes | Actual product specifications may vary depending on model and region. |
