KEF R700 Floorstanding Loudspeaker
The KEF R700 exudes sophistication, not only in its contemporary design and use of high quality real wood and piano high gloss finishes, but in its class-leading sonic reproduction. The R700 features a specifically-designed 5in. Uni-Q driver flanked by two 6.5in. aluminium bass drivers to deliver fast but controlled & authoritative low end.
Amazingly fast and clean mid-range response. Startlingly pure high frequencies. All operating as a single perfectly integrated voice to deliver sweet, accurate sounds of unprecedented clarity.

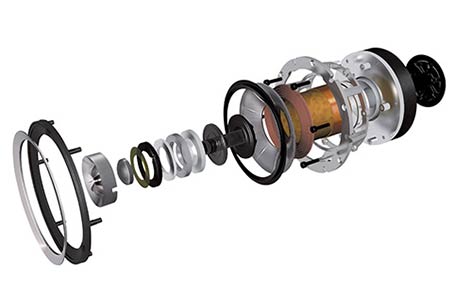

KEF Uni-Q driver array is nothing short of a masterpiece. Unlike conventional speakers, the mid-range cones are rigid agnesium/aluminum constructions that reduce breakup problems. The new mid-range Z-flex surround smoothes the tweeter transition to the front baffle, which results in undistorted high frequencies.
Large voice coils increase power handling and dynamics, reducing distortion and delivering exceptional vocal clarity.
Venting the tweeters reduces pressure behind the dome, increasing midrange bandwidth and lowering distortion. Upper registers are articulated with flawless precision. KEF’s tangerine waveguide helps disperse higher frequencies evenly across a wider angle to flood the room with a sophisticated, refreshingly natural sound field.
Dynamic, uncompressed and undistorted bass of heart pounding clarity envelops you, striking deep emotional chords. Your soul will awaken. And the earth will move.

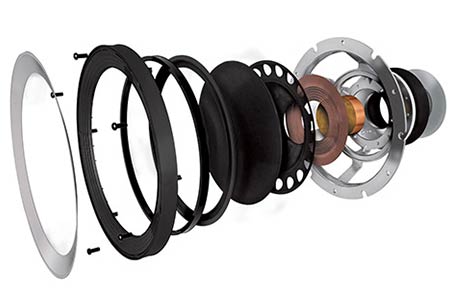

Massive, vented magnet assemblies and large aluminum voice coils drive the lightweight yet stiff, strong hybrid cones. Bass output is faster, cleaner and more accurate. Satin anodised elements contribute to the unit’s elegance, while the diameter of the trim ring accentuates a visual sophistication that belies the speaker’s awesome power.
Designed from the ground up, the R series is a towering leap forward that creates a new dimension in sonic authenticity.

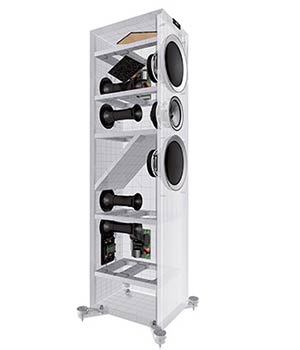

The geometry and bracing of the enclosure optimises vibrational behavior, reducing secondary radiation from cabinet walls for a cleaner sound. Damping panels further minimize cabinet resonance and colouration.
Front baffles are clean with no visible screws. Grilles are fixed magnetically. Available in real Walnut veneer, or highly polished Piano Black or White, the R Series complements the home as much as it respects the music.
A little finesse goes a long way to delivering a big impact. Every aspect of the R Series has been considered in the creation of a superb audio experience.

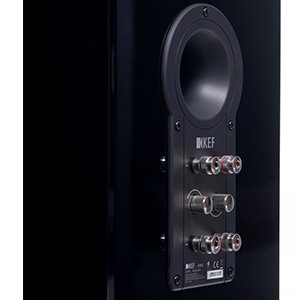

Adjustable die cast aluminum feet support steel spikes, with integrated locking knobs for easy height adjustment. Nickel plated bi-wire connectors with terminal linking control allow all standard connection methods and provide easy, reliable connection.
The geometry of the reflex ports has been tuned to minimize turbulence at high levels, reducing port noise and low frequency compression.
|Design||Three-way bass reflex|
|Drive units||Uni-Q driver array:
HF: 25mm (1in.) vented aluminium dome
MF: 125mm (5in.) aluminium
LF: 2 x 165mm (6.5in.) aluminium
|Frequency range (-6dB)||37Hz – 45kHz|
|Frequency response (±3dB)||42Hz – 28kHz|
|Crossover frequency||500Hz, 2.9kHz|
|Amplifier requirements||25 – 200 W|
2nd & 3rd harmonics (90dB, 1m)
|Nominal impedance||8Ω (min. 3.2Ω)|
|Dimension (H x W x D)
(with grille and terminal)
|1070 x 210 x 345 mm
(42.1 x 8.3 x 13.6 in.)
|Dimension (H x W x D)
(with grille, terminal & plinth)
|1121 x 329 x 368 mm
(44.1 x 13.0 x 14.5 in.)
