MACKIE 402VLZ4 เครื่องผสมสัญญาณเสียง อนาล็อก 4 ชาแนล MACKIE 402VLZ4 มิกเซอร์อนาล็อก จากแบรนด์ MACKIE

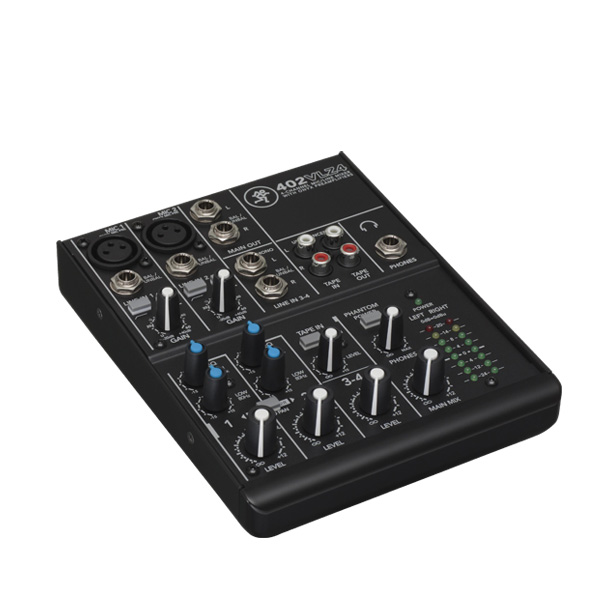

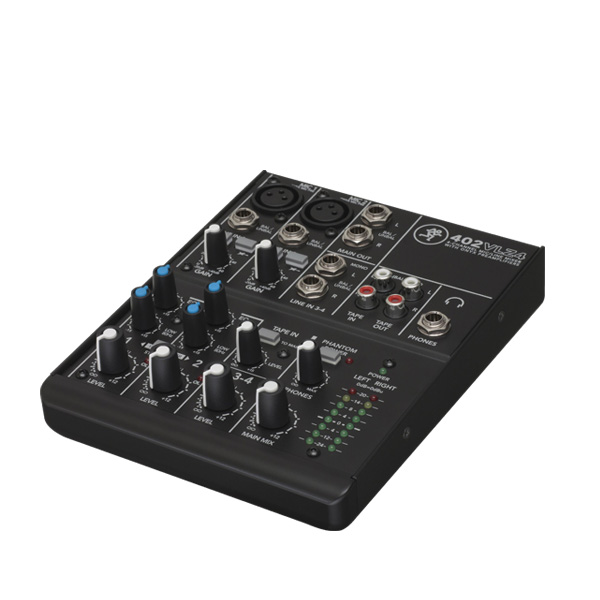

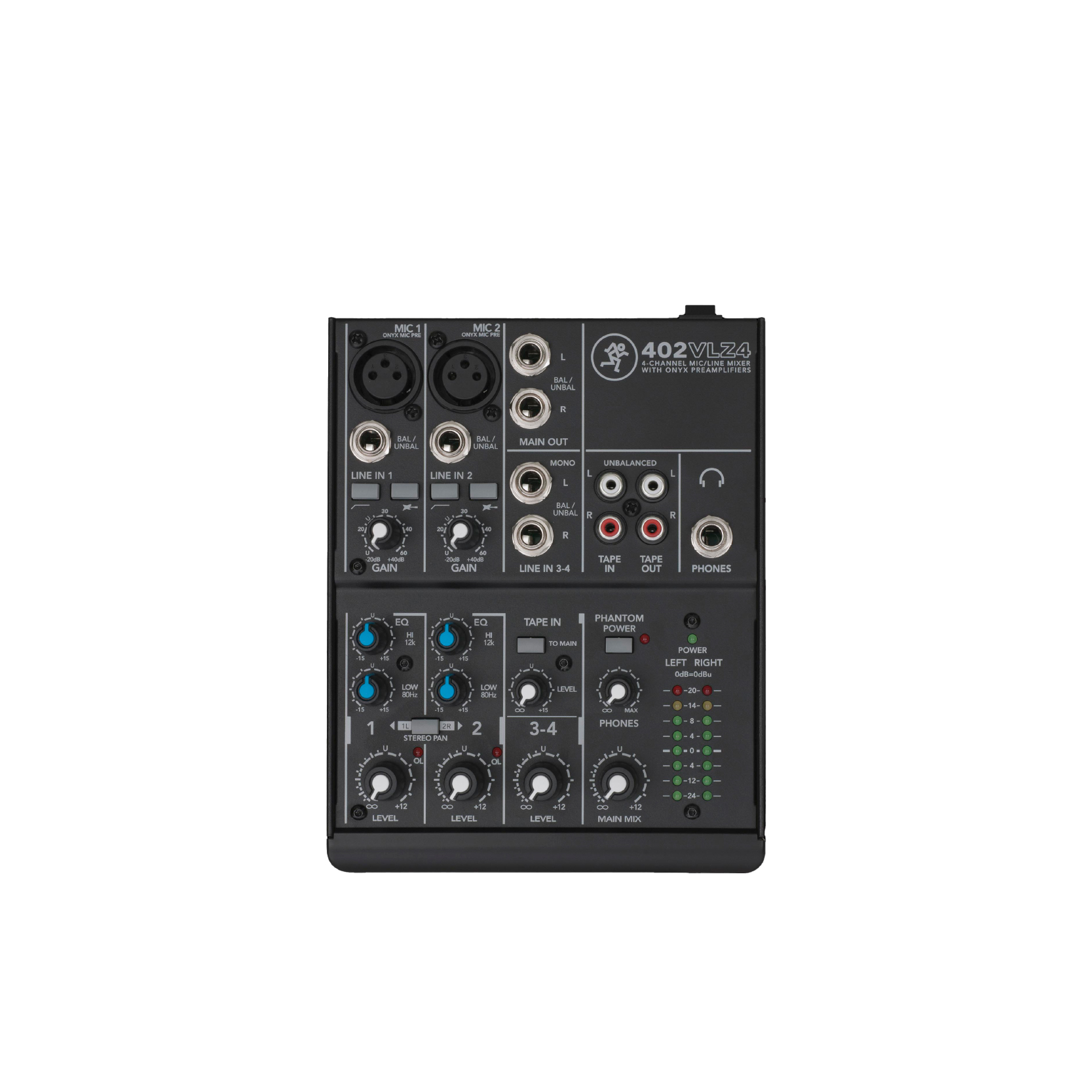

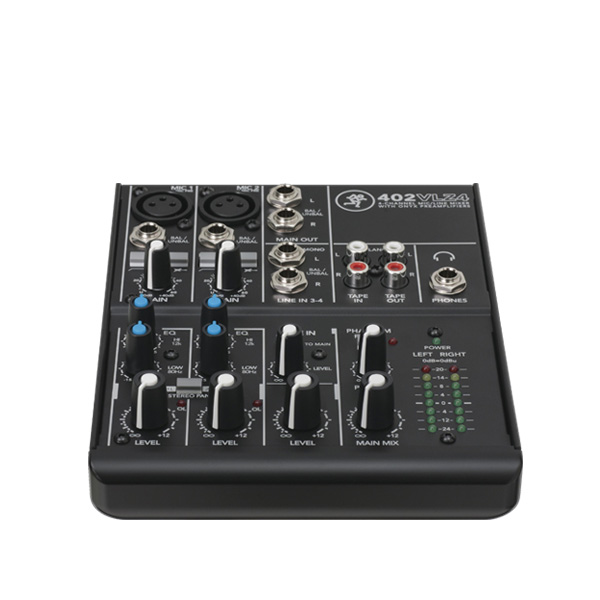

MACKIE 402VLZ4 4-CHANNEL ULTRA-COMPACT MIXER
VLZ4 Series
Mackie relentlessly pursues the perfection of the compact mixer. VLZ4 ups the level of sonic quality at every level, featuring Mackie’s flagship Onyx mic preamps and premium components from front to back. The result is the most rock solid, the most easy to use and, yes, the best sounding compact mixer ever created.
ONYX PREAMPS
- ONYX PREAMPS
- Ultra-wide 60dB gain range
- 128.5 dB dynamic range
- +22 dBu line input handling
- Extended frequency response
- Distortion under 0-0007% (20Hz – 20kHz)
HIGH HEADROOM & LOW NOISE
Strict attention to component quality has led to innovations like our custom M80 op-amps and class-leading negative summing bus architecture
BUILT LIKE A TANK
- Sealed rotary controls resist dust and grime
- “Built-Like-A-Tank” rugged steel chassis with powder-coat finish
- High-visibility, high-contrast controls

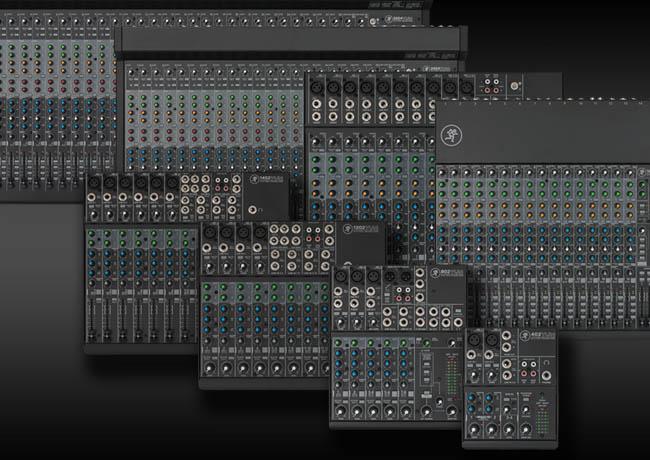

COMPREHENSIVE & PROVEN
Mackie’s VLZ4 line is extremely comprehensive,offering mixers of every channel count, every price point, for every application. From the ultra-compact 402VLZ4 for desktop applications to the tour-fiiendly 3204VLZ4, you can be sure there is a VLZ4 mixer with the right feature set for your needs.
- 4-channel mixer featuring our signature high-headroom, low-noise design
- 2 boutique-quality Onyx mic preamps
Ultra-wide 60 dB gain range
128.5 dB dynamic range
+22 dBu line input handling
Extended frequency response
Distortion under 0.0007% [20 Hz – 50 kHz]
- Improved RF rejection, perfect for broadcast applications
- Phantom power for condenser mics
- Four high-headroom line inputs
- Selectable instrument inputs on first two channels – no DI box needed
- 2-band EQ (80 Hz, 12 kHz)
- 18 dB/oct 100 Hz low-cut filter on mic input channels
- High-resolution 8-segment stereo meters
- Sealed rotary controls resist dust and grime
- “Built-Like-A-Tank” rugged steel chassis with powder-coat finish
- High-visibility, high-contrast controls deliver convenient “at-a-glance” visual feedback
Main Mix Noise
- (20 Hz-20 kl-lz bandwldth, 1/4″ maln out. channels 1-2 galn @ unity,channel EQs flat, stereo-pan button In)
- Maln mlx knob down. channel level knobs down -103 dBu
- Maln mlx knob @ unlly, channel level knobs down -98 dBu
- Maln mlx knob @ unity, channel level knobs @ unity -92 dBu
- Signal-to-Nolse Ratlo, ref. +4 dBu 102 dB
Total Harmonic Distortion (THD)
- (1 kHz @ 35 dB galn)
- 20 I’ll-80 kHz bandwldth <0.005%
- 20 Hz-20 kHz bandwldth <0.003%
Attenuation I’ Crosstalk
- (1 kHz relatlve to 0 dBu. 20 l-lz-20 kHz bandwldlh, line In,1/4″ maln out, galn @ unity)
- Main mlx knob down -70 dBu
- Channel level knob down -94 dBu
Frequency Response
- Mlc Input to main output (gain @ unlty)
- +0, -1 dB, 20 Hz to 50 kHz
- +0. -3 dB. <10 Hz to >100 kHz
Equivalent Input Noise (ElN)
- (Mlc In to maln out. max galn)
- 150 Q termlnation -128.5 dBu
20 Hz—20 kHz
Common Mode Rejection Ratio (CMRR)
- 1 kHz better than —70 dB
Maximum Levels
- Mlc In +21 dBu
- Tape In +24 dBu
- All other inputs +22 dBu
- All outputs +22 dBu
Impedances
- Mlc In 2.55 k!)
- Instrument Input 1 M9
- All other Inputs 10 k9 or greater
- Tape out 1.0 k!)
- Phones out 60 (2
- All other outputs 120 Q
ED
- High Shelving :15 dB @ 12 kHz
- Low Shelving :15 dB @ 80 Hz

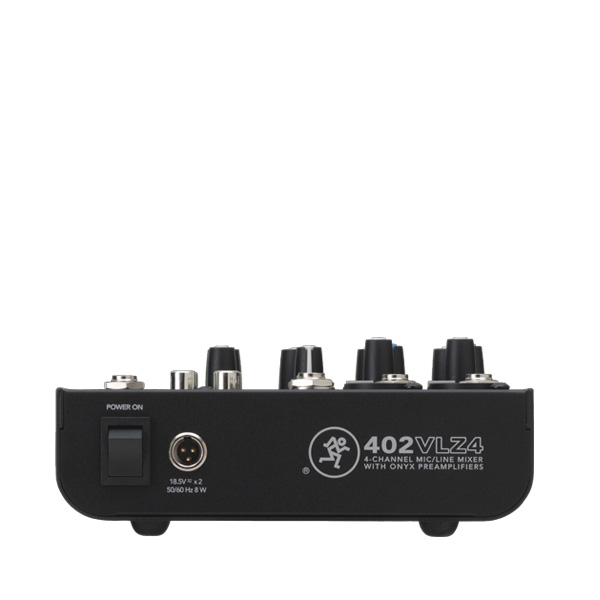

AC Power Requirements
- Power Consumptlon 8 watts
- US,JP 100-120 VAC.50-60 Hz
- EU, UK, AU, CN 200 – 240 VAC, 50 – 60 Hz
- External Power Supply AC Connector 2-pln IEC 250 VAC
- Operating Temperature 0′ – 40’C 32′ – 104’F
External Power Supply
- US Adapter (18.5 VAC x 2. 350 mA. US) PIN 0028090-00
- EU Adapter (18.5 VAC x 2, 350 mA, EU) PIN 0028090-01
- JP Adapter (18.5 VAC x 2. 350 mA. JP) PIN 0028090-02
- UK Adapter (18.5 VAC x 2. 350 mA, UK) P/N 0028090-03
- AU Adapter (18.5 VAC x 2. 350 mA. AU) PIN 0028090-04
- CN Adapter (18.5 VAC x 2, 350 mA. CN) PIN 0028090-05

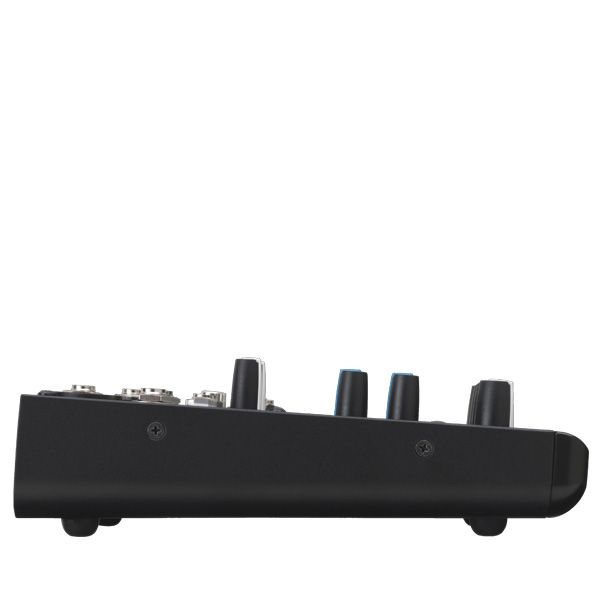

Physical Properties (product)
- Helght 7.3 In / 186 mm
- Depth 1 .6 In I 41 mm
- Wldth 5.8 In / 147 mm
- Weight (with power supply) 3.0 lb I 1.36 kg
- Weight (wlthout power supply) 25 lb l 1.1 kg
Physical Properties (packaged product)
- Height 4.1 In / 104 mm
- Depth 12.5 In / 318 mm
- Width 8.8 In I 222 mm
- Weight 3.8 lb / 1.7 kg
Options
- 402VLZ4 Mlxer Bag PIN 2036809-08
Ordering Information
- 402VLZ4 4-Channel Ultra-Compact Mlxer, US P/N 2040768-00
- 402VLZ4 4-Channel Ultra-Compact Mlxer, EU P/N 2040768-01
- 402VLZ4 4-Channel Ultra-Compact Mlxer. JP PIN 2040768-02
- 402VLZ4 4-Channel Ultra-Compact Mlxer, UK P/N 2040768-03
- 402VLZ4 4-Channel Ultra-Compact Mlxer, AU PIN 2040768-04
- 402VLZ4 4-Channel Ultra-Compact Mlxer. CN PIN 2040768-05
- 402VLZ4 4-Channel Ultra-Compact Mlxer, 82 PIN 2040768-06
