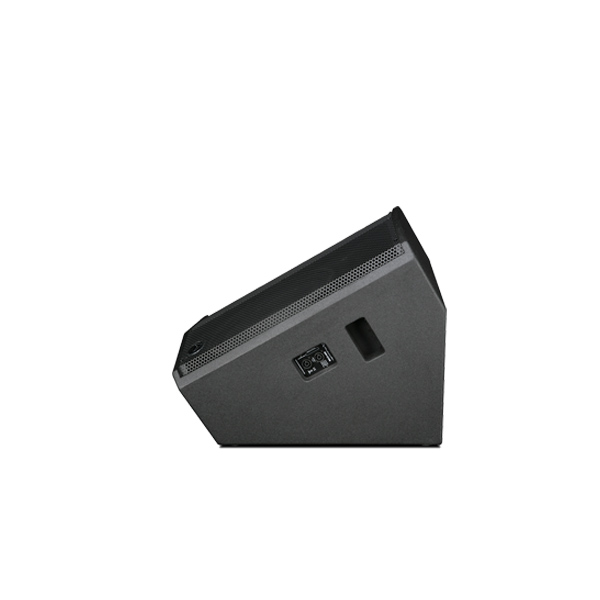

DVP X15M floor monitors use the latest in Wharfedale Pro driver technology: For the LF drivers, engineers have incorporated a curvilinear, double-roll surround for smooth mid-high transitions and stability for low through to mid range frequencies. Combined with 2.5” voice coils for improved thermal dissipation, you can expect consistent delivery at the highest of volumes throughout a performance.The 44mm Diaphragm IRIS X HF compression driver used on the X15M is equally robust in design – using a solid aluminum rear plate, the HF driver is strengthened for durability and heat is dissipated efficiently during prolonged time periods.Wharfedale Pro engineers have also selected a 90° x 60° elliptical waveguide optimised for wide coverage in multiple venues while touring

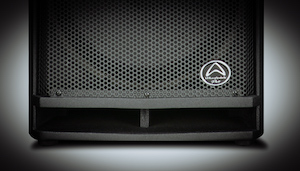

The cabinet of the DVP X15M has been developed to work in perfect harmony with the advanced drive units within. Special attention has been paid to the acoustic properties of the port and port mouth to ensure a huge bass output with detail and minimised distortion.The port mouth lies parallel to the ground, creating a reflective boundary effect to guarantee low-end delivery even in a smaller cabinet formation. This port has been tuned individually to maximise low-end punch.

The crossovers ensure perfect integration between the drive units and acoustic properties of the cabinet. Electronic components are carefully selected, while over-complex networks have been avoided to maintain a pure and strong audio signal.Engineers have fine tuned the crossover points for vocal intelligibility and tuned the high frequencies for long-throw to ensure clear coverage right to where you need it.

The coil size and electrical sensitivity of a loudspeaker transducer is critical to its performance.  DVP-X loudspeakers now include our proprietary IRIS X design which delivers Increased coil Radius and Increased electrical Sensitivity.  The radius of the coil ensures smooth heat dissipation during prolonged high volume use, while the increased electrical sensitivity ensures that the transducer converts as much electrical power into sound output as the laws of physics allow.

A hot transducer wastes energy, risks damage and distorts.  IRIS X reduces this through improved heat dissipation and improved efficiency.

In real-world terms, IRIS X transducers deliver higher SPL with less distortion.  They lead the market with specifications and are designed and built entirely within Wharfedale Pro.
