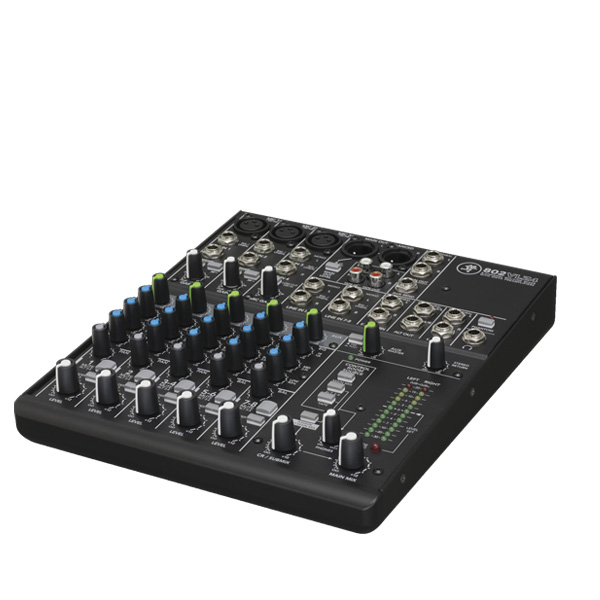

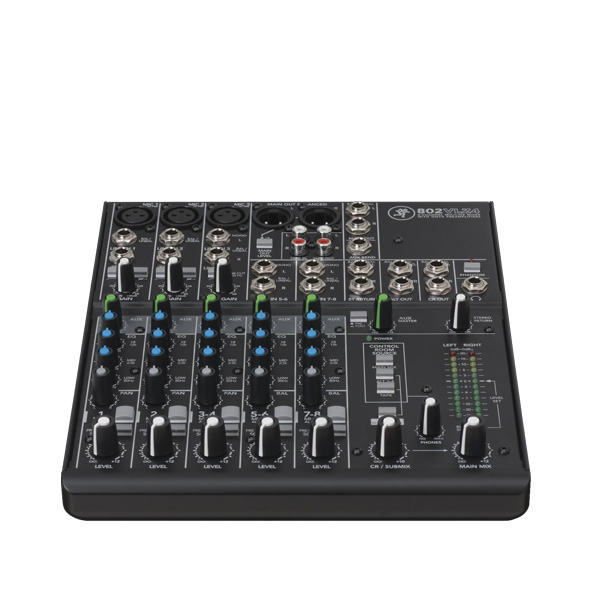

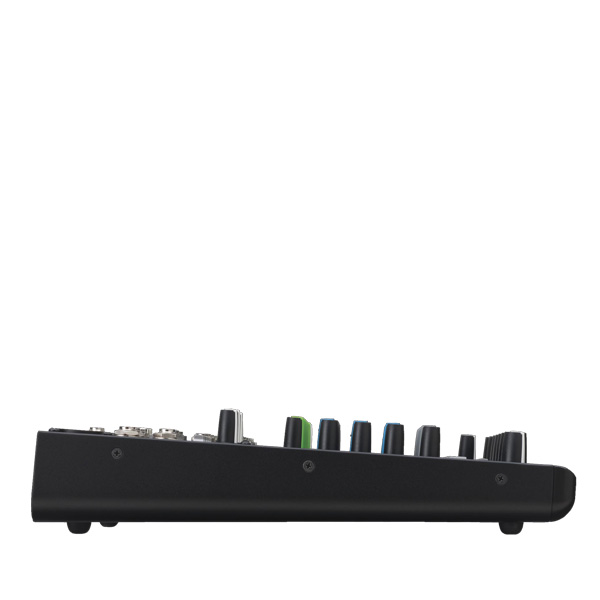

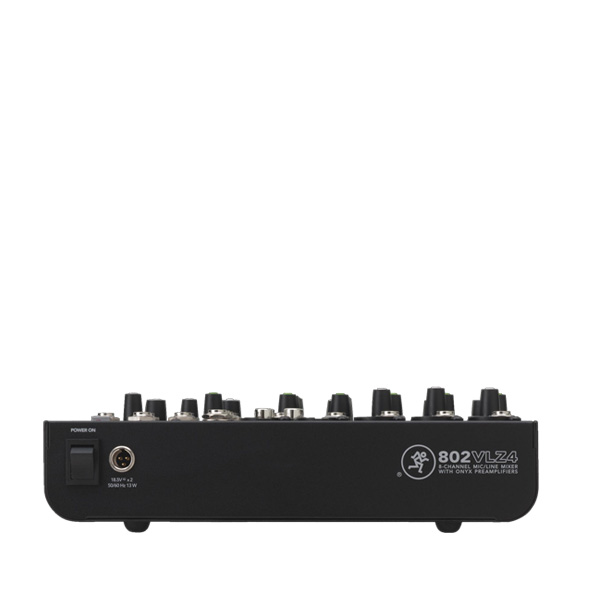

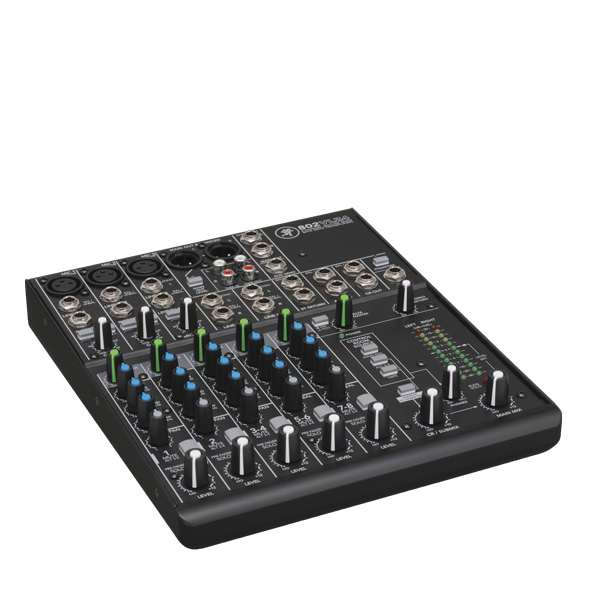

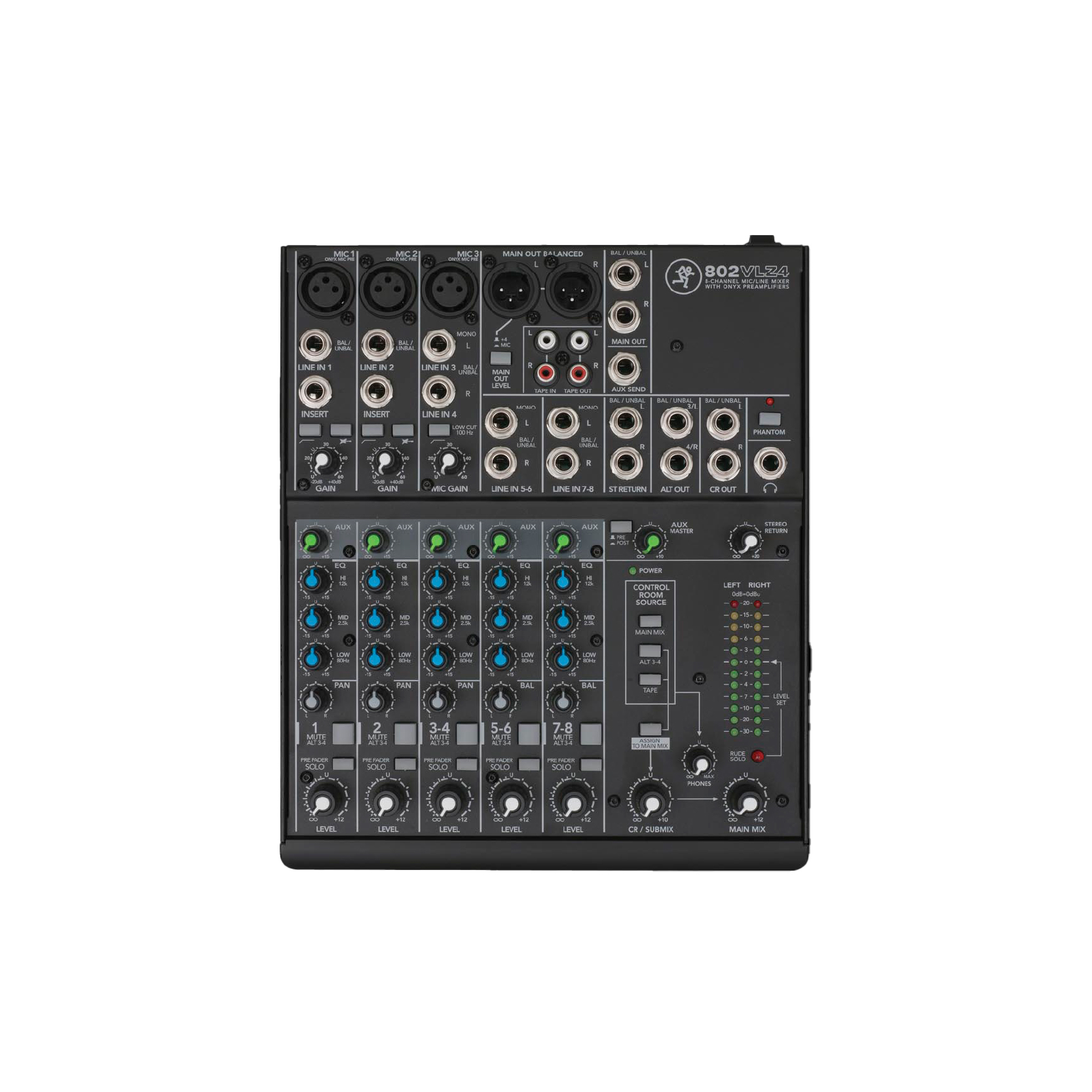

MACKIE 802VLZ4 เครื่องผสมสัญญาณเสียง อนาล็อก 8 ชาแนล MACKIE 802VLZ4 มิกเซอร์อนาล็อก จากแบรนด์ MACKIE
VLZ4 Series
Mackie relentlessly pursues the perfection of the compact mixer. VLZ4 ups the level of sonic quality at every level, featuring Mackie’s flagship Onyx mic preamps and premium components from front to back. The result is the most rock solid, the most easy to use and, yes, the best sounding compact mixer ever created.
คุณสมบัติ
ONYX PREAMPS
- ONYX PREAMPS
- Ultra-wide 60dB gain range
- 128.5 dB dynamic range
- +22 dBu line input handling
- Extended frequency response
- Distortion under 0-0007% (20Hz – 20kHz)
HIGH HEADROOM & LOW NOISE
Strict attention to component quality has led to innovations like our custom M80 op-amps and class-leading negative summing bus architecture
BUILT LIKE A TANK
- Sealed rotary controls resist dust and grime
- “Built-Like-A-Tank” rugged steel chassis with powder-coat finish
- High-visibility, high-contrast controls
COMPREHENSIVE & PROVEN
Mackie’s VLZ4 line is extremely comprehensive,offering mixers of every channel count, every price point, for every application. From the ultra-compact 402VLZ4 for desktop applications to the tour-fiiendly 3204VLZ4, you can be sure there is a VLZ4 mixer with the right feature set for your needs.
- 8ochannel mixer featuring our signature high-headroom, low-noise design
3 boutique~quality Onyx mic preamps
Ultra-wide 60 dB gain range
128.5 dB dynamic range
+22 dBu line input handling
Extended frequency response
Distortion under 0.0007% [20 Hz — 50 kHz]
- Improved RF rejection, perfect for broadcast applications
- Phantom power for condenser mics
- Eight high-headroom line inputs
- Selectable instrument inputs on first two channels – no DI box needed
- 3-band EQ (80 Hz, 2.5 kHz, 12 kHz)
- 18 dB/oct 100 Hz low-cut filter on mic input channels
- Aux send, level, pan and PFL solo on each channel
- Stereo return for connecting FX processor or other
- stereo source
- ALT 3/4 stereo bus for added routing flexibility
- Control room / phones source matrix
- High-resolution 12-segment stereo meters
- Sealed rotary controls resist dust and grime
- “Built-Like-A-Tank” rugged steel chassis with powder-coat finish
- High-visibility, high-contrast controls deliver convenient “at-a-glance” visual feedback
สเปค
Main Mix Noise
- (20 Hz-20 kHz bandwidth, channels 1-3 gain @ unity, channel EQs flat, all channels assigned to main mix, channel 1 panned left, 2
- panned right, 3-8 centered.)
- Main mix knob down, channel level knobs down:XLB: ~95 dBuTBS: -101 dBu
- Main mix knob @ unity, channel level knobs down:XLB: -90 dBuTBS: -96 dBu
- Main mix knob @ unity, channel level knobs @ unity:XLB: -84 dBuTBS: -9D dBu
Total Harmonic Distortion (THD)
- (1 kHz @ 30 dB gain, 20 Hz-20 kHz bandwidth) Mic pre @ insert <0.001 %
Attenuation I’ Crosstalk
- (1 kHz relative to O dBu, 20 Hz-20 kHz bandwidth, line in,1/4“ main out, gain @ unity)
- Main mlx knob down -75 dBu
- Channel Alt l Mute switch engaged -100 dBu
- Channel level knob down -100 dBu
Frequency Response
- Mic input to main output (gain @ unity)
+0, -1 dB, 20 Hz to 50 kHz
+0, -3 dB, <10 Hz to >100 kHz
Equivalent Input Noise (ElN)
- (Mic input to insert send out, max gain)
150 Q termination -128.5 dBu
20 Hz-20 kHz
Common Mode Rejection Ratio (CMRR)
Maximum Levels
- Mic in +21 dBu
- Tape in +22 dBu
- All other inputs +22 dBu
- Main mix XLB out +28 dBu
- All other outputs +22 dBu
Impedances
- Mic in 2.55 kg
- Channel insert return 5 kfl
- All other inputs 17 onr greater
- Tape out 1.0 k9
- Phones out 60 Q
- All other outputs 1 20 Q
ED
- High Shelving :15 dB @ 12 kHz
- Mid Peaking :15 dB @ 2.5 kHz
- Low Shelving :15 dB 6′ 80 Hz
AC Power Requirements
- Power Consumption 13 watts
- US, JP 100-120 VAC,50-60 Hz
- EU. UK, AU. CN 200 – 240 VAC. 50 – 60 Hz
- External Power Supply AC Connector 2-pin IEC 250 VAC
- Operating Temperature 0′ – 40’C 32′ – 104’F
External Power Supply
- US Adapter (18.5 VAC x 2. 350 mA, US) P/N 0028090-00
- EU Adapter (18.5 VAC x 2, 350 mA, EU) P/N 0028090-01
- JP Adapter (18.5 VAC x 2, 350 mA. JP) P/N 0028090-02
- UK Adapter (185 VAC x 2, 350 mA, UK) P/N 0028090-03
- AU Adapter (18.5 VAC x 2, 350 mA, AU) P/N 0028090-04
- CN Adapter (18.5 VAC x 2, 350 mA, CN) P/N 0028090-05
Physical Properties (product)
- Height 10.7 in / 273 mm
- Depth 1.8 in / 47 mm
- Width 8.9 in / 227 mm
- Weight (with power supply) 5.5 lb I 2.5 kg
- Weight (without power supply) 4.5 lb / 2.0 kg
Physical Properties (packaged product)
- Height 4.3 in / 109 mm
- Depth 15.8 in / 401 mm
- Width 12.1 in / 307 mm
- Weight 6.8 lb / 3.1 kg
Options
- 802VLZ4 Mixer Bag P/N 2036809-09
Ordering Information
- 802VLZ4 B-Channel Ultra-Compact Mixer, US P/N 2040767-00
- 802VLZ4 B-Channel Ultra-Compact Mixer, EU P/N 2040767-01
- 802VLZ4 B-Channel Ultra-Compact Mixer, JP P/N 2040767-02
- 802VLZ4 B-Channel Ultra-Compact Mixer, UK P/N 2040767-03
- 80211124 B-Channel Ultra-Compact Mixer. AU P/N 2040767-04
- 802VLZ4 8-Channel Ultra-Compact Mixer, CN P/N 2040767-05
- 802VLZ4 8-Channel Ultra-Compact Mixer, 82 P/N 2040767-06
