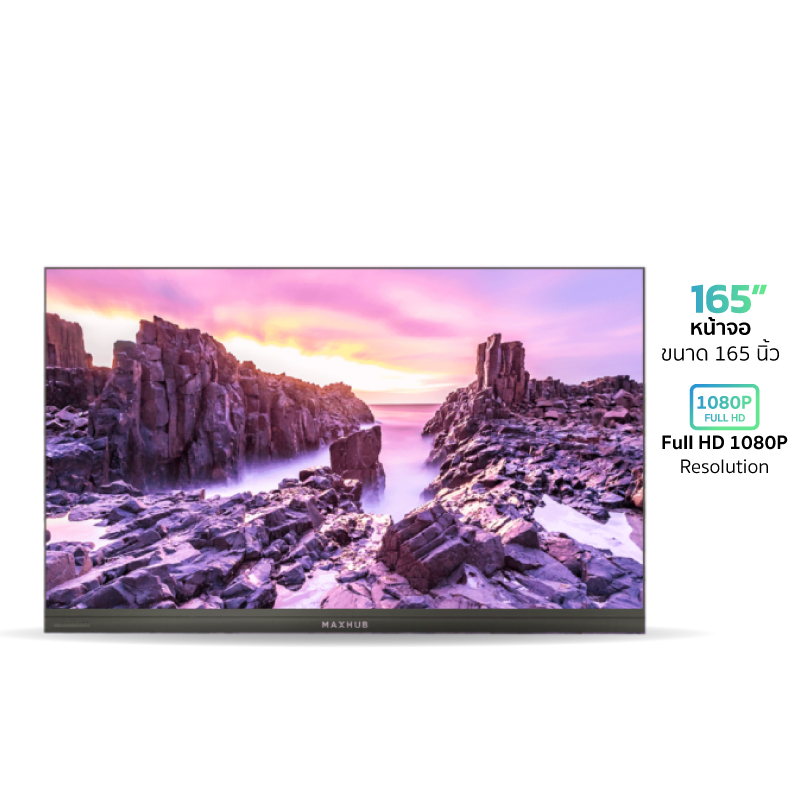

จอ LED 165 นิ้ว MAXHUB LM165M07 ความละเอียด 1920 x 1080 เหมาะสำหรับห้องประชุมภายใน ห้องบรรยายและฉากขนาดใหญ่ Built-in Android จากแบรน์ MAXHUB
MAXHUB LM165M07
Born For Large Scenes Presentation
MAXHUB Integrated LED Wall
MAXHUB Integrated LED Wall is the latest evolution of our founding design. It comes in from 110 to 220 inches that fits perfectly with meeting rooms, lecture halls and other large scenes. The outstanding interaction design and mirroring technology of MAXHUB make your presentations become smarter.
All-in-One Function in Ultra-light, Ultra-thin Design
3-in-1 Board
Integrates a power supply, a receiving card and a hub board, with no external devices
Built-in Android
Supports smart features e.g. playing multimedia visual aids
30% Lighter
Down to 4.8kg per cabinet, around 30% lighter than average weight* in the industry
28.5mm
The thickness is reduced down to 28.5mm
A seamless, spectacular, sparkling display that provides immersive experience
MAXHUB Integrated LED Wall delivers optimized gray scale display performance, even in low brightness, providing the audience with an immersive feast for eyes.
1080P
Full HD Resolution
High Gray scale
in Low Brightness
Delivering Simplicity and Efficiency
Plug & play system, only one button to turn on/off.
Wireless, multi-device interaction increases engagement
Real-time screen-share from up to 4 devices including PCs, Macs, i(Pad)OS devices and Android devices. Annotate from multiple devices with synchronized writing. Everyone could easily start sharing their ideas.
4 Devices Wireless
Connection
Annotate with Synchronized
Writing
Comes with A Smart Control to Access Settings
Brightness
Color Temperature
Contrast Ratio
Input Signal
Aspect Ratio
Supports Full-front Service and Easy Maintenance
Hot Swapping Repair
Supports replacing modules while working.
One-stop Service
Unified hardware & software technical support
Streamlined Maintenance
Integrated 3-in-1 hub board replacement solves problems quickly
Total Solution for Various Scenarios
Enjoy an elevated confidence with MAXHUB Smart Lectern in an auditorium. Or with MAXHUB interactive flat panel, start a teleconference right away in a meeting room
Lecture Hall
Meeting room
Showroom
Auditorium
สเปค
| Specification | ||||||
|---|---|---|---|---|---|---|
| Model | LM110M07 | LM110M03 | LM138M07 | LM138M06 | LM165M07 | LM220M07 |
| Size | 110″ | 110″ | 138″ | 138″ | 165″ | 220″ |
| Brigtness (nit) | 100-550 | 100-550 | 100-550 | 100-550 | 100-600 | 100-600 |
| Refresh Rate | 1920-3840 | 1920-3840 | 1920-3840 | 1920-3840 | 1920-3840 | 1920-3840 |
| Resolution | 1920 x 1080 | 1920 x 720 | 1920 x 1080 | 1600 X 900 | 1920 x 1080 | 1920 x 1080 |
| Power Consumption(MAX/Ave)(W/display) | 2080/800 | 1280/500 | 3000/1200 | 2000/800 | 2880/1150 | 5120/2000 |
| Viewing Angle(H/V) | 160˚/140˚ | 160˚/140˚ | 160˚/140˚ | 160˚/140˚ | 160˚/140˚ | 160˚/140˚ |
| Overall Dimension(mm) | 2453 x 1502 x 31 | 2453 x 1502 x 31 | 3063 X 1845 X 31 | 3063 X 1845 X 31 | 3673 X 2188 X 31 | 4893 X 2874 X 31 |
| Overall Dimension(Inches) | 96.57″ x 59.13″ x 1.22″ | 96.57″ x 59.13″ x 1.22″ | 120.59″ x 72.64″ x 1.22″ | 120.59″ x 72.64″ x 1.22″ | 144.61″ x 86.14″ x 1.22″ | 192.63″ x 113.15″ x 1.22″ |
| Weight(kg) | 95 | 95 | 140 | 140 | 190 | 330 |
| Weight(lb) | 209.44 | 209.44 | 308.65 | 308.65 | 418.88 | 727.53 |
