ตู้ลำโพง PRESONUS ULT10 10 นิ้ว 2 ทาง 1,300 วัตต์ มีแอมป์ในตัว คลาส D Active Sound-Reinforcement Loudspeakers จากยี่ห้อ PRESONUS
PRESONUS ULT10 Ultra Long Throw.

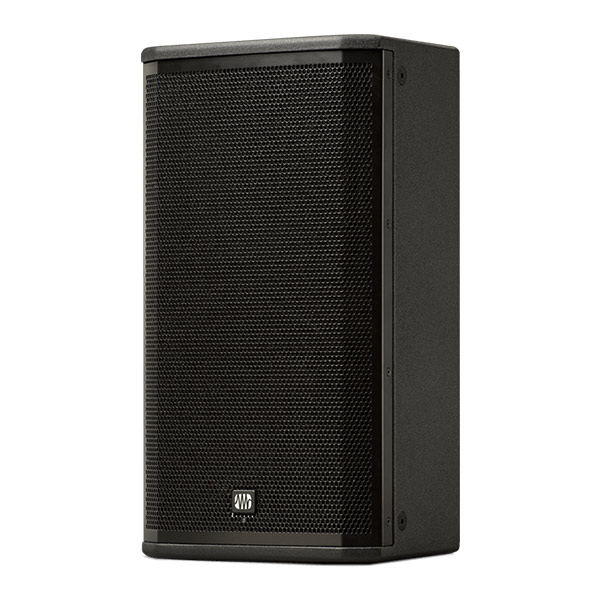

PreSonus® ULT10 active loudspeakers combine the widest horizontal dispersion of any loudspeaker in their class with a focused vertical dispersion for an ultra-long throw. The result is even coverage throughout the space, enabling the audience to hear clearly wherever they are. Featuring PreSonus’ proprietary Pivot X110 horn, a custom 10-inch low-frequency driver, and plenty of biamped Class D power in a lightweight design with the performance characteristics that only wood can offer, ULT10 loudspeakers deliver first-rate speech intelligibility and natural music reproduction. This makes them a great choice for both mobile use and permanent installations.
Mounts horizontally or vertically for a variety of applications.
The Pivot X110 horn can be rotated 90˚, so the ULT10 can be mounted in a horizontal configuration while still maintaining its 110˚ x 50˚ coverage pattern. Along with its compact size, this makes the ULT10 an ideal center-channel speaker for an LCR system or an under-balcony fill. Rotating the Pivot X110 horn can also help fix FOH issues in tall, narrow venues by minimizing early reflections and providing more directed coverage. Add the ULT10’s multi-angle enclosure and presets for live performance, floor monitor use, and music playback, and you have an extremely versatile loudspeaker that is equally at home at front-of-house and as a stage monitor.
Plenty of power and I/O.

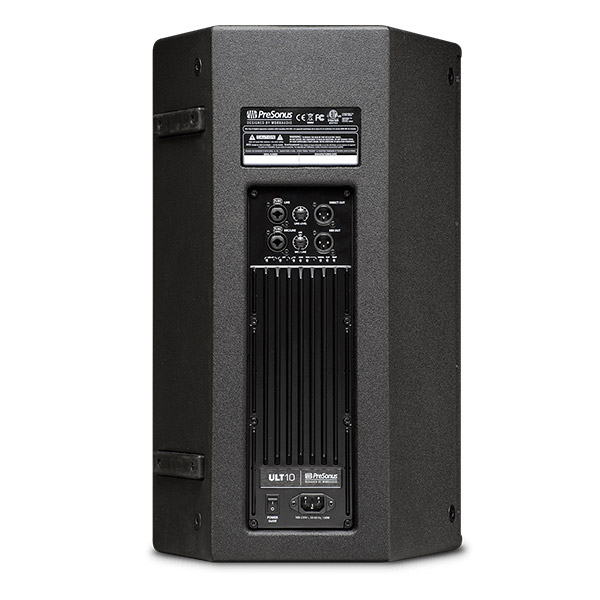

The ULT10 is supplied with more than enough power and I/O to handle a wide variety of applications and environments. Its 10-inch woofer is driven by a 500W (continuous), Class D power amp, while the 1.75-inch Pivot X110 horn receives 150W. (Peak power is rated at 1,000W and 300W, respectively.) You get two combo XLR and ¼” TRS inputs: a mic/line input with PreSonus’ acclaimed XMAX™ mic preamp and a line-level-only input. The inputs have independent level control, allowing up to two audio sources to be mixed internally and summed to a balanced XLR output for “daisy-chaining” multiple units. A separate direct output for the line input channel provides additional flexibility.
Designed by WorxAudio.
ULT10 loudspeakers were designed by WorxAudio®, the commercial loudspeaker division of PreSonus. Headquartered in Greensboro, North Carolina, WorxAudio has been at the forefront of loudspeaker development for the pro touring and contractor markets for over 30 years. WorxAudio continues to embrace the latest technology, delivering innovative products and installation designs for professional clients, and their products can be found in prestigious facilities worldwide. So you can rely on ULT10 loudspeakers to deliver the top-quality professional performance and features that touring engineers and systems integrators need.
Now Hear This.
With extra-wide horizontal and focused vertical dispersion, a rotatable horn, ultra-long throw, a wood enclosure, and ample Class D power, the ULT10 is an excellent solution for permanent installations. Yet it’s also portable, making it a top choice for tours and other mobile use. Best of all, it sounds great, delivering outstanding speech intelligibility and natural music reproduction, with even coverage throughout the space. Hear ULT10-series loudspeakers for yourself at your favorite PreSonus dealer.

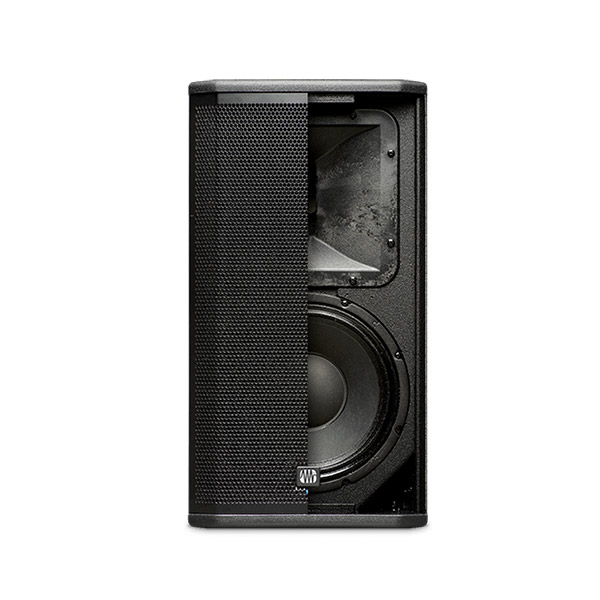

- 10-inch custom woofer with 2.5-inch voice coil
- WorxAudio®-designed waveguide Pivot X110 horn for precise coverage
- Ultra-wide 110˚ horizontal dispersion
- Tight 50˚ vertical dispersion for longer throw
- 1,300W Class D power (150x500W continuous)
- XMAX preamp
- Onboard mixer with two combo XLR and ¼” inputs
- Direct line-input channel output
- Single summed balanced output
- Mic/Line Level
- 3 operation mode presets
- FOH – normal live front of house
- DJ – Music playback
- Mon – stage wedge floor monitor
- HPF On/Off
- Front LED On/Off

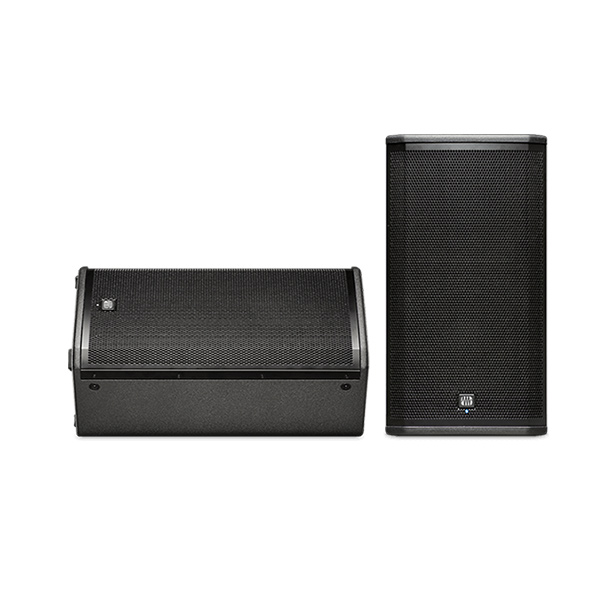

- Multi-angle enclosure for mains or monitor wedge application
- Defeatable front-panel LED
- Rugged, texture-painted eucalyptus plywood enclosures
- Tour-grade 16 gauge steel grille
- Comfortable ergonomic handles
- 35 mm pole sockets with 6˚ downward tilt
- Integrated M10 rigging points for suspended horizontal and vertical installation
- Locking IEC connection
|Frequency Response (-3 dB)||60 Hz – 18 kHz|
|Frequency Response (-10 dB)||55 Hz – 20 kHz|
|Nominal Coverage (-6 dB)||110° x 50°|
|Maximum Peak SPL||130 dB|
|Crossover Frequency||1.6 kHz|
|LF Transducer||1×10″ Ferrite|
|Voice Coil Diameter||2.5”|
|HF Transducer||1.75″ compression drive|
|Total Power Output||1,300W Peak (650 RMS)|
|LF Power||1,000W Peak (500W RMS)|
|HF Power||300W Peak (150W RMS)|
|Cooling||Free air convection|
|Rated THD||<0.05% (20 Hz – 20 kHz)|
|Dynamic Range||119 dB (A-weighted)|
|Bandwidth||20 Hz – 20 kHz|
Connections and Controls
|Input Channels||1 mic/line, 1 line|
|Input Connector Types||2 combo|
|Mic Input Impedance||1 kΩ|
|Line Input Impedance||10 kΩ|
|Maximum Input||+22 dBu|
|Output Connector||2 XLR (M): Mix out, Direct out|
Front LED On/Off
|Indicators||DSP Preset, HPF On/Off, Front LED On/Off, Signal, Clip, Thermal|
|Presets||FOH, MON, DJ|
|HPF||100 Hz, 4th-order Linkwitz-Riley|
|Sample Rate||96 kHz|
|Dimensions (HxDxW)||22” x 13.2” x 11.9” (559 mm x 335 mm x 302 mm)|
|Unit Weight||44 lbs. (19.96 kg)|
|Handles||2 (Top and Side)|
|Amplifier Protection||Over-current, DC, over/under-voltage, over-temperature, high frequency|
|AC Power Input||100-230V~, 50-60 Hz|
|AC Power Consumption (1/8 Power)||150W|
|Rigging Points||12 M10|
|Mounting||35 mm, 2-position|
