Network Video Endpoint QSC NV-32-H (Core Capable) สำหรับ Q-SYS Ecosystem ช่วยให้คุณมีตัวเลือกอื่นในการเพิ่มการประมวลผล Q-SYS ไปยังห้องประชุม จากแบรนด์ QSC

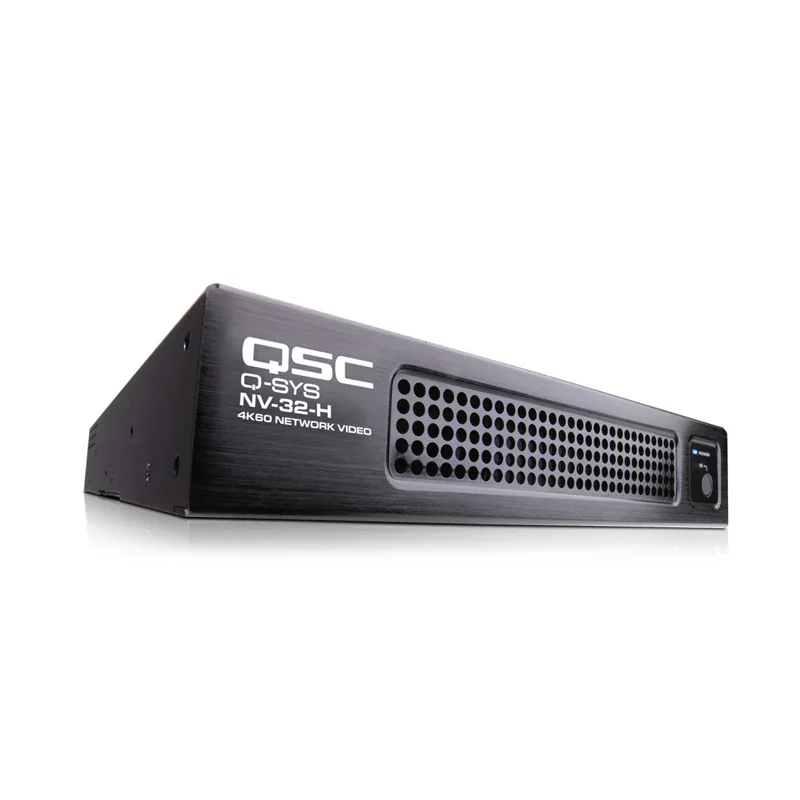

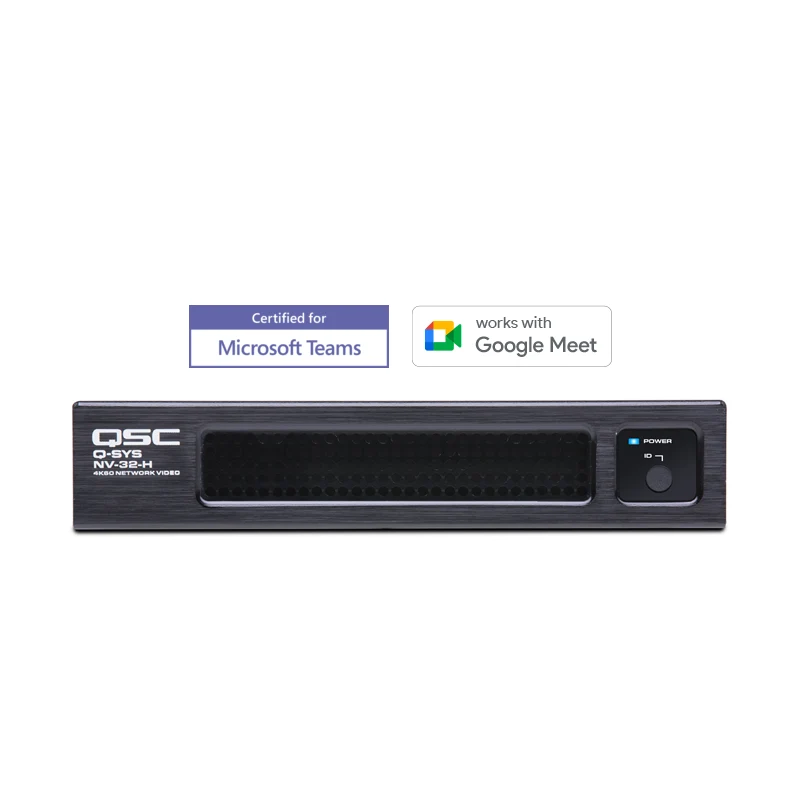

QSC Q-SYS NV-32-H (Core Capable)
Network Video Endpoint for the Q-SYS Ecosystem
The NV-32-H (Core Capable) is a multipurpose, software-configurable video endpoint native to the Q-SYS Ecosystem, offering two distinct operating modes to choose between, based on the needs of the application. ‘Core Mode’ transforms the device into a fully integrated Q-SYS processor with local HDMI switching capabilities. ‘Peripheral Mode’ allows multi-stream video encoding or decoding for network-based HDMI video distribution. Like all Q-SYS devices, the NV-32-H (Core Capable) offers native integration and control, simplifying setup and configuration while eliminating the need for advanced programming knowledge. With its Q-SYS Platform integration, you’re able to receive cryptographically-signed firmware updates, ensuring secure updates in functionality and security to your entire system.
คุณสมบัติ

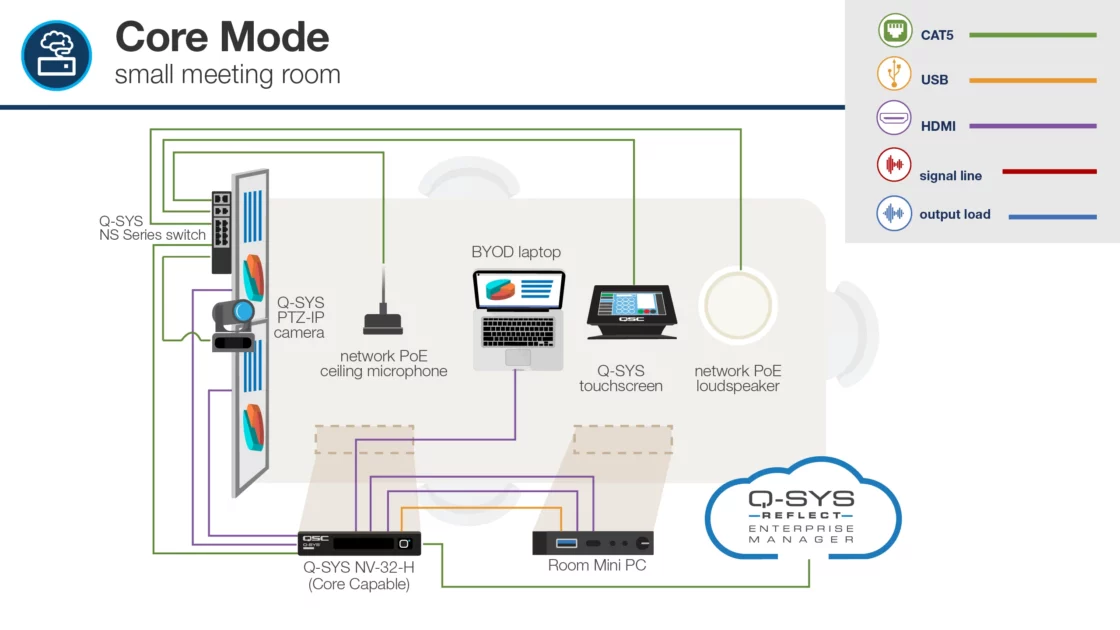

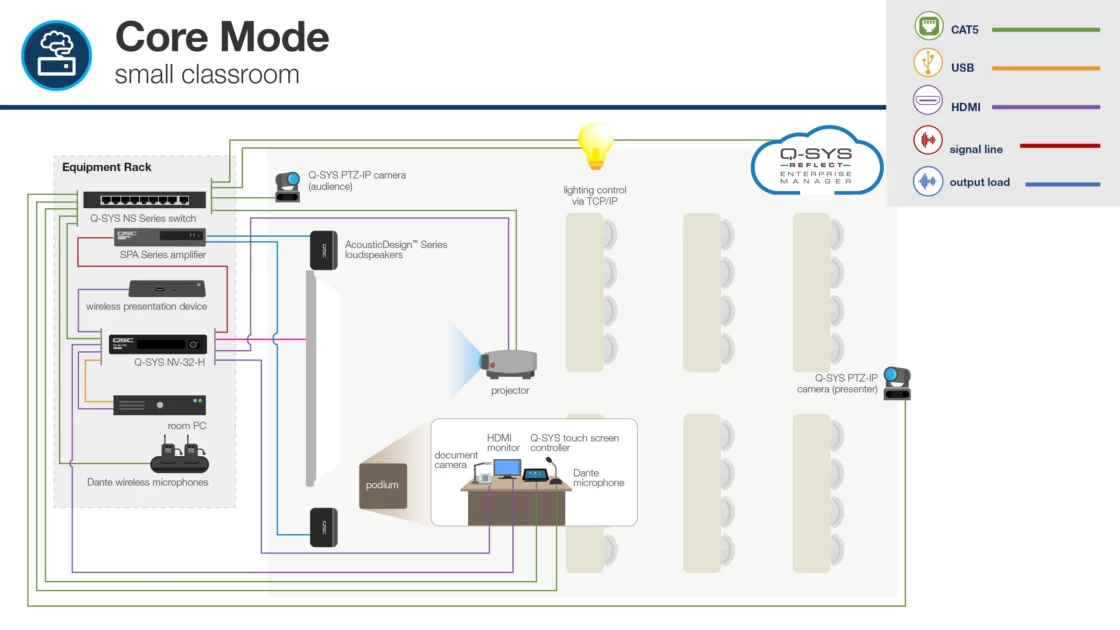

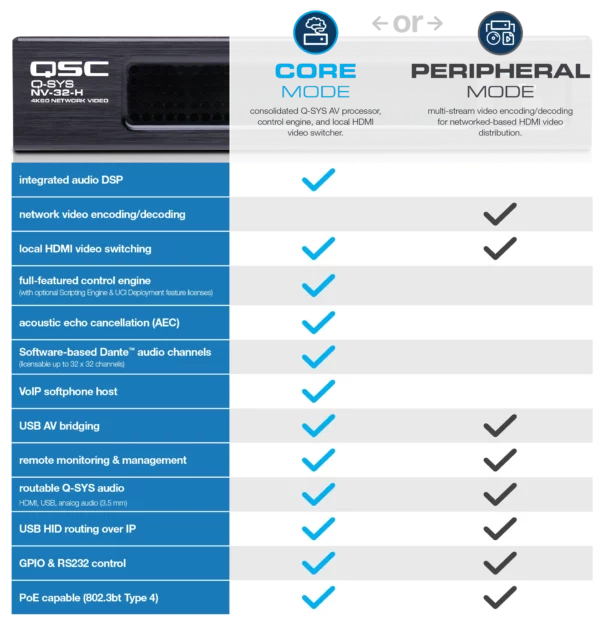

Core Mode
True Q-SYS processing and I/O capabilities
Full-featured audio processing engine for the Q-SYS Ecosystem featuring 32 x 32 network audio channels, eight channels of software-based AEC, along with onboard audio I/O via HDMI, USB and 3.5 mm. Optional software feature licenses allow for even greater, customizable functionality (full-featured control engine, UCI engine, Dante audio channels, remote monitoring and more).

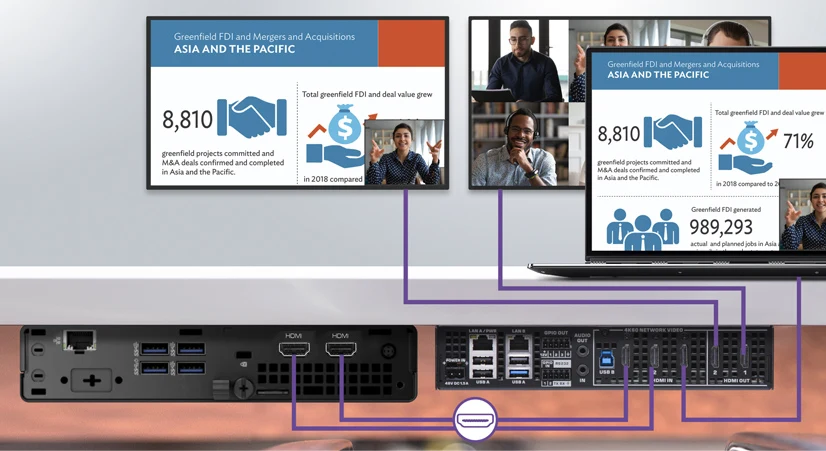

Integrated video switching
Core Mode enables an on-board 3 x 2 HDMI video switcher, allowing in-room users to easily share presentation or video content from their laptops or other in-room HDMI sources.

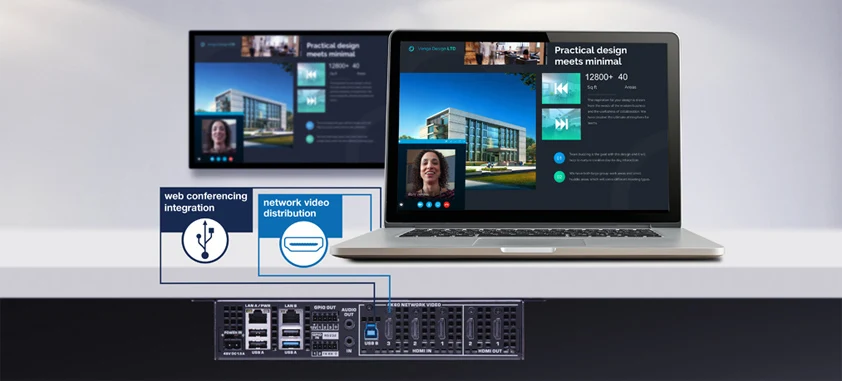

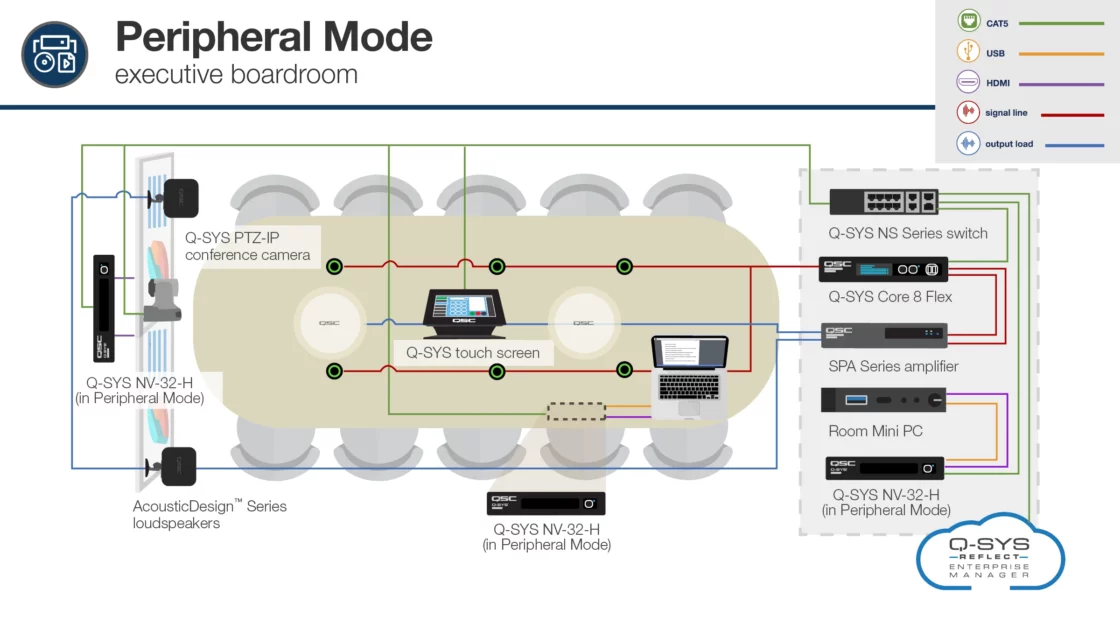

Peripheral Mode
Streamlined video streaming integration for the Q-SYS Ecosystem:
Enables native HDMI and audio distribution without additional control processors, bridges or complicated programming.
Optimized for the connected meeting space:
Q-SYS Shift™ video compression codec dynamically adjusts network bandwidth consumption based on video content, delivers the right balance of quality, latency, network efficiency and scalability for meeting room video applications.
BYOD-capable web conferencing & VoIP:
Integrate Q-SYS video cameras and audio via USB into all major UC&C conferencing applications, such as Microsoft Teams or Zoom.
สเปค
| Channel Capacity (Core Mode only) | |||
| Q-LAN / AES67 | 32 x 32 | ||
| Dante Channels | licensable up to 32 x 32 (none included) | ||
| AEC processors | 8 | ||
| VoIP instances | 1 | ||
| Audio recording / playback | 4 ch recording / 16 ch playback | ||
| Encoding/Decoding (Peripheral Mode only) | |||
| Video compression | Q-SYS Shift™ compression codec | ||
| Bitrates | 10 Mbps – 800 Mbps | ||
| Content protection | HDCP 2.2 compliant, AES-128 encryption for all audio and video signals between encoders and decoders | ||
| Audio I/O | |||
| HDMI inputs | 8-channel PCM audio, Q-SYS routable | ||
| HDMI outputs | 8-channel PCM audio, Q-SYS routable | ||
| Analog input | 3.5 mm unbalanced stereo mic/line input Q-SYS routable |
||
| Analog output | 3.5 mm unbalanced stereo line output Q-SYS routable |
||
| Video I/O | |||
| HDMI 2.0 inputs | 3x HDMI capable of receiving source input video formats up to 4K60 4:4:4 | ||
| HDMI 2.0 outputs | 2x HDMI capable of scaling and outputting video formats up to 4K60 4:4:4 | ||
| Scaler | Each HDMI output features a robust 4K60 4:4:4 scaler that can accommodate the most challenging resolution and frame rate conversions | ||

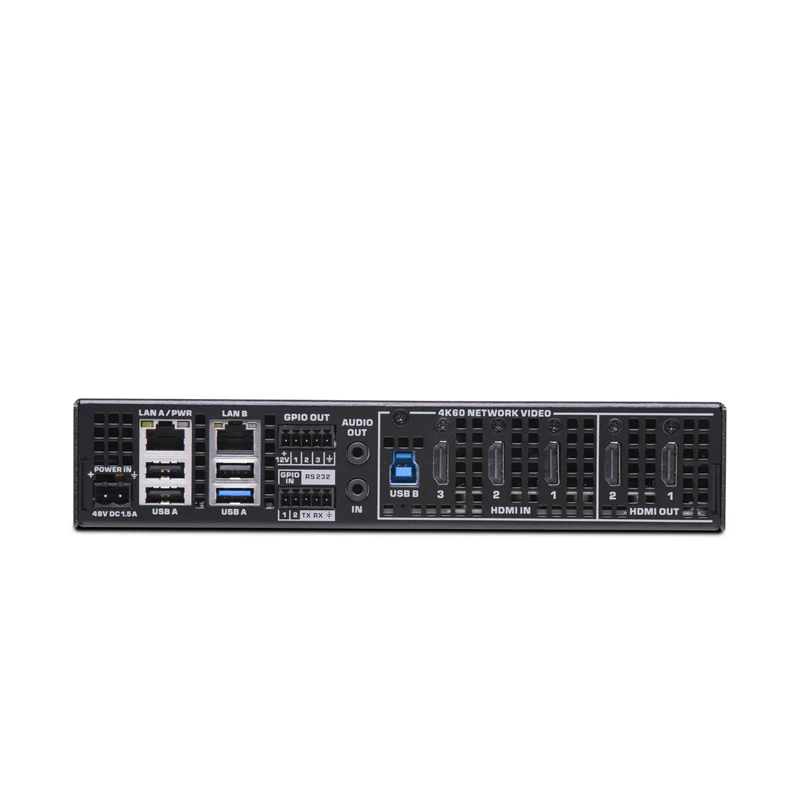

| Connectors | |||
| RS-232 | Three-pin Euroblock terminal connector for extension of Q-SYS control to third-party devices, user configurable | ||
| GPIO | Euroblock terminal connector for extension of Q-SYS control to third-party devices, user configurable | ||
| LAN A | Gigabit LAN connection for interfacing with Q-LAN. PoE 802.3bt Type 4 for power. | ||
| LAN B | Redundant connection for audio & control traffic (Core Mode only) | ||
| Audio input | Signal to Noise: 90 dBFS | ||
| THD+N: 0.009% @ 0 dB | |||
| Audio output | Signal to Noise: 90 dBFS | ||
| THD+N: 0.0167% @ 0 dB | |||
| Power | |||
| Power over Ethernet specification/wattage | Conforms to IEEE 802.3bt Type 4 | ||
| Physical power supply info | 48 V DC Nominal, 1.5 A on 2-pin Euro connector | ||
| Environmental | |||
| Ambient operating temperature range | 0-50° C | ||
| Humidity | 5 to 85% non-condensing | ||
| Storage temperature | -20 to 70° C | ||
| General | |||
| Dimensions | 8.66 in x 11.28 in x 1.72 in | ||
| 220 mm x 286.6 mm x 43.6 mm | |||
| Weight | Weight: 4.0 lb (1.81 kg) | ||
| Regulatory compliance | CE, FCC Part 15 Class B, RoHS | ||
| Mounting options | Rack-mountable, 1RU half-rack width | ||
| Surface-mountable, table or wall-mount | |||
| All mounting hardware is included | |||
