QSC PTZ-20×60 กล้อง Video Conference สำหรับห้องประชุมแบบ FULL HD 1080P ,optical zoom 20x PTZ-12×72 HD 1080P จากแบรนด์ QSC

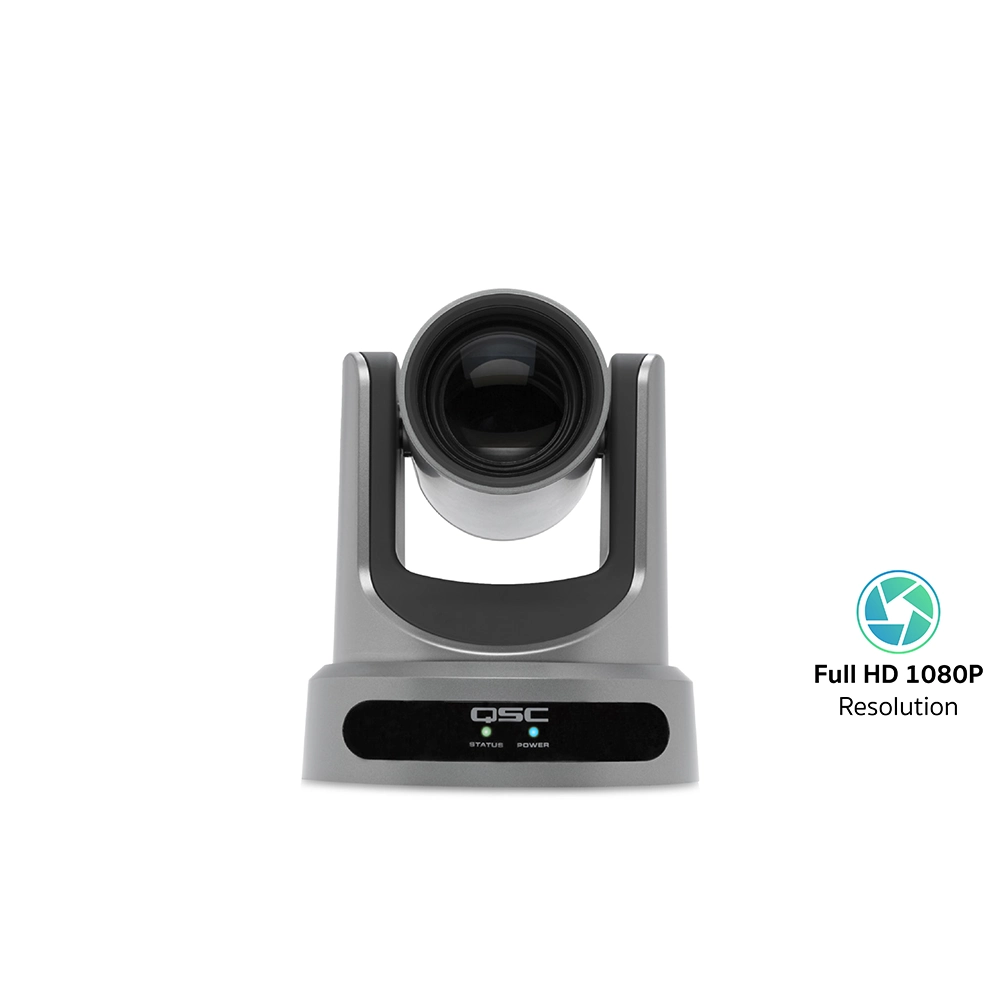

QSC PTZ-20×60 Conference Cameras For Q-SYS Platform
The PTZ 12×72 / PTZ 20×60 conference cameras integrate with the Q-SYS™ Platform and Q-SYS bridging peripherals like the Q-SYS I/O-USB Bridge or directly to the Q-SYS Core 110f processor to deliver professional quality conference video feeds alongside industry leading audio processing for small- and medium-sized rooms utilizing soft-codec conferencing or computer-based capture.
- Conference video for the Q-SYS AV-to-USB Bridging Solution
- Distribute video via the Q-LAN™ network anywhere it is needed
- Resolutions up to 1080p/60
- Image rotation controls to allow for inverted mounting
- Motorized Pan, Tilt and Zoom (PTZ) provides complete room coverage and privacy
- Auto Exposure, Auto Focus and Auto White Balance modes
- Native custom camera interfaces through Q-SYS Designer Software
- Includes wall mount for simple installation
Detail |
PTZ 20×60 |
Image Sensor |
1/2.7″, Low Noise CMOS Image Sensor |
Lens characteristics (wide to tele) |
20x optical zoom, f=4.42mm to 88.5mm, F1.8 to F2.8; Horizontal Field of View: 60.7° to 3.36°, Vertical Field of View: 34.1° to 1.89° |
Minimal Illumination |
0.05 lux at F1.8 (AGC On) |
Noise Reduction |
2D and 3D |
S/N Ratio |
≥ 55dB |
Pan / Tilt Angle and Speed |
Pan: ±170° rotation, speed: 1.7° to 100°/sec, |
Ceiling Mountable |
Image rotation for ceiling mounting, ceiling mount bracket accessory available |
HD Video Outputs |
HDMI and 3G-SDI |
Ethernet |
100BaseTX / 1000BaseT |
Video Resolutions |
|
HDMI / SDI: |
1080p, 60/50/30/25, 1080i, 60/50, 720p, 60/50/30/25 |
Network (30fps, 16:9): |
1080p, 720p, 576p 360p, 270p, 180p |
Input Voltage |
DC 12V or PoE (802.3af) |
Current Consumption |
12v DC @ 1.0A (max) |
Operating Temperature |
-10°C – 40°C (14°F – 104°F), Indoor use only |
Storage Temperature |
-40°C – 60°C (-40°F – 140°F) |
Power Consumption |
12W (max) |
Dimensions |
6.7 in x 5.6 in x 6.5 in |
Thread size |
1/4″x20 thread |
Weight |
3.0 lbs (1.35 kg) |
