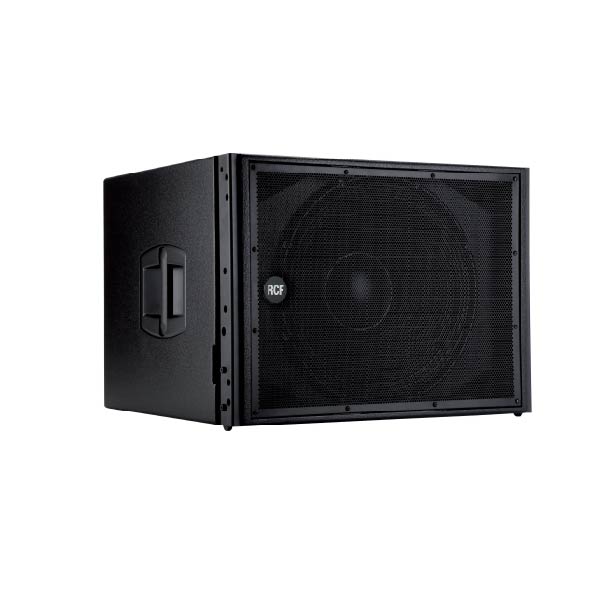

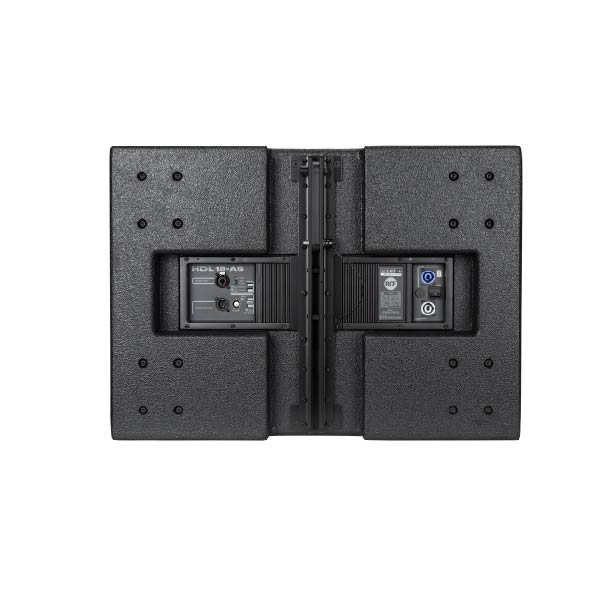

ตู้ลำโพงซับวูฟเฟอร์ลายน์อาเรย์ RCF HDL 18-AS 18 นิ้ว 2,000 วัตต์ มีแอมป์ในตัว RCF HDL 18-AS ACTIVE FLYABLE HIGH POWER SUBWOOFER จากแบรนด์ RCF
RCF HDL 18-AS ACTIVE FLYABLE HIGH POWER SUBWOOFER
คุณสมบัติ
- 2000 Watt Peak power – 1000 Watt RMS
- 135 dB max SPL
- 30 Hz – 140 Hz frequency response
- 1 x 18″ Woofer
- DSP controlled Input section with selectable presets
- Tour grade safe and solid variable mechanics, compatible with HDL 20-A
- Designed to compliment the HDL 20-A speaker system
- Baltic birch tour grade cabinet
The HDL18-AS is a compact, flyable high power subwoofer, designed to integrate seemlessly into a HDL 20-A flown array. The bass reflex design guarantees a deep, linear power response while the 4” voice coil vented design woofer offers the minimum of power compression. The system provides integrated mechanics compatible with the HDL 20-A array module.
สเปค
Acoustical specifications
- FREQUENCY RESPONSE : 30 Hz ÷ 140 Hz
-
MAX SPL @ 1M : 135 dB
Transducers

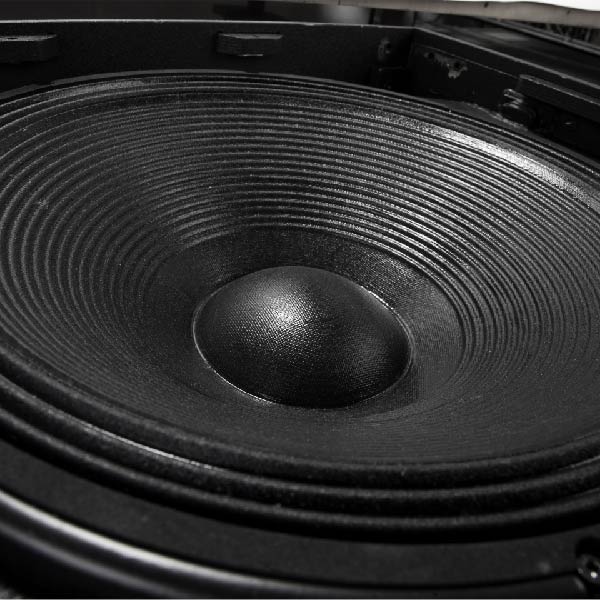

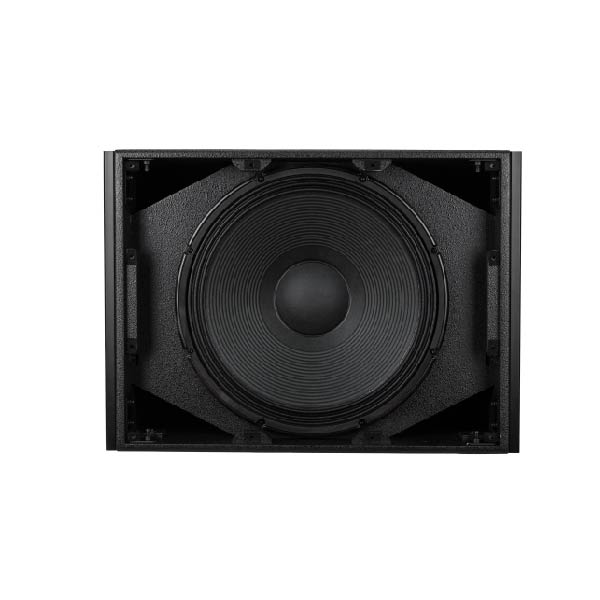

- WOOFER : 18”, 4.0” v.c

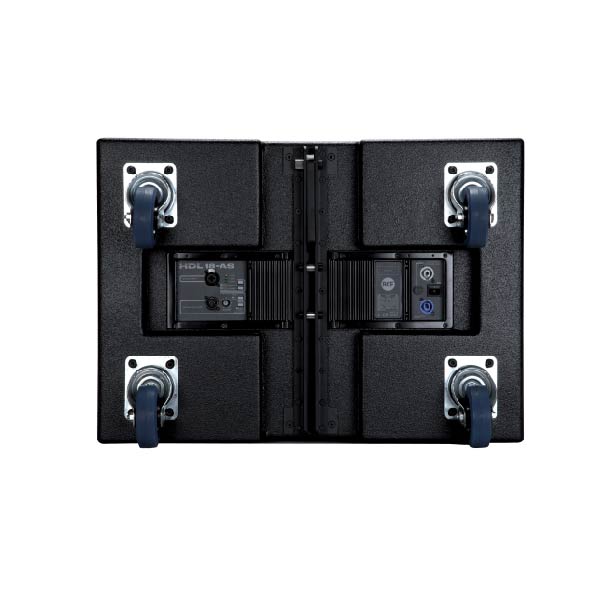

Input/Output section
- INPUT SIGNAL : bal/unbal
- INPUT CONNECTORS : XLR
- OUTPUT CONNECTORS : XLR
- INPUT SENSITIVITY : -2 dBu/+4 dBu
Processor section
- HI-PASS FREQUENCIES : 30Hz, 45Hz
- LOW-PASS FREQUENCIES : 90Hz, 140Hz
- PROTECTIONS : Thermal, RMS
- LIMITER : Soft Limiter
- CONTROLS : Volume, EQ, Phase, Xover
Power section
- TOTAL POWER : 2000 W Peak, 1000 W RMS
- LOW FREQUENCIES : 2000 W Peak, 1000 W RMS
- COOLING : Convection/Forced

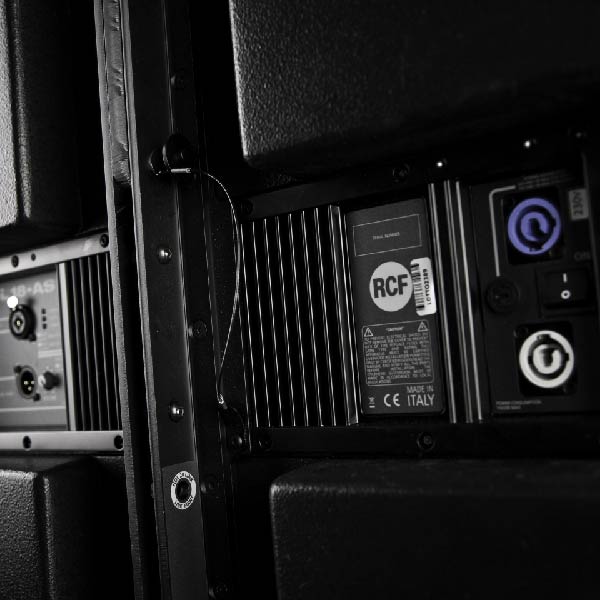

- CONNECTIONS : Powercon IN/OUT
Standard compliance
- CE MARKING : Yes
Physical specifications
- CABINET/CASE MATERIAL : Baltic birch plywood

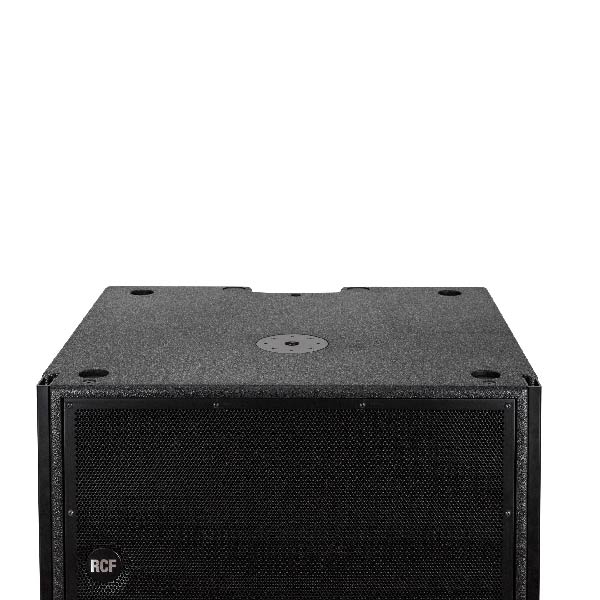

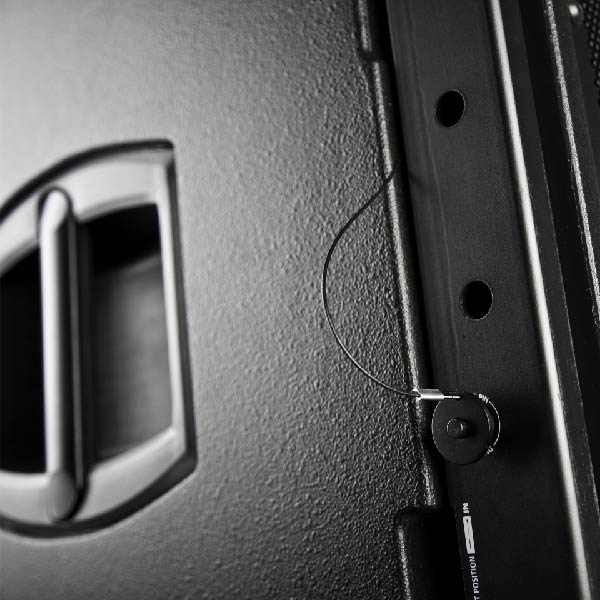

- HARDWARE : Rigging flyware, M20 insert

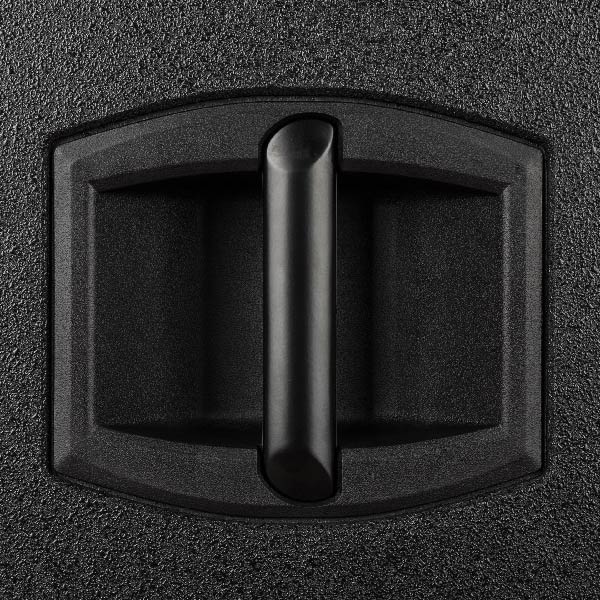

- HANDLES : 2 side
- GRILLE : Steel
- COLOR : Black
Size
- HEIGHT : 512 mm / 20.16 inches
- WIDTH : 700 mm / 27.56 inches
- DEPTH : 620 mm / 24.41 inches
- WEIGHT : 53 kg / 116.84 lbs
Shipping informations
- PACKAGE HEIGHT : 639 mm / 25.16 inches
- PACKAGE WIDTH : 814 mm / 32.05 inches
- PACKAGE DEPTH : 734 mm / 28.9 inches
- PACKAGE WEIGHT : 60.2 kg / 132.72 lbs
