RCF PL 6X ลำโพงติดเพดาน ขนาด 6 นิ้ว 12 วัตต์ RCF PL 6X COAXIAL CEILING SPEAKER จากแบรนด์ RCF

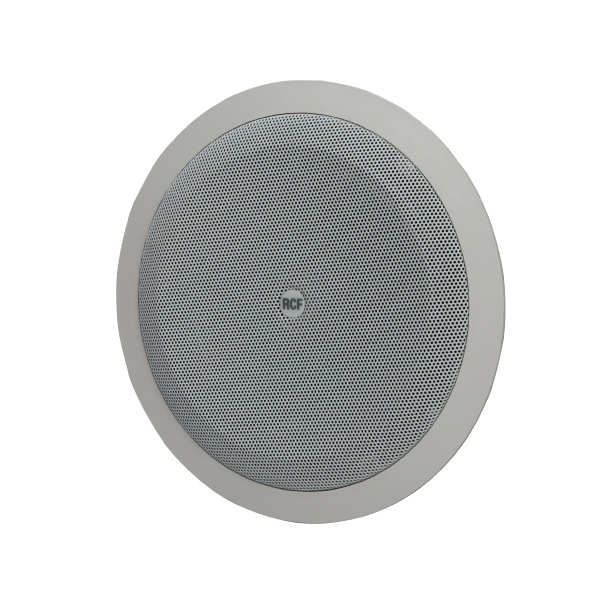

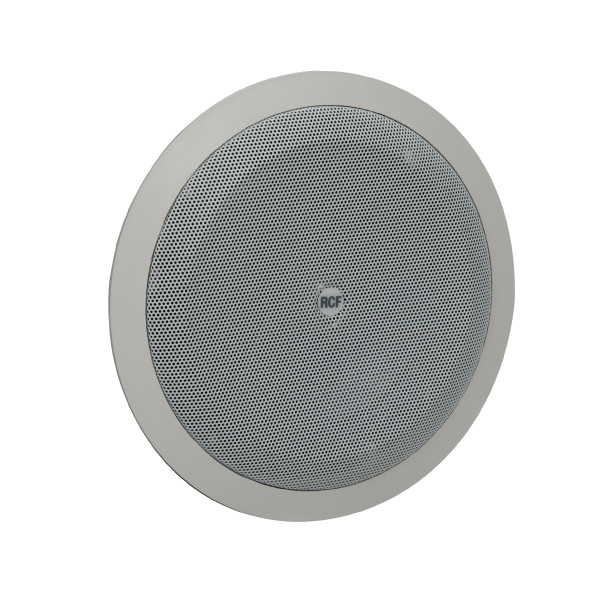

RCF PL 6X COAXIAL CEILING SPEAKER
คุณสมบัติ
- Two way speaker system with dome tweeter recommended for speech and background-music reproduction
- Music power/RMS: 24/12W
- 6″ woofer with coaxial tweeter 1″
- Low impedance (8Ω) or 100V

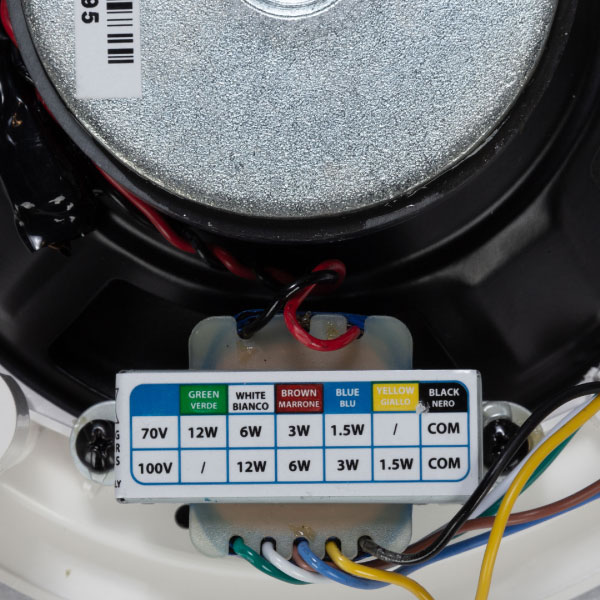

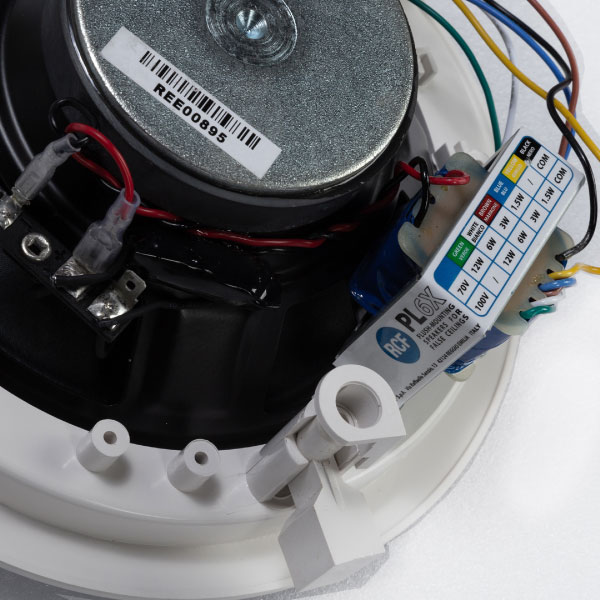

- Built-in multi-tapped transformer for 100/70V constant voltage connection

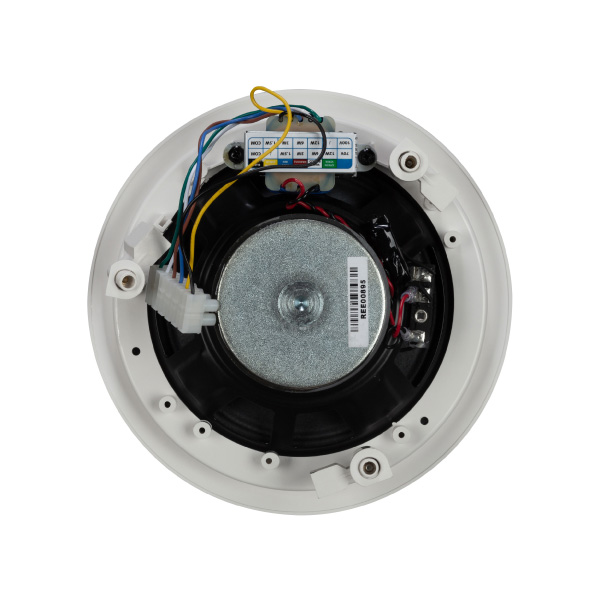

- Three hooks mounting system (no screws or other attachment elements)
- Body in self-extinguishing (UL 94V-0) plastic and front metal grille RAL 9003 White
- IP 44 protection
The PL6X is a ceiling speakers featuring elegant and innovative design that can be flush-mounted in false ceilings or panels. Incorporating a 160 mm (6”) loudspeaker. Both have a coaxial 25 mm (1”) tweeter placed on a bridge support. The speakers are equipped with a line transformer that enables direct connection to constant voltage systems at 70 V or 100 V. The multiple sockets on the transformer make it possible to select the output power from among several values. Installation is quick and easy thanks to a special three-hook system that avoids the need for using screws and pallet or other attachment elements.
สเปค
Acoustical specifications
- FREQUENCY RESPONSE (-10DB) : 70 Hz ÷ 20000 Hz
- MAX SPL @ 1M : 106 dB
- COVERAGE ANGLE : 100°
- SYSTEM SENSITIVITY : 92 dB
Power section
- NOMINAL IMPEDANCE (OHM) : 8 ohm
- POWER HANDLING : 12 W RMS
- PEAK POWER HANDLING : 48 W PEAK
- RECOMMENDED AMPLIFIER : 24 W
Transducers
- DOME TWEETER : Coaxial 1.0”
- WOOFER : Coaxial 6.0”
Input/Output section
- INPUT CONNECTORS : Euroblock
- CONSTANT VOLTAGE TRANSFORMER : 70/100 V
- POWER SELECTION 1 (100 V) : 12 W – 833 ohm
- POWER SELECTION 2 (100 V) : 6 W – 1667 ohm
- POWER SELECTION 3 (100 V) : 3 W – 3333 ohm
- POWER SELECTION 4 (100 V) : 1.5 W – 6667 ohm
Standard compliance
-
IP PROTECTION GRADE : IP 44
- CE MARKING : Yes
Physical specifications
- CABINET/CASE MATERIAL : Plastic
- HARDWARE : Plastic Material
- GRILLE : Steel
- COLOR : White – RAL 9003
Size
- DEPTH : 75 mm / 2.87 inches
- RECESSED DEPTH : 66 mm / 2.6 inches
- DIAMETER : 204 mm / 8.03 inches
-
CUT OUT DIAMETER : 182 mm / 7.17 inches
- WEIGHT : 0.78 kg / 1.72 lbs
Shipping informations
- PACKAGE WEIGHT : 1.56 kg / 3.44 lbs
- PACKAGE DEPTH : 110 mm / 4.33 inches
- PACKAGE WIDTH : 240 mm / 9.45 inches
- PACKAGE HEIGHT : 240 mm / 9.45 inches
