RØDE NT4 ไมค์สำหรับจ่อเครื่องดนตรี เช่น กลอง ใช้บันทึกเสียงได้ทั้งในสตูริโอ (ใช้ไฟแพนทอม) และนอกสถานที่ (ใช้แบตเตอรี่ 9V) สามารถใช้บันทึกเสียงสิ่งแวดล้อม หรือเสียงธรรมชาติ เพื่อนำไปใช้ในงานฟิล์ม RODE NT4 ไมค์บันทึกเสียงแบบ คอนเดนเซอร์ มีทิศทางการรับเสียงแบบ cardioid จากแบรนด์ RØDE
RODE NT4 X/Y
Stereo Condenser Microphone
The RØDE NT4 stereo microphone offers a perfect X/Y stereo array without the need for matched pair microphones, complex stereo bars and equipment. Simply place the microphone and capture a realistic stereo field using a single microphone.
Combining an acoustically matched pair of 1/2” cardioid condenser capsules fixed in a perfect 90 degree near-coincident alignment, the NT4 instantly creates a faithful stereo array that is ideal for drum overheads, percussion, choir vocals, environmental recording and sound design in a studio or in the field.
The NT4’s versatility is further extended by its ability to be powered by a 9V battery, in addition to 48V phantom power. Both stereo XLR and 3.5mm minijack cables are supplied to ensure the NT4 is ready to record to mixing console, portable recorder or camera.
The RØDE NT4 microphone is designed and made in Australia, and covered by RØDE’s industry leading 10 year warranty.
-
Stereo X/Y condenser microphone
-
Dual externally biased 1/2” capsules with gold sputtered diaphragm
-
Capsules closely matched with full frequency response
-
Dual power operation
-
Custom stereo cables included – 5 pin stereo XLR, Minijack (Via included cable) and dual 3-pin XLR (via included cable)
-
Custom twin head windshield (WS4) included
-

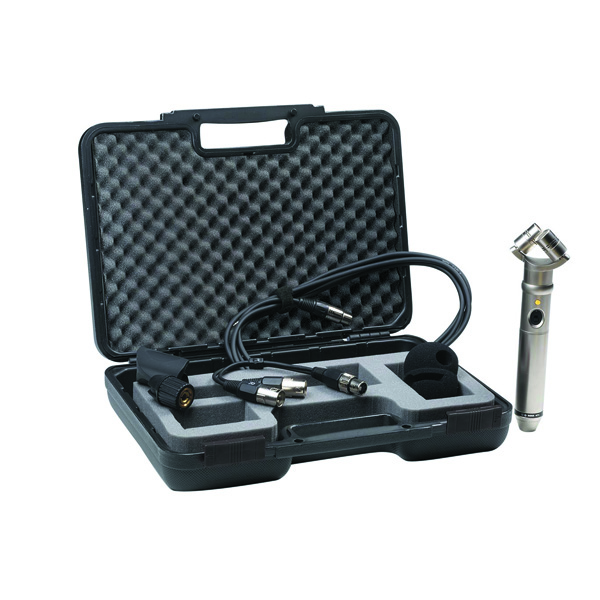

Includes custom twin head windshield WS4, RC4 case and 5-pin Minijack and XLR stereo cables
-
Surface mount circuitry
Acoustic Principle |
Pressure Gradient |
Active Electronics |
JFET impedance converter with bipolar output buffer |
Capsule |
0.50″ |
Polar Pattern |
|
Address Type |
End |
Frequency Range |
20Hz – 20kHz |
Output Impedance |
200Ω |
Maximum SPL |
143dB SPL (@ 1kHz, 1% THD into 1KΩ load) |
Maximum Output Level |
13.9mV |
Sensitivity |
-38.0dB re 1 Volt/Pascal (12.00mV @ 94 dB SPL) +/- 2 dB @ 1kHz |
Equivalent Noise Level (A-weighted) |
16dB-A |
Power Options |
|
Weight |
480.00gm |
Dimensions |
231.00mmH x 61.00mmW x 33.00mmD |
Output |
|
Cardioid-Picks up audio from the front and sides and rejects from the rear
Paired cardioid capsules in X-Y stereo pattern
9V battery powered
+48V phantom power required from mixer or interface
Minijake/3.5mm output
3-pin XLR Output- NT4 : X/Y Stereo Condenser Microphone 1 ตัว
-
RM3 : Durable Microphone Clip 1 ชุด
-
RC4 :Rugged Microphone Case 1 ชุด
-
WS4 : Pop Filter/Wind Shield 1 ชุด
-
5-pin to Stereo Minijack Cable 1 ชุด
-
5-pin to dual XLR cable 1 ชุด
