RODE NTG1 ชุดไมโครโฟนไช้สายสำหรับกล้องวีดีโอ แบบ condenser RODE NTG1 ไมโครโฟนสำหรับผลิตรายการ ส่งสัญญาณแบบดิจิตอล จากแบรนด์ RODE
RODE NTG1
Shotgun Microphone

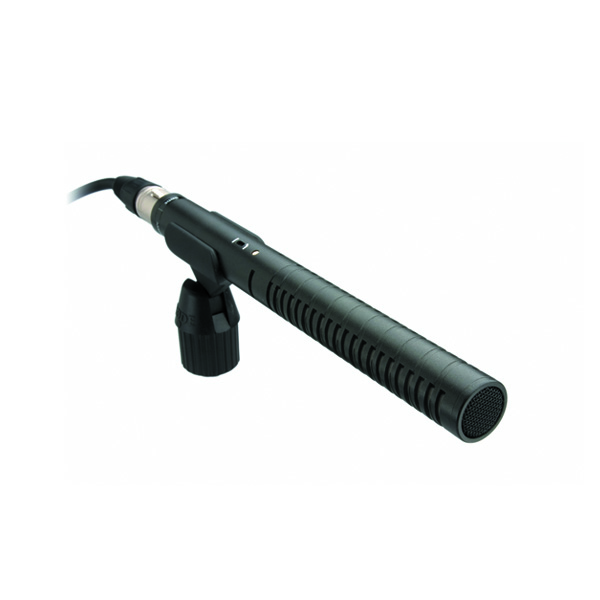

The RØDE NTG1 is a lightweight condenser shotgun microphone, designed for professional applications within the film, video, television and production industries.
Its full frequency response, low noise and audio transparency make it an ideal film, video, and voice over microphone, while its low weight (105gm/3.7oz) makes it an ideal boom microphone.
In addition to the native 20Hz-20kHz frequency response a selectable high-pass filter at 80Hz is available, which will prevent low end noise such as air conditioners and traffic from being recorded.
The WSVM windshield is supplied to minimise light wind noise and plosives during recording. The optional ‘DeadCat’ furry is recommended for outdoor applications.
-
Broadcast sound quality
-
Low noise circuitry
-
Super-cardioid polar pattern
-
Condenser transducer
-
Rugged metal construction
-
Two step High Pass Filter (Flat/80Hz)
-
Low handling noise
-
Low weight – 105g (3 oz.)
-
Includes mic clip, wind shield and zip case
-
Ideal for professional applications within the film, video, television and production industries
Acoustic Principle |
Line Gradient |
Active Electronics |
JFET impedance convertor with bipolar output buffer |
Capsule |
0.50″ |
Polar Pattern |
|
Address Type |
End |
Frequency Range |
20Hz – 20kHz |
Output Impedance |
50Ω |
Maximum SPL |
139dB SPL (@ 1kHz, 1% THD into 1KΩ load) |
Maximum Output Level |
6.9mV |
Sensitivity |
-36.0dB re 1 Volt/Pascal (15.00mV @ 94 dB SPL) +/- 2 dB @ 1kHz |
Equivalent Noise Level (A-weighted) |
18dB-A |
Power Options |
|
Weight |
105.00gm |
Dimensions |
219.00mmH x 22.00mmW x 22.00mmD |
Output |
|
Supercardioid-Picks up the front and sides and rejects 150C to the rear
+24V
+48V phantom power required from mixer or interface
3-pin XLR Output-

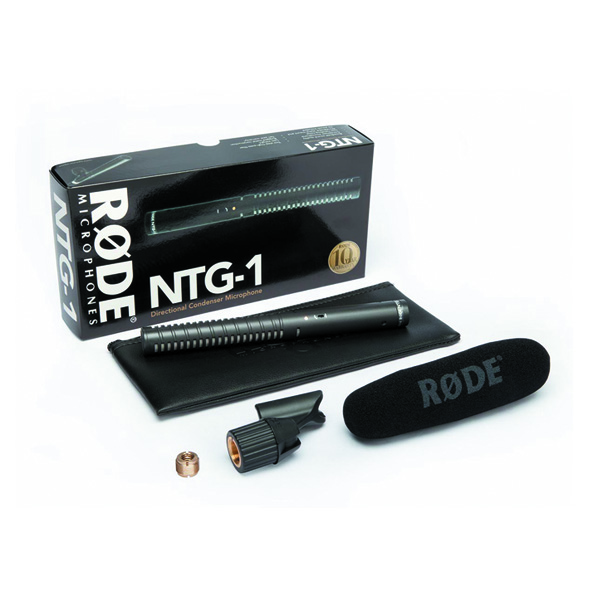

NTG1 : Shotgun Microphone 1 ตัว
-
RM5 : Durable Microphone Clip 1 ชุด
-
WSVM : Pop Filter/Wind Shield 1 ชุด
-
ZP1 : Padded Zip Pouch 1 ชุด
