• Dimensions : Ø 20mm, L = 100mm
• Connector : XLR-3
• Frequency response : 40 – 20000 Hz
• Max. sound pressure level : 139 dB/SPL
• Transducer principle : pre-polarised condenser microphone
• Weight : 93 g
• Pick-up pattern : super-cardioid
• Sensitivity in free field, no load (1kHz) : 3 mV/Pa = – 50dB (0 dB = 1 V/Pa)
• Nominal impedance : 50 Ω
• Min. terminating impedance : 1000 Ω
• Phantom powering : 12 – 52 V / 3 mA
• Equivalent noise level : 24 dB(A)
• Equivalent noise level weighted as per CCIR 468-3 : 35 dB

602 ii

• Dimensions : Ø 60 x 153 mm
• Connector : XLR-3
• Transducer principle (Microphone) : dynamic
• Frequency response : 20 – 16000 Hz
• Weight : 318 g
• Pick-up pattern : cardioid
• Sensitivity in free field, no load (1kHz) : 0,25 mV/Pa; (50 Hz) 0,9 mV/Pa
• Nominal impedance : 350 Ω
• Min. terminating impedance : 1000 Ω

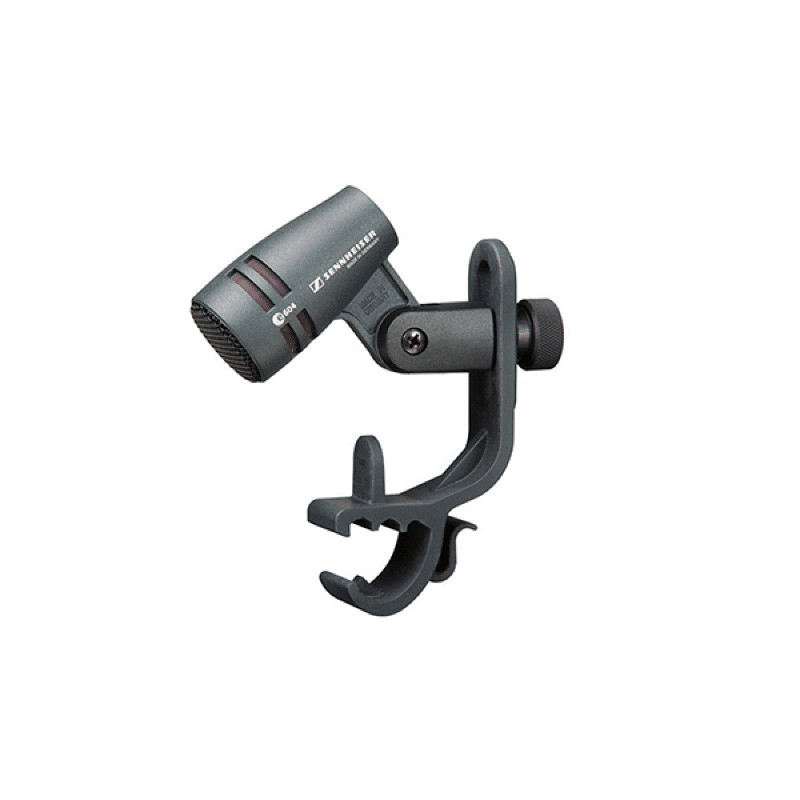

e 604

• Dimensions : Ø 33 x 59 mm
• Connector : XLR-3
• Frequency response (Microphone) : 40 – 18000 Hz
• Transducer principle (Microphone) : dynamic
