ไมโครโฟนไร้สายแบบมือถือ SHURE ADX2/K9HS การปรับจูนที่กว้างถึง 184 MHz (ไม่มีเครื่องรับ) เข้ากันได้กับAxient® Digital Wireless Systems จากแบรนด์ SHURE
SHURE ADX2/K9HS

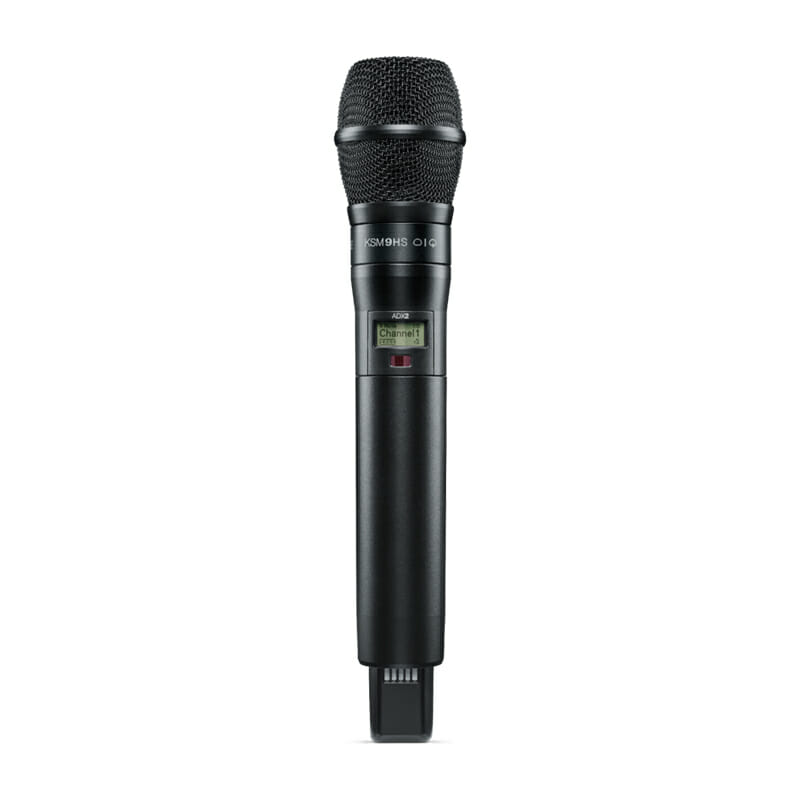

Handheld Wireless Microphone Transmitter
PRODUCT DETAILS
The ADX2/K9HS is a handheld wireless microphone transmitter compatible with Axient® Digital Wireless Systems.
Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.
คุณสมบัติ
- Durable, moisture-resistant, lightweight metal case

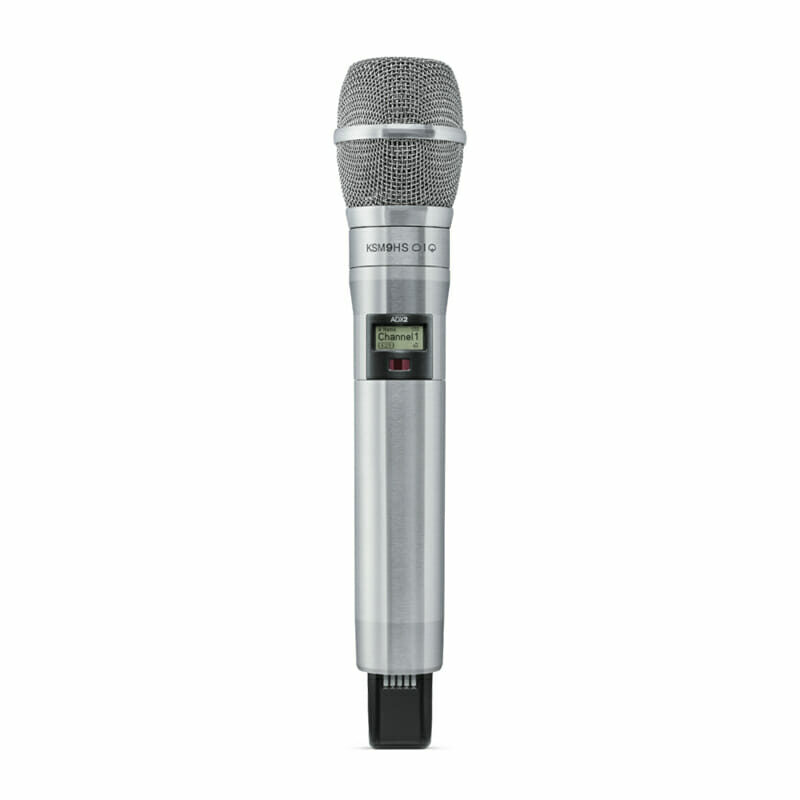

- Available in black or nickel finish
- Up to 9 hours of runtime with SB920 rechargeable batteries
- External contacts for docked charging with optional fully covered radome
- Diversity ShowLink enabled for remote transmitter control and automatic interference avoidance
- Two transmission modes: Standard for optimal coverage and new High Density for maximum system channel count and robust coverage
- Encryption-enabled, secure transmissio
สเปค
SPECIFICATIONS
SPECIFICATIONS
(SUBJECT TO CHANGE)
- Gain Offset Range
–12 to 21 dB (in 3 dB steps) - Battery Type
SB920 Rechargeable Lithium-Ion - Battery Run Time @10 mW
up to 9 hours - Dimensions (L × Dia.)
10.0 × 2.0 in
(254 × 51 mm) - Weight
11.9 oz (338 g)
wihtout battery - Housing
Cast Aluminum
AUDIO INPUT
- Configuration
Unbalanced - Maximum Input Level 1 kHz at 1% THD
145 dB SPL, typical (SM58)
Note: dependent on microphone type
RF OUTPUT
- Antenna Type
UHF 1/4 Wave - Occupied Bandwidth
<200 kHz - Modulation Type
Shure Axient Digital Propietary - Power
2 mW, 10 mW, 20 mW, 40 mW
Varies by region. See Frequency Range and
Output Power Table. - Specific Absorption Rate (SAR)
<0.19 W/kg
SHOWLINK®
- Network Type
IEEE 802.15.4 - Antenna Type
ZigBee Dual Conformal - Frequency Range
2.40 to 2.4835 GHz (24 Channels) - RF Output Power Varies By Region
10 dBm (ERP)
