ไมโครโฟนไร้สายแบบมือถือ SHURE ADX2FD/VP68 การปรับจูนที่กว้างถึง 184 MHz โหมดพลังงานสูง 50mW เสริมสำหรับการขับเคลื่อนที่เพิ่มขึ้น จากแบรนด์ SHURE

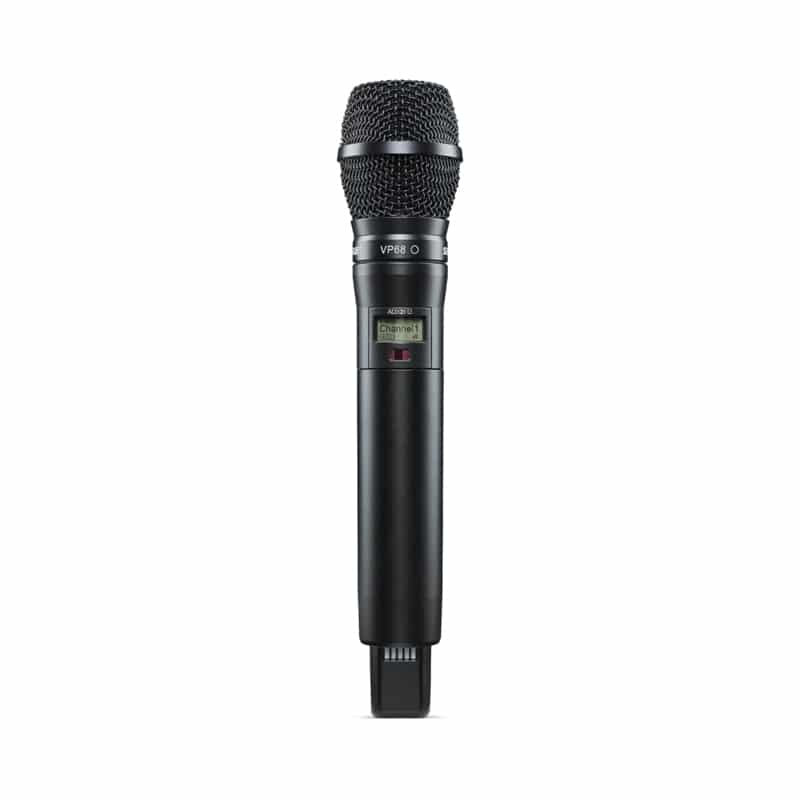

SHURE ADX2FD/VP68
Handheld Wireless Microphone Transmitter
PRODUCT DETAILS
The ADX2FD/VP68 is a handheld wireless microphone transmitter compatible with Axient® Digital Wireless Systems.
Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.
คุณสมบัติ
- Abillity to transmit RF signal on two discrete carriers
- Optional 50 mW High Power mode for driving increased power on a single frequency
- Durable, moisture-resistant, lightweight metal case
- Available in black or nickel finish
- Up to 6.5 hours of runtime with SB920 rechargeable batteries when transmitting on two RF carriers, Up to 9
hours of battery life when transmitting on a single RF carrier - External contacts for docked charging with optional fully-covered radome
- Diversity ShowLink®
enabled for remote transmitter control and automatic interference avoidance - Two transmission modes: Standard for optimal coverage and new High Density for maximum system channel
count and robust coverage - Encryption-enabled, secure transmission
สเปค
S P E C I F I C A T I O N S
S P E C I F I C A T I O N S
(SUBJECT TO CHANGE)
- Gain Offset Range
–12 to 21 dB (in 3 dB steps) - Battery Type
SB920 Rechargeable Lithium-Ion - Battery Run Time @10 mW
Single-Carrier Mode: up to 9 hours
Frequency Diversity: up to 6.5 hours - Dimensions (L × Dia.)
10.0 × 2.0 in
(254 × 51 mm) - Weight
11.9 oz (338 g)
wihtout battery - Housing
Cast Aluminum
AUDIO INPUT
- Configuration
Unbalanced - Maximum Input Level
1 kHz at 1% THD
145 dB SPL, typical (SM58)
Note: dependent on microphone type
RF OUTPUT
- Antenna Type
Integrated Dual-Band Helical - Occupied Bandwidth
<200 kHz - Channel-to-Channel Spacing
Standard Mode: 350 kHz
High-Density Mode: 125 kHz - Modulation Type
Shure Axient Digital Propietary - Power
Single Carrier Mode: 2 mW, 10 mW,
20 mW, 50 mW
Frequency Diversity Mode: 2 × 20 mW
Varies by region. See Frequency Range and
Output Power Table. - Specific Absorption Rate (SAR)
<0.21 W/kg
SHOWLINK®
- Network Type
IEEE 802.15.4 - Antenna Type
ZigBee Dual Conformal - Frequency Range
2.40 to 2.4835 GHz (24 Channels) - RF Output Power
Varies By Region
10 dBm (ERP)
