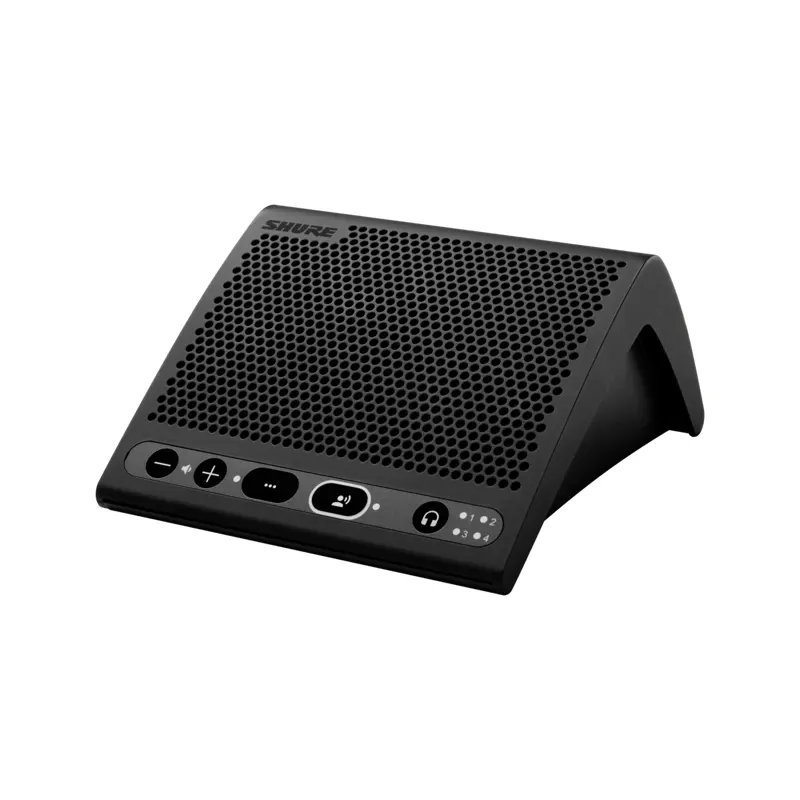

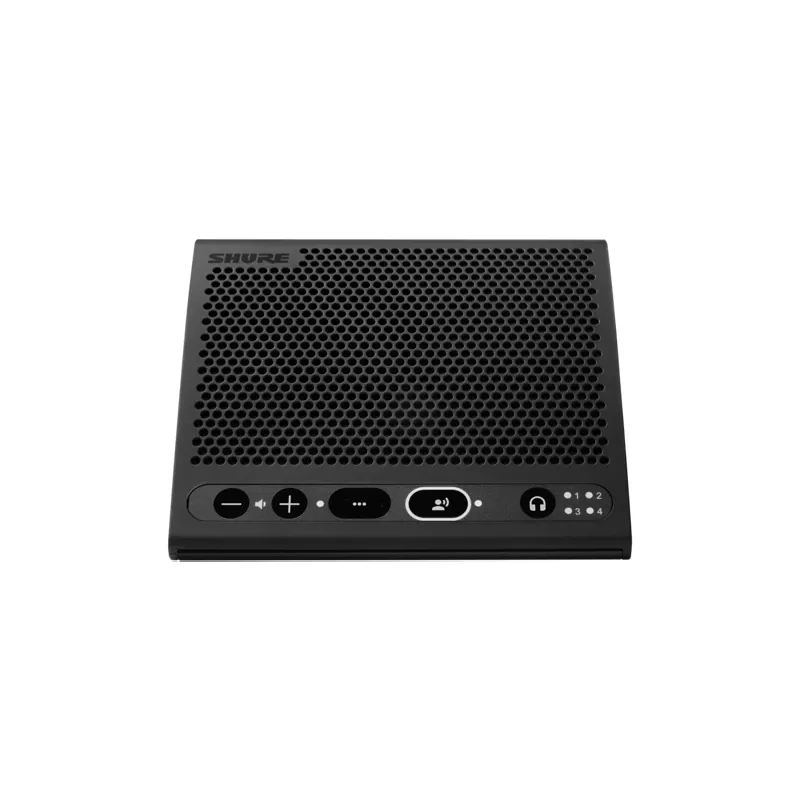

The MXC605 is a portable conference unit for use with the Microflex® Complete (MXC) digital conference system. This unit can be configured for use by a chairman, a delegate, an interpreter or as an ambient microphone. The unit features a speak button and function button, a lockable XLR microphone connector, headphone jack with volume control, and channel selectors. The speak button enables the user to activate/deactivate the microphone directly or to submit a request to speak. An LED indicates whether the microphone is on (red) or in request to speak mode (green). The function button can be programmed as a Mute, Mute All, Next On, Reply, or no function through the DIS-CCU central control unit. The headphone jack allows the user to listen to the floor channel or interpretation channels through headphones. Interpreters will always listen to the floor channel in the headphone and can select the outgoing channel for interpretation. The unit features redundant loop connection to the DIS-CCU.

• Configurable for Chairman, Delegate, Interpreter or Ambient roles
• Speak and function buttons with LED indicators
• Channel selector supporting the floor channel and 4 interpretation channels

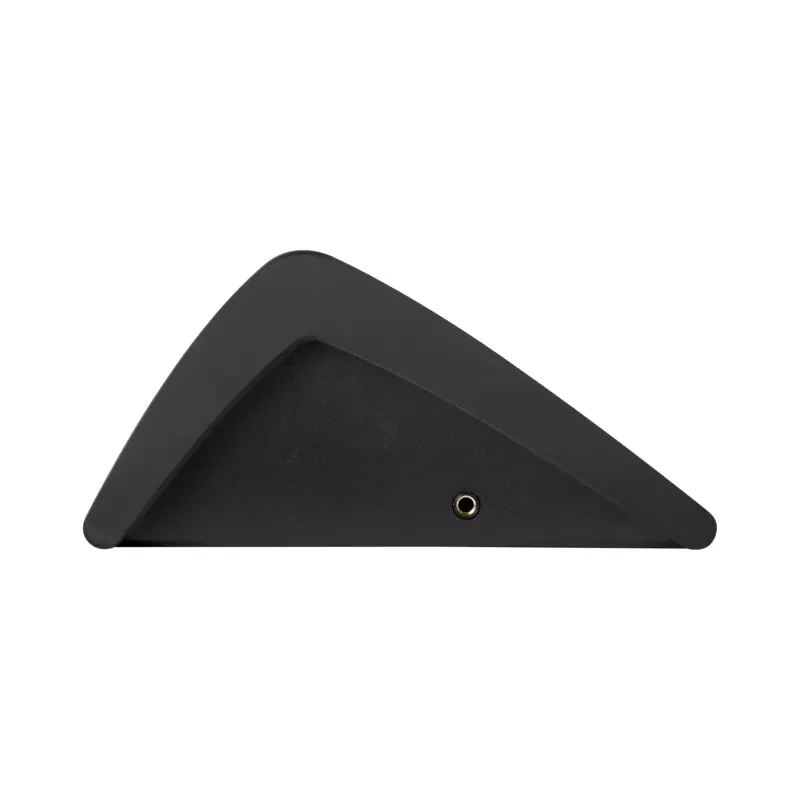

• 3.5 mm TRS headphone jack with individual volume controls

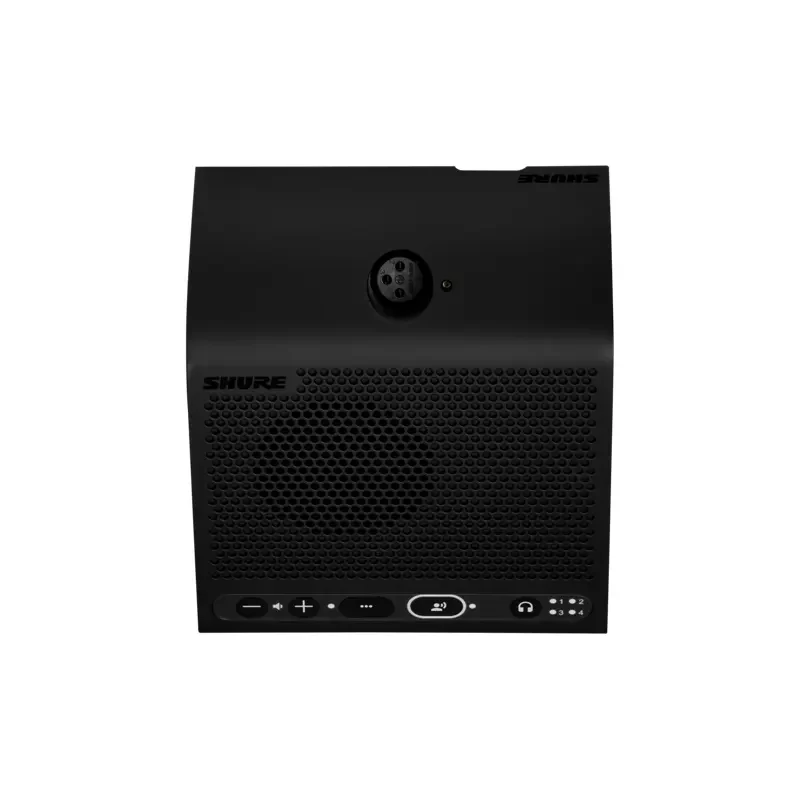

• Lockable 3-pin female XLR microphone connector (*for connection to GM series goosenecks only)

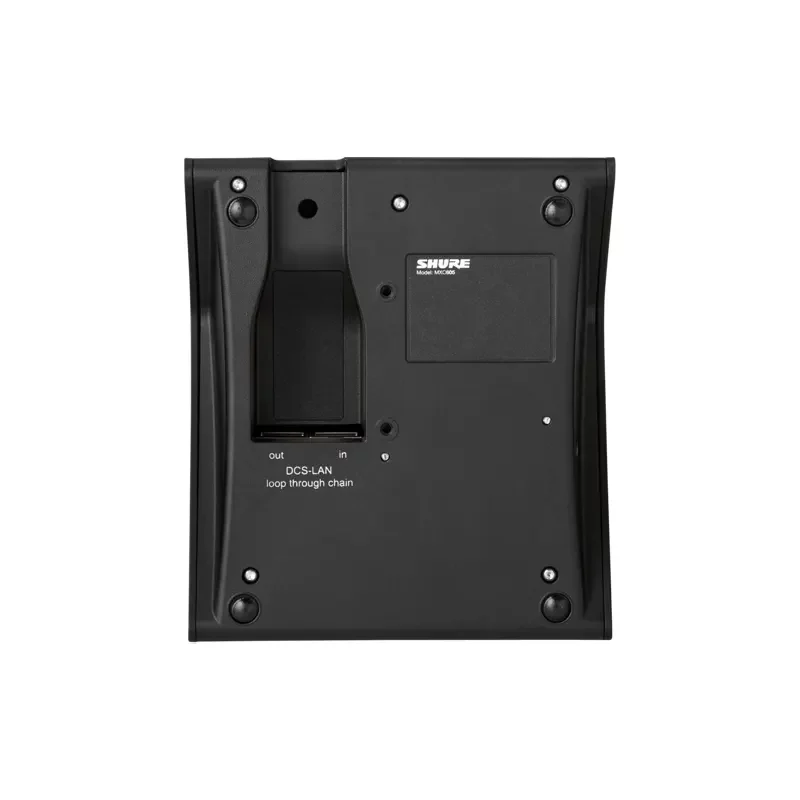

• Connects to DIS-CCU central control unit using shielded CAT5e (or higher) F/UTP or U/FTP cabling with redundant loop option
