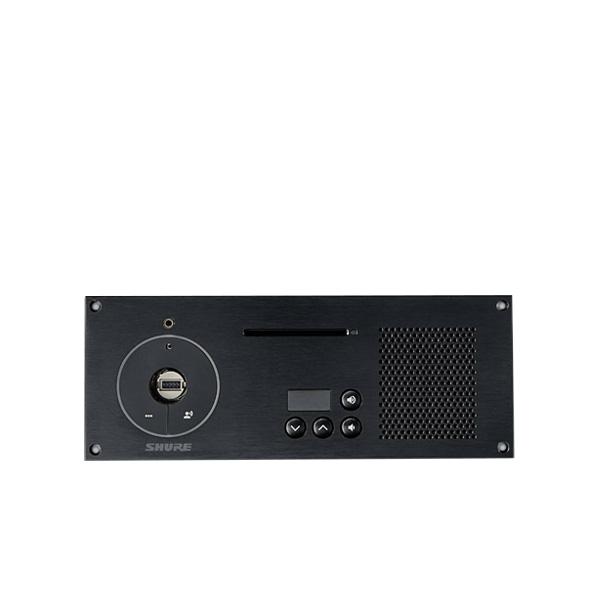

SHURE MXC620-F FLUSH-MOUNT CONFERENCE UNIT
SHURE MXC620-F อุปกรณ์ประชุมสำหรับ ประธาน/ผู้ร่วมประชุม ระบบดิจิตอล รองรับ NFC Card ยืนยันตัวผู้เข้าประชุม SHURE MXC620-F FLUSH-MOUNT CONFERENCE UNIT จากแบรนด์ชั้นนำ SHURE
The MXC620-F Flush-Mount Conference Unit makes it easy to identify meeting attendees when participation must be documented. An integrated ID card reader allows standard NFC cards to be used to identify attendees by name or limit access or privileges. The built-in loudspeaker makes it easy to hear other talkers and external audio sources, and the 3.5mm headphone jack provides comfortable listening to interpretation channels.
The MXC620-F Flush-Mount Conference Unit makes it easy to identify meeting attendees when participation must be documented. It mounts flush in the table surface for a streamlined appearance, and can be used by a chairman or a delegate with the Microflex Complete Digital Conference System.
The integrated ID card reader allows standard NFC cards to be used to identify attendees by name, regardless of where they sit. With optional conference management software, system access, speech time, or other privileges can be limited for each participant as appropriate.
The Speak button provides tactile feedback when pressed, and a surrounding LED illuminates to indicate whether the user’s microphone is active, waiting to speak, or muted. An adjacent programmable function button can be assigned as a Mute or Reply button when used by a delegate, or a Mute All, Reply, or Next On button when used by a chairman.
The built-in loudspeaker makes it easy to hear other talkers and external audio sources and mutes automatically when the microphone is activated. A 3.5mm headphone jack with volume control and channel selector provides comfortable listening to interpretation channels or the floor audio through headphones or earphones.
The 10-pin modular microphone connector accommodates MXC-series gooseneck microphones and can be locked to prevent unauthorized removal.
The MXC620-F connects to the DIS-CCU central control unit using shielded CAT5e network cables. One cable carries both audio and control signals and delivers power to the conference unit.
MXC620-F
-
โหมดประธาน/สมาชิก/ผู้เข้าร่วมประชุม
- รองรับ NFC card ยืนยันตัวผู้เข้าประชุม (เฉพาะMXC620)
-
ตัวเลือกช่องภาษาเดียว มีแจ็กหูฟัง 3.5 มม.
-
รองรับ NFC card ยืนยันตัวผู้เข้าประชุม
-
Mounts flush in the table surface for streamlined appearance
-
Can be used by chairman or delegate
-
Integrated NFC ID card reader allows attendee identification
-
Speak and mute/function buttons with LED status indicators
-
Built-in loudspeaker mutes automatically when microphone is activated
-
3.5mm headphone jack with volume control and channel selector
-
Compatible with MXC-series gooseneck microphones
ELECTRICAL
- Frequency response (channel selector) 65 Hz-16 kHz
- Frequency range (loudspeaker) 150 Hz-15 kHz
- Power consumption 3.5 W
- THD < 0.1 %
- Signal-to-noise ratio > 90 dBA
- Microphone connection 10 pin
- Headphone connection 3.5 mm jack, female socket TRS
INTERCONNECTION
-
Two RJ45 female sockets (in/out)
MECHANICAL
- Installation Flush mounting
- Dimensions (H x W x D) 90 x 235 x 74 mm
- Panel cut-out (H x W) 82 x 215 mm (important: corner radius maximum R3.0mm)
- Weight 900 g
- Color Black
- Material (top) Anodized aluminum
- Temperature range 5º to 40º C
