SHURE MXC630 PORTABLE CONFERENCE UNIT
SHURE MXC630 อุปกรณ์ลงคะแนนเสียงในที่ประชุมสำหรับ ระบบดิจิตอล รองรับ NFC Card ยืนยันตัวผู้เข้าประชุม SHURE MXC630 PORTABLE CONFERENCE UNIT จากแบรนด์ชั้นนำ SHURE

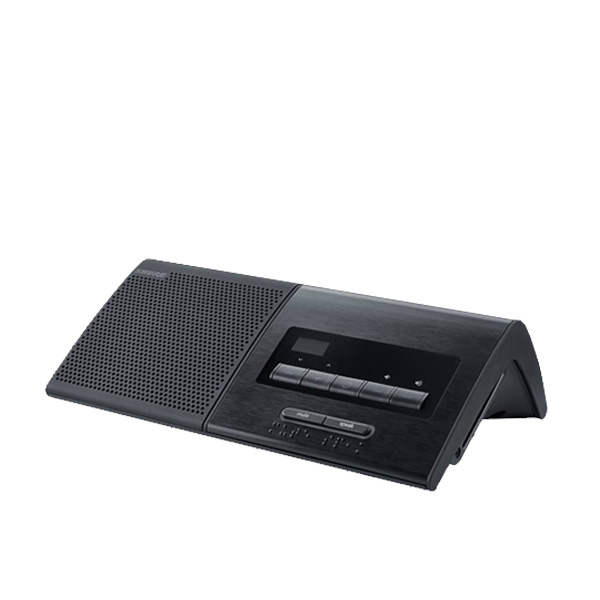

The MXC630 Portable Conference Unit powers effective decision-making with integrated voting controls. An integrated ID card reader allows standard NFC cards to be used to identify attendees by name or control access. The built-in loudspeaker makes it easy to hear other talkers and external audio sources, and the 3.5mm headphone jack provides comfortable listening to interpretation channels.
The MXC630 Portable Conference Unit powers effective decision-making with integrated voting controls. It complements contemporary or historic meeting spaces, and can be used by a chairman or a delegate with the Microflex Complete Digital Conference System.
The MXC630 features five voting buttons that enable the user to participate in 3-button or 5-button voting or polling sessions and attendance checks initiated by the chairman. The integrated ID card reader allows standard NFC cards to be used to identify attendees by name, regardless of where they sit. With optional conference management software, system access, speech time, or other privileges can be limited for each participant as appropriate.

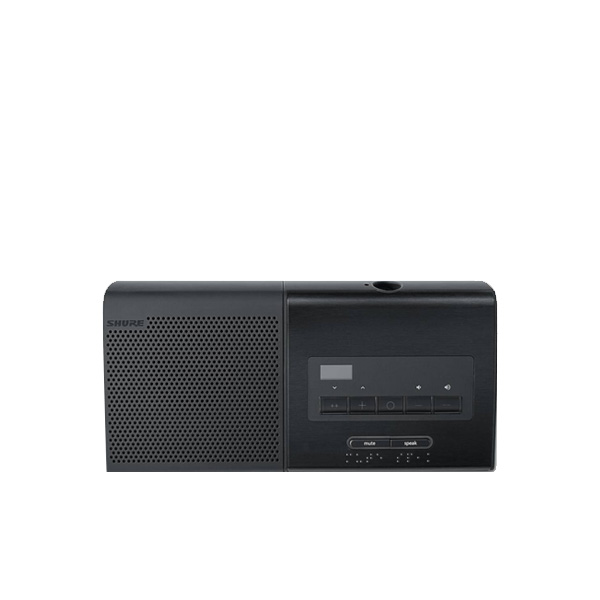

The Speak button and programmable function button provides tactile feedback when pressed, and surrounding LED’s illuminate to indicate microphone status. The area immediately below the microphone and function buttons includes Braille imprinting for visually-impaired users. The built-in loudspeaker and dual 3.5mm headphone jacks provide comfortable listening to the floor audio or interpretation channels.

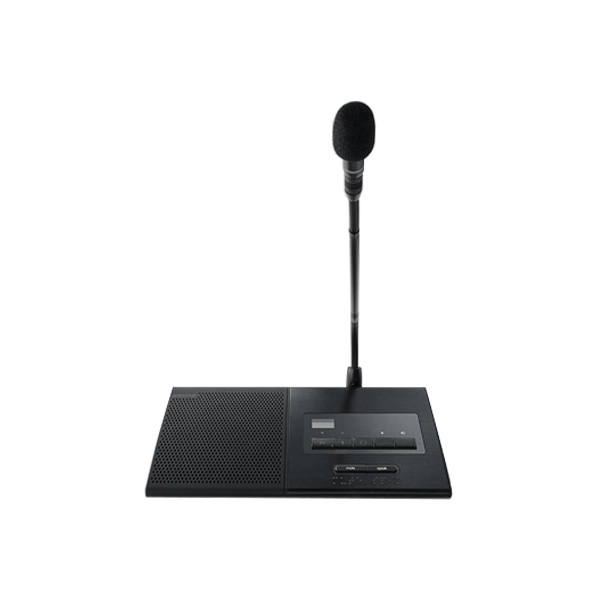

The 10-pin modular microphone connector accommodates MXC-series gooseneck microphones and can be locked to prevent unauthorized removal. The MXC630 connects to the DIS-CCU central control unit using shielded CAT5e network cables. One cable carries both audio and control signals and delivers power to the conference unit.
MXC630
-
อุปกรณ์ลงคะแนนเสียงในที่ประชุม
-
โหมดประธาน/สมาชิก/ผู้เข้าร่วมประชุม
-
5 ปุ่มลงคะแนนเสียงมีไฟติดข้างหลัง
-
รองรับ NFC card ยืนยันตัวผู้เข้าประชุมตัวเลือกช่องภาษาเดียวมีการแสดงผลแบบ OLED และแจ็กหูฟังขนาด 3.5 มม.
-
มีป้ายตัวอักษรเบรลล์มนปุ่มพูดและปุ่มฟังก์ชัน
-
Integrated buttons for voting, polling, or attendance checks
-
Can be used by chairman or delegate
-
NFC ID card reader allows attendee identification
-
Speak and mute/function buttons with Braille imprinting for visually-impaired users
-
Built-in loudspeaker mutes automatically when microphone is activated
-
3.5mm headphone jack with volume control and channel selector
-
Compatible with MXC-series gooseneck microphones
ELECTRICAL
-
Frequency response (channel selector) 65 Hz-16 kHz
-
Frequency range (loudspeaker) 150 Hz-15 kHz
-
Power consumption 4 W
-
THD < 0.1 %
-
Signal-to-noise ratio > 90 dBA
-
Microphone connection 10 pin
-
Headphone connection Two 3.5 mm jacks, female socket TRS
INTERCONNECTION
-

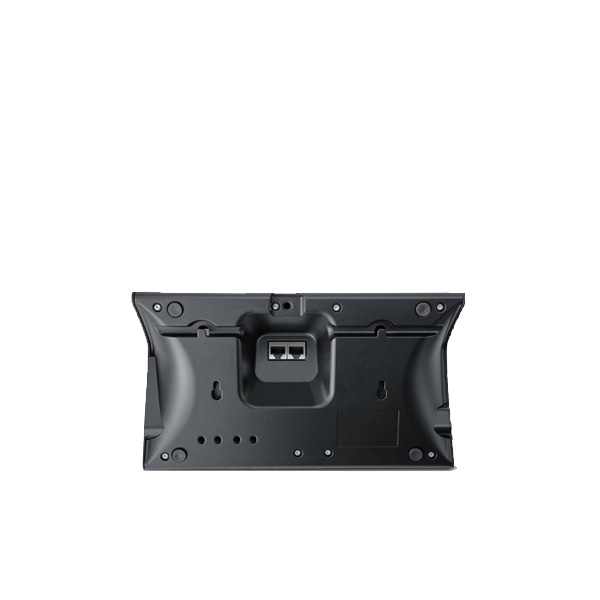

DCS-LAN Two RJ45 female sockets (in/out)
MECHANICAL
-
Installation Portable
-
Dimensions (H x W x D) 74 x 153 x 268 mm
-
Weight 900 g
-
Color Black
-
Temperature range 5º to 40º C
