SHURE SLX14/MX153/O-TQG ชุดไมค์ลอยเกี่ยวคล้องหู SHURE SLX14/MX153/O-TQG ไมค์ลอยเกี่ยวคล้องหู ไมโครโฟนเกี่ยวหู หัวเชื่อมต่อแบบ TQG สำหรับเชื่อมต่อกับ SHURE SLX1 Bodypack Transmitter เครื่องส่งสัญญา ไมค์แบบพกพา จากแบรนด์ SHURE
SHURE SLX14/MX153/O-TQG
Earset Headworn Wireless System
ประกอบด้วย

SHURE SLX1
Bodypack Transmitter เครื่องส่งสัญญาณไมค์แบบพกพา 1 ชุด

SHURE SLX4
Diversity Receiver เครื่องรับสัญญาณไมค์ 1 เครื่อง
SHURE MX153/O-TQG
ไมค์ลอยเกี่ยวคล้องหู รับเสียงแบบ Omnidirectional เชื่อมต่อแบบ TQG 1 ตัว

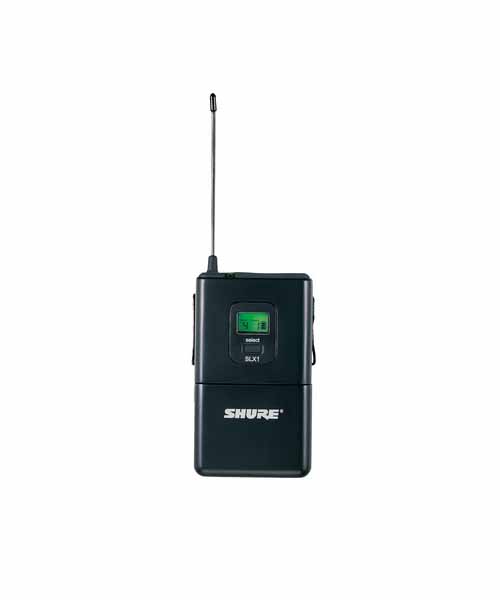

SHURE SLX1 Bodypack Transmitter เครื่องส่งสัญญาณไมค์แบบพกพา
The reliable SLX1 wireless bodypack transmitter is designed to hold up to the most adverse conditions. SLX1 can be used in a variety of SLX Wireless systems, including Lavalier, Headworn, Guitar/Bass, Instrument, and Combo.
- เชื่อมต่อเครื่องส่งผ่านระบบ Infrared ได้อัตโนมัติ
- แสดงสถานะแบตเตอรี่ 3 ระดััับ
- มีหน้าจอ Backlit LCD แสดงสถานะกรุ๊ปและ ชาแนล
- สามารถล็อกการทำงานของปุ่มสแกนความถี่ และปุ่ม เปิด / ปิด เครื่องได้
- ใช้แบตเตอรรี่ชนิด Alkaline 2 AA ใช้งานได้ 8 ชั่วโมง
- ระยะการใช้งานในที่โล่ง 100 เมตร (300ฟุต)
- Automatic Transmitter Setup
- Backlit LCD with timeout feature
- Frequency and power lockout
- 3-segment battery fuel gauge
- 2 AA batteries (included) provide 8 hours continuous use
- Dimensions: 108 mm H x 64 mm W x 19 mm D (4.25″ x 2.5″ x 0.75″)
Weight | 81 grams (3 oz.) without batteries |
Battery Life | >8 hours (alkaline) |

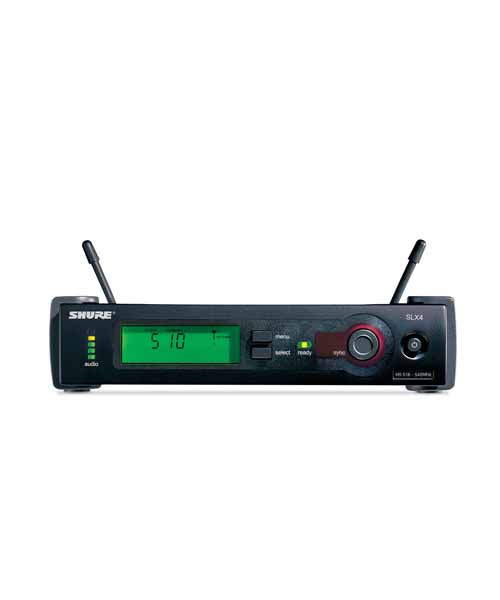

SHURE SLX4 Diversity Receiver
The SLX4 receiver brings unprecedented ease of use to wireless with Automatic Frequency Selection and Automatic Transmitter Setup. For use with SLX Wireless.
With included rack hardware and detachable antennas, it is ready for immediate installation right out of the box.
Model SLX4L is available with logic output for use with software echo cancellation and remote battery life monitoring. Logic-enabled transmitters include MX690 and MX890.
This Shure SLX Wireless Microphone System includes an SLX4 Diversity Receiver, and an SLX2/SM58 Wireless Handheld Microphone. Shure offers wireless freedom combined with the legendary microphone that is the choice of vocal performers around the globe.
SLX Wireless Systems feature the patented Audio Reference Companding for crystal-clear sound beyond the limits of conventional wireless technology.
-
เลือกความถี่ได้อัตโนมัติ
-
รองรับการใช้งานร่วมกันในระบบ 8 ความถี่
-
เสาอากาศถอดได้แบบ 1 / 4 wave
-
แสดงระดับสัญญาณเสียงได้ 5 ระดับ
-
หน้าจอแบบ LCD
-
สามารถล็อกการทำงานของปุ่ม สแกนความถี่ และปุ่ม เปิด / ปิด เครื่่องได้
-

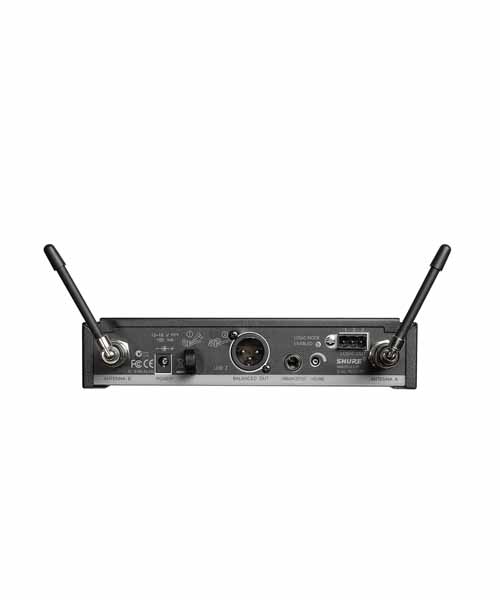

ด้านหลังเครื่อง มีปุ่มควบคุมความดังสัญญาณเสียง
-
โครงสร้างเป็นโลหะแข็งแรง
-
มีชุด Rack Mount สำหรับยึดติดเข้า Rack ภายในชุด
-
Output แบบ XLR
Sensitivity | -105 dBm for 12 dB SINAD, typical |
Weight | 816 g (1 lb. 13 oz.) |

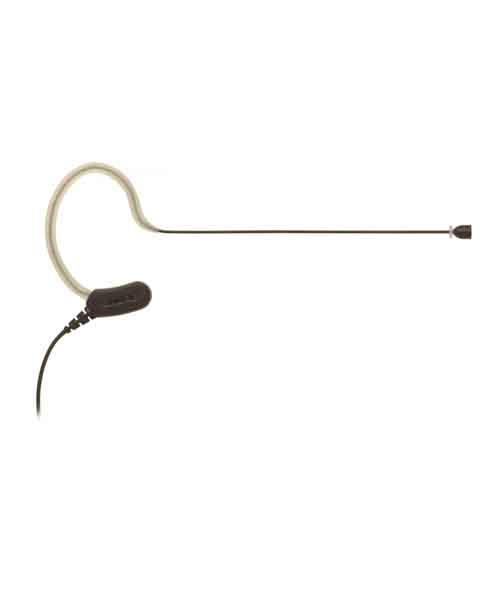

SHURE MX153 Earset Headworn Microphone ไมค์ลอยเกี่ยวคล้องหู ทิศทางการรับเสียงแบบ Omnidirectional หัวเชื่อมต่อแบบ TQG
SHURE MX153 provides outstanding clarity in an extremely comfortable over-the-ear design. This professional subminiature earset microphone is ideal for applications in which improved gain before feedback over lavalier microphones is desired. Delivering exceptional speech clarity, the MX153 is ideal for corporate presentations, houses of worship, A / V conferencing, and live sound reinforcement.
Outstanding clarity in an extremely comfortable over-the-ear design.
Available Models
MX153B/O Omnidirectional Earset Headworn Microphone, Black
MX153T/O Omnidirectional Earset Headworn Microphone, Tan
MX153C/O Omnidirectional Earset Headworn Microphone, Cocoa
Subminiature omnidirectional cartridge offers superior clarity and enhanced plosive protection with no proximity effect
Terminated with TQG / TA4F connector for direct connectivity to Shure wireless bodypack transmitters
Ultra-lightweight, comfortable, flexible design is stable and easy to place over either ear
CommShield® Technology guards against interference from cellular RF devices and digital bodypack transmitters
Kevlar™ reinforced soft flex cable
Includes protective storage pouch, 3 windscreens, and collar clip
Conferencing
Frequency Response 20 to 20,000 Hz
Phantom power required? +5 V DC (130 μA minimum)
