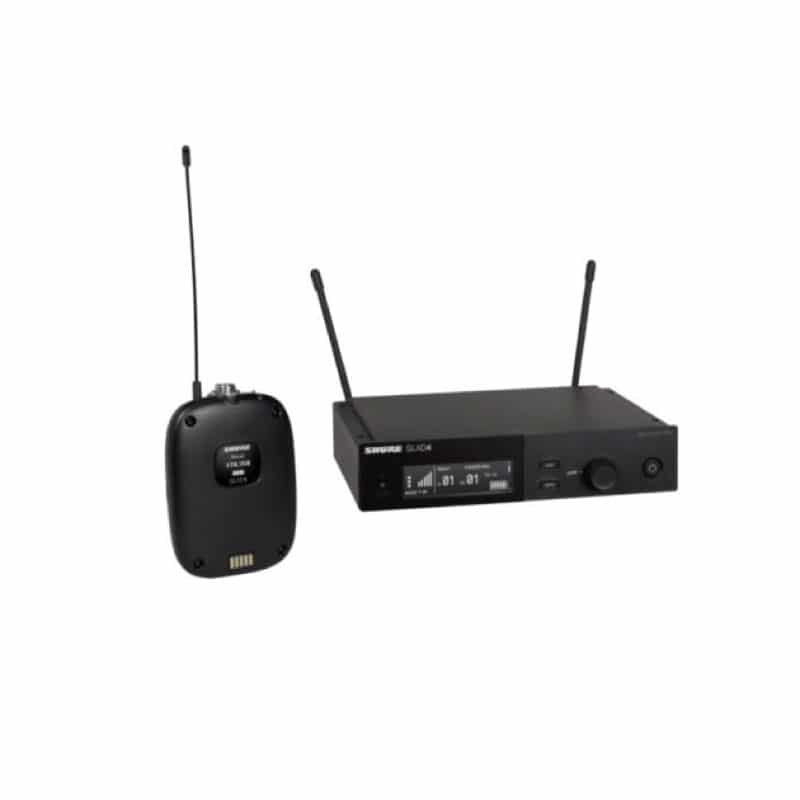

SLXD4 DIGITAL WIRELESS RECEIVER

SPECIFICATIONS
(SUBJECT TO CHANGE)

• Dimensions (H × W × D)
  1.65 × 7.76 × 5.98 in (42 × 197 × 152 mm)
• Weight
  1.8 lb (816 g) without antennas
• Housing
  Galvanized Steel
• Power Requirements
  15 VDC @ 600 mA
  Supplied by external power supply
  (tip positive)

RF INPUT

• Spurious Rejection
  >75 dB Typical
• Connector Type
  BNC
• Impedance
  50 Ω

AUDIO OUTPUT

• Gain Adjustment Range
  –18 to +42 dB in 1 dB steps
• Configuration
  1/4″ (6.35 mm): Balanced
  (Tip=audio +, Ring=audio –,
  Sleeve=ground)
  XLR: Balanced
  (1=ground, 2=audio +, 3=audio –)
• Impedance
  1/4″ (6.35 mm): 1.3 kΩ (670 Ω Unbalanced)
  XLR (line): 400 Ω (200 Ω Unbalanced)
  XLR (mic): 150 Ω
• Full Scale Output
  1/4″ (6.35 mm): +15 dBV differentially
  (+9 dBV single)
  XLR (LINE setting): +15 dBV
  XLR (MIC setting): –15 dBV
• Mic/Line Switch
  30 dB pad
• Phantom Power Protection
  1/4″ (6.35 mm): Yes
  XLR: Yes

NETWORKING

• Network Interface Single
  Port Ethernet 10/100 Mbps
• Network Addressing Capability
  DHCP or Manual IP address
• Maximum Cable Length
  100 m (328 ft)

SLXD1 DIGITAL WIRELESS BODYPACK TRANSMITTER

SPECIFICATIONS
(SUBJECT TO CHANGE)

• Battery Type
  Rechargeable Li-Ion
  or 1.5 V AA batteries
• Dimensions
  (H × W × D)
  3.86 × 2.68 × 1.0 in
  (98 × 68 × 25.5 mm)
• Weight
  3.1 oz (89 g)
• Housing
  PC/ABS

AUDIO INPUT

• Connector
  4-Pin male mini connector (TA4M)
• Configuration
  Unbalanced
• Impedance
  1 MΩ
• Maximum Input Level 8.2 dBV
  (2.57 Vrms, 7.27 Vpp)
• Preamplifier Equivalent Input Noise (EIN)
  –118 dBV

RF OUTPUT

• Antenna Type
  1/4 Wave
• Occupied Bandwidth
  <200 kHz
• Modulation Type
  Shure Propietary Digital
• Power
  1 mW/10 mW
  Varies by region.
  See Frequency Range and
  Output Power Table.
