SHURE SVX288TH/PG58 ชุดไมค์ลอย มือถือคู่ แบบ UHF

สเปค

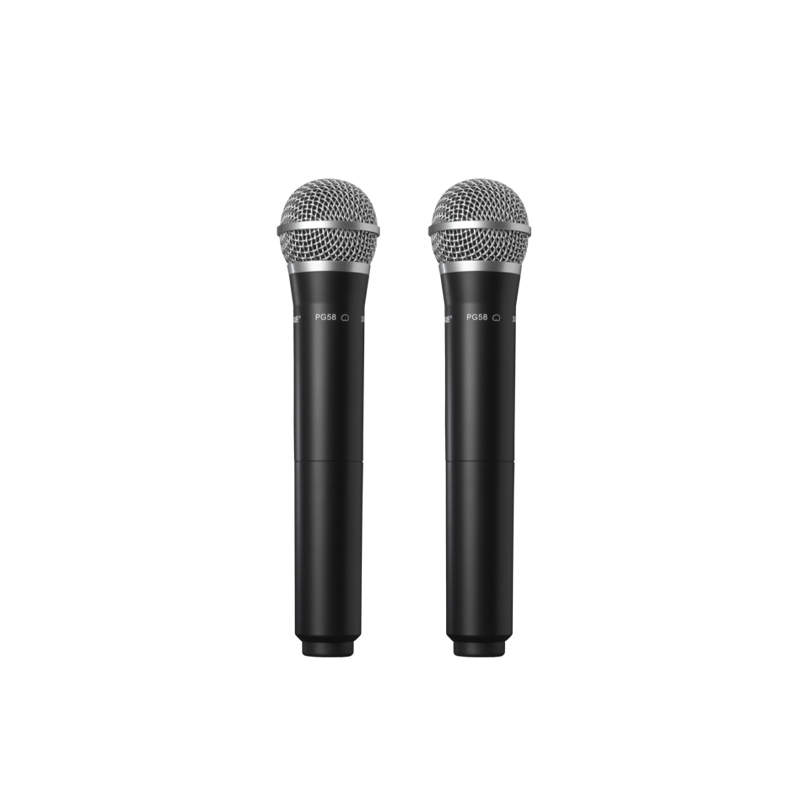

SHURE SVX2 Wireless Handheld Transmitter

The SVX Wireless Handheld Transmitter comes with a PG28 or PG58 microphone option.

Specifications :

• Transmitter Type: Handheld
• Dimensions: 254 mm X 51 mm diameter
• RF Output Power: 1
• Battery, endurance: 10 h
• Weight: 270 g

• Further technical specifications:

– Audio Input Level: –20 dBV maximumInput Impedance: 22 kΩ

– RF Output (dependent on applicable country regulations):

– HI power mode: 10 mW maximum

– LO power mode: 1 mW maximum

– Weight: 270 g (10.2 oz.)(without batteries)

– Housing: Molded ABS

– Power Requirements: 2 “AA” size alkaline or rechargeable batteries

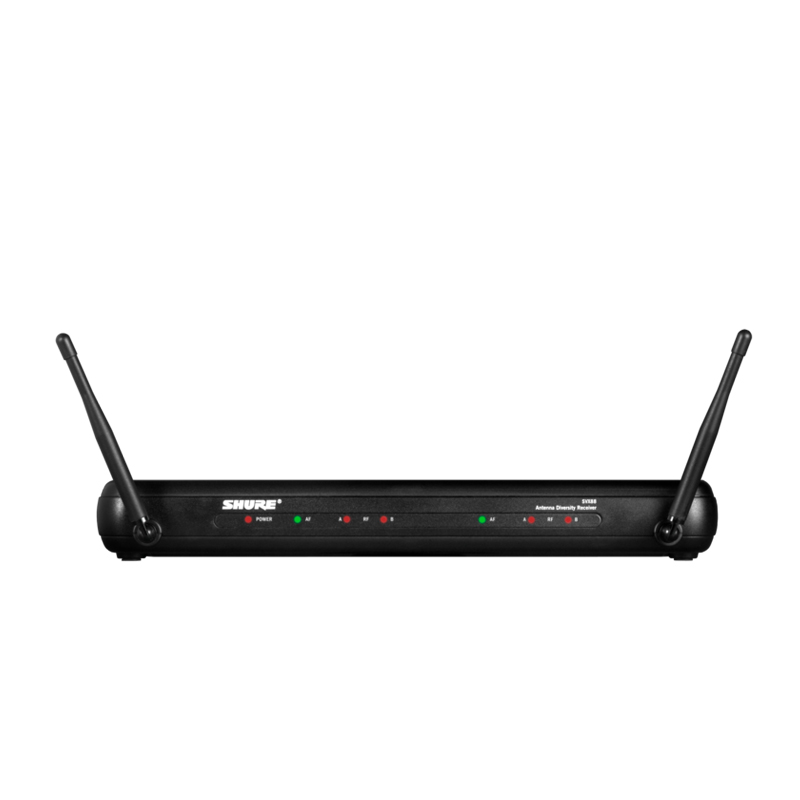

SHURE SVX88 Dual Diversity Receiver

Dual channel diversity receiver for use with Shure SVX Wireless systems.

Specifications :

• Power supply: 12 to 18 V DC @ 220 mA, supplied by external power supply
• Maximum output level: XLR connector into 100 kΩ load: -16 dBV, 6.35 mm (1/4”) connector into 100 kΩ load: -22 dBV mW

• Further specs :

– Dimensions: 32 mm X 168 mm X 104.5 mm (1.26 in. x 6.625 in. x 4.2 in.)

– Weight: 245 g (11.5 oz.)

– Housing: Molded ABS

– Audio Output Level (Ref. ±48 kHz deviation with 1 kHz tone):

– XLR connector into 100 kΩ load: -16 dBV (MIC)

– 6.35 mm (1/4”) connector into 100 kΩ load: -22 dBV (MIC)

Output Impedance :

– XLR connector: 600 Ω

– 6.35 mm (1/4”) connector: 600 Ω

– Sensitivity: –105 dBm for 12 dB SINAD, typical

– Image Rejection: >50 dBm, typical

– Power Requirements: 12 to 18 V DC @ 130 mA, supplied by external power supply
