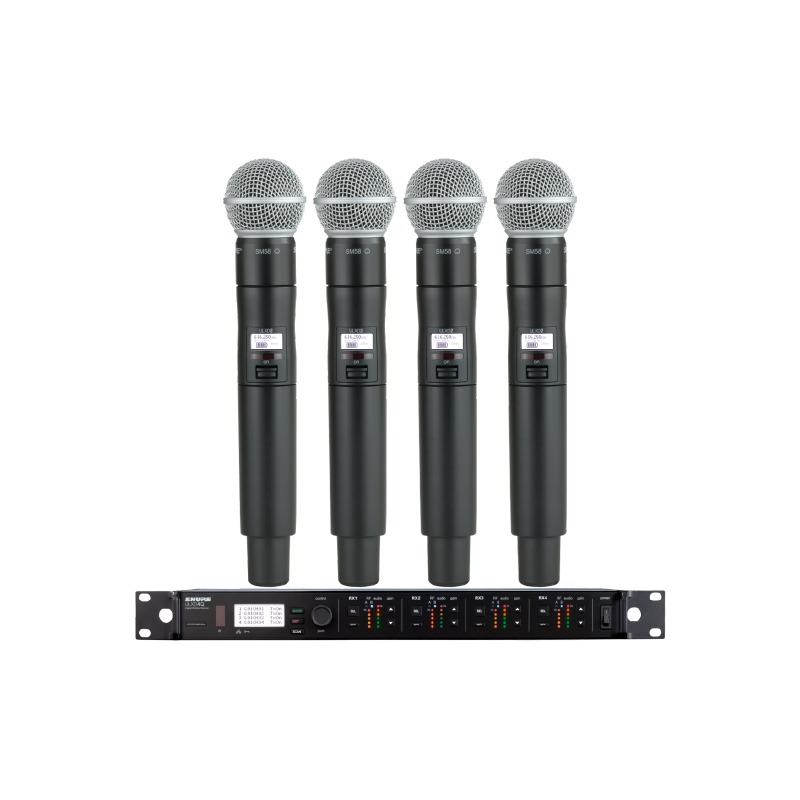

ชุดไมค์ลอย 4 ตัว พร้อมเครื่องรับ 4 ชาแนล แบบ UHF SHURE ULXD24QA/SM58 Digital Wireless Systems เหมาะสำหรับ งาน Broadcast งานแสดงสด บนเวที งาน AV Conference จากแบรนด์ SHURE
SHURE ULXD24QA/SM58
Digital Wireless Systems
ULX-D DIGITAL WIRELESS SYSTEMS
ไมโครโฟนไร้สาย สำหรับงานขนาดใหญ่ ที่ต้องการความมั่นใจสูง เหมาะสำหรับ งาน Broadcast งานแสดงสด บนเวที งาน AV Conference ขององค์กรขนาดกลาง ไปจนถึงขนาดใหญ่ เครื่องรับมี 3 แบบ Single Channel, Dual Cahnnel และ Quad Channel รองรับฟังก์ชั่นการเข้า รหัส AES-256 Encryption เพื่อความปลอดภัย ของข้อมูล มีฟังก์ชั่น High-Density Mode สำหรับขยายช่องสัญญาณความถี่ใช้งานให้เพิ่มมากยิ่งขึ้น ในรุ่น Dual Channel และ Quad Channel สามารถส่ง Output ในรูปแบบ Dante Digital Audio ได้ สามารถใช้ แบตเตอรี่ได้ 2 ชนิด อัลคาไลน์ AA 2 ก้อน และแบตเตอรี่ชนิดลิเธียมไอออน จาก Shure 900A มาพร้อมกับย่านความถี่ทั้ง VHF และ UHF ให้เลือก 3 ย่าน และถ้าเปิดใช้งาน High-D (ระยะใช้งานจะน้อยลง)
คุณสมบัติ
ULXD2
Wireless Handheld Transmitter
- หน้าจอ LCD แสดงสถานะ และเมนูการใช้งาน
- เลือกปรับกำลัง 1 mW, 10mW และ 20 mW
- แบตเตอรี่อัลคาไลน์ AA 2 ก้อน ใช้งานได้ 8 ชั่วโมง
- แบตเตอรี่ลิเธียมไอออน SB900A ใช้งานได้ 9 ชั่วโมง
ULXD4A / ULXD4DA / ULXD4QA
Single Channel / Dual Channel / Quad Channel Diversity Receiver
- หน้าจอ LCD แสดงเมนูการใช้งนความละเอียดสูง
- LED แสดงสถานะระดับสัญญาณ Audio และ RF
- ปุ่มควบคุม และการเข้าถึงเมนูการใช้งาน
- ฟังก์ชั่นการเข้ารหัส AES 256-bit Encryption
- Ethernet Network
- ฟังก์ชั่น High Density Mode
- เสาอากาศแบบ Diversity ถอดเข้าออกได้
- Dual Channel และ Quad Channel sองรัu Dante digital networked
สเปค
SPECIFICATIONS
- RF Carrier Range
174–216 MHz, 470–865 MHz, 1492–1525 MHz, 1785–1805 MHz
Note: Varies by region (See Frequency Range and Ouput Power table) - Working Range
100 m (328 ft)
Note: Actual range depends on RF signal absorption, reflection and interference. - RF Tuning Step Size
25 kHz, varies by region - Image Rejection
>70 dB, typical - RF Sensitivity
-98dBm at 10-5 BER - Latency
<2.9 ms - Audio Frequency Response
ULXD1: 20 Hz – 20 kHz (±1 dB) ULXD2: 30 Hz – 20 kHz (±1 dB)
Note: Dependent on microphone type - Audio Dynamic Range System Gain @ +10
XLR Analog Output: >120 dB, A-weighted
Dante Digital Output (Dual and Quad receivers): 130 dB (typical), A-weighted - Total Harmonic Distortion
−12 dBFS input, System Gain @ +10
<0.1% - System Audio Polarity
Positive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin 3 of XLR output) and the tip of the 6.35 mm (1/4-inch) output. - Operating Temperature Range
−18 °C (0 °F) to 50 °C (122 °F) Note: Battery characteristics may limit this range. - Storage Temperature Range
−29°C (−20°F) to 74°C (165°F) Note: Battery characteristics may limit this range.
ULXD4Q
- Dimensions
44 mm x 482 mm x 274 mm (1.73 in. x 18.97 in. x 10.79 in.), H x W x D - Weight
3.45 Kg (7.6 lbs), without antennas - Housing
Steel; Extruded Aluminum - Power Requirements
100 to 240 V AC, 50–60 Hz, 0.32 A max.
RF OUTPUT
- Spurious Rejection
>80 dB, typical - Connector Type
BNC - Impedance
50 Ω - Bias Voltage
12 – 13 V DC, 150 mA maximum, per antenna
AUDIO INPUT
- Gain Adjustment Range
–18 to +42 dB in 1 dB steps (plus Mute setting) - Configuration
XLR: Balanced
(1=ground, 2=audio +, 3=audio –) - Impedance
100 Ω - Full Scale Output
LINE setting= +18 dBV,
MIC setting= –12 dBV - Mic/Line Switch
30 dB pad - Phantom Power Protection
Yes
CASCADE OUTPUT
- Connector Type
BNC: For connection of 1 additional receiver - Configuration
Unbalanced, passive - Impedance
50 Ω - Insertion Loss
0 dB
ULXD2
- Gain Offset Range
0 to 21 dB (in 3 dB steps) - Battery Type
Shure SB900A Rechargeable Li-Ion or LR6 AA batteries 1.5 V
Battery Runtime @ 10 mW Shure SB900A: up to 9
Alkaline: 8 hours
See Battery Runtime Chart - Dimensions
256 mm × 51 mm (10.1 in. × 2.0 in.) L × Dia.
V50, V51 Bands: 278 mm × 51 mm (10.9 in. × 2.0 in.) L × Dia. - Weight
340 g (12.0 oz.), without batteries
V50, V51 Bands: 348 g (12.3 oz.), without batteries - Housing
Machined aluminum
AUDIO INPUT
- Configuration
Unbalanced - Maximum Input Level 1 kHz at 1% THD
145 dB SPL (SM58), typical
Note: Dependent on microphone type - Preamplifier Equivalent Input Noise (EIN) System Gain Setting ≥ +20
120 dBV, A-weighted, typical
RF OUTPUT
- Antenna Type
Integrated Single Band Helical - Occupied Bandwidth
<200 kHz - Modulation Type
Shure Proprietary Digital - Power
1 mW, 10 mW, 20 mW
See Frequency Range and Ouput Power table, varies by region
