ตู้ลำโพง SOUNDVISION VS 8 2 ทาง ขนาด 8 นิ้ว HF:40 วัตต์, LF:250 วัตต์ VS 8 PASSIVE FULL RANGE SPEAKER จากแบรนด์ SOUNDVISION

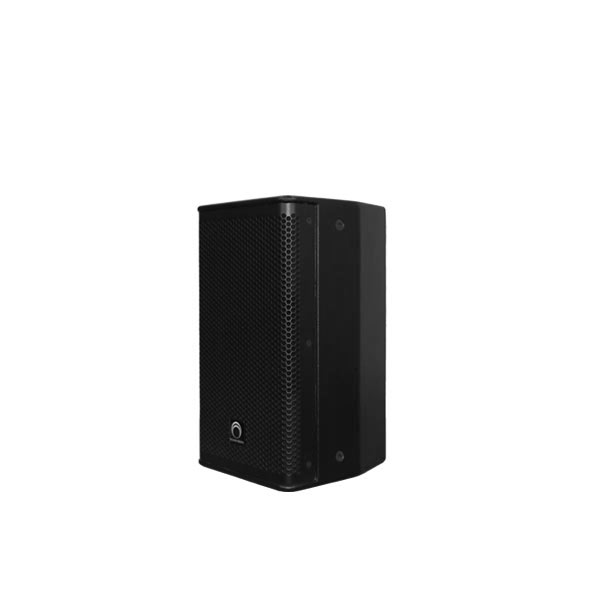

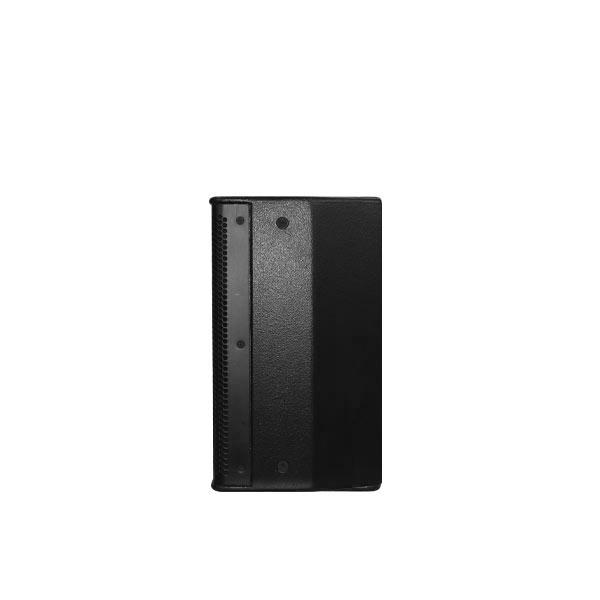

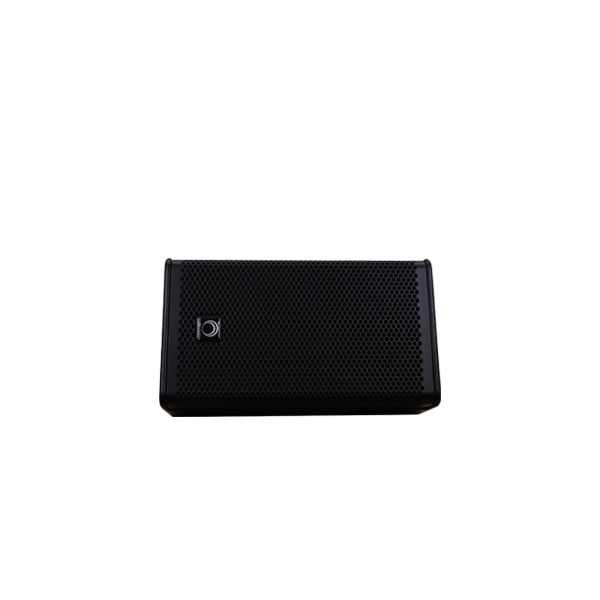

SOUNDVISION VS 8 SINGLE 8″ PASSIVE FULL RANGE SPEAKER
VS 8 is single 8” passive two way full range at 8Ω. Rather than a normal coaxial driver, utilizing a creative design of coaxial structure – a 1.4”(36MM voice coil )with 80° x 80° horn is placed onto a 8” (50MM voice coil)symmetrically, which makes VS 8 perform perfectly with not only accurate sound image and high fidelity but also powerful dispersion.

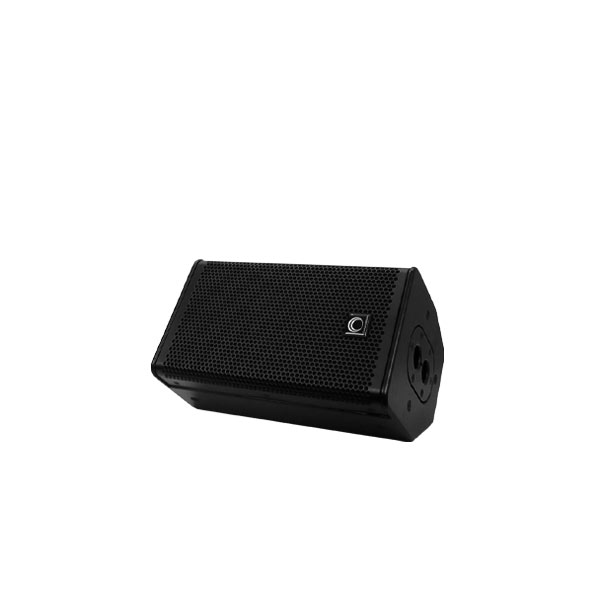

Thanks the multi-angle enclosure, VS 8 is suitable for use as stage monitor.The 4 nylon strips offer protection to the enclosure away from scratches.
Meanwhile,VS 8 comes up with various rigging and mounting options to meet the needs of most kinds of touring and installation applications.
VS 8 Can be pole-mounted on bass speakers (VS 15B | VS 15BA) as PA or satellite system.
ซีรี่ย์ Versa Multipurpose รองรับการใช้งานได้มากมายสำหรับ :
- คอนเสิร์ต,สถานบันเทิง
- ห้องประชุม-สัมมนาขนาดใหญ่
- โรงแรม
- สโมสรสุขภาพ
- ศูนย์การค้าพลาซ่า
- พื้นที่อเนกประสงค์
Frequency Response | 90Hz–20kHz(±3dB) |
70Hz–20KHz(-10dB) | |
LF Driver | 1 x 8″ woofer(75mm voice coil), Ferrite |
HF Driver | 1 x 1.75″(1″ throat) Ferrite compression diver(36mm voice coil) |
Nominal Coverage | 80° x 80° |
Impedance | 8Ω |
Sensitivity(@1w/1m) | 93dB |
Power Rating | HF:40W, LF:250W |
Max. SPL | 117dB SPL, 123dB peak |
Dimensions (H x W x D) | 430 x 240 x 256 mm |
Weight | 11 kg |
Riggings | 7 x M8 points, dual pole mount |

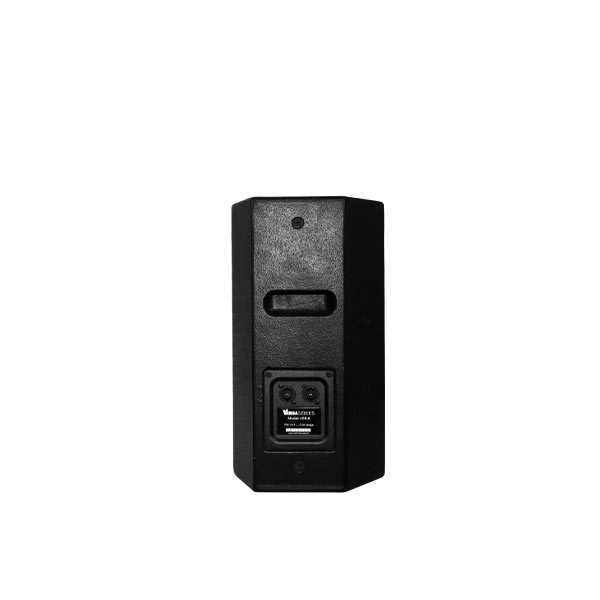

Connection | 2 x Neutrik NL4MP, 1+1- |
Enclosure | 15mm, 18mm multilayer plywood |
Finish | Black water-based paint |
Grille | Black steel mesh + acoustic transparent cloth |
