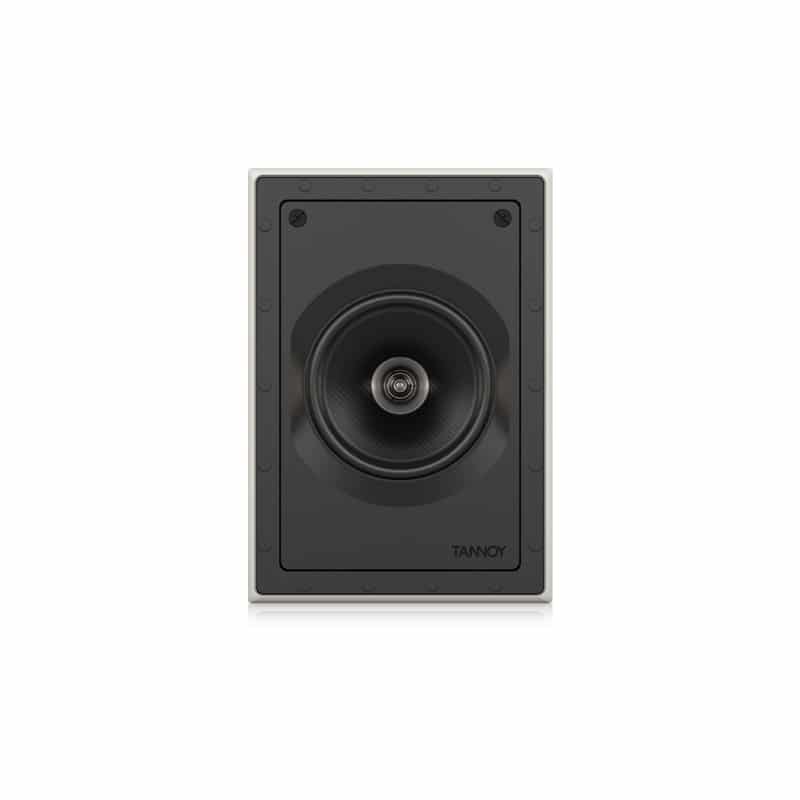

TANNOY QCI 6DC IW ลำโพงติดผนัง ขนาด 6 นิ้ว 280 วัตต์

฿12,733 (รวม VAT 7% แล้ว)

  • เช็ค Stock และราคาสินค้า กับเจ้าหน้าที่ก่อนสั่งซื้อทุกครั้ง
  • รับสินค้าภายใน 3 - 7 วัน (ขึ้นอยู่กับที่อยู่จัดส่งของลูกค้า)
  • สงวนสิทธิ์การเปลี่ยนแปลงข้อมูล ราคา ไม่แจ้งให้ทราบล่วงหน้า
  • สงวนสิทธิ์การรับผิดชอบเนื่องจากการพิมพ์ผิดพลาดต่างๆ

ลำโพงติดผนัง TANNOY QCI 6DC IW ขนาด 6 นิ้ว 280 วัตต์ ไดรเวอร์ Dual Concentric ขนาด 6 “ที่มีทิศทางคงที่ของ Tannoy point-source จากยี่ห้อ TANNOY

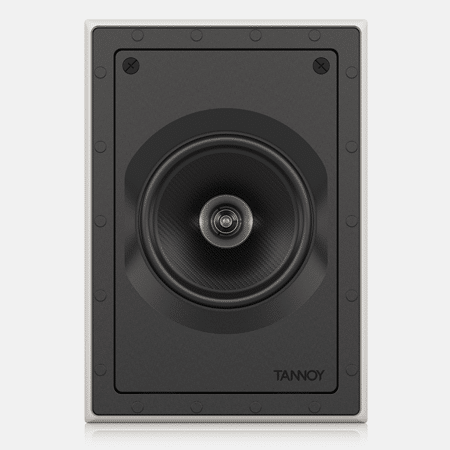

TANNOY QCI 6DC IW
High-Performance 6″ Dual Concentric In-Wall Loudspeaker

Audio Evolution

For over 90 years Tannoy has been a leader in the pursuit of high-fidelity sound. The most demanding audio professionals around the world rely on Tannoy loudspeakers to create music and sound we love to hear and feel. From recording and mastering engineers to broadcasters and film score composers Tannoy loudspeakers are trusted for their proven reliability, true to source accuracy and ability to reproduce sound the way the artist intended. There really is no substitute for Tannoy. Trusted by music creatives around the world, installed in the world’s best venues and locations, perfect for listening at home.

The QCI range is designed with the same high standards and attention to detail as our flagship professional and hi-fi loudspeakers. They deliver high fidelity sound that is extremely natural and detailed. They have the same sonic signature and can be easily mixed and matched to make a stereo, surround or multi-room audiophile system.

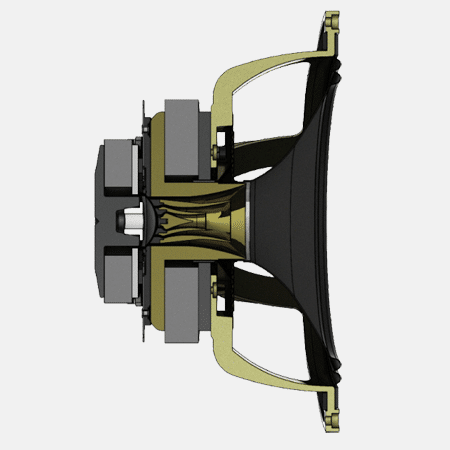

Tannoy Dual Concentric

Designed and engineered it the UK, The full range QCI 6DC IW comprises a single 150mm (6.00”) driver with a glass fibre cone and high-excursion rubber surround. Capable of handling up to 280 Watts the QCI 6DC IW is optimised for in-wall installation and is extremely easy to drive and suits a wide variety of amplifiers and applications. The QCI 6DC IW features our legendary and exclusive Tannoy Dual Concentric Driver. With over seven decades of continuous refinement the Dual Concentric driver delivers a near-perfect point source. The high frequency driver is located centrally dramatically improving time coherence. The benefits are outstanding tonal accuracy – faithful to the original material, better controlled dispersion and a more natural sound with a wider listening sweet-spot.

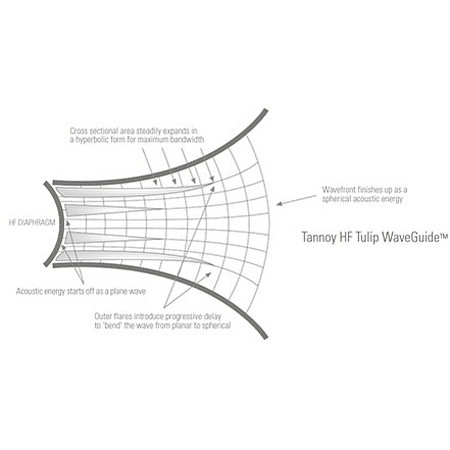

Advanced Tulip Waveguide

Performance is further enhanced by the implementation of a highly innovative point source Tulip Waveguide with symmetrical dispersion, which provides a broad soundstage with remarkably focused and accurate stereo imaging.

Elegant Simplicity

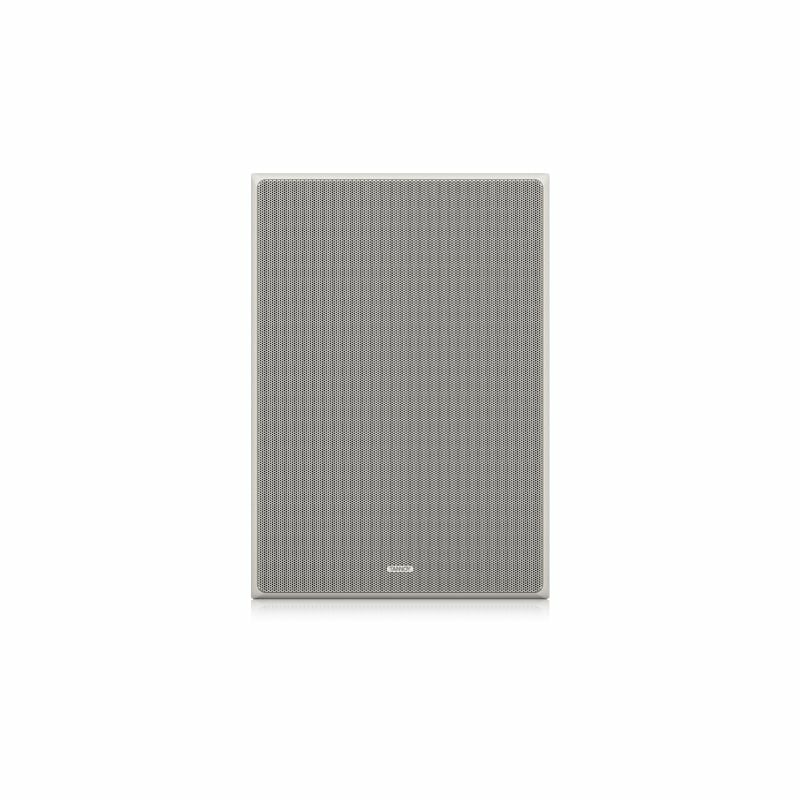

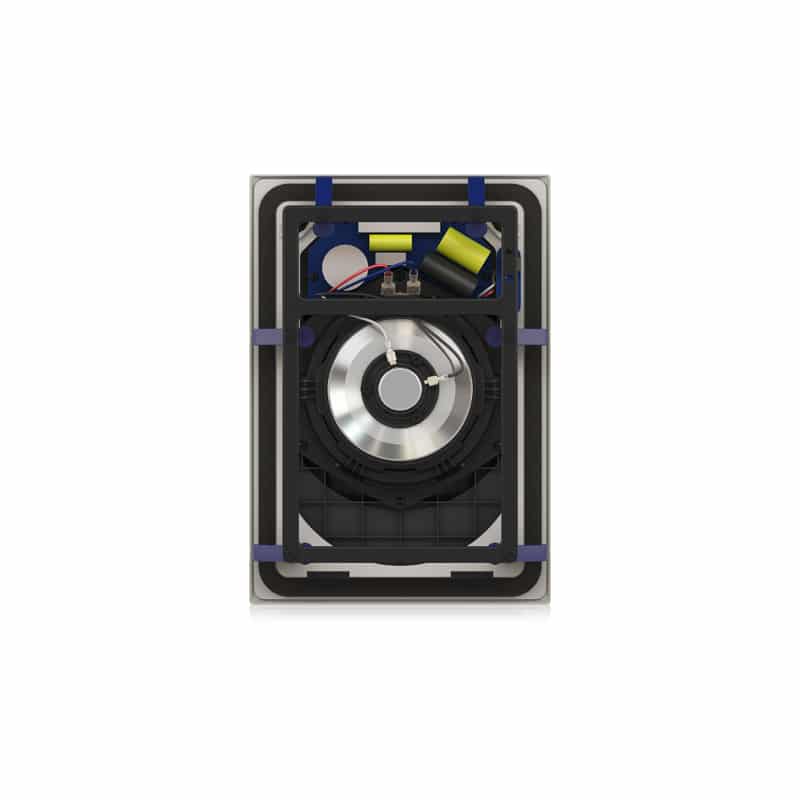

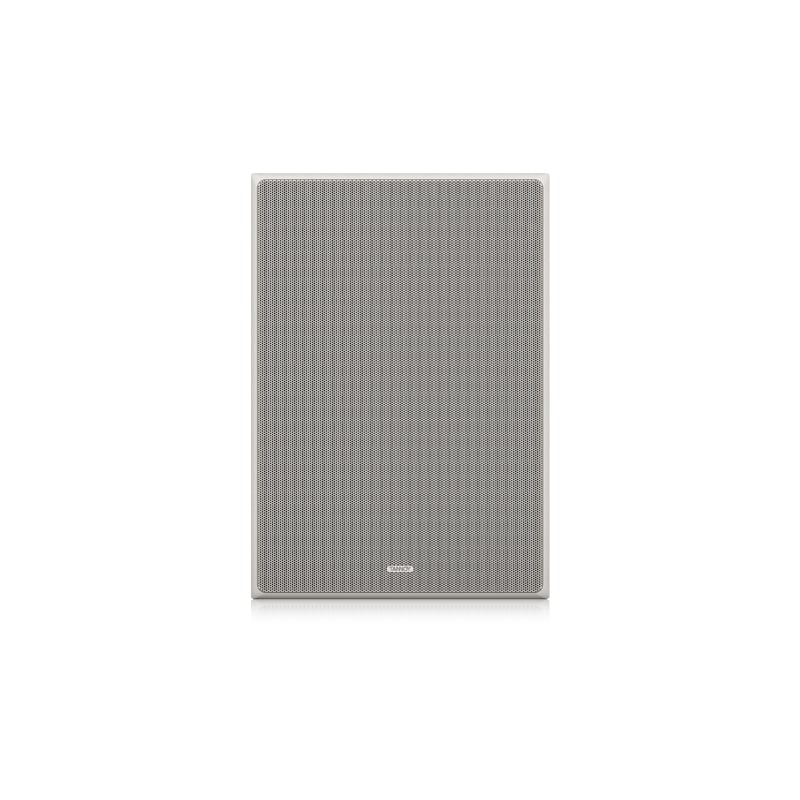

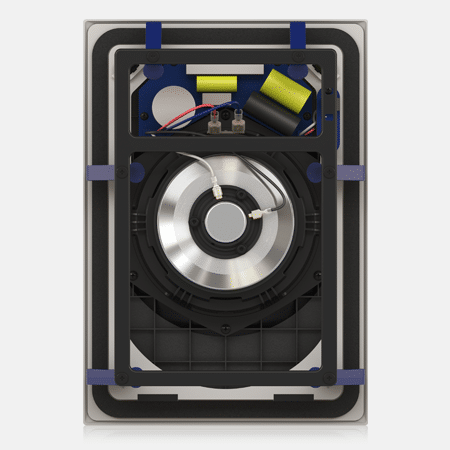

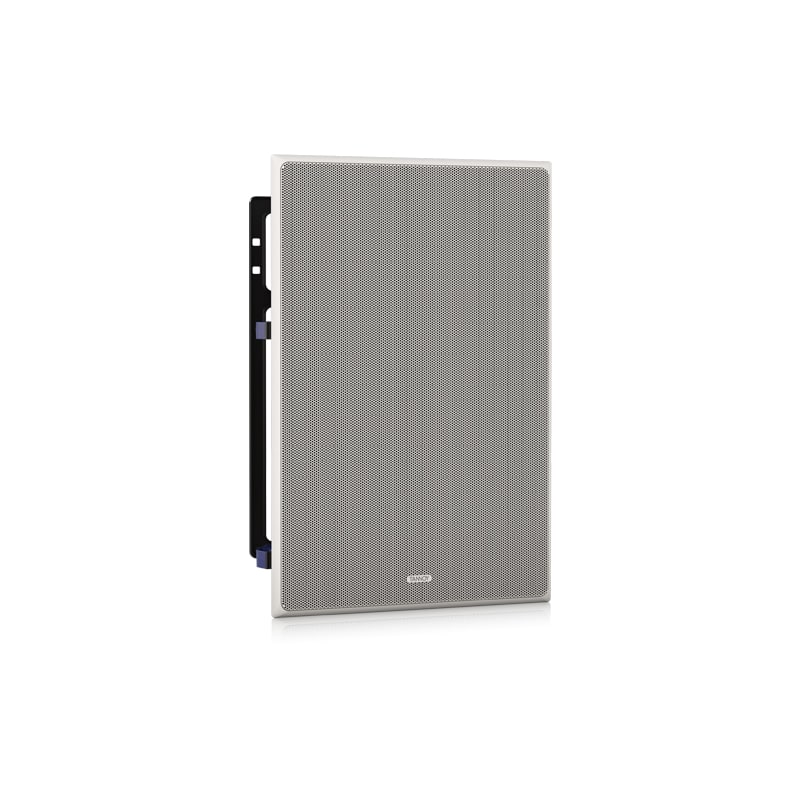

A powder-coated perforated UV resistant steel mesh grill protects from dust and can be removed and painted to match any décor. Unlike many in- wall loudspeakers QCI 6DC IW has an extremely thin bezel for unobtrusive installation. Round and square baffles are included, an innovative self-aligning clamping system makes the single integrated unit easy to install.

  • High-performance loudspeaker for in-wall installation applications
  • 6″ Dual Concentric driver featuring Tannoy point-source constant directivity
  • Tulip Waveguide for a smooth, uniform frequency response over a wide area of coverage unachievable with discrete, two-way designs
  • Glass fibre cone with high-excursion, rubber surround for high power handling
  • 70 Watts continuous, 280 Watts peak power
  • Extremely thin bezel for discreet installation
  • Integrated single unit construction for easy installation
  • Semi matt white finish fits unobtrusively in any environment
  • Powder coated UV resistant perforated steel mesh grille with dust protection
  • Removable grille for custom painting
  • Self-aligning clamp mounting system
  • Removable Tannoy grille badge
  • Tannoy – Over 90 years of British sound heritage and innovation

Performance

Frequency response (±3 dB) 50 Hz – 20 kHz
Frequency response (-10 dB) 30 Hz – 20 kHz
Sensitivity (1 W @ 1m) 85 dB
Directivity factor (Q) 4.8 averaged 1 kHz to 10 kHz
Directivity index (DI) 6.8 averaged 1 kHz to 10 kHz

Power handling (IEC)

Average 70 W
Programme 140 W
Peak 280 W
Recommended amplifi er power 210 W @ 8 Ω
Nominal Impedance (Lo Z) 8 Ω
Rated maximum SPL (1 m, Lo Z) 107 dB
Average 104 dB
Peak 110 dB
Crossover point 1.6 kHz

Coverage angles

500 Hz 180° horizontal, 160° vertical
1 kHz 141° horizontal, 144° vertical
2 kHz 119° horizontal, 134° vertical
4 kHz 92° horizontal, 87° vertical

Transducers

Low frequency diameter/material/type 165.5 mm (6″)
High frequency diameter/material/type 25.4 mm (1)

Physical

Back can Option 1: BACK CAN IW: Steel, powder coating
Baffle Reflex loaded UL94 V-0 rated ABS
Grille Stee l, with weather resistant coating
Safety features
Clamping design Security toggle clamp
Connectors Phoenix Contact terminal block
Dimensions (HxWxD) 315 x 221 x 105 mm (12.4 x 8.7 x 4.1″)
Bezel dimensions Square: 315 x 221 mm (12.4 x 8.7″)
Mounting depth 91.7 mm (3.6″)
Hole cutout dimensions 299 x 203 mm (11.8×8″)
Net weight 2.9 kg (6.4 lbs)
Packed quantity
Included accessories Grille, paint mask, cutout template
Optional accessories Option 1: BACK CAN IW

Option 2: PMK 6 IW

น้ำหนัก 2.9 กก.
ขนาด 105 × 221 × 315 มิลลิเมตร
