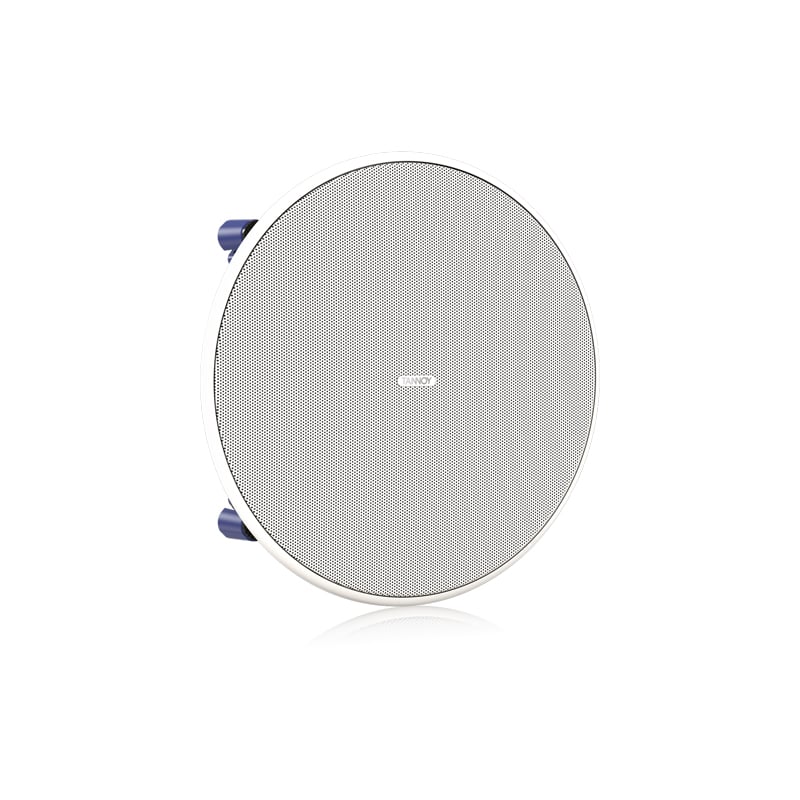

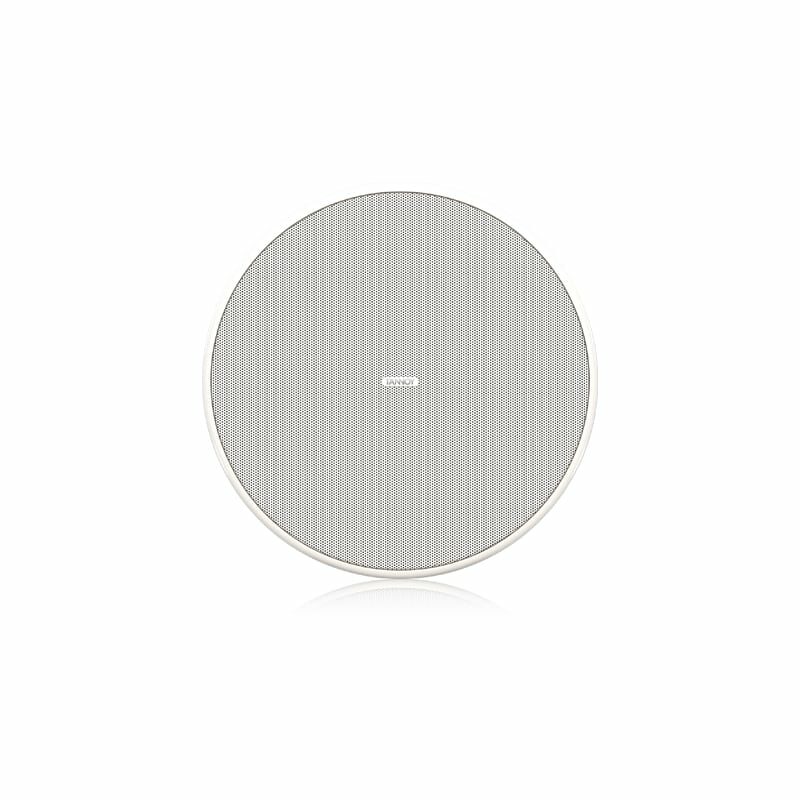

TANNOY QCI 6DC ลำโพงติดเพดาน ขนาด 6 นิ้ว 280 วัตต์

฿7,490 (รวม VAT 7% แล้ว)

  • เช็ค Stock และราคาสินค้า กับเจ้าหน้าที่ก่อนสั่งซื้อทุกครั้ง
  • รับสินค้าภายใน 3 - 7 วัน (ขึ้นอยู่กับที่อยู่จัดส่งของลูกค้า)
  • สงวนสิทธิ์การเปลี่ยนแปลงข้อมูล ราคา ไม่แจ้งให้ทราบล่วงหน้า
  • สงวนสิทธิ์การรับผิดชอบเนื่องจากการพิมพ์ผิดพลาดต่างๆ

ลำโพงติดเพดาน TANNOY QCI 6DC ขนาด 6 นิ้ว 280 วัตต์ ไดรเวอร์ Dual Concentric ขนาด 6 นิ้วที่มีเทคโนโลยี Tannoy Omnimagnet จากยี่ห้อ TANNOY

TANNOY QCI 6DC
High-Performance 6″ Dual Concentric In-Ceiling Loudspeaker

Audio Evolution

For over 90 years Tannoy has been a leader in the pursuit of high-fidelity sound. The most demanding audio professionals around the world rely on Tannoy loudspeakers to create music and sound we love to hear and feel. From recording and mastering engineers to broadcasters and film score composers Tannoy loudspeakers are trusted for their proven reliability, true to source accuracy and ability to reproduce sound the way the artist intended. There really is no substitute for Tannoy. Trusted by music creatives around the world, installed in the world’s best venues and locations, perfect for listening at home.

The QCI range is designed with the same high standards and attention to detail as our flagship professional and hi-fi loudspeakers. They deliver high fidelity sound that is extremely natural and detailed. They have the same sonic signature and can be easily mixed and matched to make a stereo, surround or multi-room audiophile system.

Tannoy Dual Concentric

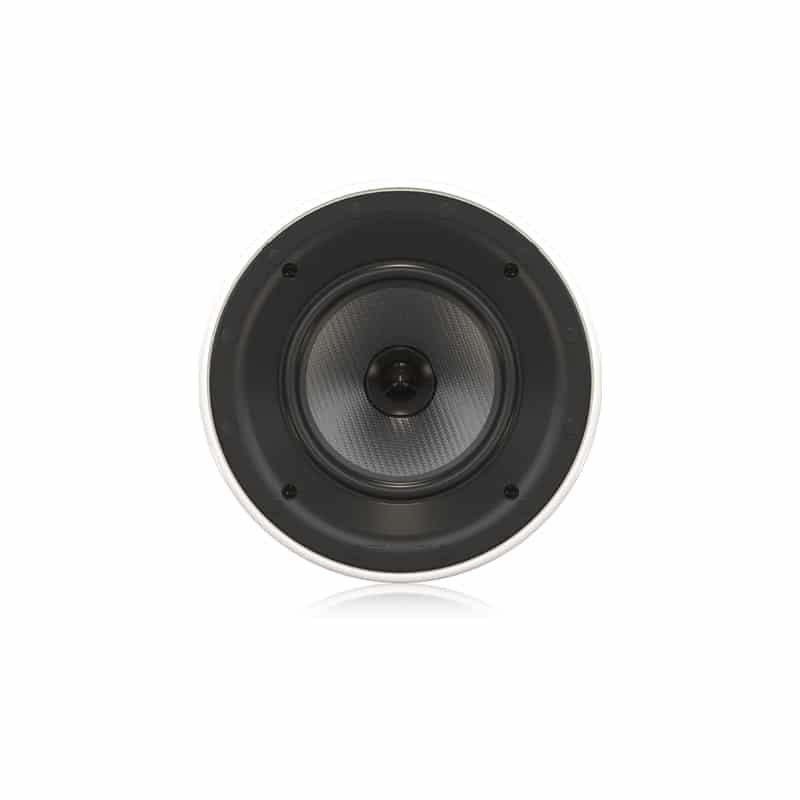

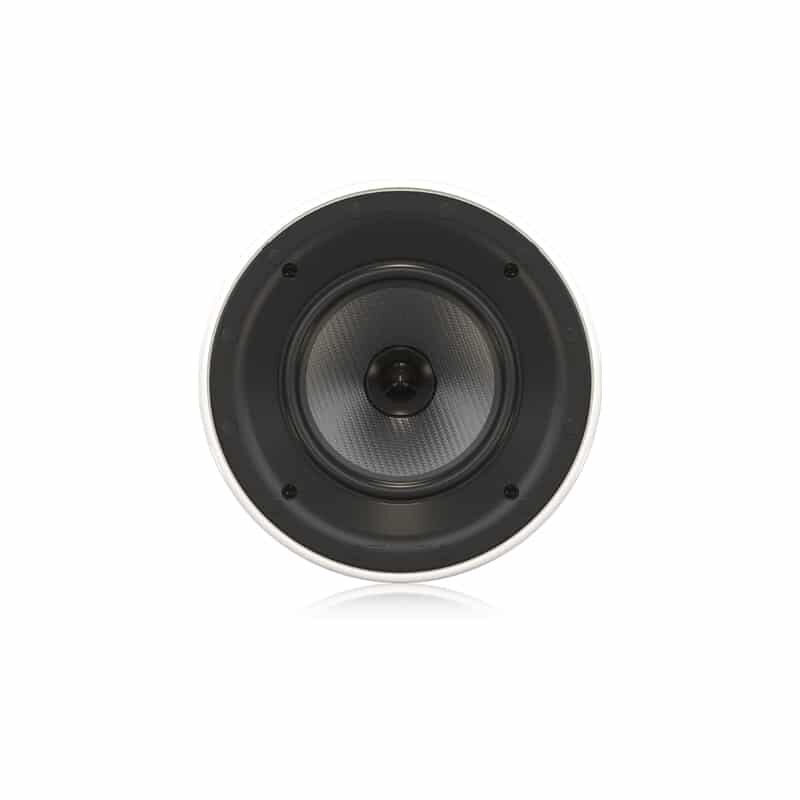

Designed and engineered it the UK, The full range QCI 6DC comprises a single 150mm (6.00”) driver with a glass fibre cone and high-excursion rubber surround. Capable of handling up to 280 Watts the QCI 6DC is extremely easy to drive and suits a wide variety of amplifiers and applications.

The QCI 6DC features our legendary and exclusive Tannoy Dual Concentric Driver with Omnimagnet technology. With over seven decades of continuous refinement, the Dual Concentric driver delivers a near-perfect point source. The high-frequency driver is located centrally dramatically improving time coherence. The benefits are outstanding tonal accuracy – faithful to the original material, better-controlled dispersion and a more natural sound with a wider listening sweet-spot. The introduction of the Omnimagnet configuration allows the high-frequency driver to be placed even closer to the acoustic centre of the Bass / Mid-range driver which further improves driver integration and time alignment.

Torus Ogive Waveguide

Performance is further enhanced by the implementation Tannoy’s highly innovative Torus Ogive Waveguide which allows rapid wavefront expansion further improving high frequency directivity for a remarkably focused image placement.

Beautifully Elegant

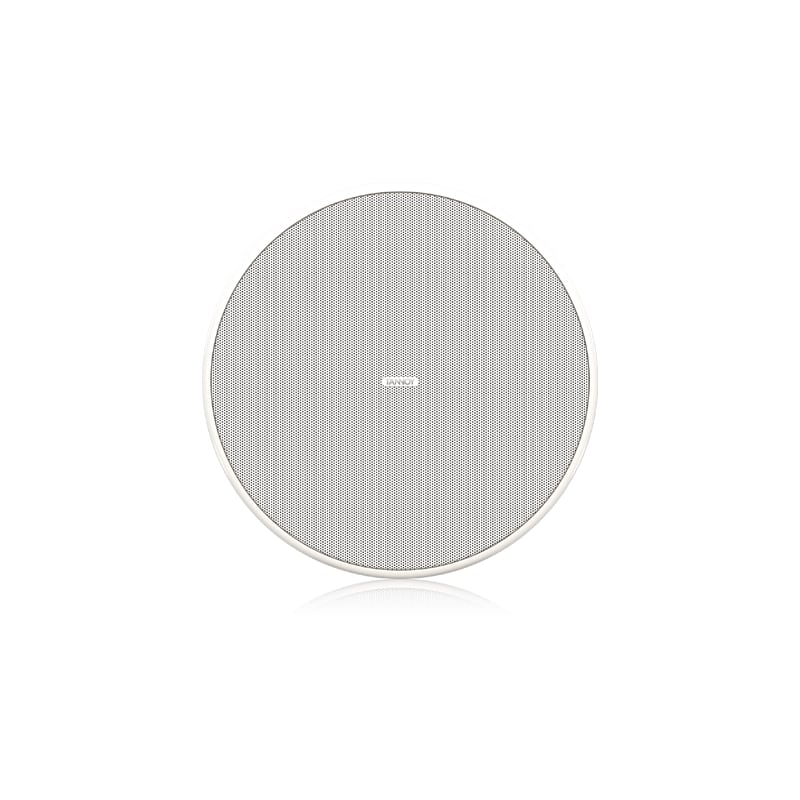

A powder-coated perforated UV resistant steel mesh grill protects from dust and can be removed and painted to match any décor. Unlike many in-ceiling loudspeakers QCI range has an extremely thin bezel for unobtrusive installation. Round and square baffles are included, an innovative self-aligning clamping system makes the single integrated unit easy to install.

คุณสมบัติ

  • High-performance loudspeaker for ceiling installation applications
  • 6″ Dual Concentric driver featuring Tannoy Omnimagnet technology
  • Torus Ogive waveguide for improved directivity
  • Glass fibre cone with high-excursion, rubber surround for high power handling
  • 70 Watts continuous, 280 Watts peak power
  • Extremely thin bezel for discreet installation
  • Includes round & square baffles for versatile applications
  • Integrated single unit construction for easy installation
  • Semi matt white finish fits unobtrusively in any environment
  • Powder coated UV resistant perforated steel mesh grilles with dust protection
  • Removable grilles for custom painting
  • Self-aligning clamp mounting system
  • Optional Tannoy logo grille badge included
  • Tannoy – 90 years of British sound heritage and innovation
น้ำหนัก 2.6 กก.
ขนาด 241 × 241 × 98 มิลลิเมตร
ยี่ห้อ

สเปค

Processing

Frequency response (±3 dB) 55 Hz – 20 kHz
Frequency response (-10 dB) 35 Hz – 20 kHz
Sensitivity (1 W @ 1m) 86 dB
Nominal dispersion 90° conical  @ -6 dB point
Power handling (IEC)
Average 70 W
Programme 140 W
Peak 280 W
Recommended amplifier power 210 W @ 8 Ω
Nominal Impedance (Lo Z) 8 Ω

Rated maximum SPL (1 m, Lo Z)

Average 104 dB
Peak 110 dB
Crossover point 2 kHz

Transducers

Low frequency diameter/ material/type 165.5 mm (6″)
High frequency diameter/ material/type 25.4 mm (1″)

Physical

Back can (BACK CAN S): Steel, with powder coating
Baffle Reflex loaded UL94 V-0 rated ABS
Grille Steel, with weather resistant coating
Safety features N/A
Clamping design Security toggle clamp
Connectors Phoenix Contact terminal block
Dimensions
Dimensions (HxWxD) 98 x 241 x 241 mm(3.9 x 9.5 x 9.5”)
Bezel dimensions 241 x 241 mm (9.5 x 9.5”)
Mounting depth 90 mm (3.5”)
Hole cutout dimensions 202 mm (8”)
Net weight 2.6kg
Included accessories Circular baffle, square baffle, circular grille, square grille,circular paint mask, square paint mask, cutout template, screws(4 pcs)
Optional accessories Option 1: BACK CAN S

Option 2: PMK 6″

Packed quantity 1

ดาวน์โหลด

สเปค
รหัสสินค้า: TANNOY QCI 6DC หมวดหมู่: , ป้ายกำกับ:
