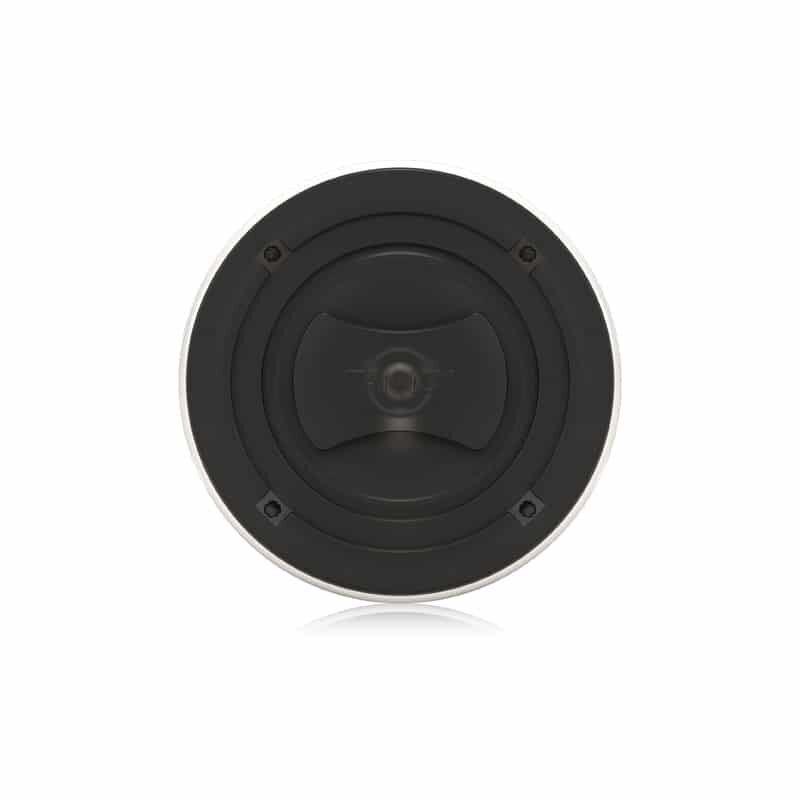

TANNOY QCI 8DC ลำโพงติดเพดาน ขนาด 8 นิ้ว 320 วัตต์

฿9,416 (รวม VAT 7% แล้ว)

  • เช็ค Stock และราคาสินค้า กับเจ้าหน้าที่ก่อนสั่งซื้อทุกครั้ง
  • รับสินค้าภายใน 3 - 7 วัน (ขึ้นอยู่กับที่อยู่จัดส่งของลูกค้า)
  • สงวนสิทธิ์การเปลี่ยนแปลงข้อมูล ราคา ไม่แจ้งให้ทราบล่วงหน้า
  • สงวนสิทธิ์การรับผิดชอบเนื่องจากการพิมพ์ผิดพลาดต่างๆ

ลำโพงติดเพดาน TANNOY QCI 8DC ขนาด 8 นิ้ว 320 วัตต์ ไดร์เวอร์ Dual Concentric ขนาด 8 นิ้วพร้อมเทคโนโลยี Tannoy Omnimagnet จากยี่ห้อ TANNOY

TANNOY QCI 8DC
High-Performance 8″ Dual Concentric In-Ceiling Loudspeaker

Audio Evolution

For over 90 years Tannoy has been a leader in the pursuit of high-fidelity sound. The most demanding audio professionals around the world rely on Tannoy loudspeakers to create music and sound we love to hear and feel. From recording and mastering engineers to broadcasters and film score composers Tannoy loudspeakers are trusted for their proven reliability, true to source accuracy and ability to reproduce sound the way the artist intended. There really is no substitute for Tannoy. Trusted by music creatives around the world, installed in the world’s best venues and locations, perfect for listening at home.

The QCI range is designed with the same high standards and attention to detail as our flagship professional and hi-fi loudspeakers. They deliver high fidelity sound that is extremely natural and detailed. They have the same sonic signature and can be easily mixed and matched to make a stereo, surround or multi-room audiophile system.

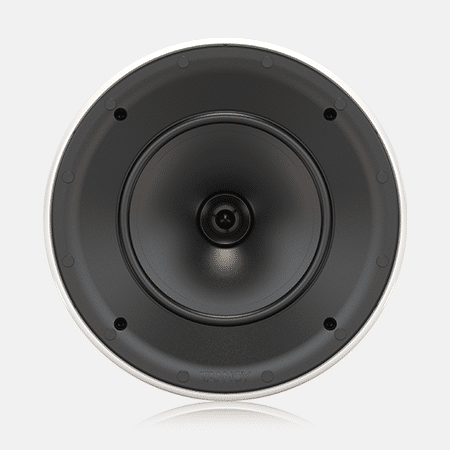

Tannoy Dual Concentric

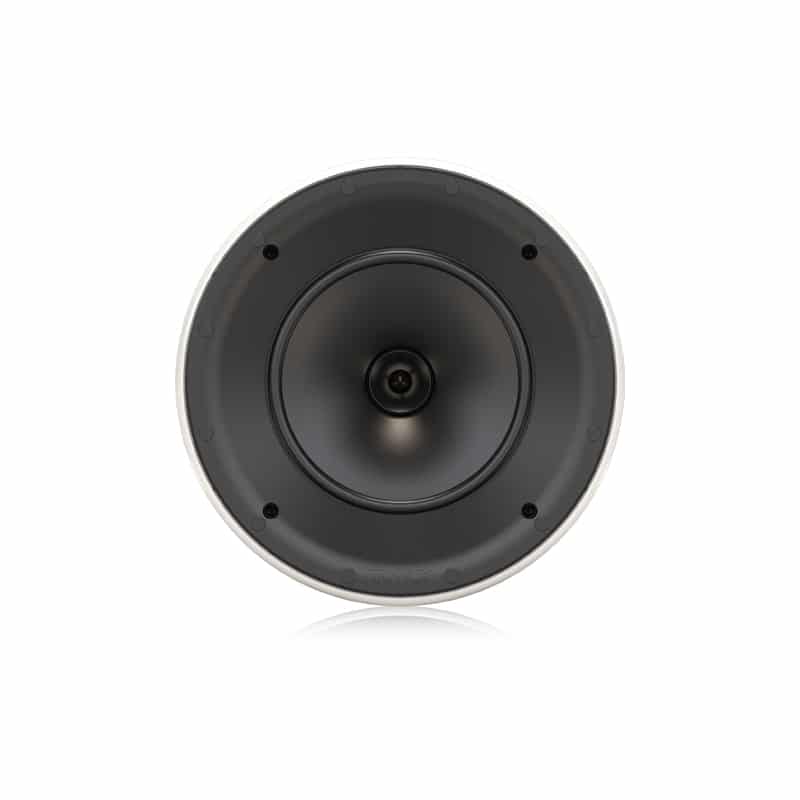

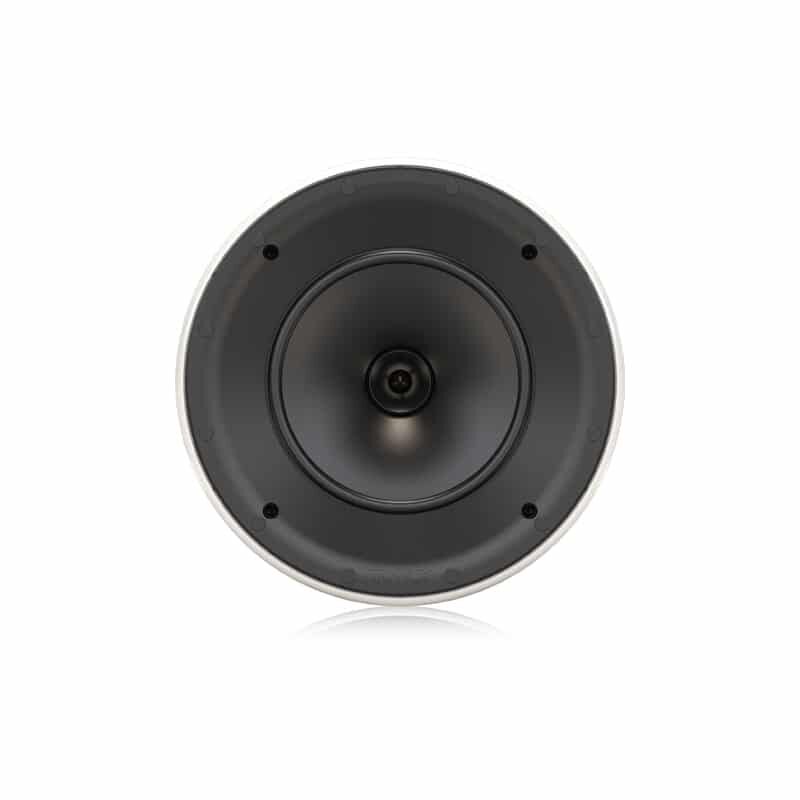

Designed and engineered it the UK, the full range QCI 8DC comprises a single 200mm (8.00”) driver with a glass fibre cone and high-excursion rubber surround. Capable of handling up to an impressive 320 Watts the QCI 8DC is capable of higher SPL and greater bass authority than its smaller variants whilst remaining extremely easy to drive and suitable for a wide variety of amplifiers and applications.

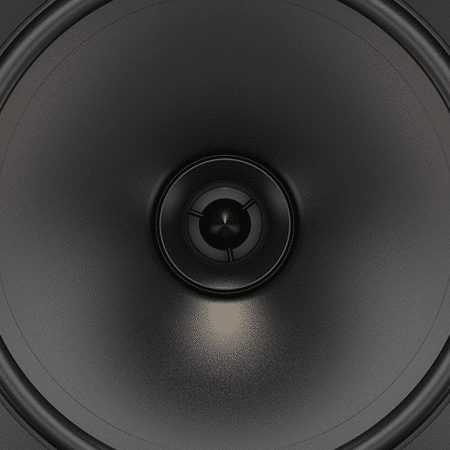

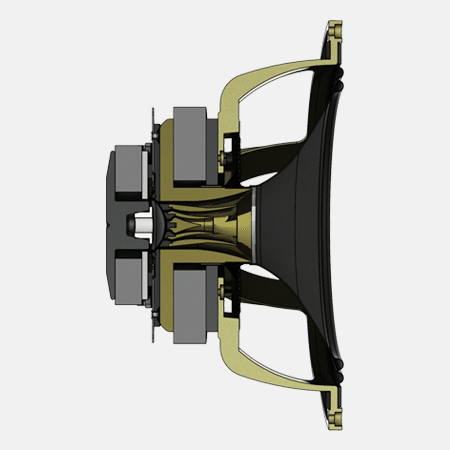

The QCI 8DC features our legendary and exclusive Tannoy Dual Concentric Driver with Omnimagnet technology. With over seven decades of continuous refinement, the Dual Concentric driver delivers a near-perfect point

Torus Ogive Waveguide

Performance is further enhanced by the implementation Tannoy’s highly innovative Torus Ogive Waveguide which allows rapid wavefront expansion further improving high frequency directivity for a remarkably focused image placement.

Beautifully Elegant

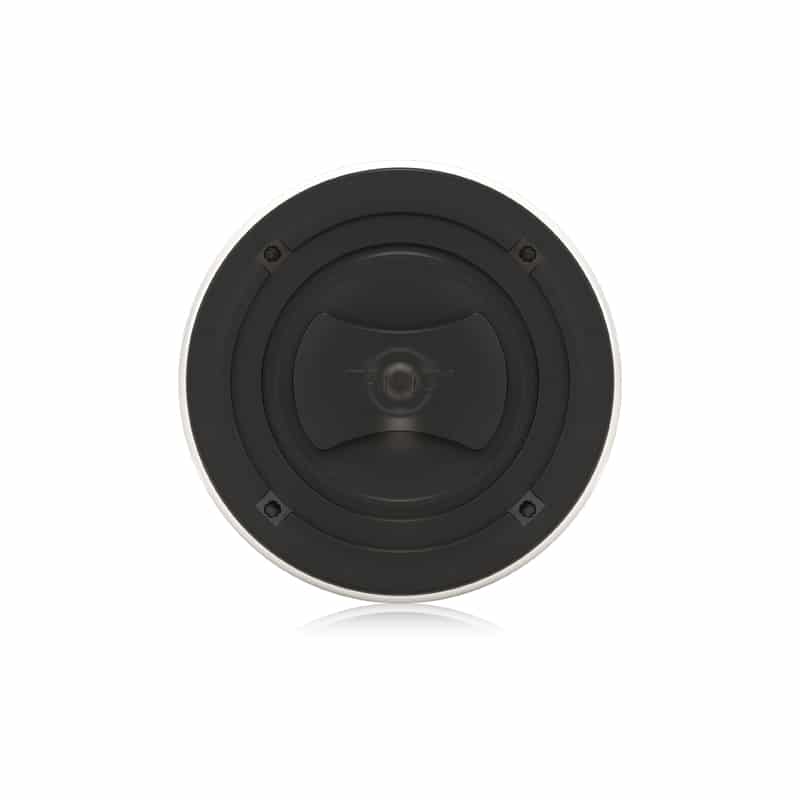

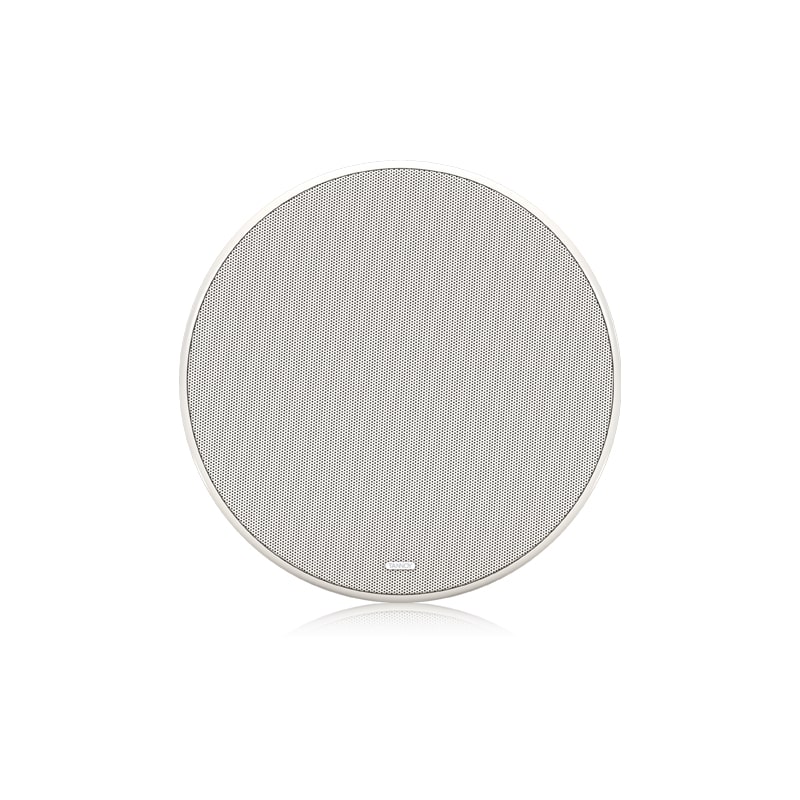

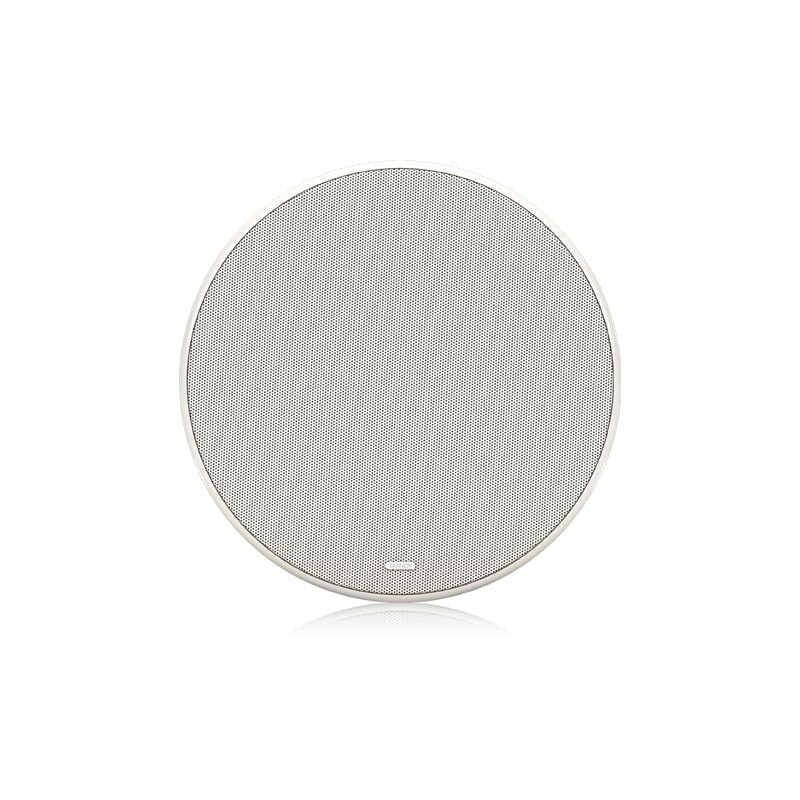

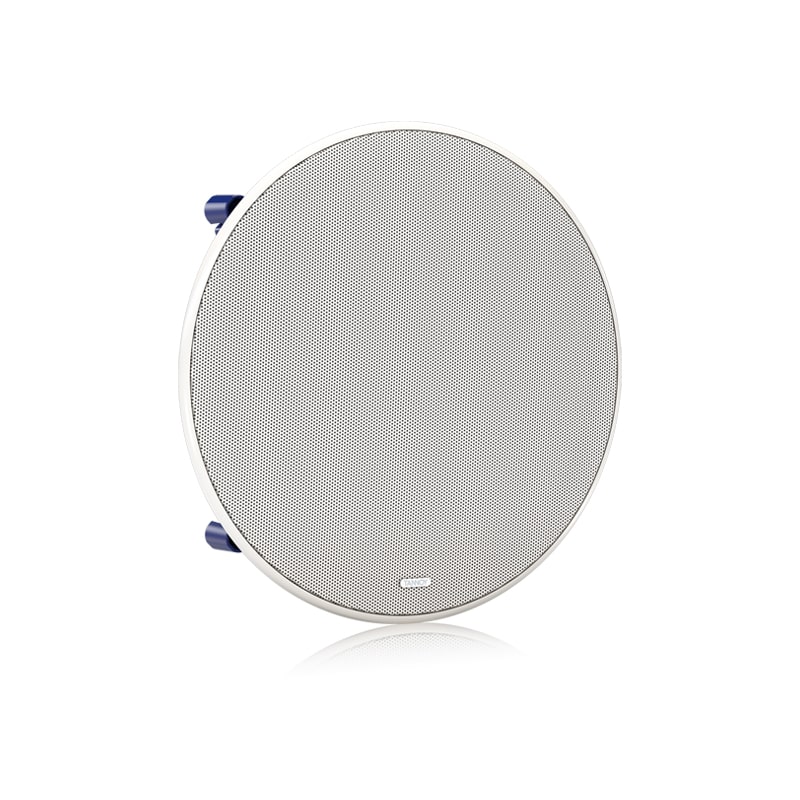

A powder-coated perforated UV resistant steel mesh grill protects from dust and can be removed and painted to match any décor. Unlike many in-ceiling loudspeakers QCI range has an extremely thin bezel for unobtrusive installation. Round and square baffles are included, an innovative self-aligning clamping system makes the single integrated unit easy to install.

คุณสมบัติ

  • High-performance loudspeaker for ceiling installation applications
  • 8″ Dual Concentric driver featuring Tannoy Omnimagnet technology
  • Torus Ogive waveguide for improved directivity
  • Polypropylene cone with rubber surround for high-excursion linearity
  • 80 Watts continuous, 320 Watts peak power
  • Extremely thin bezel for discreet installation
  • Includes round & square baffles for versatile applications

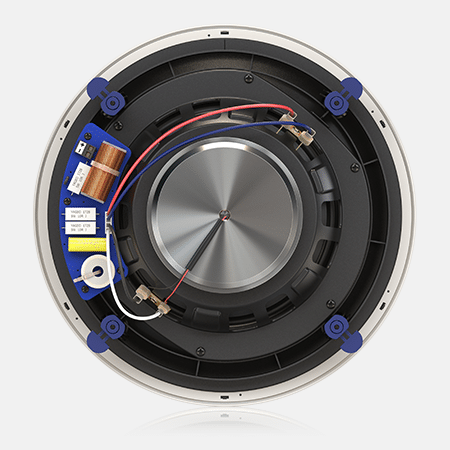

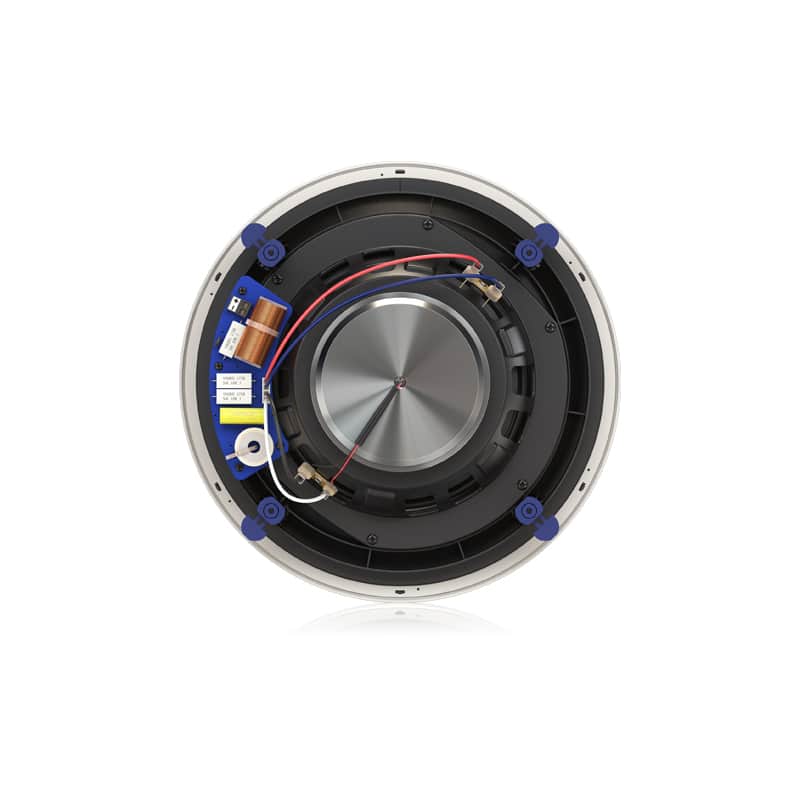

  • Integrated single unit construction for easy installation
  • Semi matt white finish fits unobtrusively in any environment
  • Powder coated UV resistant perforated steel mesh grilles with dust protection
  • Removable grilles for custom painting
  • Self-aligning clamp mounting system
  • Removable Tannoy grille badge
  • Tannoy – Over 90 years of British sound heritage and innovation
น้ำหนัก 3.9 กก.
ขนาด 143 × 290 × 290 มิลลิเมตร
ยี่ห้อ

สเปค

Performance

Frequency response (±3 dB) 35 Hz – 20 kHz
Frequency response (-10 dB) 25 Hz – 20 kHz
Sensitivity (1 W @ 1m) 87 dB
Directivity factor (Q) 6.8 averaged 1 kHz to 10 kHz
Directivity index (DI) 8.3 averaged 1 kHz to 10 kHz

Power handling (IEC)

Average 80 W
Programme 160 W
Peak 320 W
Recommended amplifier power 240 W @ 8 Ω
Nominal Impedance (Lo Z) 8 Ω
Rated maximum SPL (1 m, Lo Z) 109 dB
Average 106 dB
Peak 112 dB
Crossover point 1.6 kHz

Coverage angles

500 Hz 180° horizontal, 180° vertical
1 kHz 117° horizontal, 117° vertical
2 kHz 108° horizontal, 108° vertical
4 kHz 121° horizontal, 121° vertical

Transducers

Low frequency diameter/ material/type 219 mm (8″)
High frequency diameter/ material/type 25.4 mm (1″)

Physical

Back can Option 1 (BACK CAN S): Steel, with powder coating Option 2 (BACK CAN C1): High density expandable polystyrene (EPS)
Baffle Refl ex loaded UL94 V-0 rated ABS
Grille Steel, with weather resistant coating
Clamping design Security toggle clamp
Connectors Phoenix Contact terminal block
Dimensions (HxWxD) 290 x 290 x 114 mm (11.4 x 11.4 x 4.5″)
Bezel dimensions Circular: φ289 mm (11.4″)

Square: 290 x 290 mm (11.4 x 11.4″)

Mounting depth 106 mm (4.2″)
Hole cutout dimensions φ250 mm (9.8″)
Net weight 3.1 kg (6.8 lbs)
Packed quantity 1
Included accessories Square grille, square baffl e, circular grille, circular baffl e, circular paint mask, square paint mask, cutout template, screw
Optional accessories Option 1: BACK CAN S

Option 2: BACK CAN C1

Option 3: PMK 8
