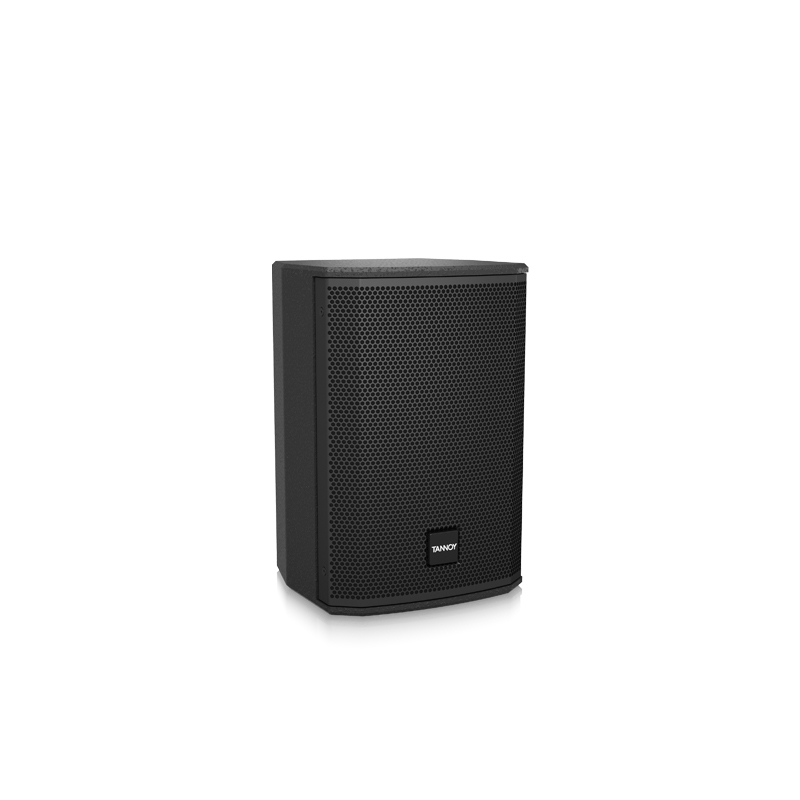

ตู้ลำโพง TANNOY VX 6 ขนาด 6 นิ้ว 400 วัตต์ แบบ Dual Concentric 6″ Dual Concentric Full Range Loudspeaker จากยี่ห้อ TANNOY

VX 6

The VX VX 6 may be one of the smaller Dual Concentric full range loudspeakers in the VX range, but it boasts an exceptional performance-to-size ratio. VX 6 provides a compact, yet punchy and sonically articulate solution for small-scale performance sound reinforcement, as well as more demanding background music and high-intelligibility speech applications where clarity and natural vocal reproduction are paramount. The VX 6 is also ideally suited for use complimenting much larger systems, making it an excellent choice for both installed and portable applications.

Dual Concentric Driver

The 400-Watt 150 mm (6″) version of TANNOY’s VX Series point source loudspeakers, VX 6’s constant directivity Dual Concentric drive unit technology ensures high power output with high sensitivity and exceptional efficiency. VX 6 delivers precise 90º dispersion for optimum coverage with exceptional forward gain.

Performance Applications

VX 6’s trapezoidal enclosure design provides a multitude of placement options including: small scale FOH, floor monitor, delay and stage front fill deployment, and more. A blanking plate for optional VTH pole mounting is provided for placement atop a subwoofer in small-scale portable PA applications. An extensive range of optional VX 6 high performance steel mounting hardware (available separately) includes a horizontal yoke bracket, and Omnimount spaced inserts for wall and ceiling installation. All hardware has been tested and certified for a greater than 5:1 safety ratio – giving installers complete peace of mind.

Construction

Finished in a hard wearing semi matt white paint, the vented and internally braced cabinet is constructed from 12 mm (½”) plywood – and includes a rugged powder coated perforated steel mesh grille. The rear panel connector plate carries Neutrik speakON NL4 and barrier strip connectors for input and link connections to additional enclosures. VX 6 loudspeakers are optimized for use with LAB GRUPPEN amplifiers, or LAKE LM Series controllers. A full range of DSP settings to suit many configurations are provided for free download at tannoy.com.

• Full range multi-purpose sound reinforcement loudspeaker for portable and installation applications
• 100 Watts continuous, 400 Watts peak power
• 6″ Dual Concentric full range driver for point source phase coherence
• Precise 90° dispersion for optimum coverage and forward projection
• Ideal for FOH, floor monitor, delay and stage front fill applications
• Vented and internally braced plywood enclosure
• Finished with hard wearing semi matt white paint
• Rugged powder coated perforated steel mesh grille
• Blanking plate for optional VTH pole mount
• Optional horizontal mounting yoke (available separately)
• Neutrik speakON* NL4 and barrier strip connectors for input and link output
• Designed and engineered in the U.K.
